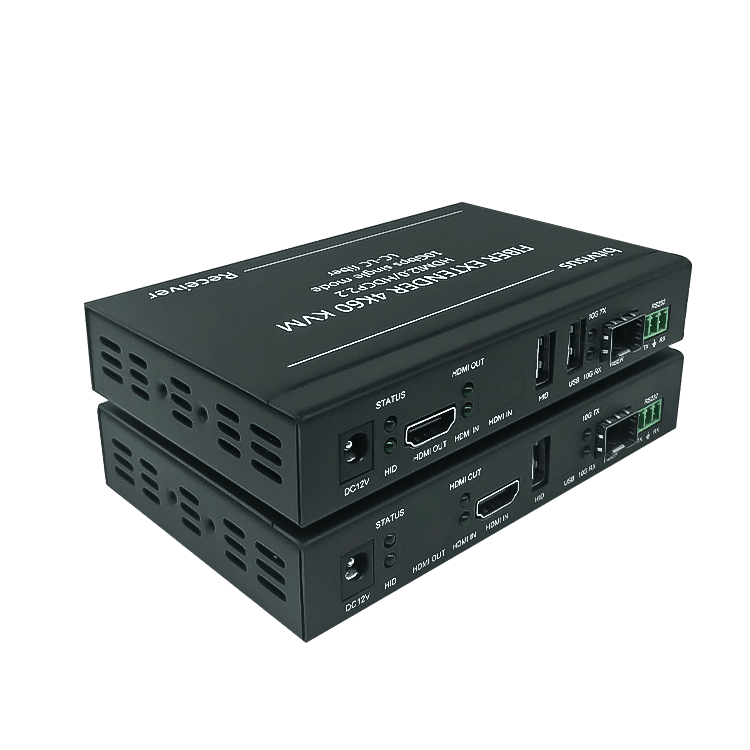

4Kx2K HDMI KVM Extender USB Extender Over Fiber 10km HDMI to Fiber Converter RS232 HDCP

4Kx2K HDMI KVM Extender USB Extender Over Fiber 10km HDMI to Fiber Converter RS232 HDCP

$269.00 USD
$269.00 USD
Sale Sold out
Tax included.
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

📌Support Up to 4K30Hz 4K*2K Video Signal. HDMI to Fiber Optic Converter.

📌Extend up to 10km for 4K resolution with Single-mode single-core/dual-core fiber.  Multimode fiber can extend 300m.

📌Stable and reliable performance. Support Power over Ethernet(POE)

📌Support USB 1.0, KVM extension function. HDMI 1.4 & HDCP 1.4, HDMI audio output.

📌Support RS232, Plug & play setup without any software installation.

Specification Details
Product name BIT-Ex-Fib-4K-KVM
Input TX: HDMI1.4, RS232 Signal
RX: LC-LC Single-mode/Multi-mode Fiber
Output TX: LC-LC Single-mode/Multi-mode Fiber
RX: HDMI1.4 (≤5m), RS232 Signal
Audio
 Audio via HDMI
Resolution Support 4K30Hz downwards compatible
Signal Format Supports various common resolutions and VESA, HDTV standard signals
Color Space RGB 4:4:4
Pixel Clock 297MHz
Transmission Bandwidth 10.2Gbps
Transmission Distance Single-mode: 10KM Multi-mode: 300M
KVM USB1.0, Keyboard and Mouse
CEC Supported
Interface Protocol HDMI1.4, HDCP1.4, DVI1.0, VGA compatible
Power supply DC 12V@2A
Power 7w
Weight 500g
Size 135mm*85mm*25mm
Warranty 1 Year
