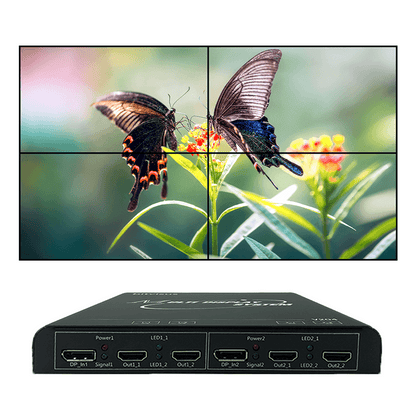

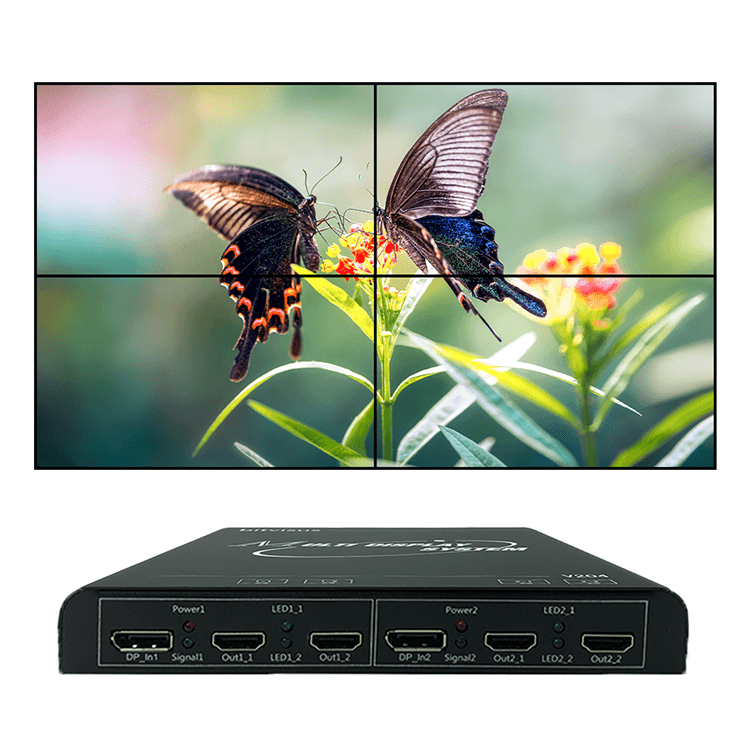

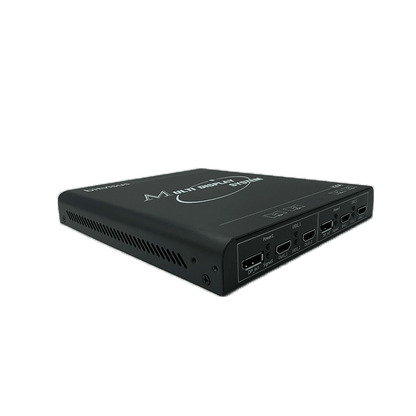

BIT-MSE-8K-204HD 8K30Hz 4K60Hz 2x2 1x4 1x3 1x2 Video Wall Controller Projection Edge Blending Processor HDMI/DP 2 Input 4 Out

BIT-MSE-8K-204HD 8K30Hz 4K60Hz 2x2 1x4 1x3 1x2 Video Wall Controller Projection Edge Blending Processor HDMI/DP 2 Input 4 Out

Regular price $350.00 USD
Regular price Sale price $350.00 USD
Sale Sold out
Plug Type
Request Quote

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

📌Professional Video Wall Controller/Projection Fusion System. No need to set up, no stretching, no deformation. Support EDID burning and custom resolution.

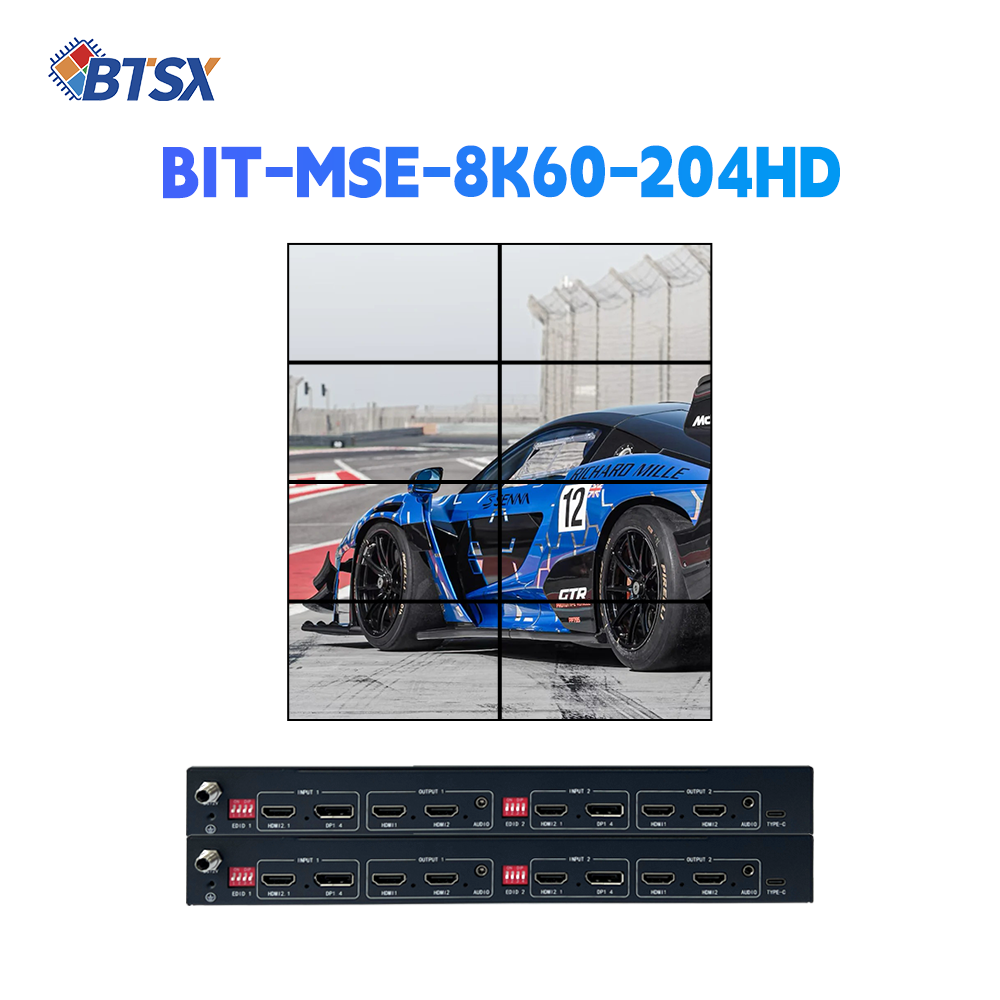

📌2*DP1.2 Inputs, 4*HDMI1.4 outputs support 11 display modes(1x2, 1x3, 1x4, 2x2).

📌Resolution up to 8K, 1x8 resolution is 15360x1200@30Hz, 2x2 resolution is 7680x4320@30Hz. Backward compatible with lower resolutions.

📌28nm High-end programmable FPGA chip, full hardware real-time processing architecture, switching mode without delay.

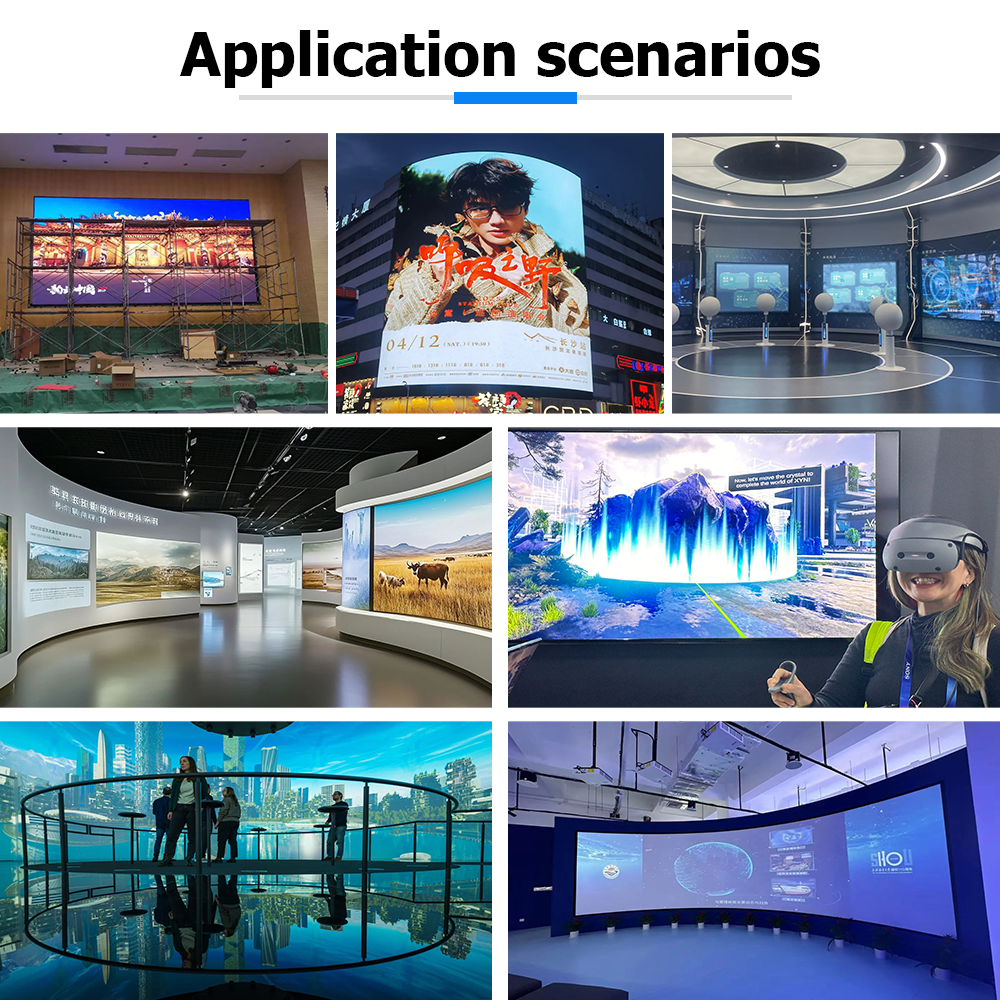

📌Typical application includes Conference system, Commercial display, Exhibition Hall, Immersive room, Interactive projection, Digital Classroom, and Live stream.

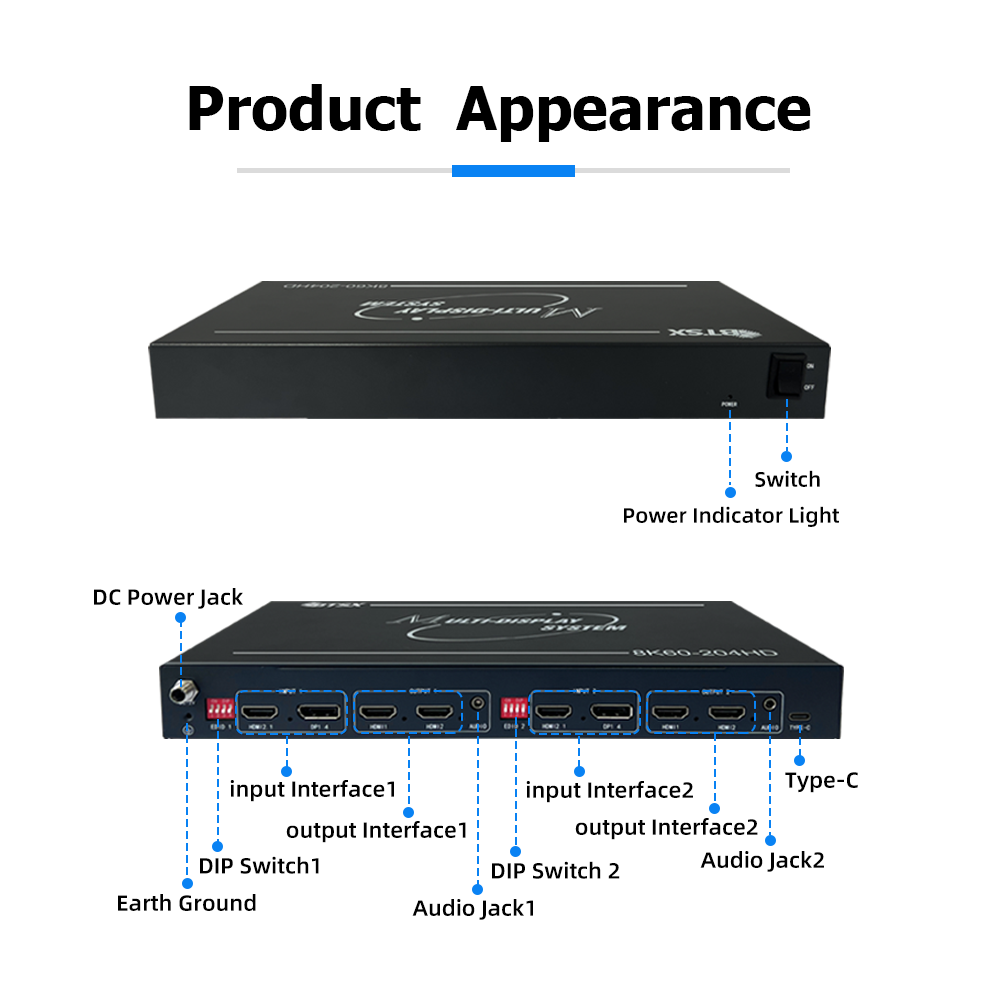

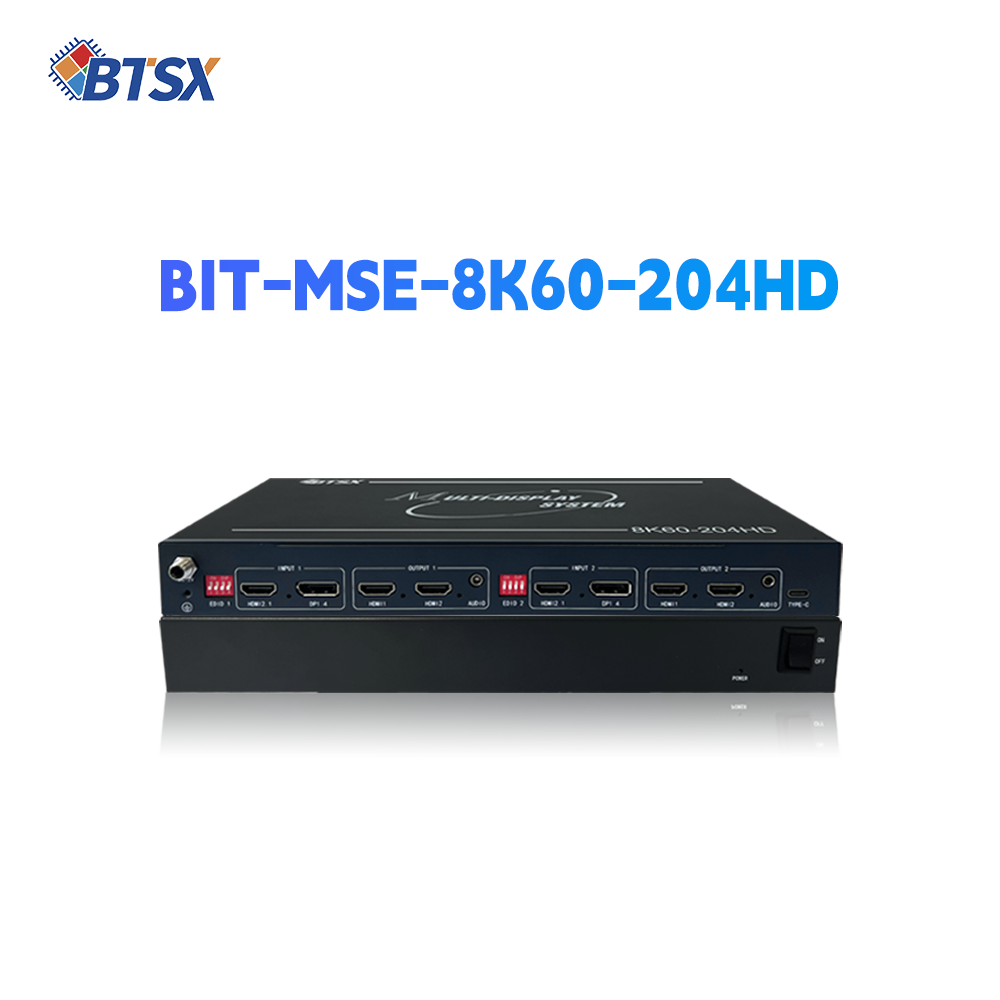

Product Name BIT-MSE-8K-204HD
Input Signal 2*DP1.2
Output Signal 4*HDMI1.4
Input Max Pixel Clock Rate 600MHz
Output Max Pixel Clock Rate 300MHz
2 Screens Support Typical Resolution 3840x1200@60Hz 3840x1080@60Hz
2048x768@60Hz 2x1280x720@60Hz
Factory Default Resolution 3840x2160@60Hz
2x2 Max Supported Resolution 7680x4320@60Hz
1x2 Max Support Resolution 7680x2160@30Hz
1x3 Max Support Resolution 11520x2160@30Hz
1x4 Max Support Resolution 15360x2160@30Hz
Hot Plugging
Power-off Memory
Output Distance 15m
Size(L*W*H) 186mm*204mm*29mm
Weight 2kg
Power supply 12V@2A AC-DC
