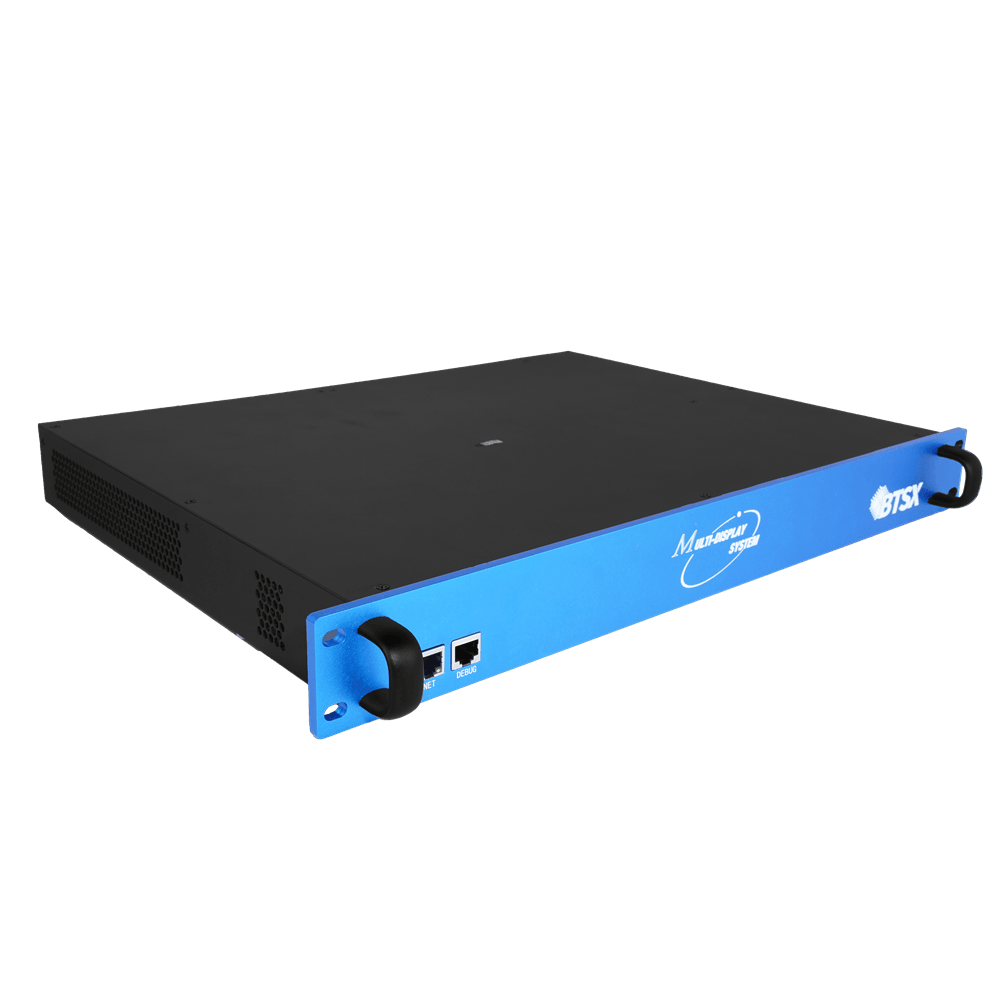

BIT-MSE-U1-416 1U 8Kx4K 2x8 8x2 3x5 5x3 2x7 7x2 4x4 2x5 5x2 Video Wall Controller Processor Multi-projector Processor

BIT-MSE-U1-416 1U 8Kx4K 2x8 8x2 3x5 5x3 2x7 7x2 4x4 2x5 5x2 Video Wall Controller Processor Multi-projector Processor

Regular price $1,500.00 USD
Regular price Sale price $1,500.00 USD
Sale Sold out
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right-corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

📌Standard 1U chassis, industrial grade video wall controller processor, plug and play, thickened shell, stable performance, 24/7 continuous work no need to restart.

📌4*HDMI 2.0/ 4*DP 1.2 Inputs, 14*HDMI 1.3 outputs, Support video wall solutions up to 16 screens(2x8 8x2 3x5 5x3 2x7 7x2 4x4 2x5 5x2 3x3 3x4 4x3 etc. ). Up to connect 16 projectors.

📌Display resolution support UP to 8Kx4K@60Hz. Input resolution up to 4K@60Hz. Single Output Support 1920x1080@60Hz

📌High-end programmable FPGA chip. Modular standard chassis video wall controller with customizable number of input and output interfaces as needed

📌Typical application includes exhibition hall, indoor advertising, digital signage, commercial display, control room display, Immersive room, and interactive touch video wall & projection.

Product Name BIT-MSE-U1-416
Input interfaces 4*DP 1.2, 4*HDMI 2.0
Output interfaces 16*HDMI 1.3
HDCP Support HDCP 2.2
Other interfaces 1 RJ45 network port
1 RJ45 debugging port (RS232)
Input Max Pixel Clock Rate 600MHz
Output Max Pixel Clock Rate 300MHz
4x4 Max Support Resolution
7680x4320@60Hz
7x2/2x7 Max Support Resolution 3840x7560@60Hz, 13440x2160@60Hz
5x3/3x5 Max Support Resolution 5760x5400@30Hz, 9600x3240@30Hz
5x2/2x5 Max Support Resolution 3840x5400@60Hz, 9600x2160@60Hz
1x16 Max Support Resolution 30720x1080@60Hz
1x5 Max Support Resolution 9600x1080@60Hz
1x7 Max Support Resolution 13440x1080@60Hz
Hot Plugging
Power-off Memory
Support Custom Resolution
Size(L*W*H) 480mm*360mm*52mm
Weight 6kg
Power 80W
Power supply 100~240V
