BIT-VP-U1-IC409Pro 4K60Hz 4x9 HDMI DP Video Wall Controller Matrix Processor Splitter Rotation PIP Remote Control RS232

BIT-VP-U1-IC409Pro 4K60Hz 4x9 HDMI DP Video Wall Controller Matrix Processor Splitter Rotation PIP Remote Control RS232

Regular price $480.00 USD
Regular price Sale price $480.00 USD
Sale Sold out
Plug Type
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

📌【Exceptional 4K UHD Resolution】Equipped with advanced technology, supporting 4*HDMI, 2*DP, effortlessly achieving synchronous playback of 4x4K60 input sources. With 9 HDMI outputs, it guarantees true RGB4:4:4 color display, uncompressed transmission, and genuine image restoration. Various video wall splicing solutions like 1xN, Nx1, 4x1, 1x6, 2x3, 2x4, 3x3, and even 8K video walls cater to all your needs.

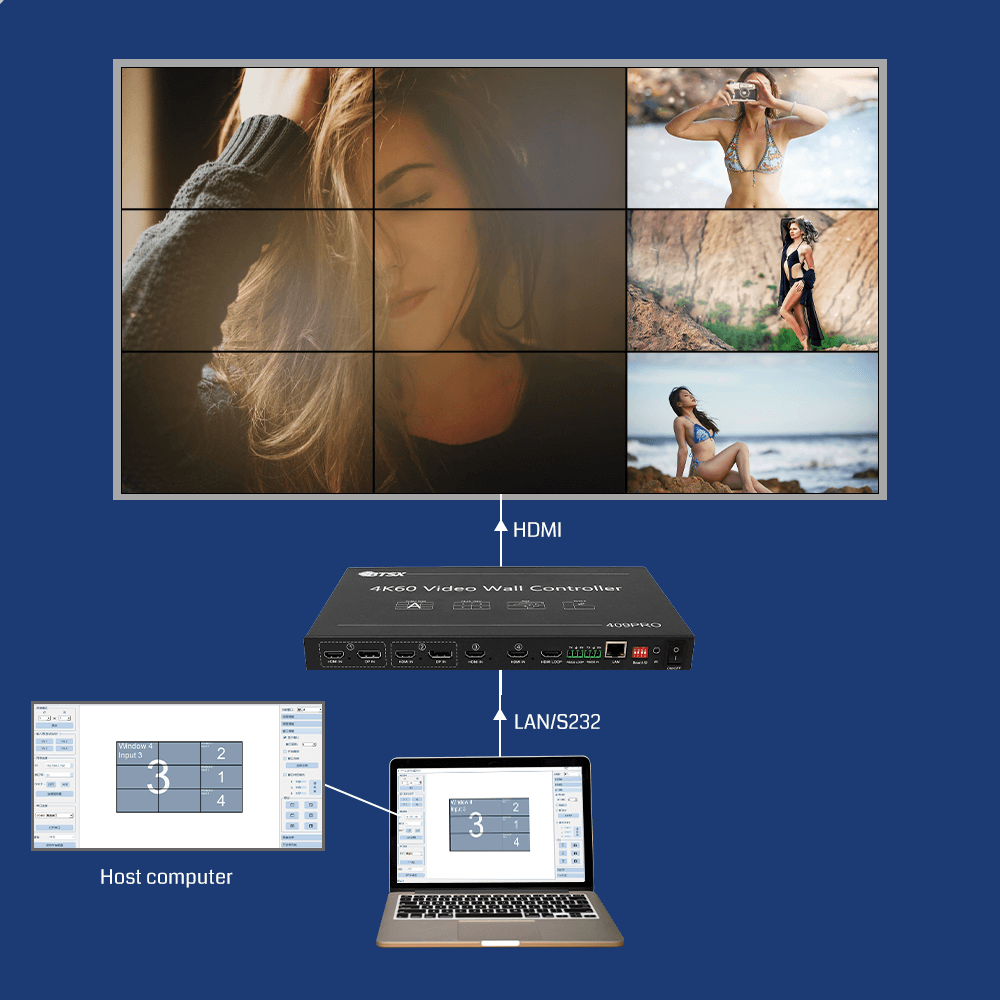

📌【Multifunctional Integrated Design】Seamlessly switch between four 4K UHD input sources, easily transforming into a 4-input 4K60 HDMI matrix. Equipped with PC software and a remote control for one-click switching, ensuring simple and convenient operation.

📌【Innovative Large Screen Splitting】In video wall mode, flexibly use the multiview feature screen splitter, displaying four input sources simultaneously. Supports picture-in-picture mode, with freely adjustable window size and position, and intuitive input source switching.

📌【Perfect Display Adjustment】Supports input image rotation of 90, 180, and 270 degrees. Freely adjust brightness, contrast, saturation, and hue to provide the best display for different scenarios.

📌【Wide Application Scenarios】Suitable for business displays, multimedia classrooms, conference rooms, mall advertising displays, exhibition shows, and more, meeting all your diverse needs.

Product name BIT-VP-IC409PRO
Input Max Pixel Clock Rate 600MHz
Input Interface 4xHDMI2.0,2xDP1.3
HDCP HDCP 2.2
Output Interface 9xHDMI1.3 1xHDMI loop out
Output Max Pixel Clock Rate 165MHz
Single Output Screen Max. Resolution 1920*1080@60Hz
Color depth 24bit
Color Space 4:4:4
Audio Output 3.5 mm headphone jack
Function
Rotation 90/180/270 degrees
Control Method Remote control, RS232, Web control via PC
Video Wall Splicing mode All splicing modes within 9 screens
Multi-view Mode 4 modes (Left & Right/ Up & Down/One large and three small)
PIP Mode Support window custom size
Specification
Operating Temperature 0~80ºC
Power Rating 36W
Power supply 12V@5A AC-DC
Weight 1kg
Size 290mm*184mm*28mm
Annex One DP Cable
One 12V@2A AC-DC
One remote control
Power Supply 12V@2A AC-DC
