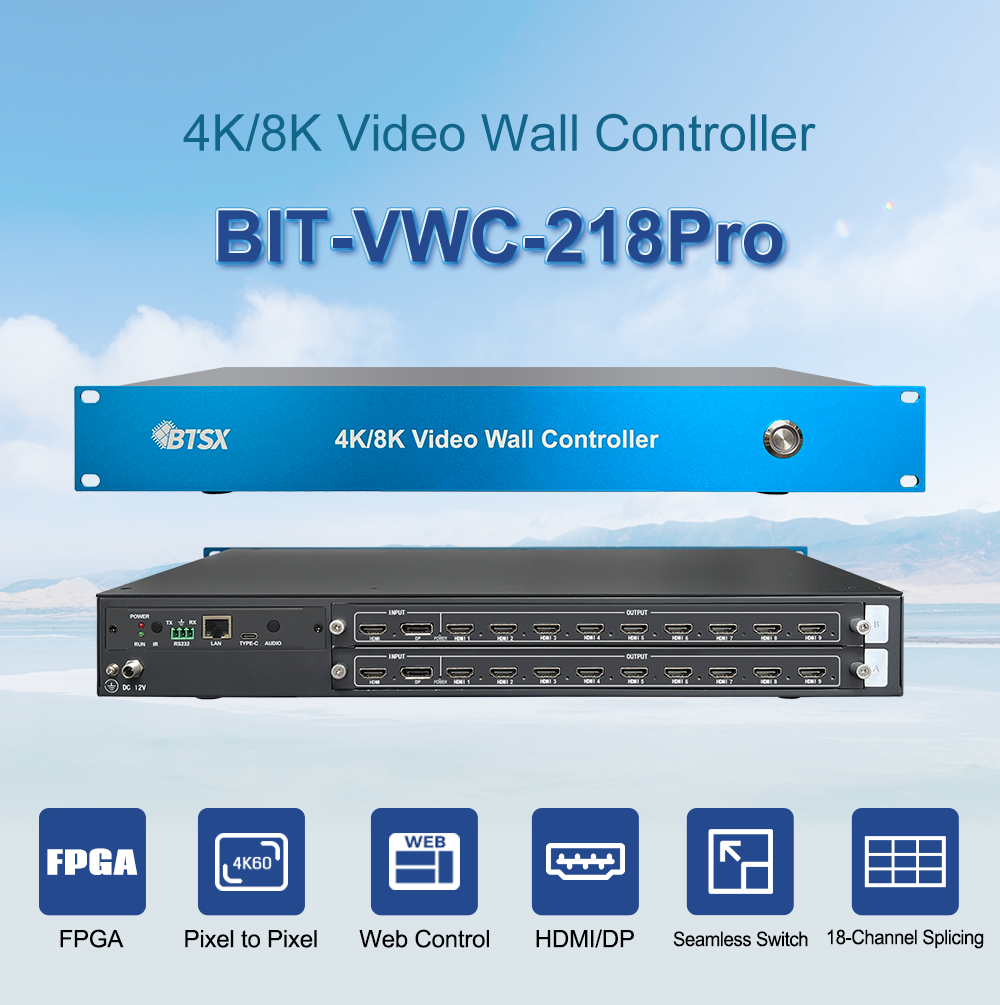

BIT-VWC-218Pro 4K60 Video Wall Controller: A 2×18 HDMI FPGA Processor for Command Centers & Immersive Displays

The BIT-VWC-218Pro is a modular 4K60 video wall controller built on a high-end 28nm FPGA with a fully hardware-based, real-time processing architecture. It accepts up to two 4K60 input channels—selectable HDMI 2.0 or DisplayPort 1.2—and drives up to 18 independent HDMI outputs for M×N point-to-point video wall splicing without stretching or deformation. Engineered for control rooms, command centers, immersive exhibition halls, and large-scale LCD/LED multi-screen displays, it delivers the synchronization, switching, and 24/7 reliability that professional AV deployments demand.

In this guide we cover what the BIT-VWC-218Pro is, how its 2-in 18-out architecture works, the supported splicing layouts, and where it fits best—so you can decide quickly whether it matches your installation.

BIT-VWC-218Pro at a Glance

Inputs	2× HDMI 2.0 + 2× DP 1.2 (max 4096×2160@60, 600MHz pixel clock)
Outputs	18× HDMI (up to 1920×1200@60)
Splicing	M×N (M,N≤18, MN≤18) point-to-point
Switching	Seamless, between 2 input sources
Processing	28nm FPGA, fully hardware real-time
Control	Web, RS232, HDMI-CEC, open API
Reliability	24/7 duty, 16KV ESD, 6-layer PCB

What Is a 2×18 Video Wall Controller?

A "2-in 18-out" video wall controller means the device takes two independent 4K60 source channels and feeds up to 18 synchronized display outputs. Each output renders its exact assigned portion of the source image—a technique called point-to-point splicing. Unlike scaling a single signal across a wall (which stretches and blurs content), point-to-point mapping keeps every pixel sharp and correctly positioned, so text, schematics, and video stay legible across the entire array.

Key Features of the BIT-VWC-218Pro

2-Channel 4K60 Input

Two HDMI 2.0 and two DP 1.2 input ports accept a maximum input of 4096×2160@60 with a 600MHz pixel clock. The unit prioritizes HDMI for the highest resolution and broadest source compatibility.

18-Channel HDMI Output

Eighteen HDMI outputs deliver resolutions up to 1920×1200@60, with 1080P60, 1440×900, 1280×800, 720P60, and 1024×768 also supported—each channel flexibly adjustable to the connected display.

M×N Point-to-Point Splicing

Supports M×N layouts (M,N≤18, MN≤18) with no stretching or deformation. A single input source can drive splicing across all 18 display devices.

Seamless Source Switching

Switch between two input sources without blurring, black frames, or interruption for a smooth, continuous viewing experience.

Ultra-High-Resolution Desktop

Pair the controller with an independent graphics card running 2-channel Surround or Mosaic mode to build a super-high-resolution desktop that spans the entire video wall.

All-Output Synchronization

All output ports are synchronized to fundamentally eliminate screen tearing, stuttering, and unsynchronized multi-screen playback.

Bezel Correction & 180° Rotation

Each output channel can be independently fine-tuned to compensate for screen-border occlusion and installation misalignment. First-row 180° rotation auto-corrects inverted displays for the narrowest physical seam.

Output Replication & Hot Backup

Output channel replication turns idle interfaces into hot-backup resources, maximizing system reliability.

Flexible Multi-Platform Control

Web control runs in any browser (Windows, macOS, Linux, Android, iOS, HarmonyOS). RS232 docks with central control systems; HDMI-CEC powers displays on/off with one click; DHCP/static IP, network wake-up, and an open API enable secondary development.

Professional Audio Routing

HDMI audio is output synchronously, plus an independent 3.5mm audio separation port for flexible audio routing.

Industrial-Grade Reliability

A thickened 6-layer PCB with 16KV ESD protection, over-temperature protection, and an anti-interference design supports stable 24/7 operation.

Supported Splicing Layouts

Layout (M×N)	Total Screens	Typical Use
1×1 to 1×18 / 18×1	up to 18	Single-row ribbon walls, corridors
2×9	18	Wide panoramic signage
3×6	18	Balanced control-room video walls
4×4	16	Command centers, meeting walls
6×3	18	Scoreboards, broadcast studios
9×2	18	Ultra-wide advertising walls

How M×N Point-to-Point Splicing Works

The FPGA captures each 4K60 input and splits it into the exact pixel regions assigned to every output. Because processing is done in dedicated hardware rather than software, there is zero perceivable latency and no frame drift between panels. Combined with all-output synchronization and per-channel bezel correction, the result is a single, seamless canvas—even when the physical displays have different sizes, bezels, or mounting angles.

BIT-VWC-218Pro vs. Software-Based Video Wall Processors

Capability	BIT-VWC-218Pro (FPGA)	PC / Software-Based
Processing path	Hardware real-time, 28nm FPGA	OS + GPU, software stack
Latency	Near-zero, deterministic	Variable, OS-dependent
Multi-screen sync	Hardware-locked, no tearing	Prone to drift
24/7 stability	Industrial design, ESD protected	Needs maintenance/reboots
Switching	Seamless, no black frame	May flash on source change

Ideal Applications

• Command & control centers—security, traffic, utility, and emergency operations.
• Immersive exhibition halls & projection fusion—multi-channel blended visuals.
• Broadcast and studio walls—synchronized, low-latency playback.
• Conference and meeting rooms—single-canvas presentations.
• Large advertising walls—retail, transit, and venue signage.
• LCD / LED multi-screen video walls—any fixed installation needing 24/7 uptime.

Technical Specifications

Model	BIT-VWC-218Pro
Input Ports	2× HDMI 2.0, 2× DP 1.2 (copper cable ≤3 m)
HDCP	HDCP 2.0
Max Input Pixel Clock	600 MHz
Max Input Resolution	4096×2160@60 (4K60)
Input Color Format	RGB444, YUV444, YUV422
Output Ports	18× HDMI 1.3 (copper cable ≤15 m)
Max Output Pixel Clock	165 MHz
Output Resolutions	1920×1200@60, 1920×1080@60, 1440×900@60, 1280×800@60, 1280×720@60, 1024×768@60
Color Depth	8 bit
Splicing Modes	M×N (M,N≤18, MN≤18): 1×1~18, 2×9, 3×6, 4×4, 6×3, 9×2, 18×1
Control Methods	Web control (browser), RS232, HDMI-CEC
Audio	HDMI audio output; independent 3.5mm audio separation output
Power Supply	DC 12V / 5A
Power Consumption	48W
Operating Temperature	0~50°C (storage -10~50°C)
Dimensions (L×W×H)	440 × 200 × 60 mm
Net Weight	3.5 kg
Warranty	1-Year Limited Warranty

Frequently Asked Questions

What is the maximum resolution supported by the BIT-VWC-218Pro?

Inputs accept up to 4096×2160@60 (4K60). Each of the 18 HDMI outputs supports up to 1920×1200@60, with several lower resolutions also available per channel.

How many displays can the BIT-VWC-218Pro drive?

Up to 18 HDMI displays in a single M×N array (M,N≤18, MN≤18), driven from one or two 4K60 input sources.

Does the BIT-VWC-218Pro support seamless switching?

Yes. It switches between two input sources without blurring, black frames, or interruption.

What control methods are supported?

Web browser control on Windows, macOS, Linux, Android, iOS, and HarmonyOS; RS232 central-control docking; HDMI-CEC for one-click display power; DHCP/static IP; network wake-up; and an open API for secondary development.

Is the BIT-VWC-218Pro suitable for 24/7 operation?

Yes. A thickened 6-layer PCB, 16KV ESD protection, over-temperature protection, and an anti-interference design support continuous duty in control rooms and public venues.

Can it correct for screen bezels and installation misalignment?

Yes. Every output channel is independently adjustable for bezel compensation and alignment, and the first row supports 180° rotation for the narrowest physical seam.

Get the BIT-VWC-218Pro for Your Video Wall

The BIT-VWC-218Pro pairs FPGA-grade synchronization with a flexible 2-in 18-out HDMI architecture—making it a strong fit for command centers, immersive exhibits, and large-scale signage that cannot afford downtime. View the full product page for documentation and downloads, or request a quote for project pricing.
