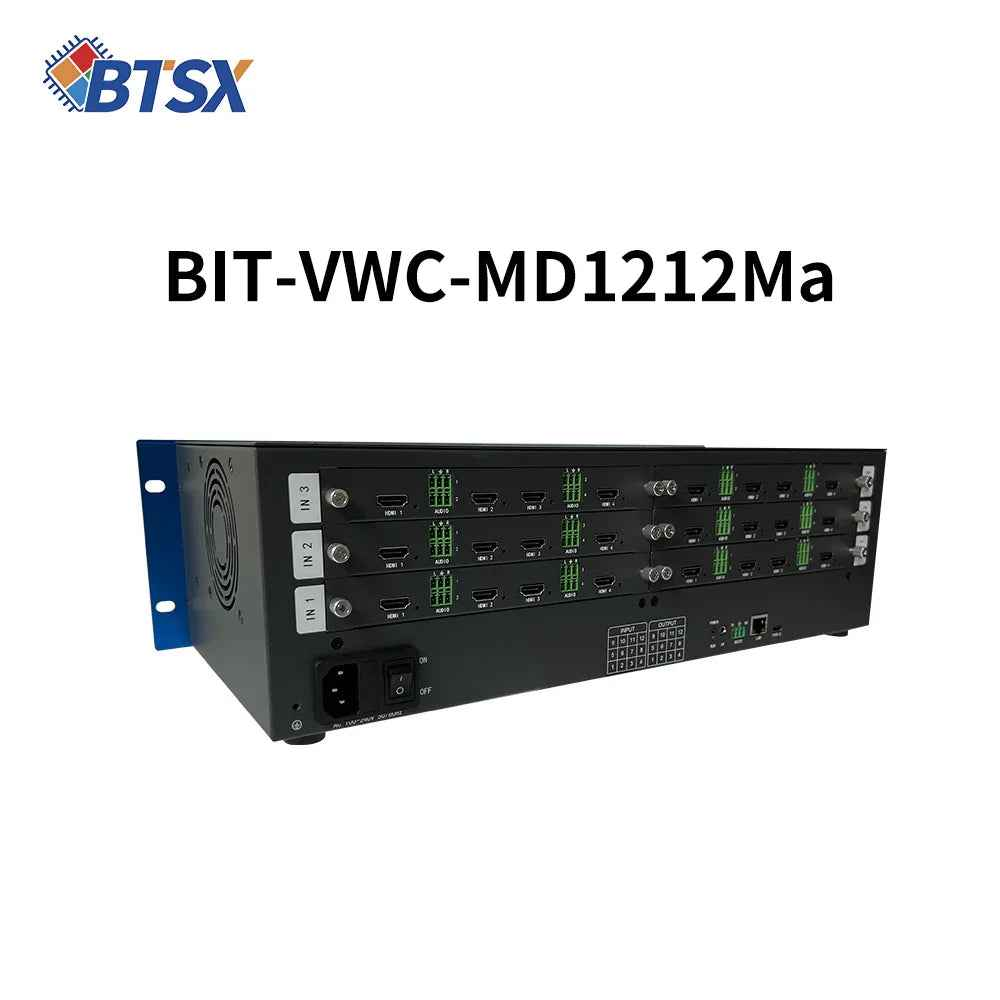

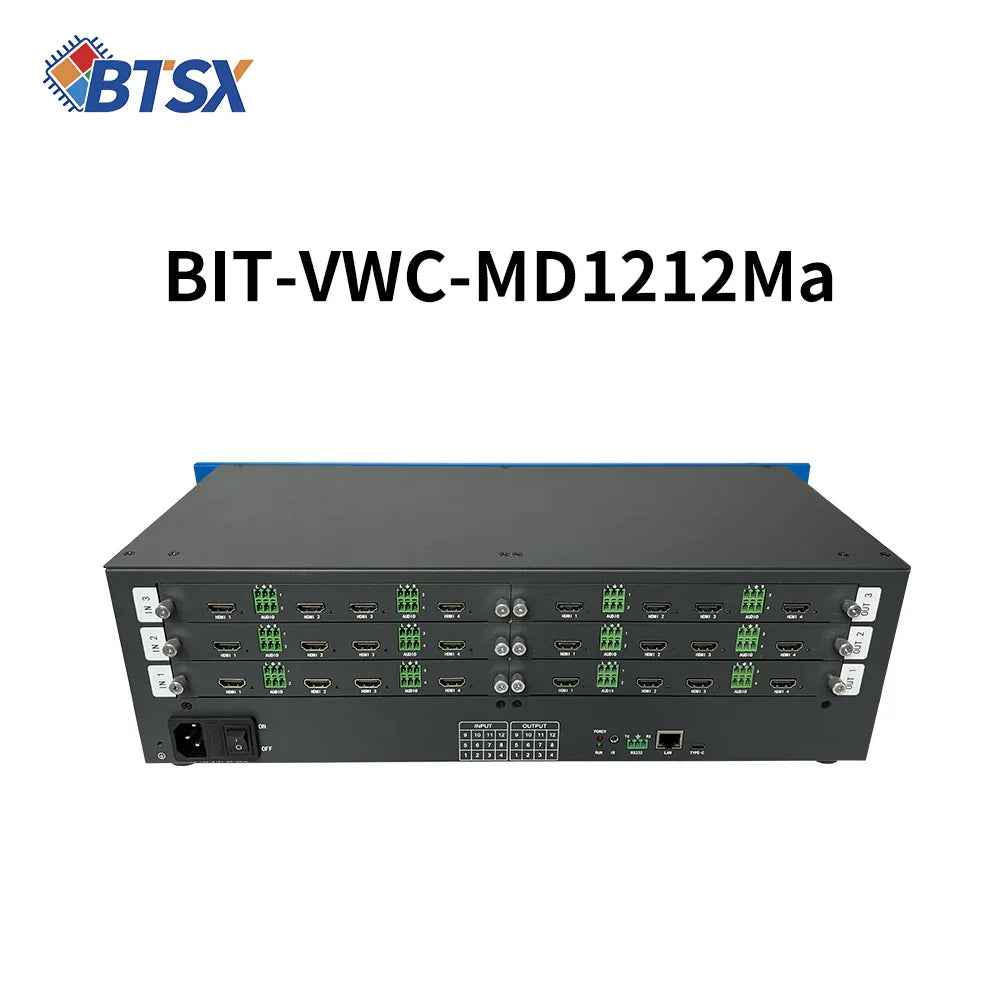

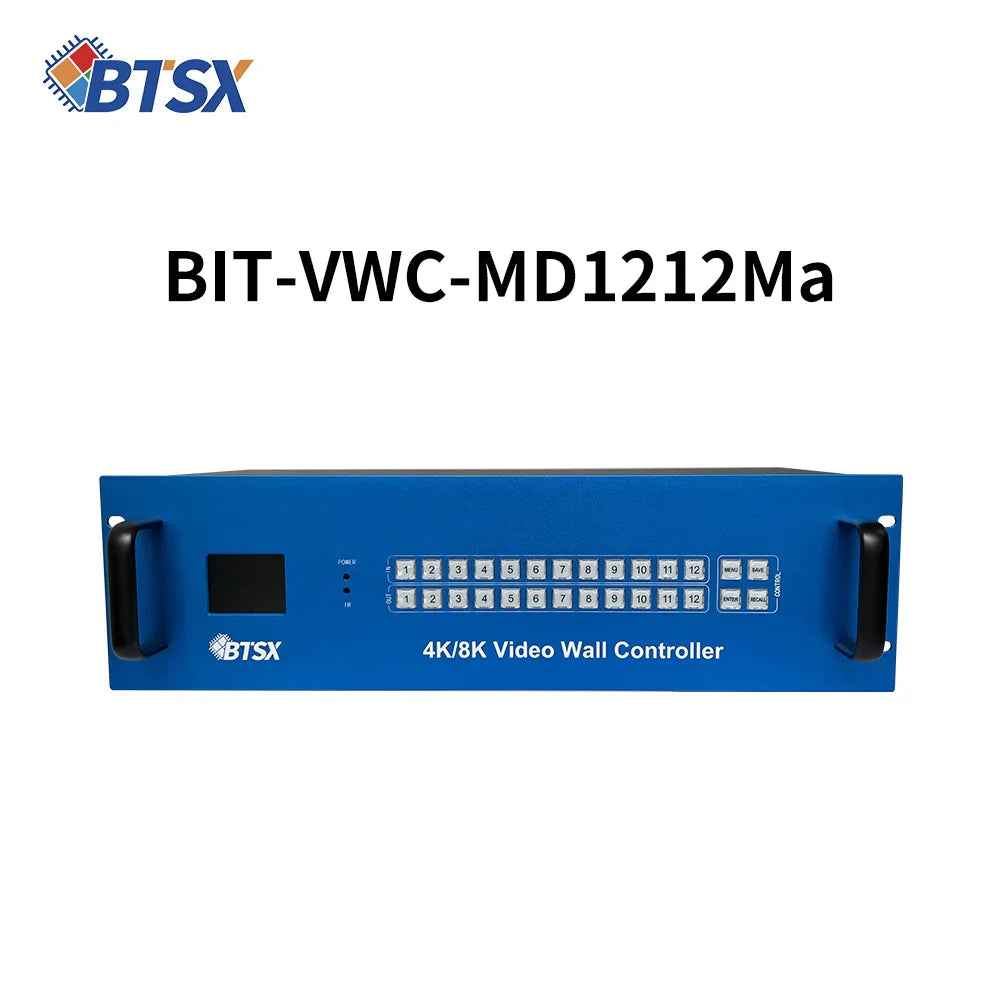

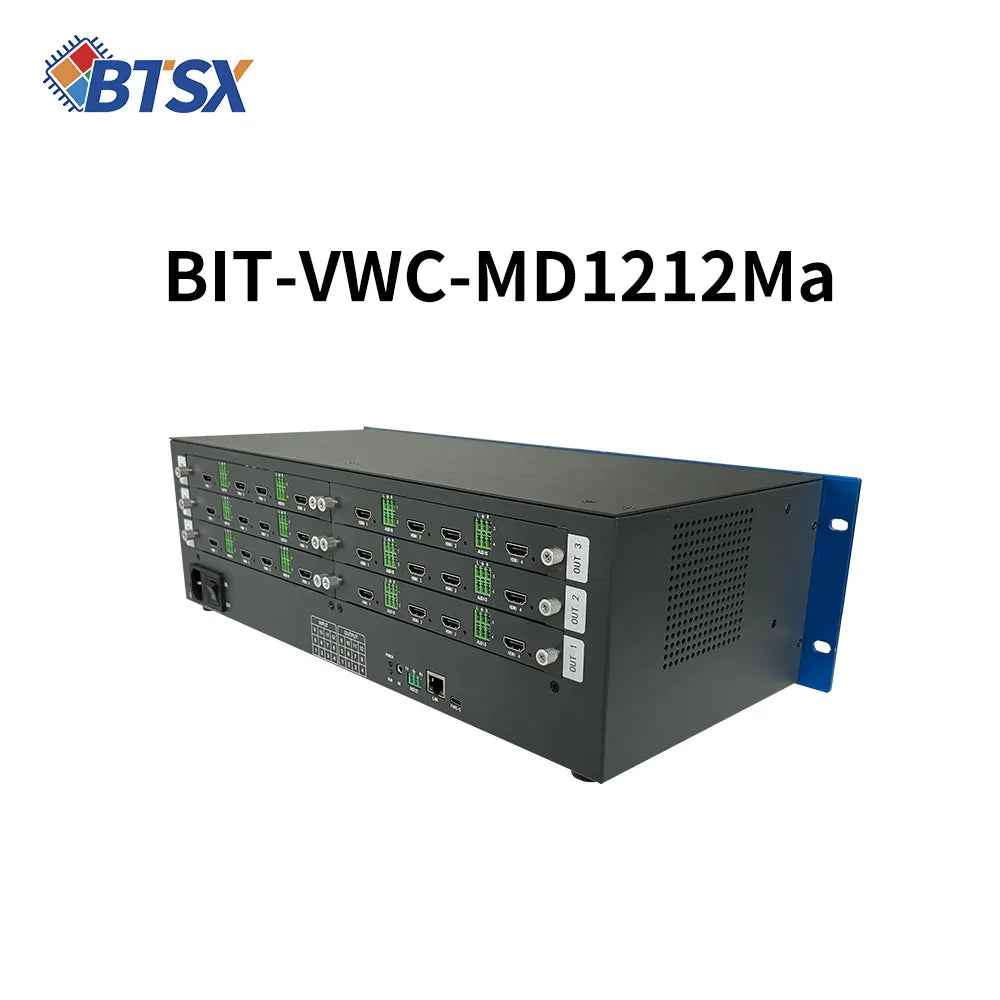

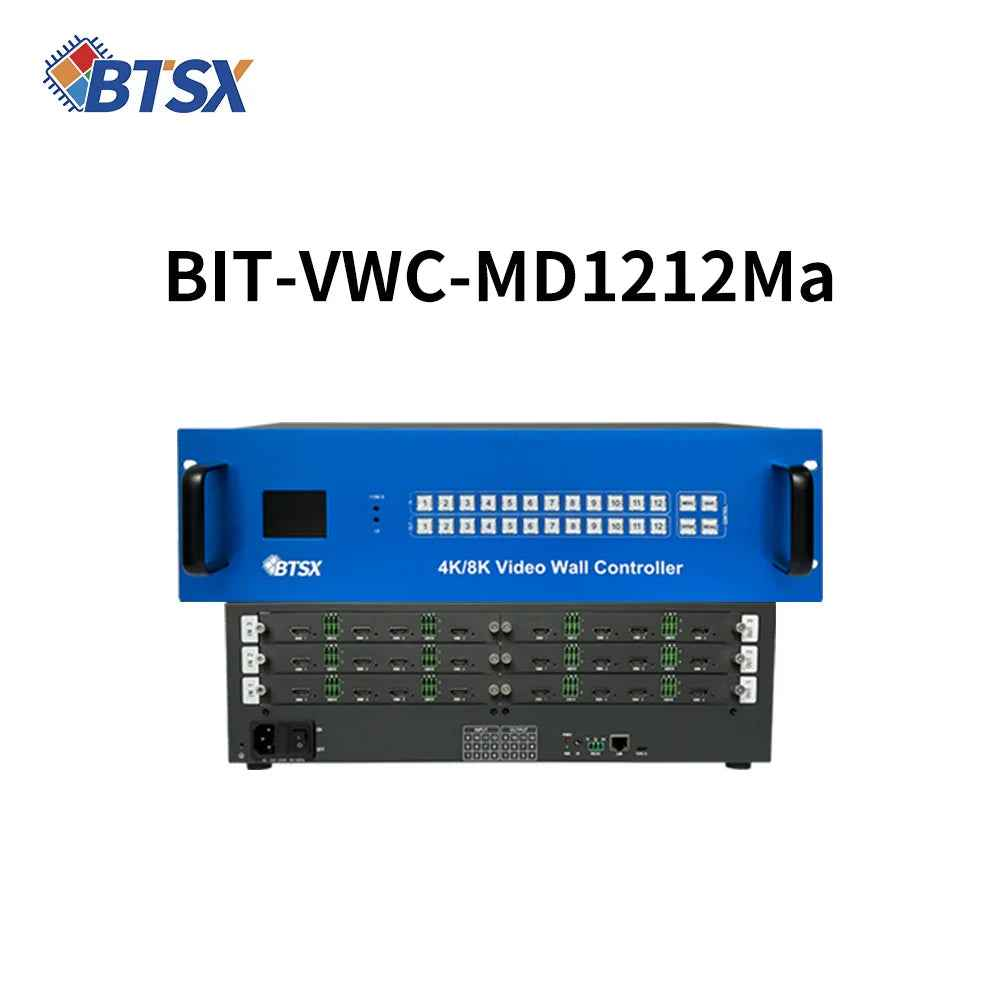

12x12 4K60 Seamless Video Wall Controller & Matrix Switcher

12x12 4K60 Seamless Video Wall Controller & Matrix Switcher

$2,515.00 USD
$2,515.00 USD
Sale Sold out
Tax included.
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right-corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

This advanced Video Wall Controller and HDMI Matrix Switcher is engineered to deliver unparalleled performance and flexibility for mission-critical display environments. It seamlessly manages a massive 12x12 matrix of 4K@60Hz signals via HDMI 2.0 interfaces, ensuring pristine high-resolution output for any application, from control rooms to digital signage.

1、Supports 12-channel 4K60HDMI2.0 input, 12-channel 4K60HDMI2.0 output, multiple input and multiple output, high resolution, to meet various application requirements.
2、Supports audio matrix, can provide external audio input, and can switch arbitrarily.

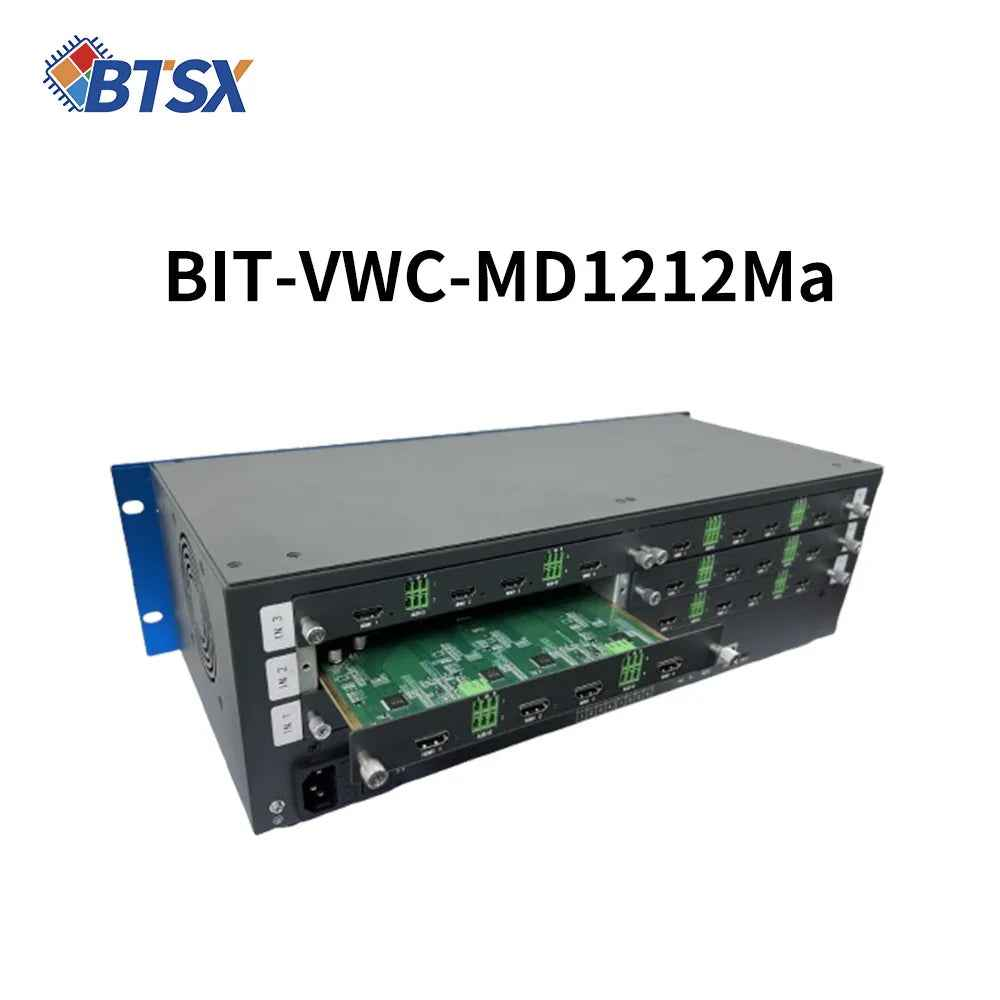

3、Plug-in chassis structure, 1 board 4-way output\input, input\output can choose 1-3 boards.
4、Supports keypad, RS232, network WEB, network API interface control, can log in to WEB on Windows computers, Apple computers, tablets, mobile phones and other devices for control, easily and flexibly realize the control and selection of input and output of the device;
5、Supports seamless switching of input signals, no black screen, no flashing screen.
6、Arbitrary splicing within 12 screens, such as 2x2+2x2+1x4 splicing.
7、Supports custom resolution of independent graphics card, supports EDID management function, and can use WEB to create and save custom EDID.
8、Supports blind plug-in setting of output interface, and can modify output sequence number arbitrarily without manual exchange of line sequence.
9、Supports calling and saving of 12 pre-planned scenes Supports separate operation of three screens, flexible setting of different scenes.
10、Provides WEBAPI interface, customers can carry out secondary development.
11、Built-in output signal enhancement to ensure signal stability and clarity during long-distance transmission.

12x12 Video Wall Controller

Product Name BIT-VWC-MD1212Ma
Input interface 12 x HDMI 2.0
Input maximum pixel clock frequency 600MHz
Input resolution General：
1920x1080P60 RGB444、2560x1440P60 RGB444
3840x2160P60 RGB444 (RGB444)
Graphics cards:
3840x2160P30 RGB444、3840x1080P60 RGB444 5760x1080P30 RGB444、7680x1080P30 RGB444 1920x2160P60 RGB444 、 1920x3240P30 RGB444
1920x4320P30 RGB444
Supports custom non-standard input resolutions of 4k30 and below
Color depth 8bit
Color format RGB444, YUV444, YUV422, YUV420
Output interface 12 x HDMI 2.0
Output maximum pixel clock frequency 600MHz
Control mode RS232 serial port、 WEB、 Keypad、 WEB API
Audio frequency HDMI 2.0 output audio、 independent audio output
Power source 220V
Power dissipation 72W(3 input cards, 3 output cards)
Storage/operating temperature -10 to 50ºC/0 to 50ºC
Product size Length × width × height: 483mm×200mm×130mm
Package size Length × width × height: 540mm×325mm×225mm
Product weight 5KG
Packing weight 5.7 KG
List of attachments 1 x 220V power cord, 1x Phoenix terminal, 1m blue Ethernet cable, 1 1m USB-A to Type-C (optional), 12x double-layer Phoenix terminal
After-sales service 3 years



Collapsible row

View full details

Frequently Asked Questions

What input and output interfaces does this video wall controller support?

t supports 12 HDMI 2.0 input interfaces and 12 HDMI 2.0 output interfaces. Both input and output have a maximum pixel clock frequency of 600MHz, enabling flexible multi-input and multi-output configurations.

What control methods are supported by this device?

The device supports multiple control methods, including RS232 serial port, web-based control, keypad control, and WEB API interface. You can access the web interface for flexible control via Windows computers, Mac computers, tablets, and mobile phones.

Does it support seamless switching? Will there be black screen or flickering during switching?

It supports seamless switching of input signals. During the switching process, there will be no black screen or flickering, ensuring smooth and stable presentations.

What display wall configurations does this video wall controller support?

It supports arbitrary configurations within 12 screens, such as 2x2+2x2+1x4 and various other combinations to meet different display requirements. It also supports calling and saving up to 12 preset scenes.

What is the warranty period? What is the operating temperature range?

The product comes with a 3-year after-sales warranty. The storage temperature range is -10°C to 50°C, and the operating temperature range is 0°C to 50°C, making it suitable for most indoor application environments.
