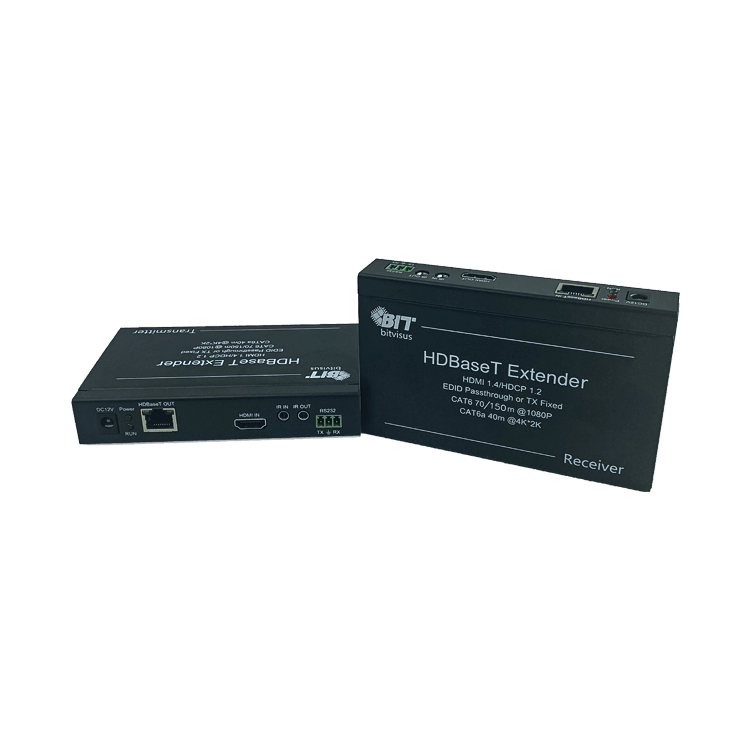

4K HDMI USB KVM Extender 1080P 3D Video 100m Transmitter Receiver IR control HDCP 2.2 HDMI POE RS232

4K HDMI USB KVM Extender 1080P 3D Video 100m Transmitter Receiver IR control HDCP 2.2 HDMI POE RS232

$230.00 USD
$230.00 USD
Sale Sold out
Tax included.
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

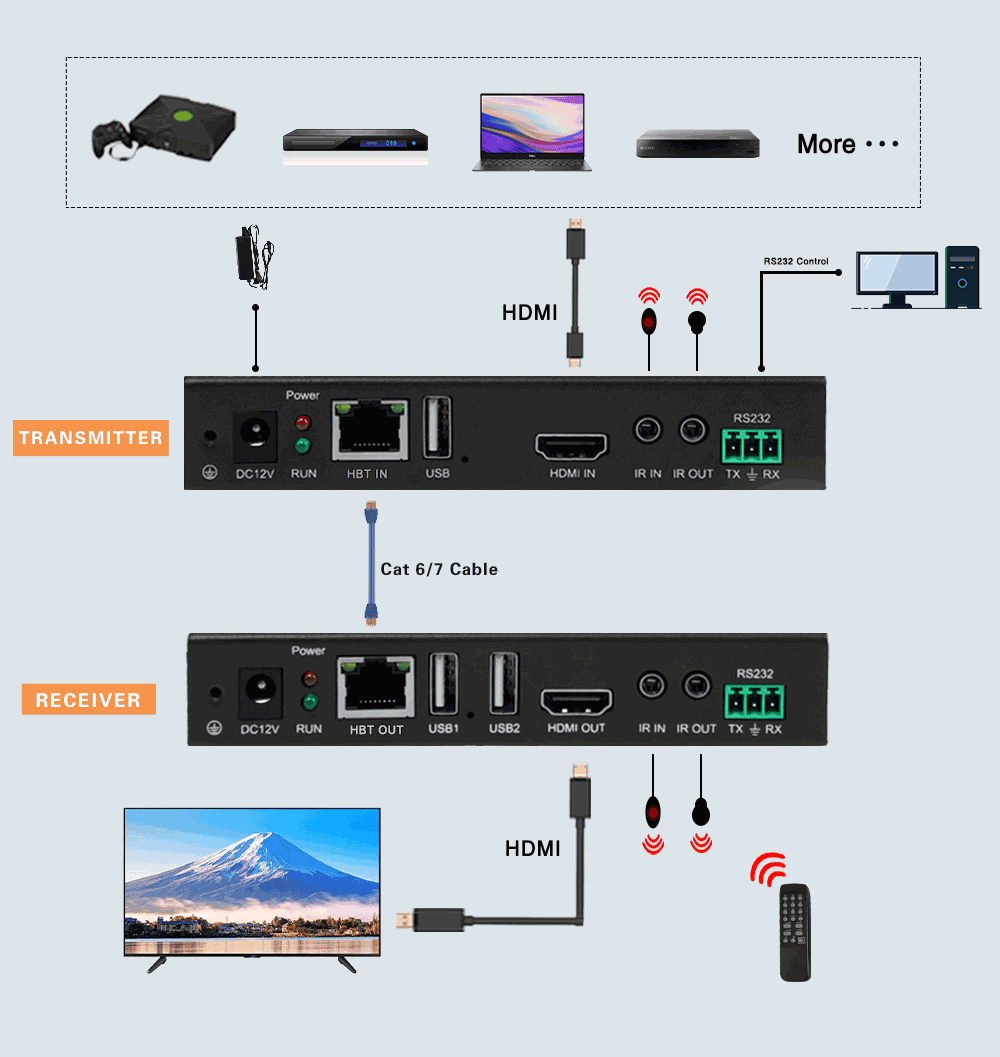

📌Support Up to 4K Video Signal. 1080P 3D video.

📌Extend up to 150 meters for 1080P resolution with Cat5e cable, 40 meters for 4Kx2K resolution with Cat6a cable.

📌No compression of the video input signal, stable and reliable performance. Support Power over Ethernet(POE)

📌Support USB 1.0 KVM function. HDMI 1.4 & HDCP 2.2, HDMI audio output.

📌Support RS232, IR control, Plug & play setup without any software installation.

Product name BIT-Ex-HDBT-KVM-150
HDMI Protocol HDMI 1.4 Compatible with DVI1.0, VGA
HDCP Protocol HDCP 2.2
Interface Bandwidth 10.2Gbps
Pixel Clock Rate 165Mhz
Support Resolution 4Kx2K@30Hz backward compatible
1080P 3D Video
Recommended HDMI Output/Input Distance ＜5m
RS232 Baud Rate Max 115200bps
Data Bit 8 data bits
Color Space RGB 4:4:4
Max. transmission distance 1080P: CAT5e 150m
4K@30Hz: CAT6a 40m
Operating Temperature -10～50ºC/-25～55ºC
Power Rating 12W
Power supply 12V@2A
Weight 500g
Size 105mm * 76mm * 27mm
