Customizable 4K60 HDMI extractor to DP converter with 4 outputs for projection blending BIT-Co-HDMI2DP-0404

Customizable 4K60 HDMI extractor to DP converter with 4 outputs for projection blending BIT-Co-HDMI2DP-0404

Regular price $229.00 USD
Regular price Sale price $229.00 USD
Sale Sold out
Tax included.
Request Quote

📣The price of all our products are single device sample prices, if you want to get special deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

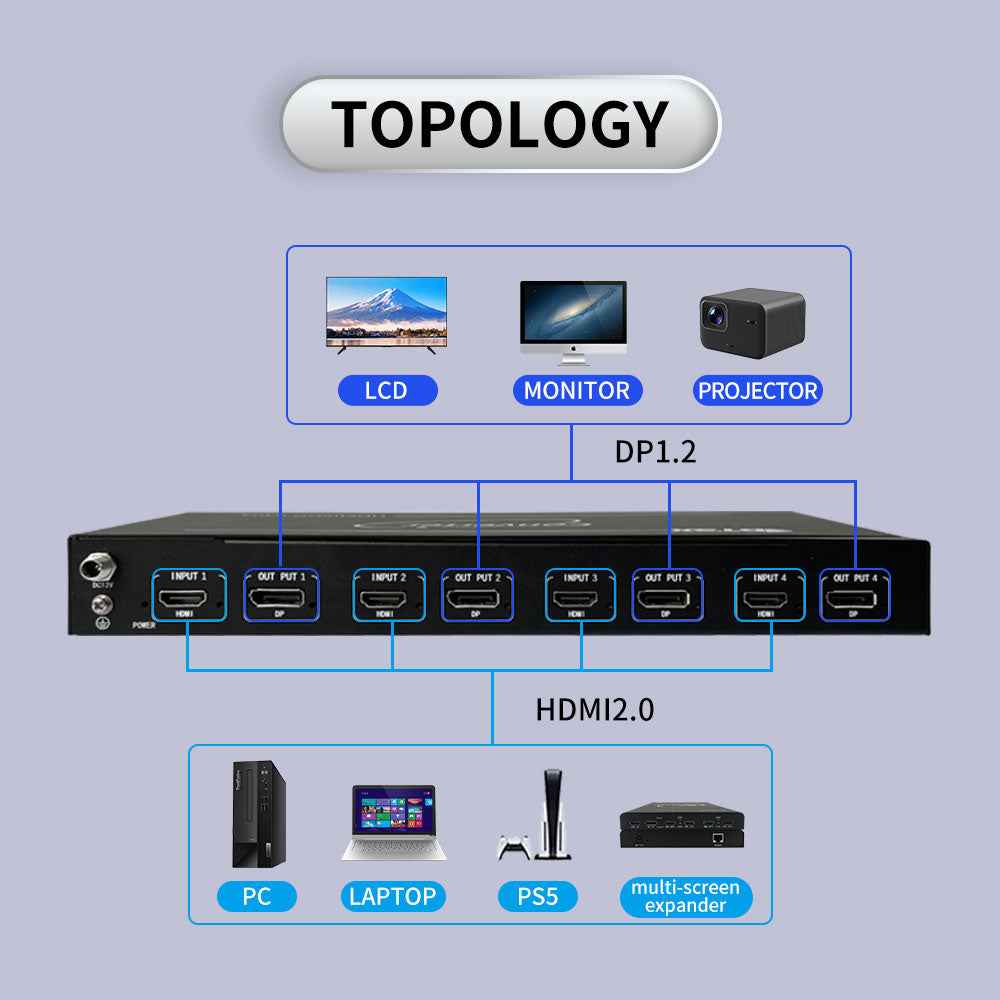

BIT-Co-HDMI2DP-0404 is a high-performance video signal converter independently developed by Bitvisus Technology Co., Ltd. The device has 4 groups of HDMI to DP conversion. Each group supports the conversion and output of HDMI input signals to the DP interface, and a single channel supports 4K60.It can be used in conjunction with multi-screen treasure, splicing processors, and matrices, and is widely applied in scenarios such as multi-screen management, monitoring and dispatching, meeting presentations, and projection fusion.

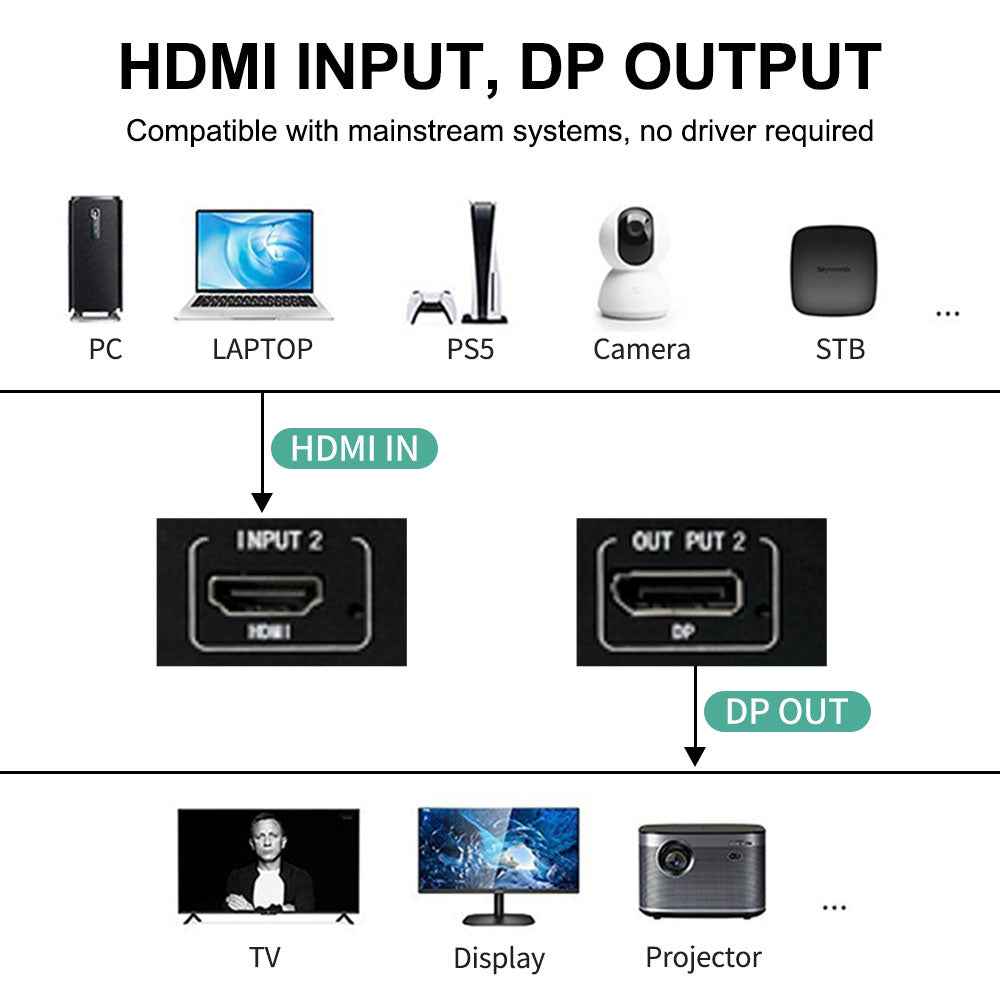

· Supports 4-channel HDMI to DP conversion, solving the problem of interface mismatch between signal sources, video processors and display devices;
·  Single-channel support for 4K60;
·  Support HDMI embedded audio synchronous output to the DP display terminal;
·  Plug and play, no driver installation required, compatible with various mainstream systems;
· It supports 4 centralized power supplies and 1 power line, saving space, greatly reducing the complexity of wiring, improving stability, enhancing security and lowering maintenance costs;
·  Supports card insertion, which can be placed in the same chassis as the processor card for centralized management;
·  Industrial-grade design, 16KV super anti-static capability, and super product stability。

Product name

BIT-Co-HDMI2DP-0404

Input port



4×HDMI2.0



Color Depth

8bit

HDCP

Support HDCP 1.4/2.3

Output port

4×DP1.2



max pixel clock frequency



600MHz

resolution

4K60 ( for details,please refer to the attached schedule.

Color depth

8/10/12-bpc

Power

12V2A

audio

Supporting 8-channel One Bit Audio (DSD)

Power consumption

4×12V*0.1A=4.8W

Operating temperature

-2070ºC

Package weight

1.7KG
