8K video wall controller 5x3 Video Wall Splicing 15-Channel HDMI Output

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right-corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

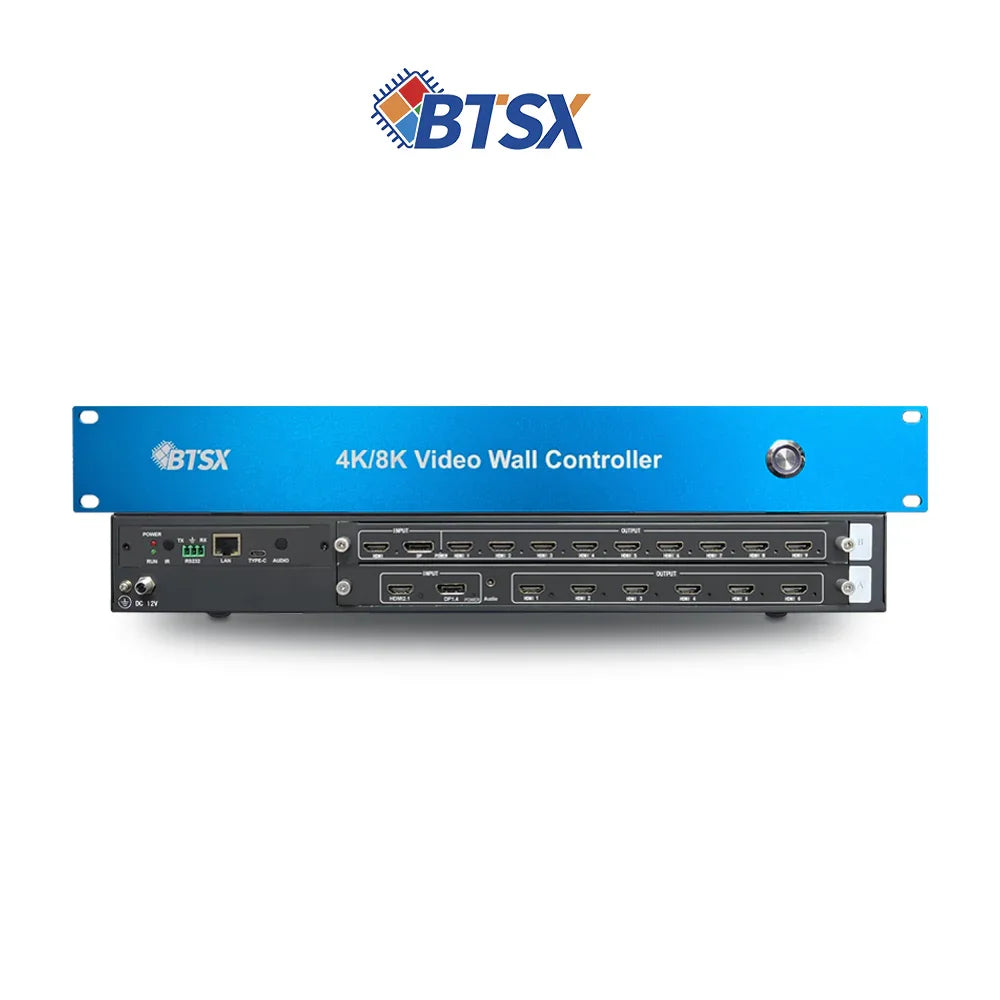

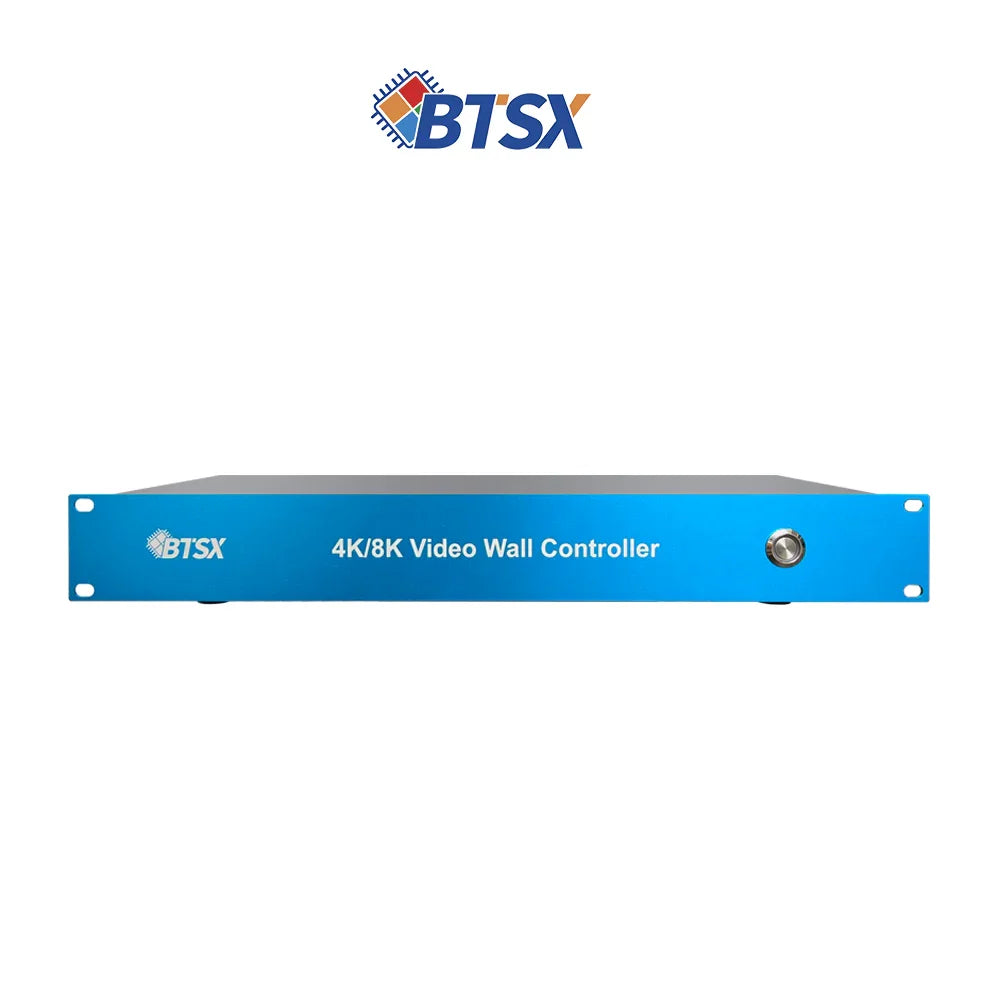

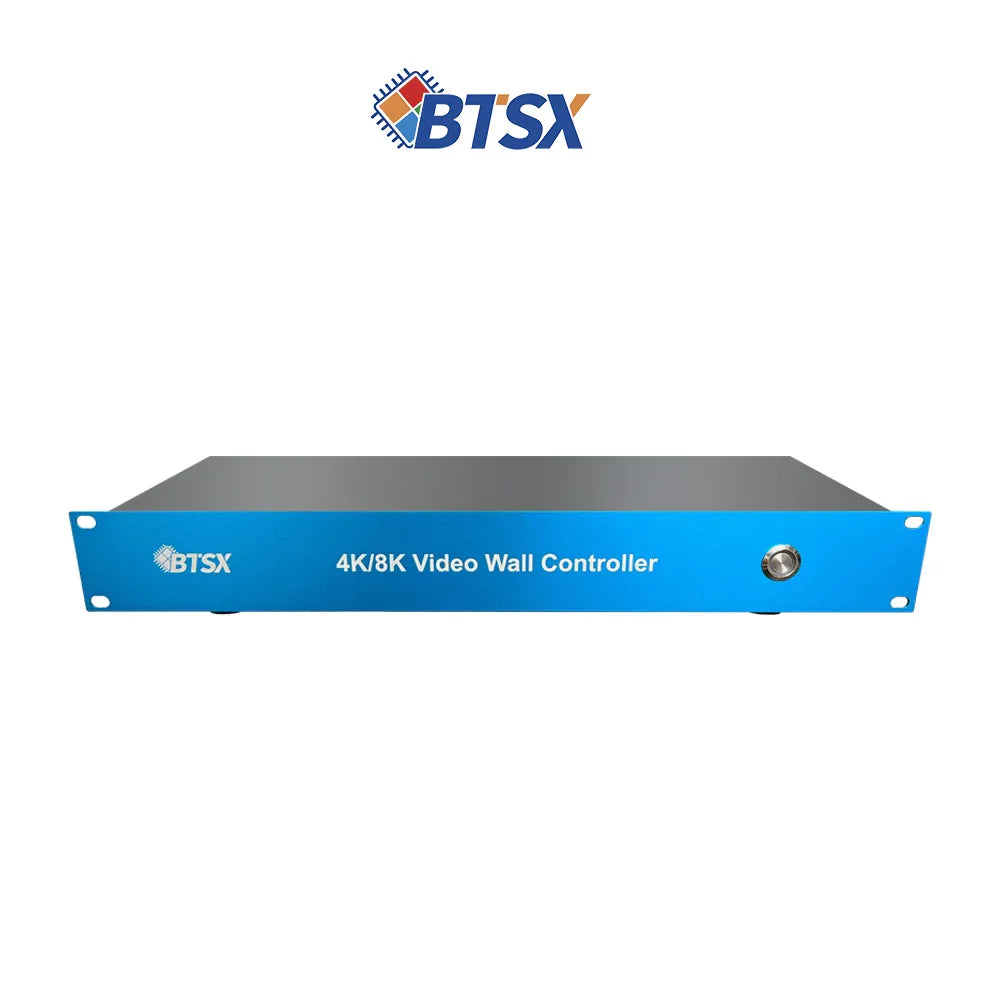

The BIT-VWC-8K-115Pro is a professional-grade 8K video wall controller, a high-performance video wall processor, and the core device of a display wall controller system. This large-screen controller supports one ultra-high-definition 8K signal input, offering optional HDMI 2.1 and DP 1.4 inputs for flexible compatibility with a variety of graphics cards. It also features 15 HDMI outputs, each supporting up to 1920×1200p60 resolution. Compatible with a wide range of common resolutions, it is ideal for ultra-high-resolution desktop displays, multi-screen project visualization, multi-channel 4K projection integration, exhibitions, virtual simulations, wraparound theaters, large advertising walls, LCD/LED video wall systems, and various command and control centers, conference rooms, and multi-screen interactive scenarios.

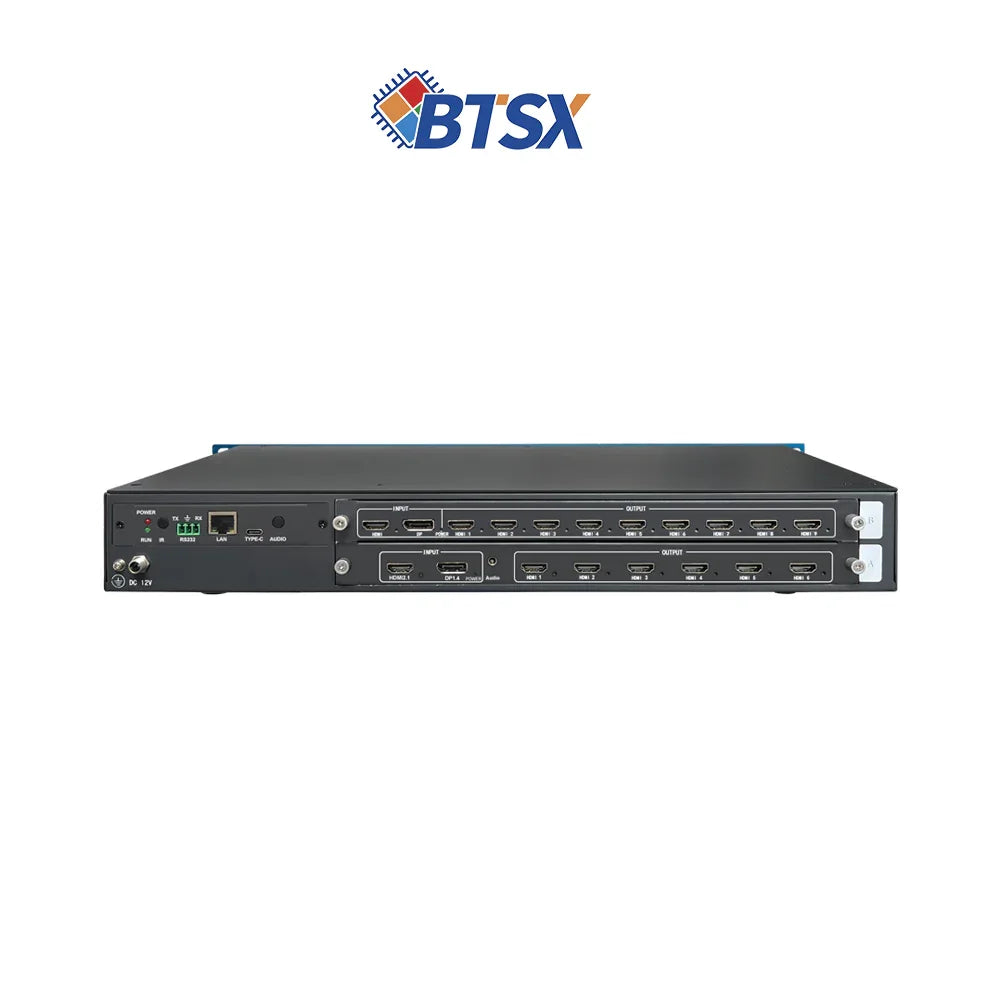

Input and Output: Supports one 8K signal input with optional HDMI 2.1 and DP 1.4, supporting resolutions up to 5760×6000@30Hz; 15 HDMI outputs supporting 1920×1200P60 and 1920×1080P60, compatible with a variety of common resolutions to meet the needs of various video wall system deployments.

Video Wall Splicing and Display Processing: Supports various video wall splicing modes, including 1×N, N×1, and M×N, achieving true point-to-point lossless display without image distortion or stretching, enhancing the overall visual quality of the large screen.

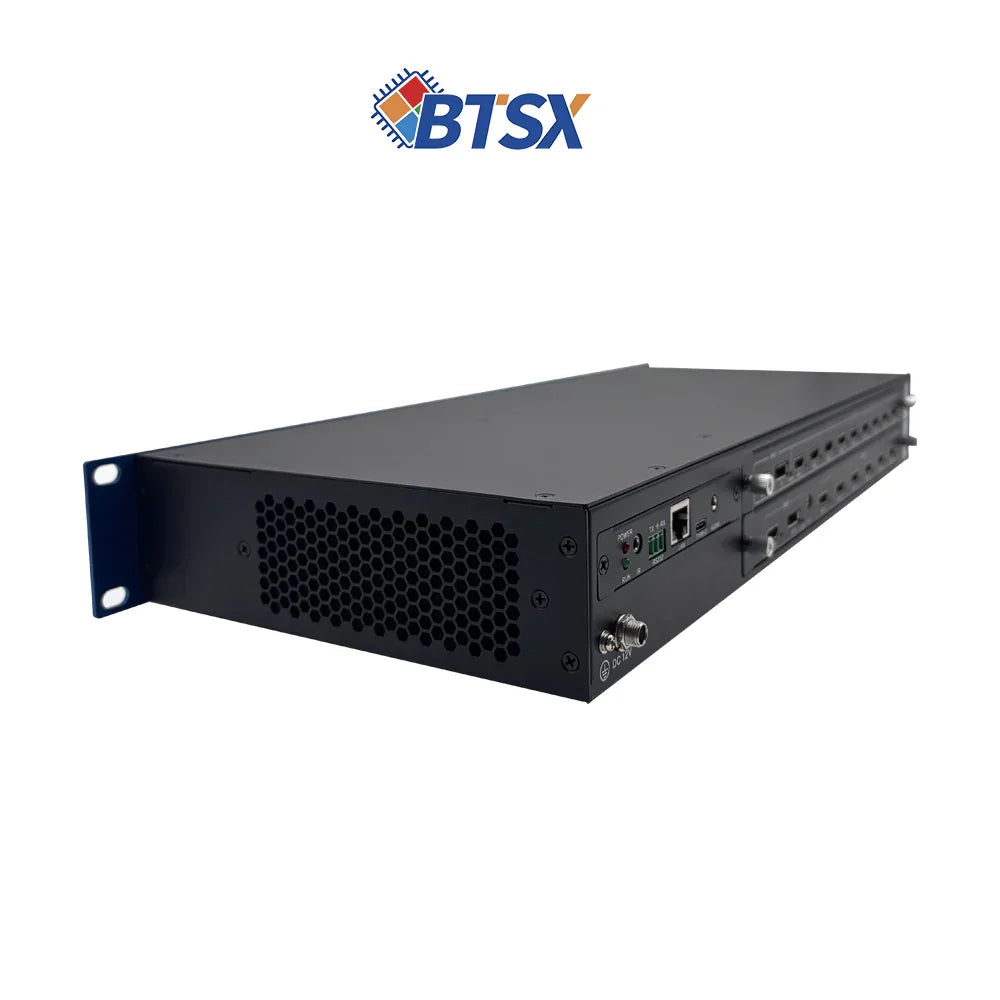

Control System and Functions: Supports RS232 serial port control and web interface control, with EDID management, CEC control, and bezel compensation features, enabling easy integration into central control systems and remote control and debugging.

Hardware Processing Architecture: Utilizing a 28nm programmable FPGA chip and a fully hardware-based image processing architecture, this delivers zero latency, real-time reliability, and high performance and stability for the video wall controller.

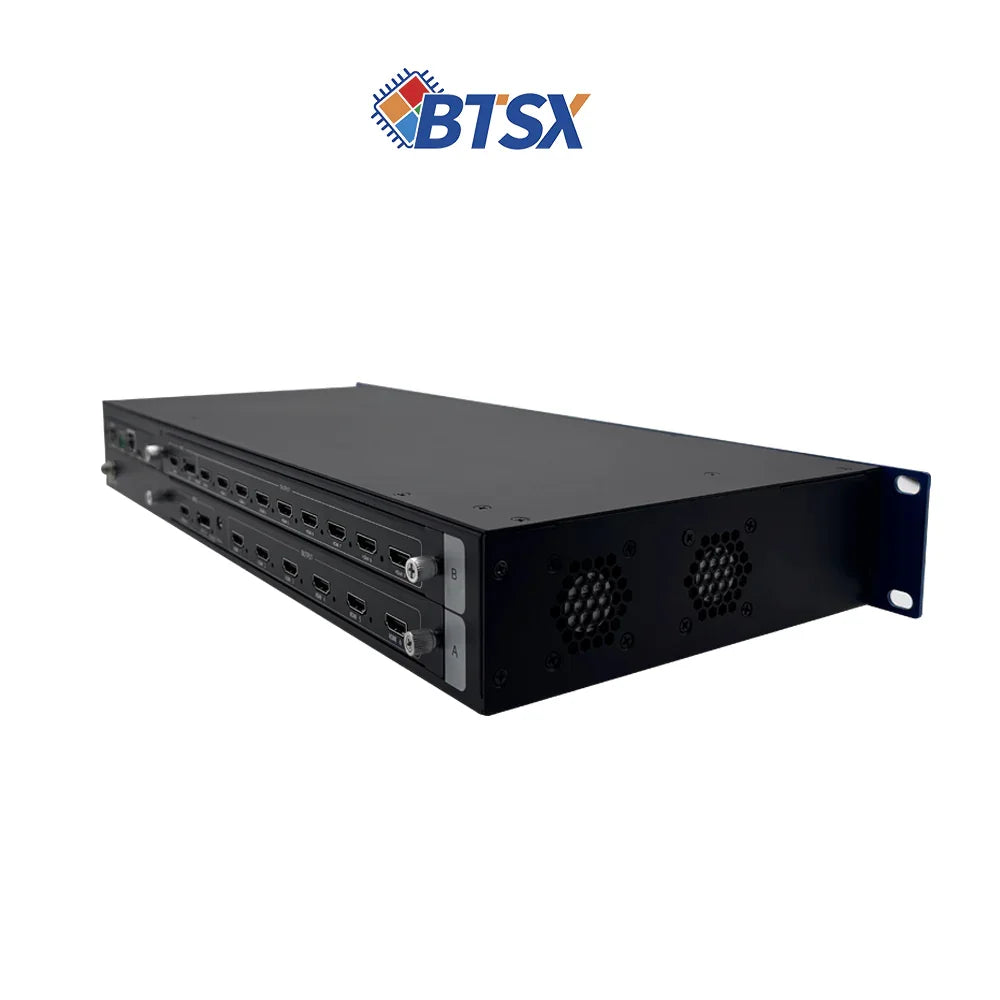

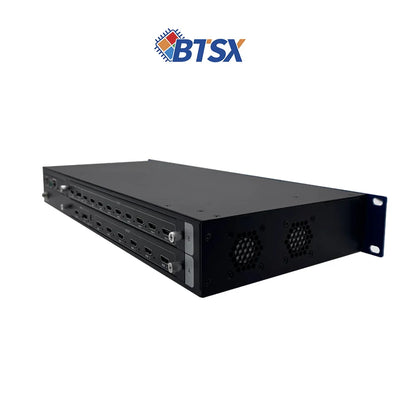

Industrial-grade reliability design: 6-layer thickened PCB, 16kV anti-static protection, wide operating temperature (-10~50°C), support for multiple devices in parallel, low power consumption and energy saving, overheating and anti-interference protection, suitable for harsh environments.

Software Support and Expansion: Compatible with professional video wall management software for 8K multi-screen display and layout control, supporting advanced features such as windowing and roaming, improving multi-screen operation efficiency.
