ProductOverview

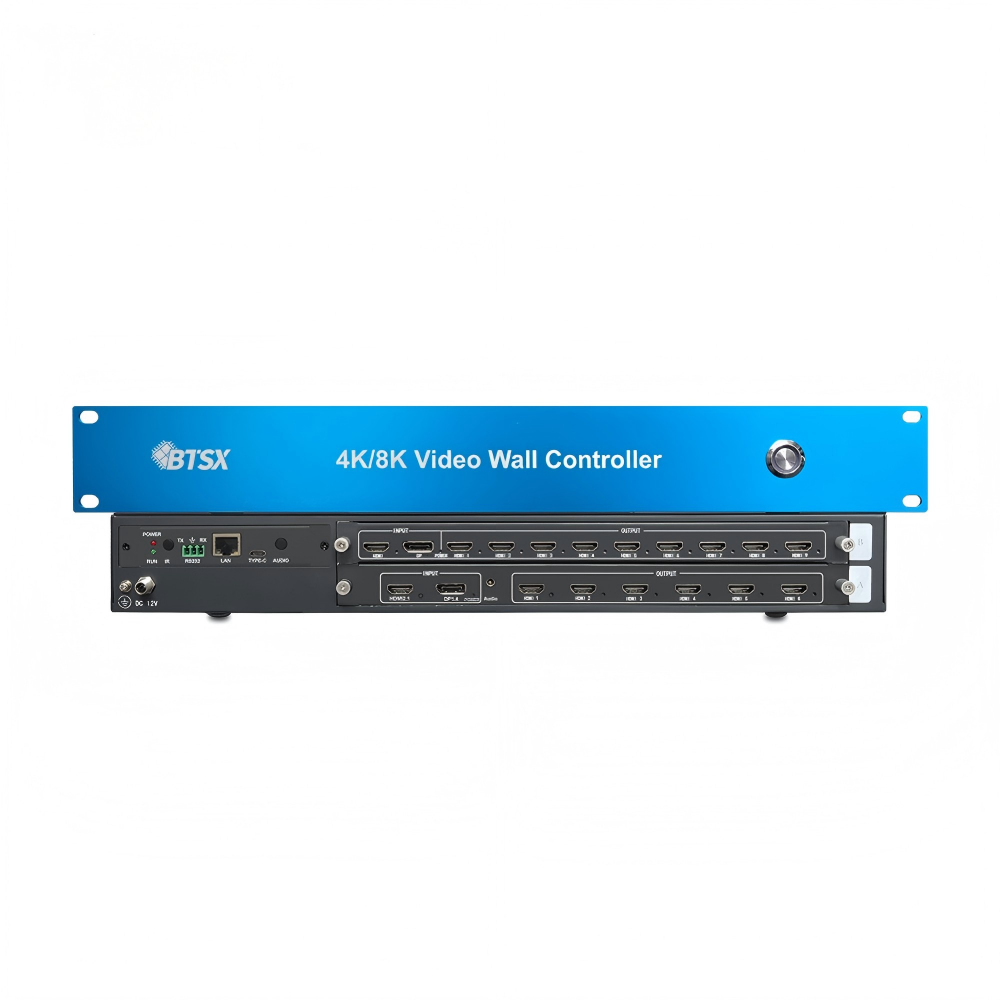

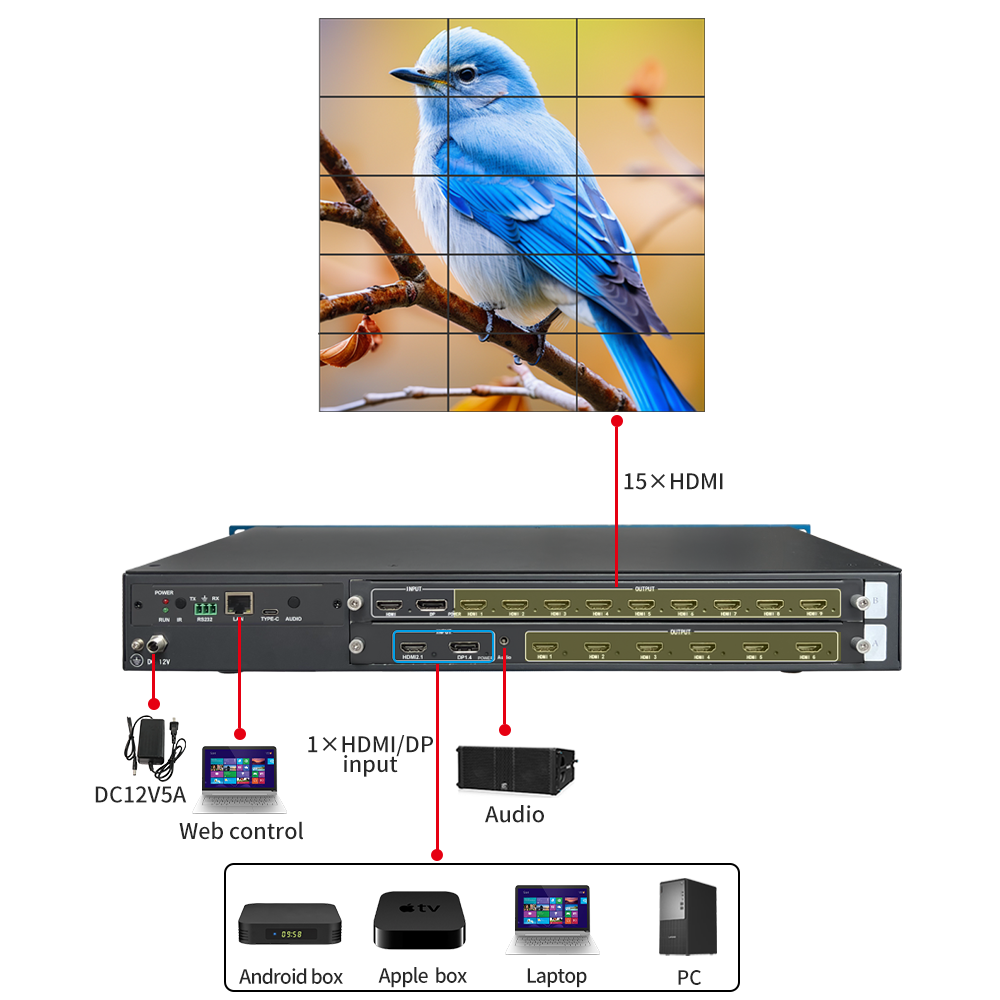

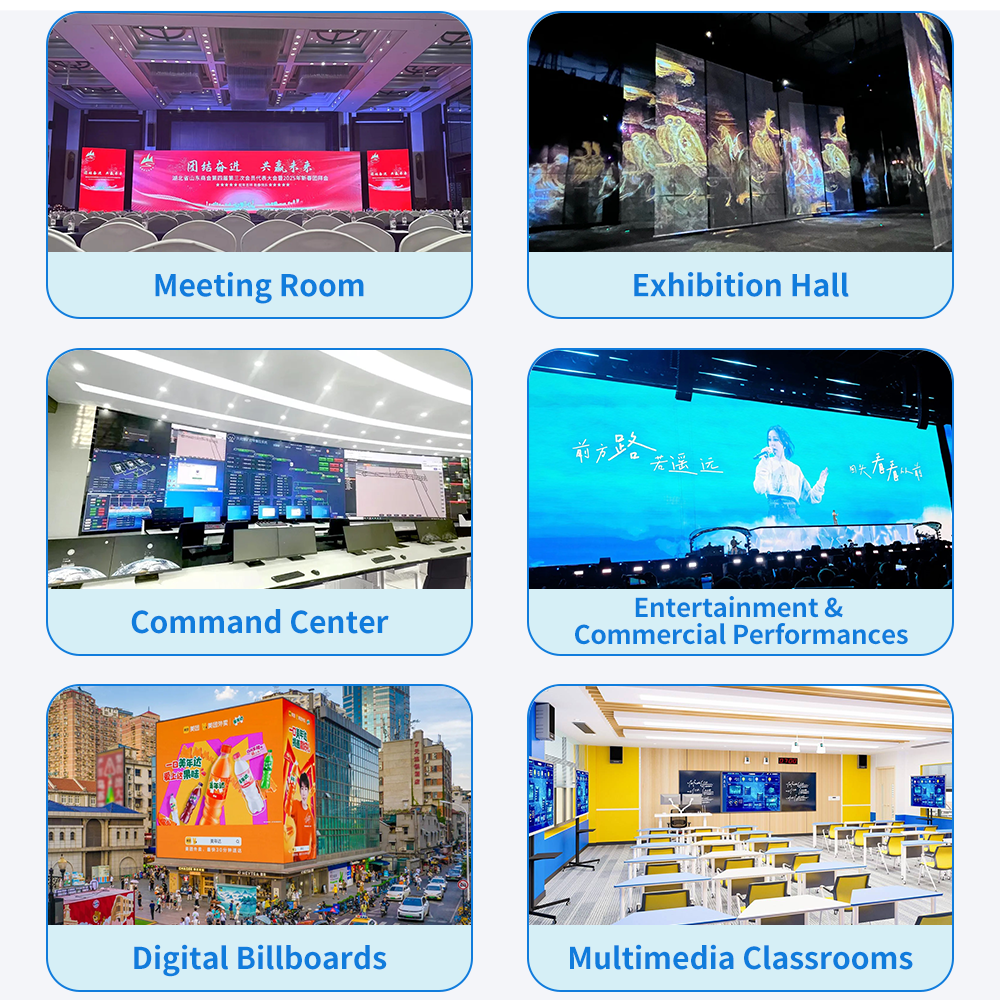

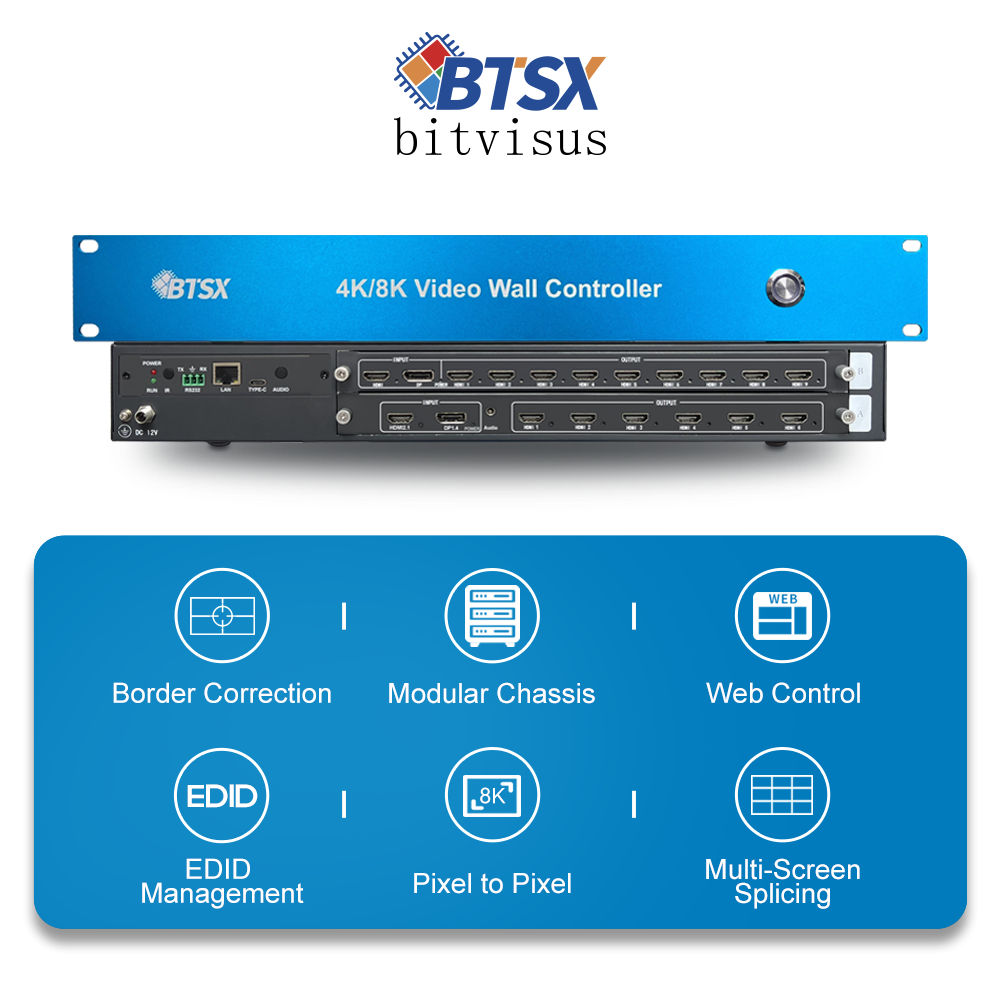

The BIT-VWC-8K60Y-115Pro is an 8K60 video wall processor independently developed by BITVISUS. It's an industrial-grade, high-performance product specifically designed for multi-desktop operation and multi-channel image processing display needs. It supports one channel of 8K60 input, provides HDMI 2.1 and DP 1.4 input interfaces (selectable based on graphics card interface type), and 15 channels of 1920×1200@60Hz HDMI output, backward compatible with standard resolutions. It is widely used in ultra-high-resolution desktops, engineering displays, multi-channel 2K projection, exhibition halls, virtual reality, panoramic cinemas, large advertising walls, LCD/LED multi-screen displays, and many other application areas.
Description
1. 8K60 Input. HDMI 2.1 or DP 1.4 (selectable), supports up to 8K60 input.
2. 15-Channel Output. Supports up to 1200p60 output, with arbitrary tiling within 15 channels.
3. Point-to-Point. 5×3 resolution 5760×5400@60Hz, 3×4 resolution 7680×3240@60Hz, 3×3 resolution 5760×3240@60Hz, etc.

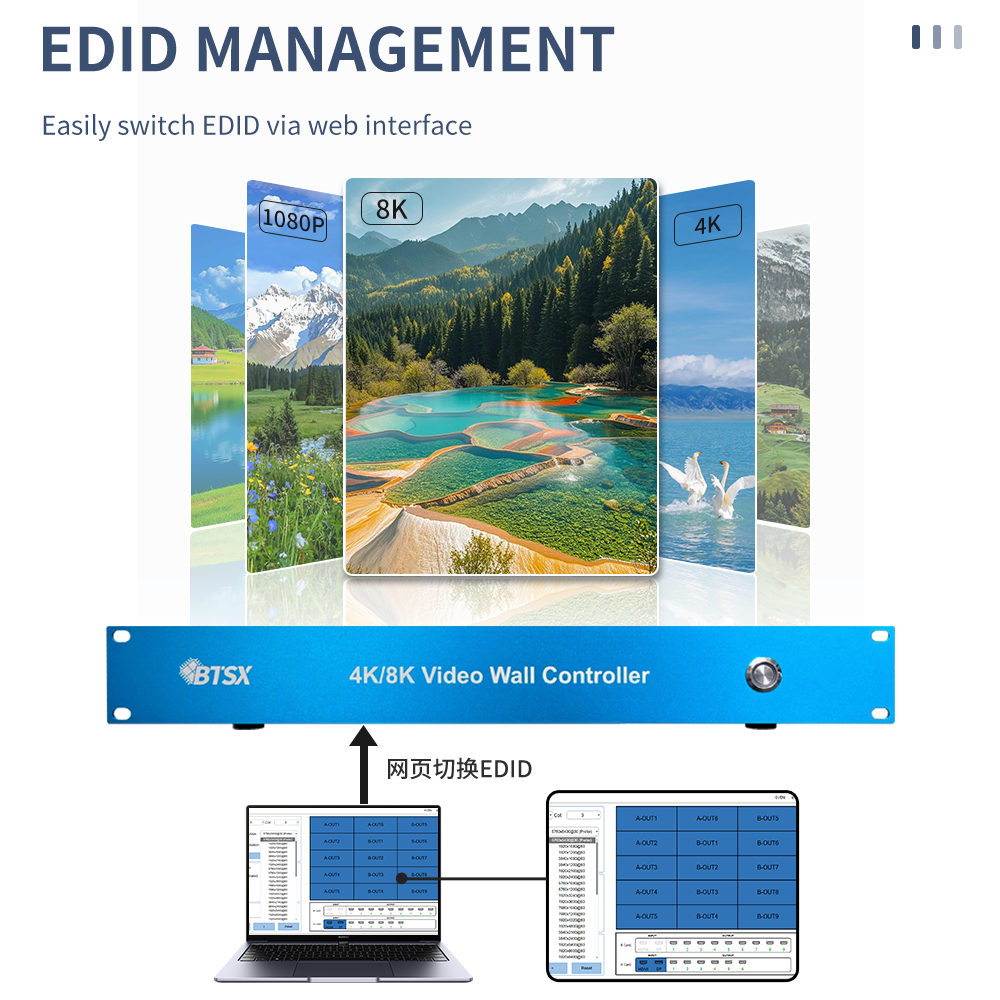

4.Web Control. One‑click switching of tiling modes and input resolution, compatible with any operating system.

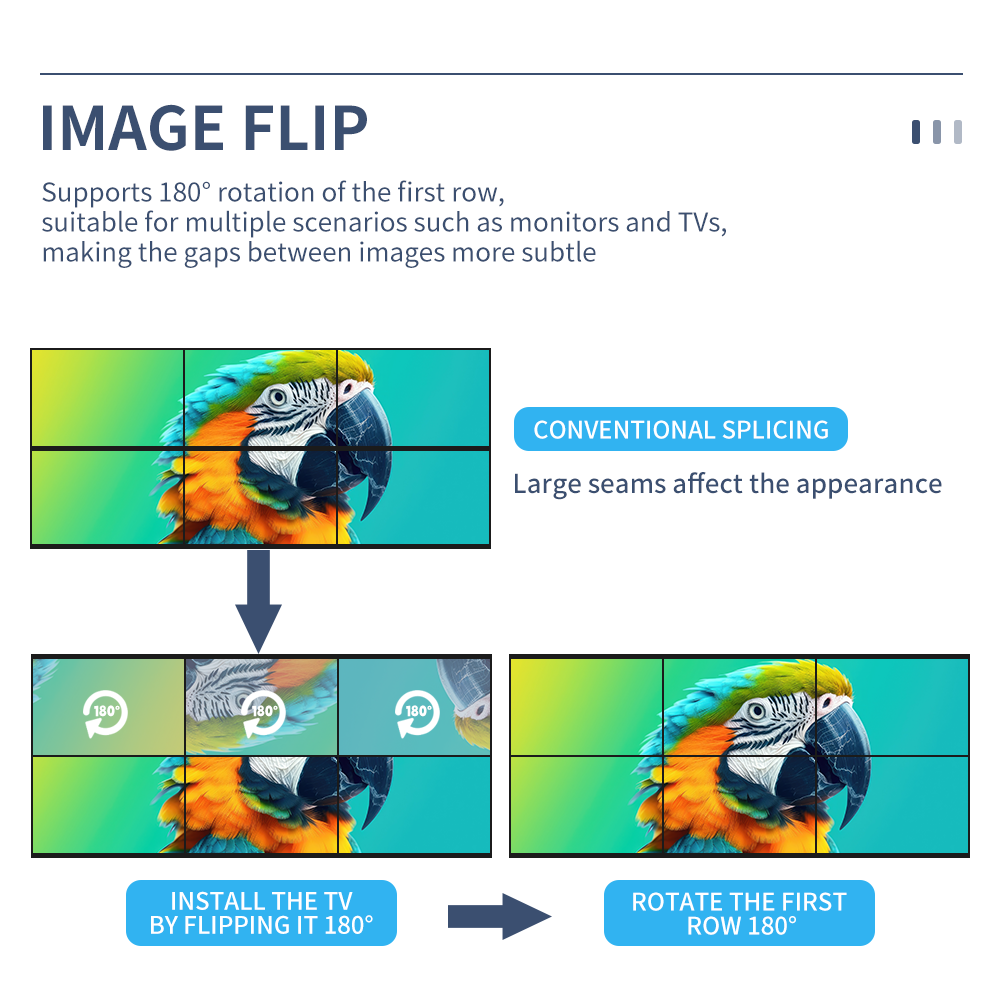

5. First‑Row Rotation. Addresses visual fragmentation caused by excessive physical seams at the bottom of display devices. By rotating the first row during installation and aligning narrow edges, the display becomes more continuous and integrated.

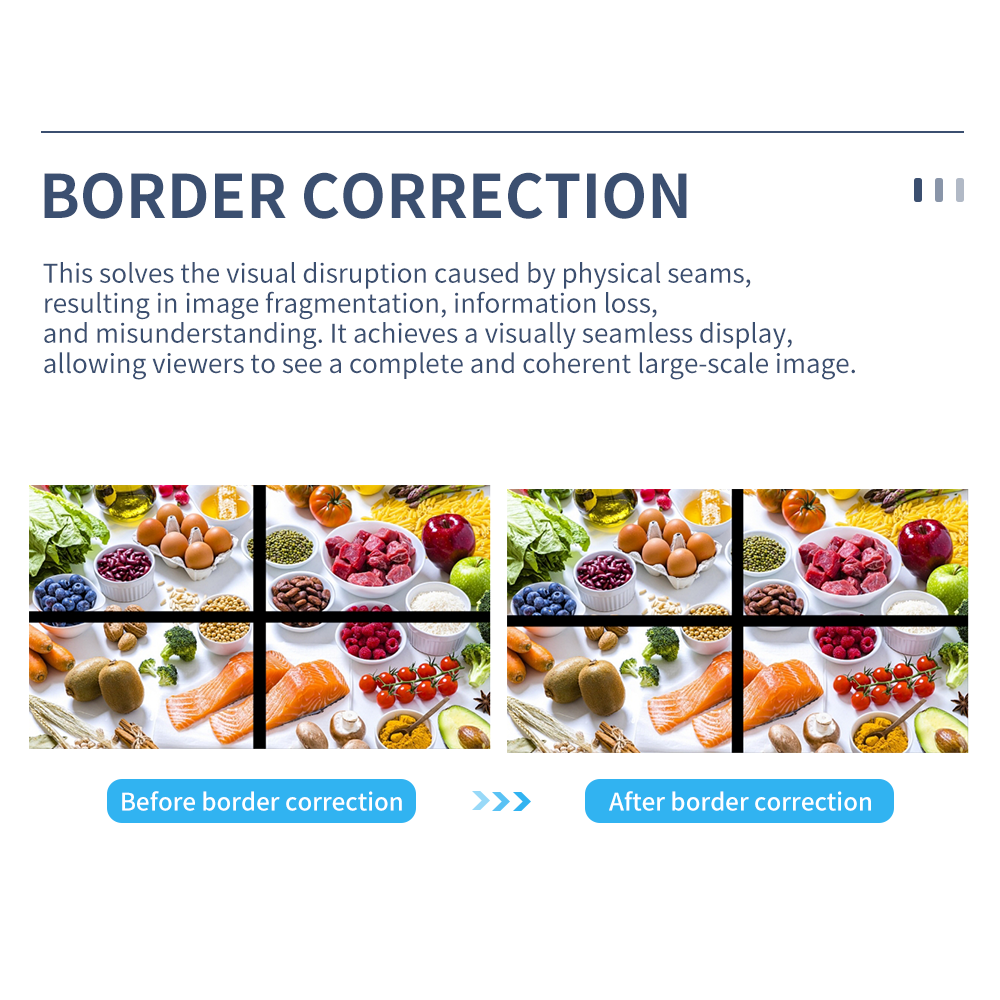

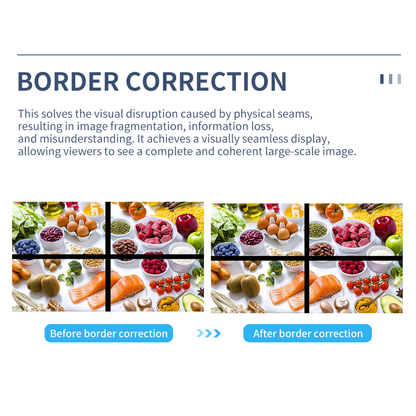

6. Border Compensation Technology. Eliminates visual gaps caused by display bezels, restoring image integrity and continuity.
7. CEC Function. "One‑Touch Linkage" or "Turn On When in Use".
8. Modular Structure. Extremely flexible scalability.
9. API Provided for secondary development and custom control UI design.

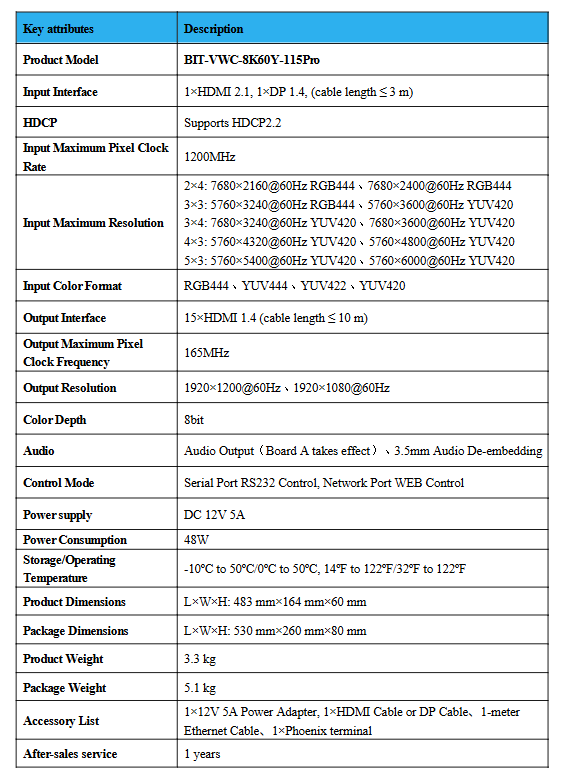

Product Specifications
| Key attributes | Description |
|---|---|
| Product Model | BIT-VWC-8K60Y-115Pro |
| Input Interface | 1×HDMI 2.1, 1×DP 1.4, (cable length ≤ 3 m) |
| HDCP | Supports HDCP 2.2 |
| Input Maximum Pixel Clock Rate | 1200MHz |
| Input Maximum Resolution | 2×4: 7680×2160@60Hz RGB444 , 7680×2400@60Hz RGB444 3×3: 5760×3240@60Hz RGB444 , 5760×3600@60Hz YUV420 3×4: 7680×3240@60Hz YUV420 , 7680×3600@60Hz YUV420 4×3: 5760×4320@60Hz YUV420 , 5760×4800@60Hz YUV420 5×3: 5760×5400@60Hz YUV420 , 5760×6000@60Hz YUV420 |
| Input Color Format | RGB444 , YUV444 , YUV422 , YUV420 |
| Output Interface | 15×HDMI 1.4 (cable length ≤ 10 m) |
| Output Maximum Pixel Clock Frequency | 165MHz |
| Output Resolution | 1920×1200@60Hz , 1920×1080@60Hz |
| Color Depth | 8bit |
| Audio | Audio Output (Board A takes effect) , 3.5mm Audio De-embedding |
| Control Mode | Serial Port RS232 Control, Network Port WEB Control |
| Power supply | DC 12V 5A |
| Power Consumption | 48W |
| Storage/Operating Temperature | -10℃ to 50℃/0℃ to 50℃, 14℉ to 122℉/32℉ to 122℉ |

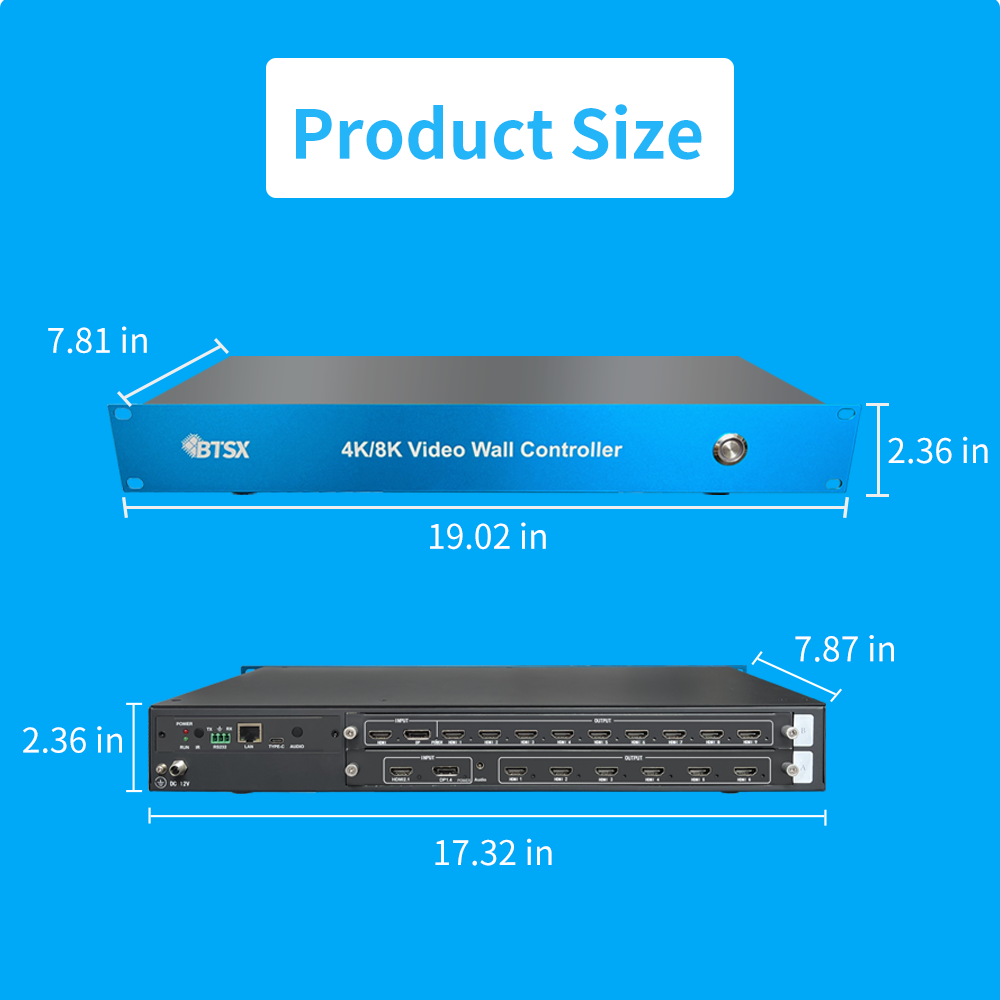

| Product Dimensions | L×W×H: 483 mm×164 mm×60 mm |
| Package Dimensions | L×W×H: 530 mm×260 mm×80 mm |
| Product Weight | 3.3 kg |
| Package Weight | 5.1 kg |
| Accessory List | 1×12V 5A Power Adapter, 1×HDMI Cable or DP Cable, 1×meter Ethernet Cable, 1×Phoenix terminal |
| After-sales service | 3 years |
