• BIT-Ex-HDBT-4K-KVM-100function introduction

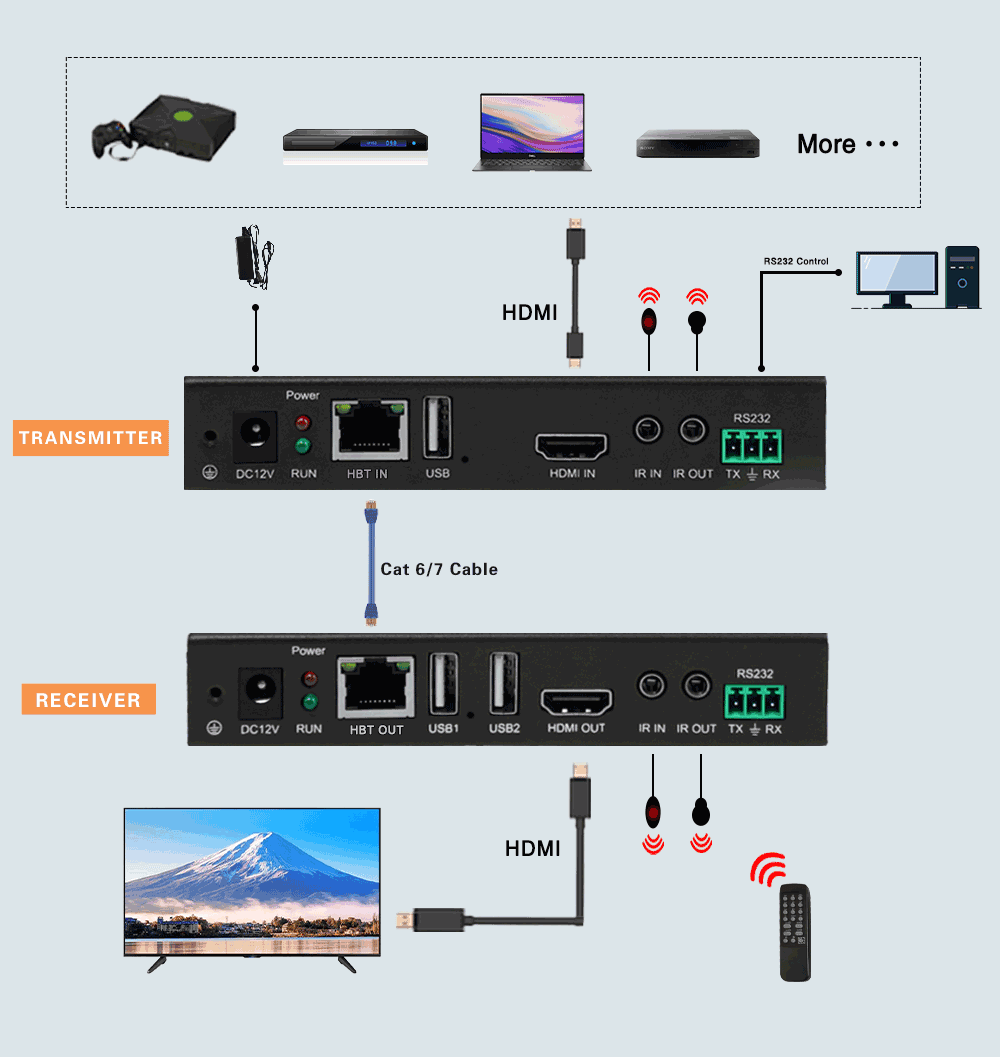

  • Connection Diagram
1 3

BITVISUS

BIT-Ex-HDBT-4K-KVM-100 4K HDMI KVM USB Extender 3D Video 100m Transmitter Receiver IR control HDCP 2.2 POE RS232

BIT-Ex-HDBT-4K-KVM-100 4K HDMI KVM USB Extender 3D Video 100m Transmitter Receiver IR control HDCP 2.2 POE RS232

$248.00 USD
$248.00 USD
Sale Sold out
Tax included.
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

📌Support Up to 4K Video Signal. 1080P 3D video.

📌Extend up to 100 meters for 1080P resolution with Cat5e cable, 100 meters for 4Kx2K resolution with Cat6a cable.

📌No compression of the video input signal, stable and reliable performance. Support Power over Ethernet(POE)

📌Support USB 1.0 KVM function. HDMI 1.4 & HDCP 2.2, HDMI audio output.

📌Support RS232, IR control, Plug & play setup without any software installation.

Product name BIT-Ex-HDBT-4K-KVM-100
HDMI Protocol HDMI 1.4 Compatible with DVI1.0, VGA
HDCP Protocol HDCP 2.2
Interface Bandwidth 10.2Gbps
Support Resolution 4Kx2K@30Hz backward compatible
7680x1200@30Hz, 5760X1200@30Hz，7680X1080@30Hz
Recommended HDMI Output/Input Distance ＜5m
RS232 Baud Rate Max 115200bps
Data Bit 8 data bits
Color Space RGB 4:4:4
Max. transmission distance 1080P: CAT5e 100m
4K@30Hz: CAT6a 100M
Operating Temperature -10～50ºC/-25～55ºC
Power Rating 12W
Power supply 12V@2A
Weight 500g
Size 105mm * 76mm * 27mm
