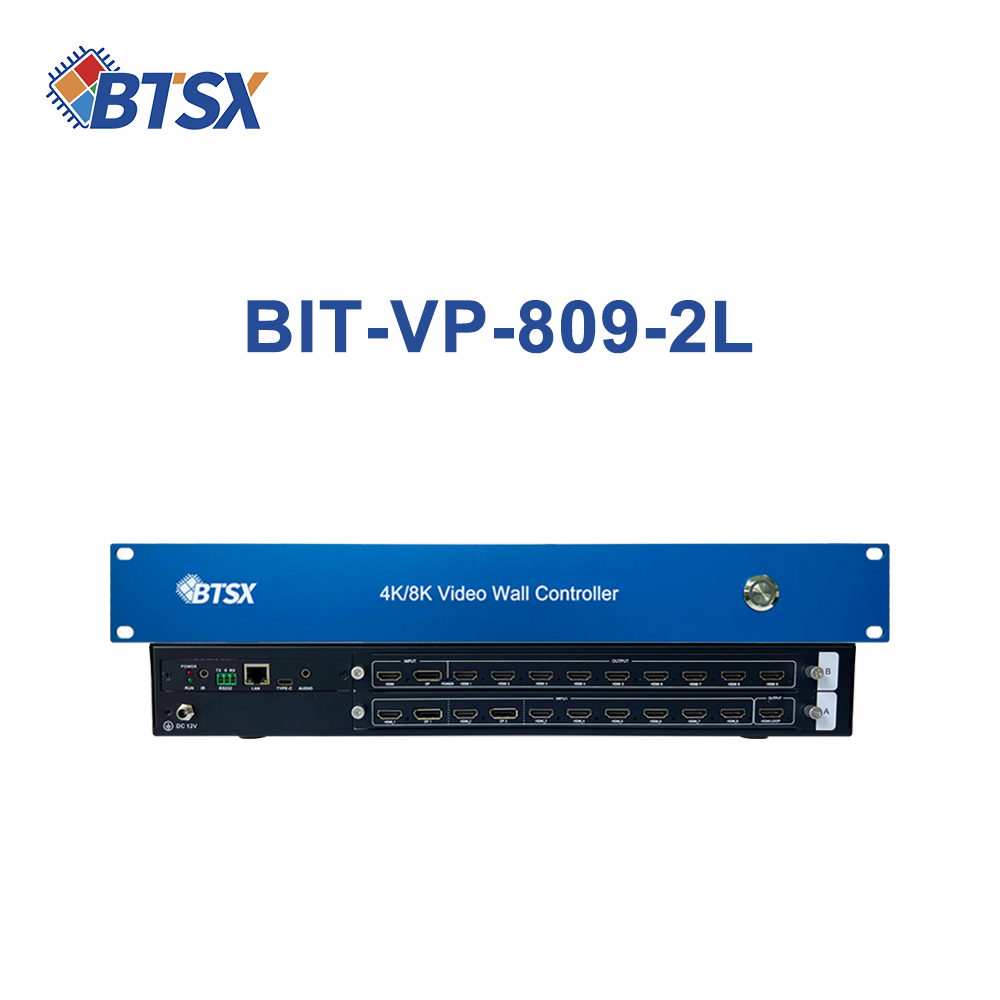

BIT-VP-809-2L 4K60 Multiview Splicing Processor (8-In 9-Out)

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

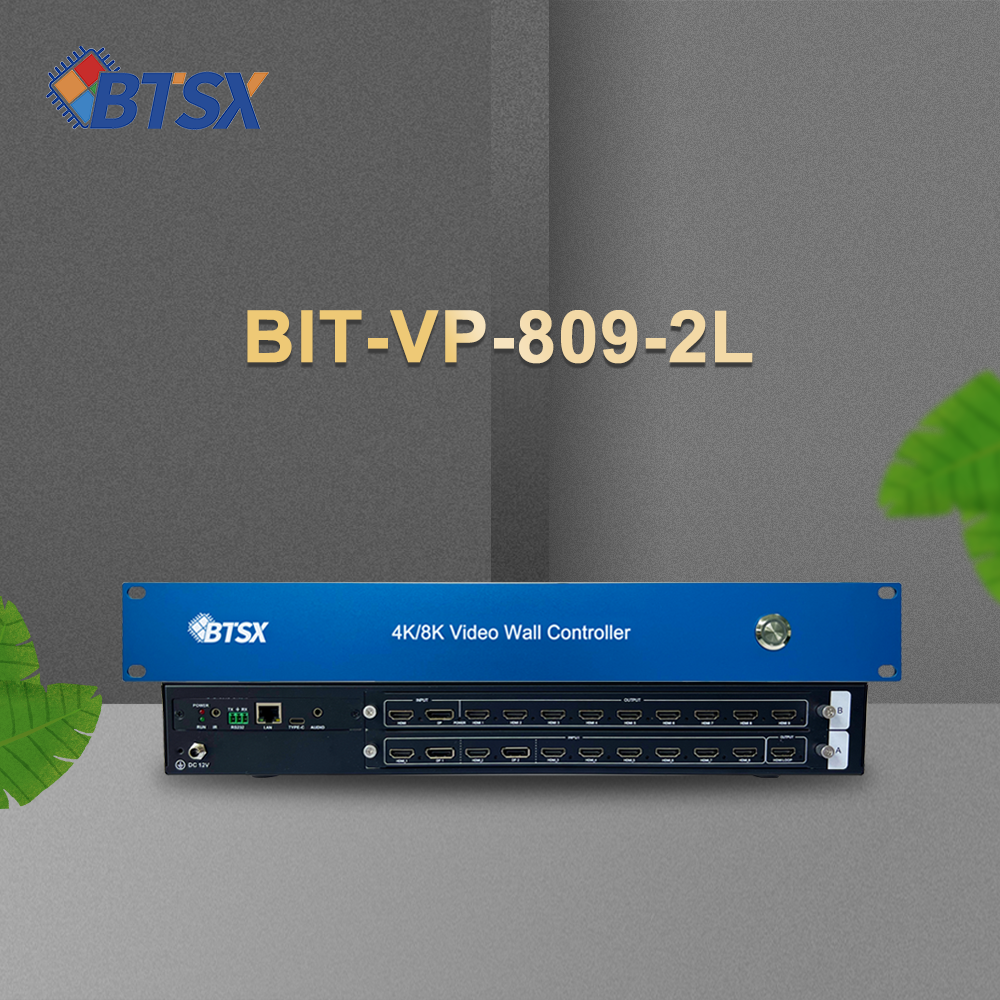

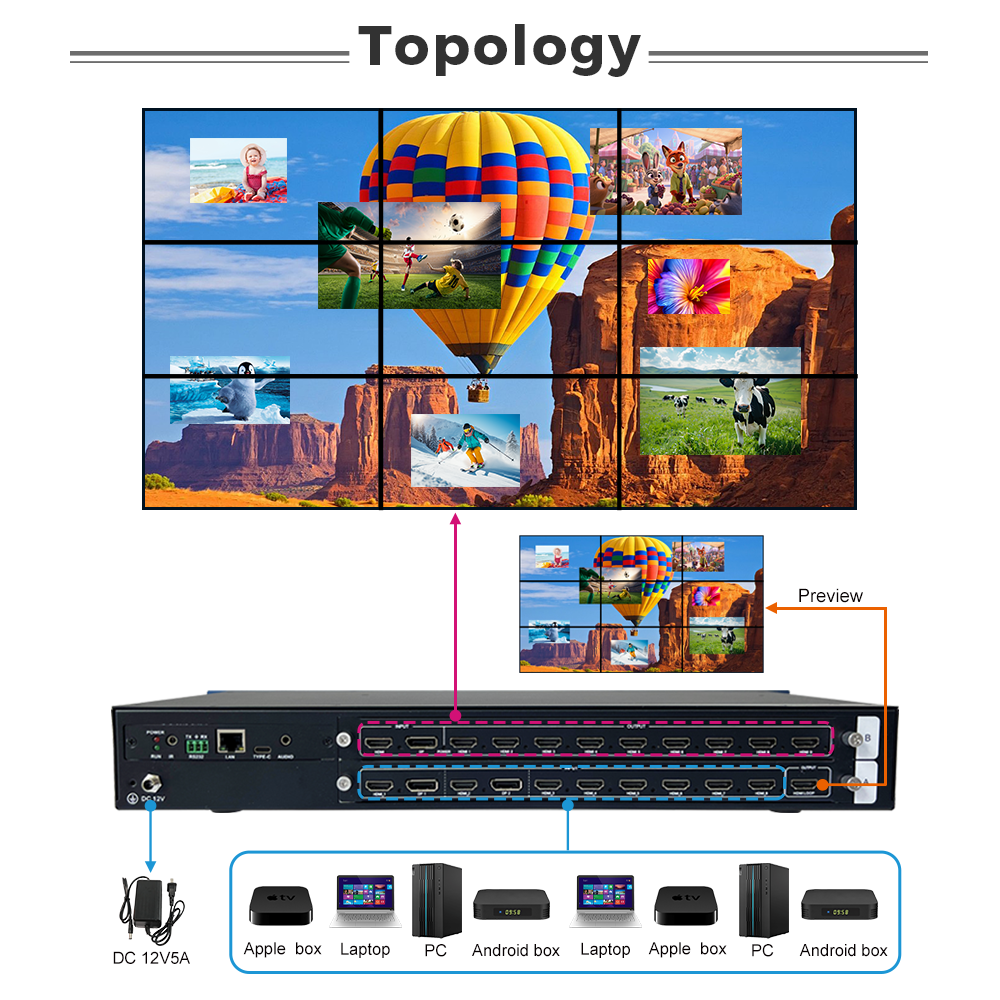

📌Supports 8 input channels (IN1-2: 2×HDMI 2.0 + 2×DP 1.2 selectable, IN3-4: 2×HDMI 2.0, IN5-8: 4×HDMI 1.3) and 9×HDMI 1.3 outputs plus 1×HDMI 2.0 local echo display — receive signals from 8 different sources and flexibly distribute them to 9 display devices.

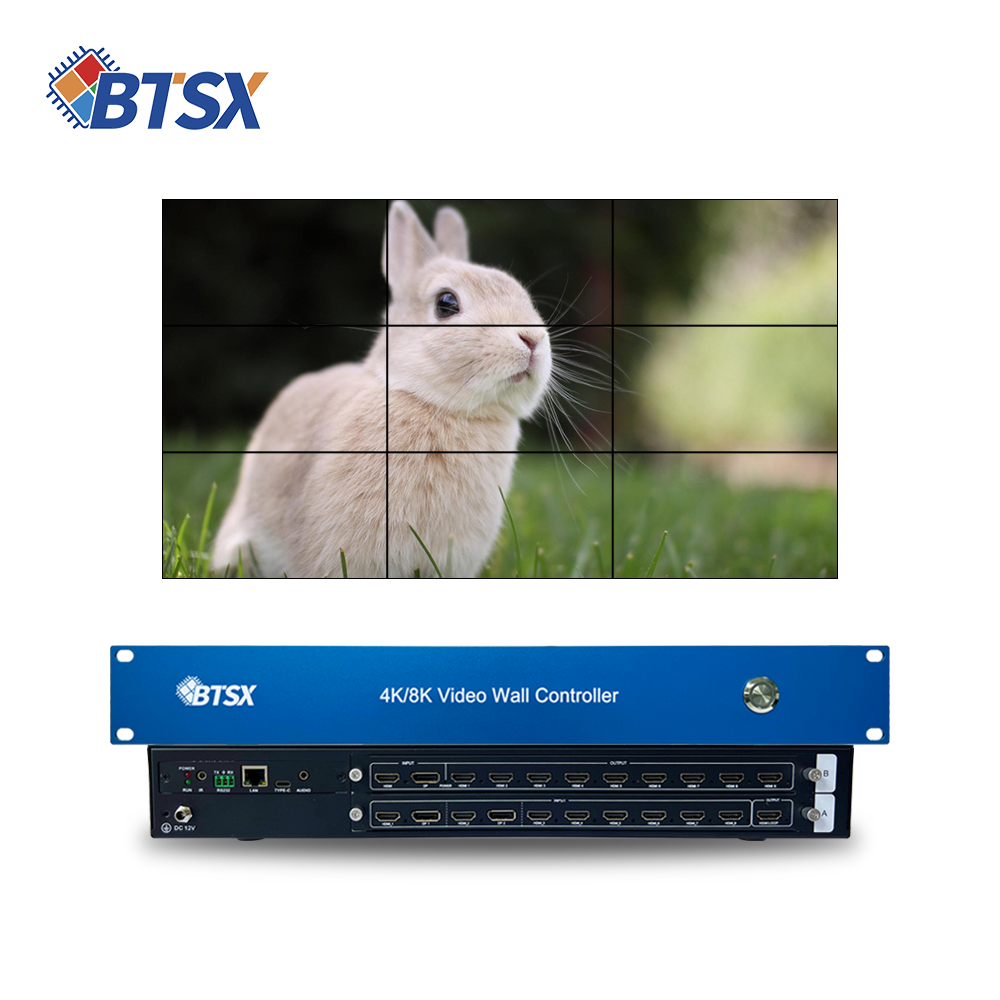

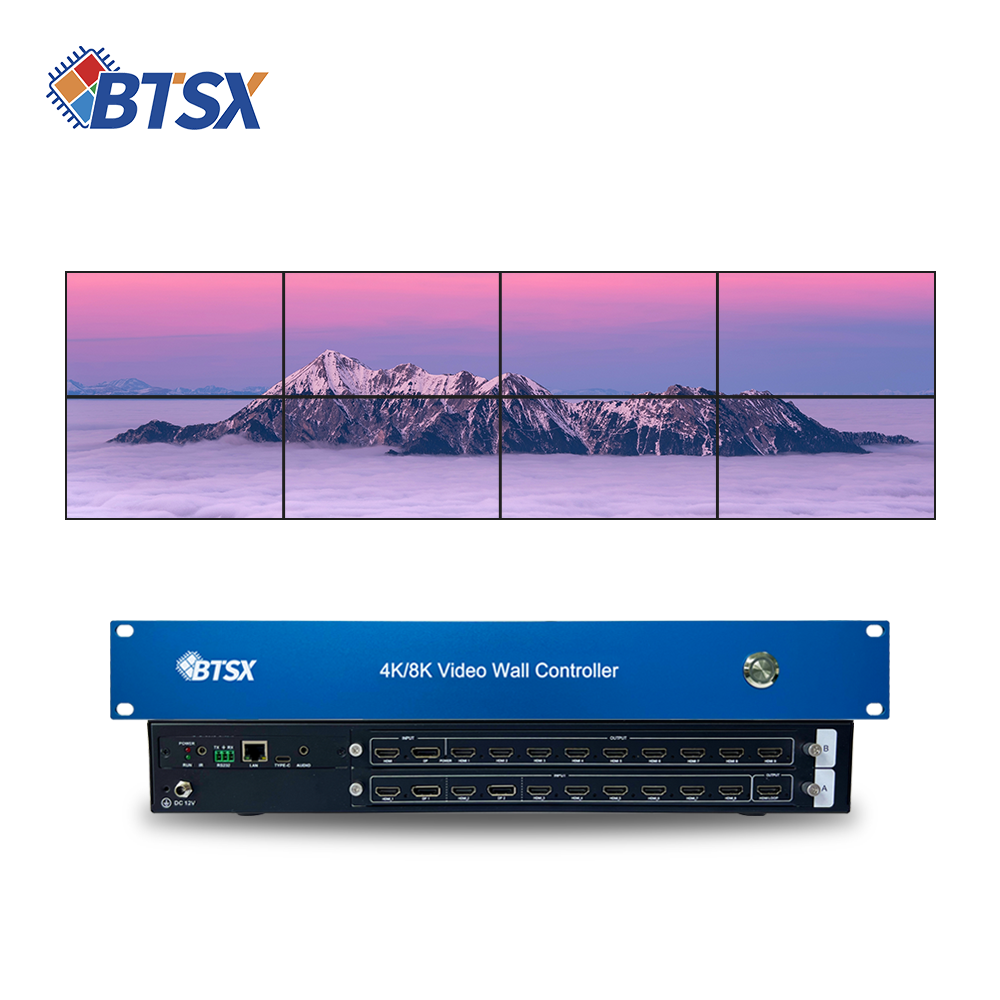

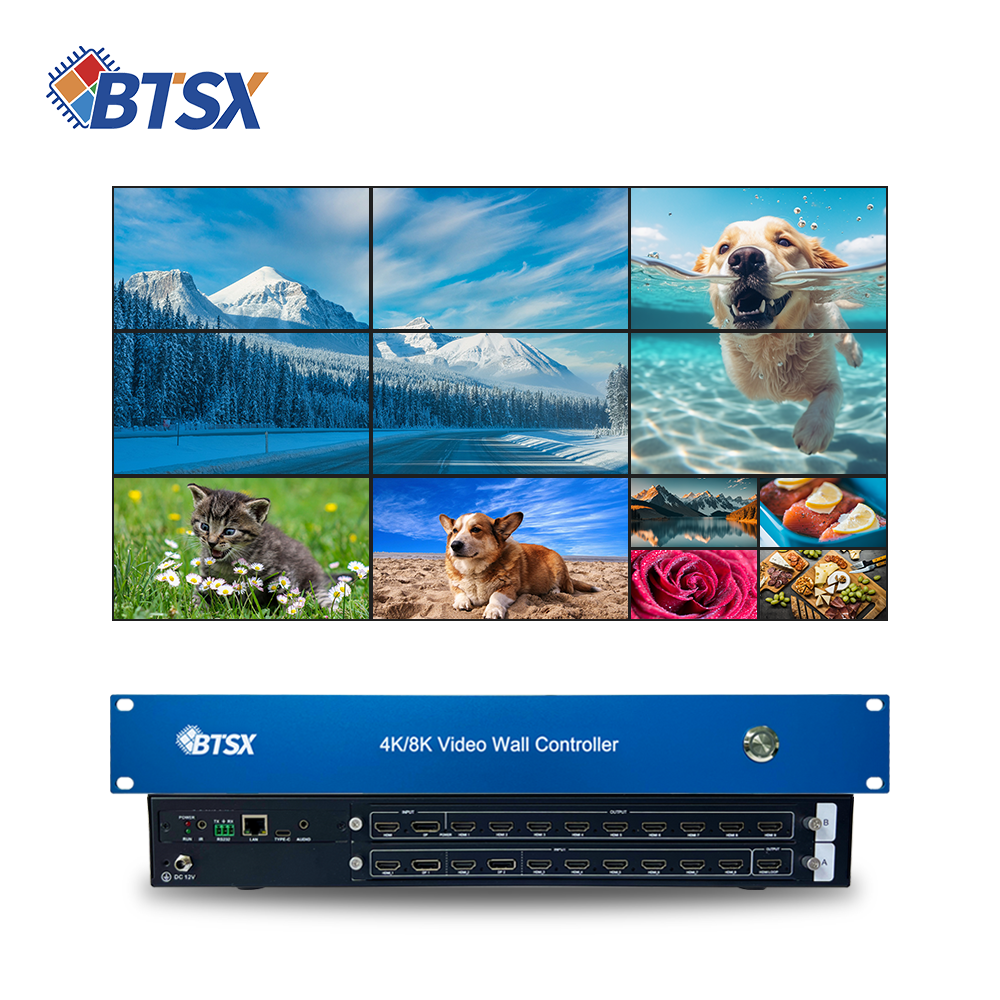

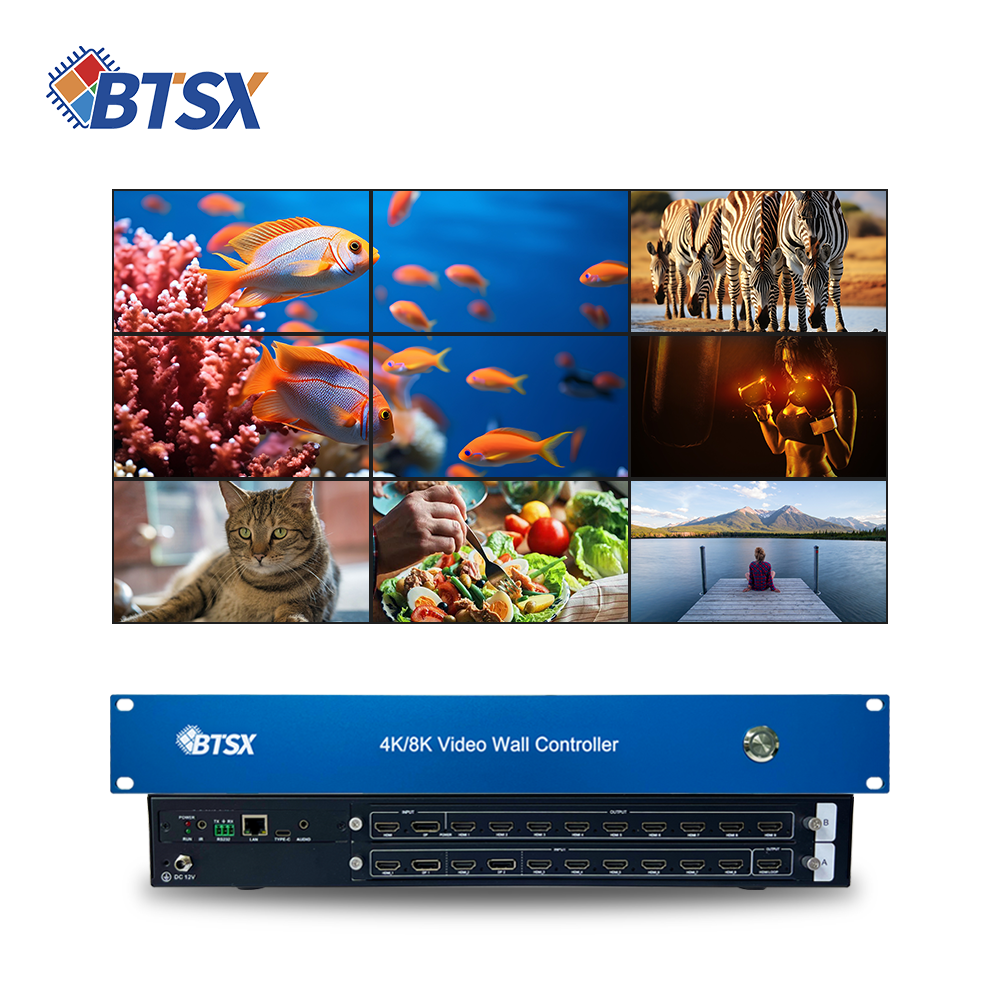

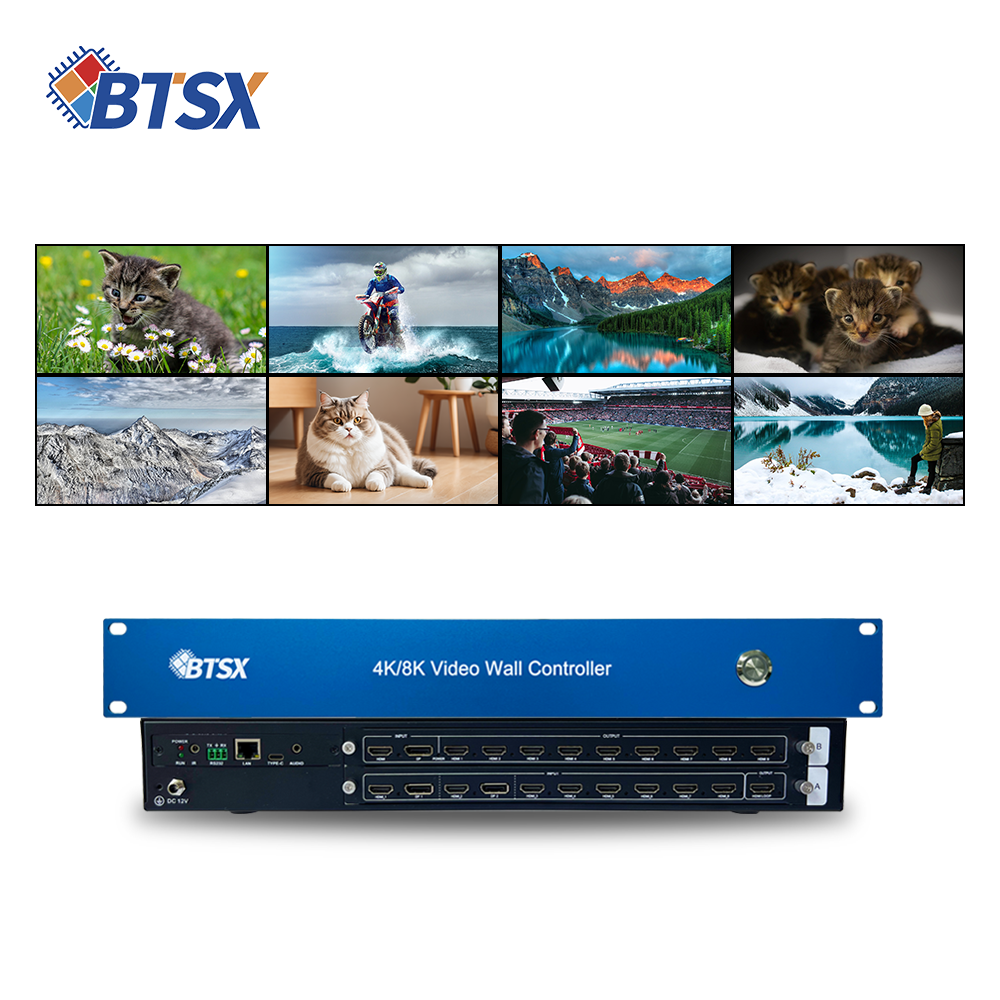

📌4-channel 4K60 inputs (IN1-4) plus 4-channel 1080P60 (IN5-8); flexible M×N video wall splicing (2×3, 2×4, 3×3...) and multi-screen mode showing up to 8 different sources on the wall at the same time.

📌Seamless 8-in-8-out matrix switching with no black screen or flicker; built-in output signal enhancement keeps the signal stable and clear during long-distance transmission.

📌2L two-layer mode: the base image L0 covers the entire screen while the top layer L1 hosts up to 7 windows that freely roam or zoom via web control, with seamless source switching inside each window.

📌Hardware border adjustment compensates the bezel gaps between panels; CEC one-click standby / power-on control of connected TVs and monitors.

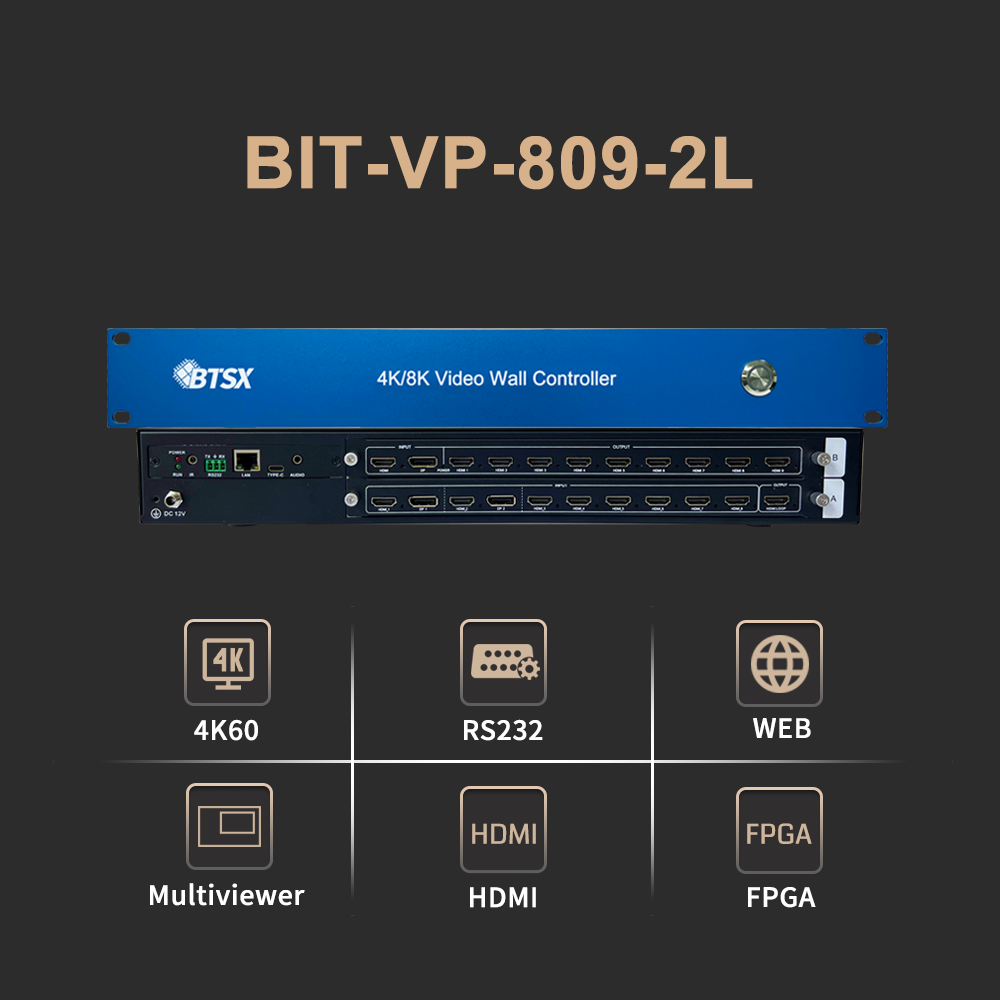

📌Remote control, RS232 and network Web control from Windows PC, Mac, Pad or mobile phone; 3.5mm audio separation output.

📌Imported industrial-grade 28nm chip with excellent heat dissipation and protection design for 24/7 stable operation; 3-year warranty.
