ProductOverview

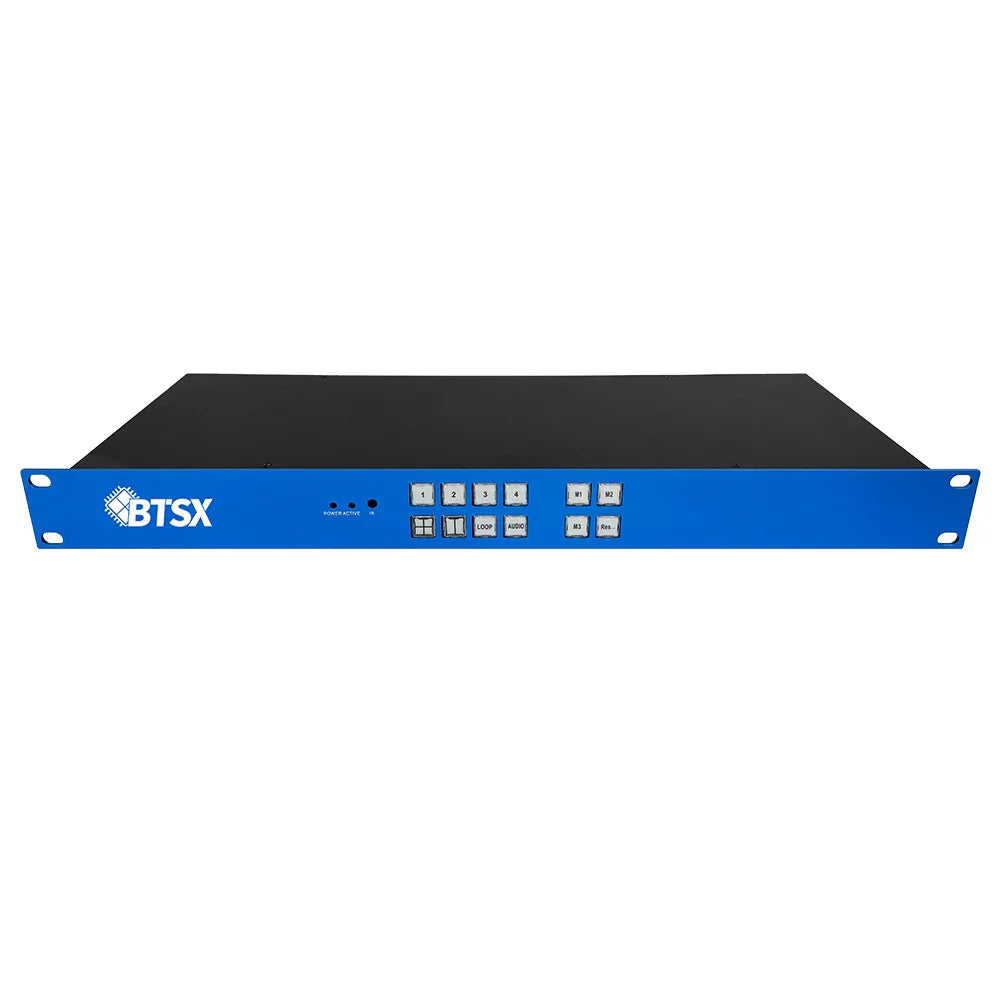

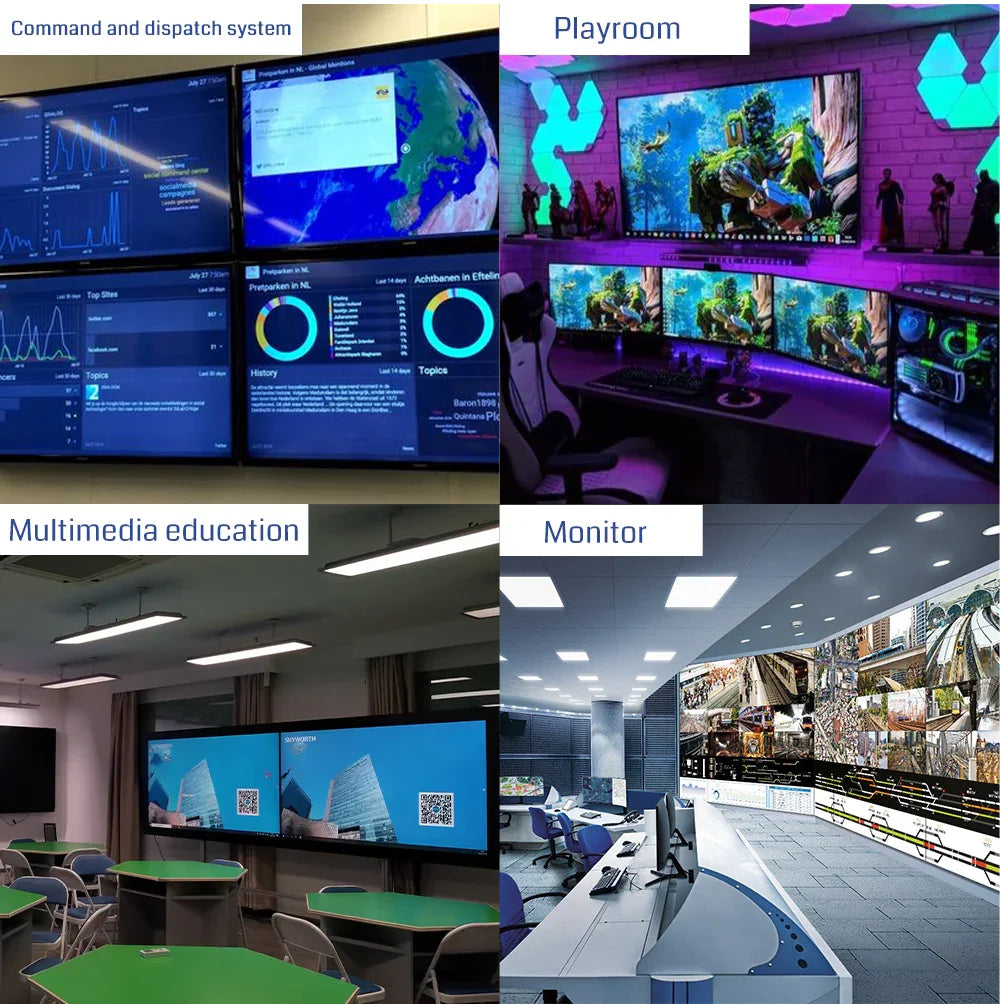

BIT-MV-U1-MD403 is a KVM multi-viewer processor that supports professional video processing and control, capable of displaying multiple high-definition images simultaneously on ultra-high-definition 4K60 resolution displays such as flat-panel TVs and projectors. It is widely used in security monitoring, conference rooms, stage performances, TV broadcasts, multimedia teaching, remote education, and other scenarios.
Description

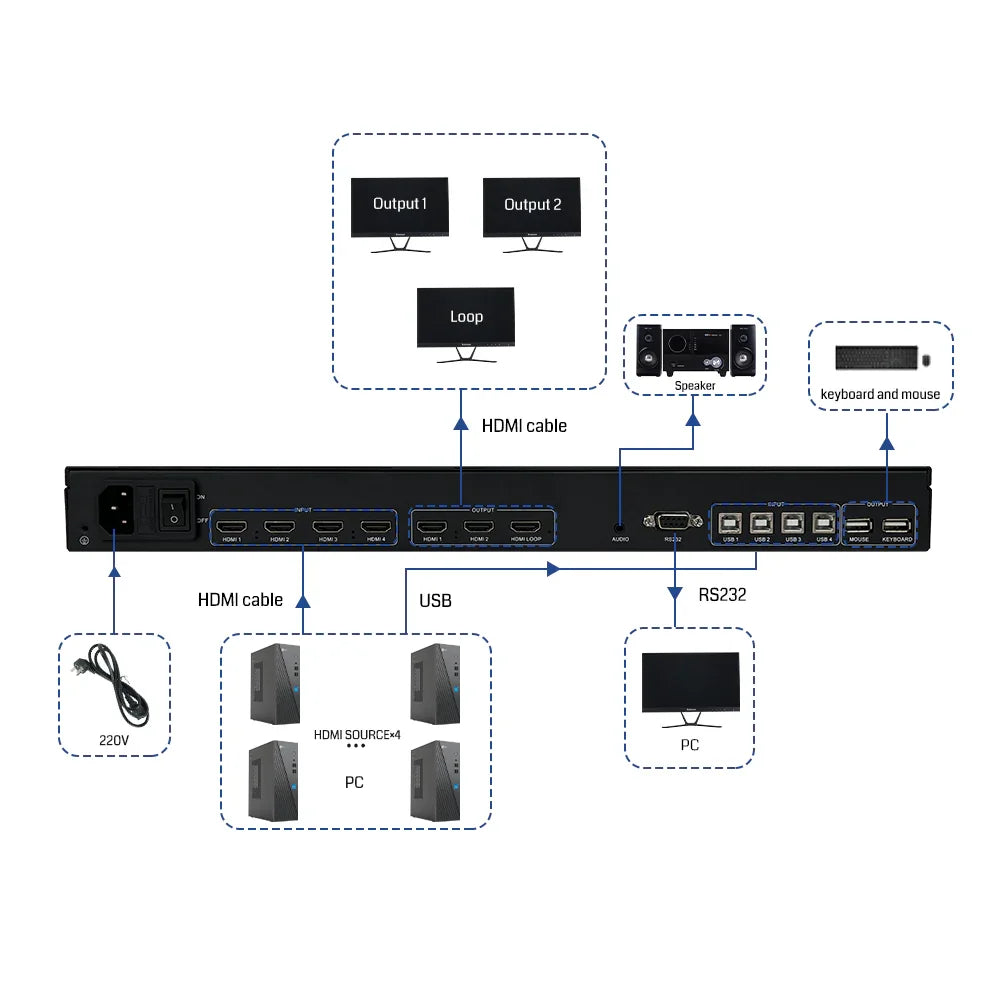

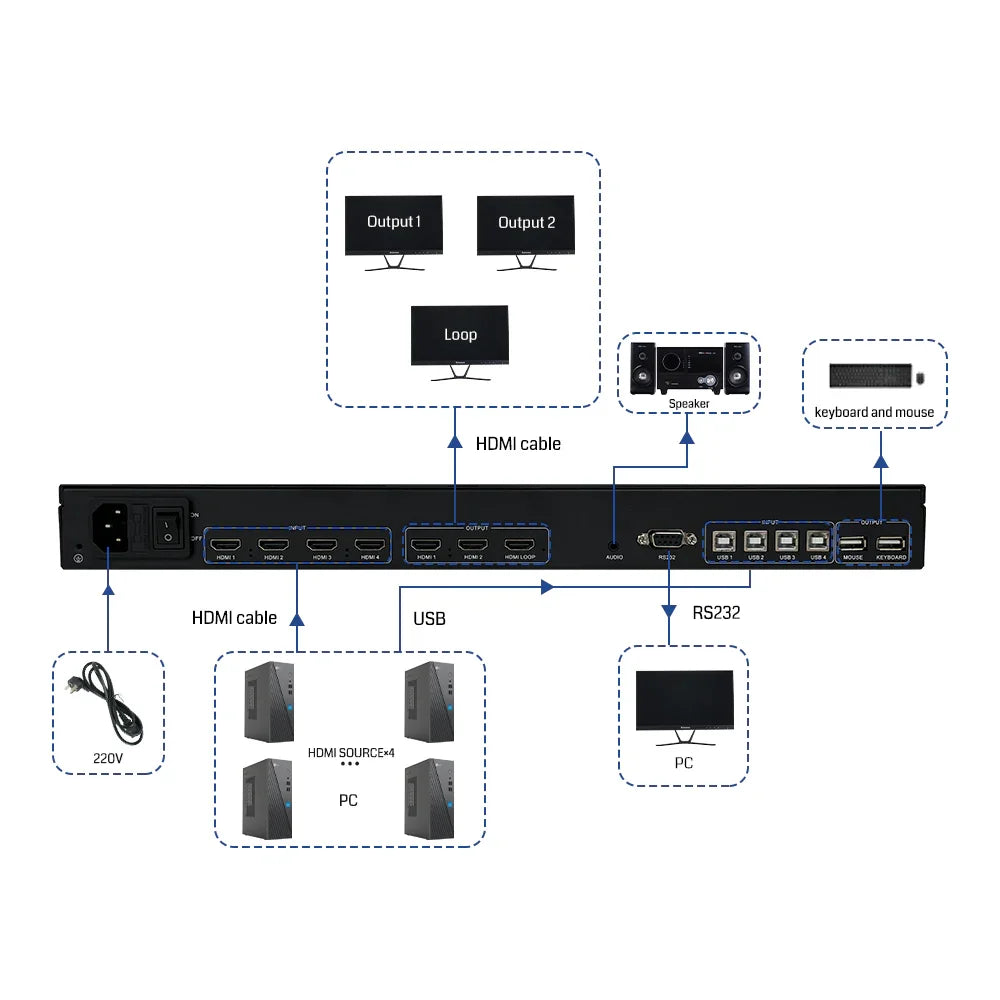

1、Supports 4 HDMI 2.0 inputs and 3 HDMI 2.0 outputs.
2、Supports 4 USB-B (computer) inputs and 2 USB-A (keyboard & mouse) outputs.
3、Supports 11 common output resolutions, including 3840x2160@60Hz, 4096x2160@60Hz, 1920x1200@60Hz, 1920x1080@60Hz, etc.

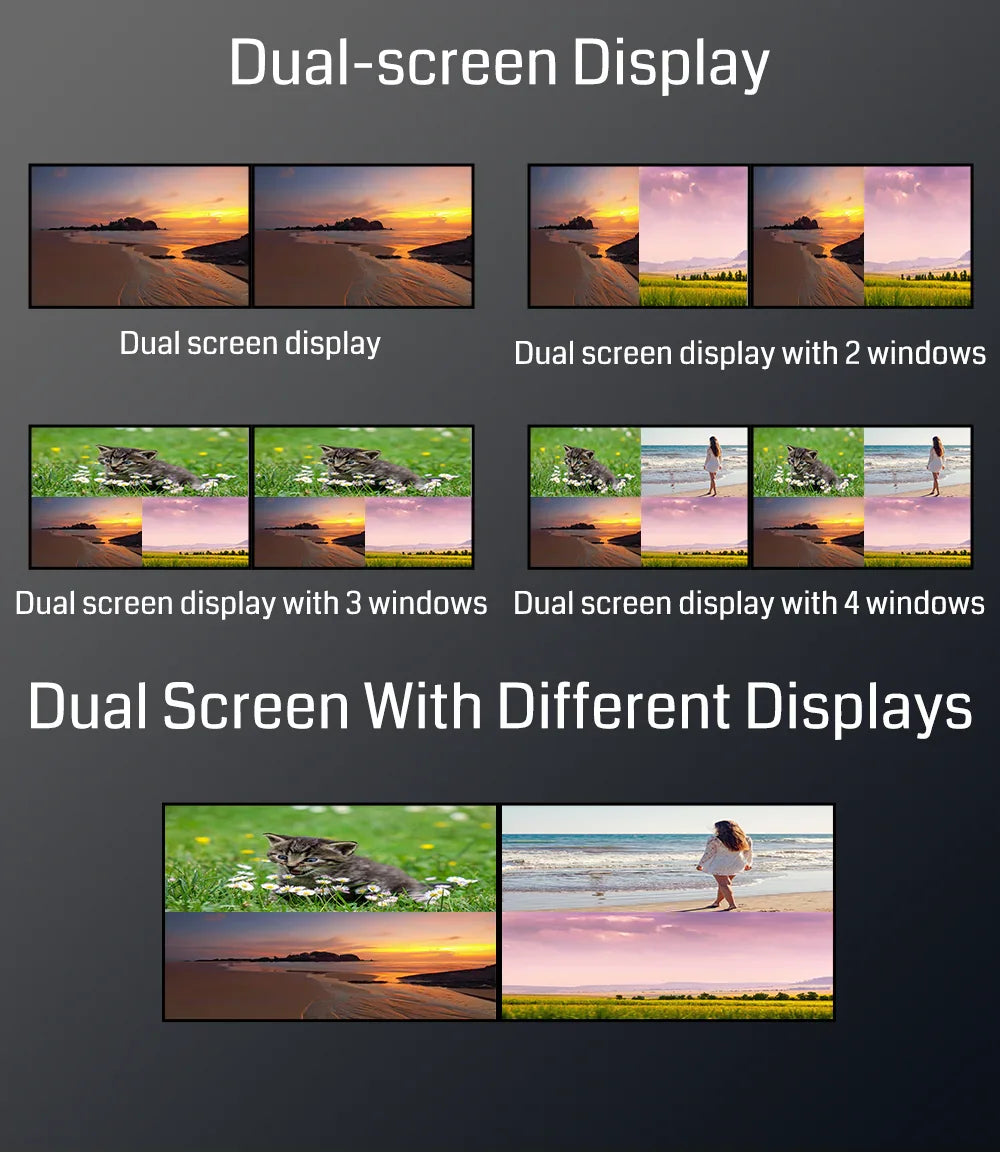

4、Dual-Screen Display Modes:
· Simultaneous Display: Supports showing 4, 3, 2, or 1 window(s) on both screens, along with various window combinations.
· Independent Display: Each screen can independently show 1 or 2 windows in various layouts.
5、Allows window size adjustment, PIP transparency control, and signal switching via keyboard and mouse.

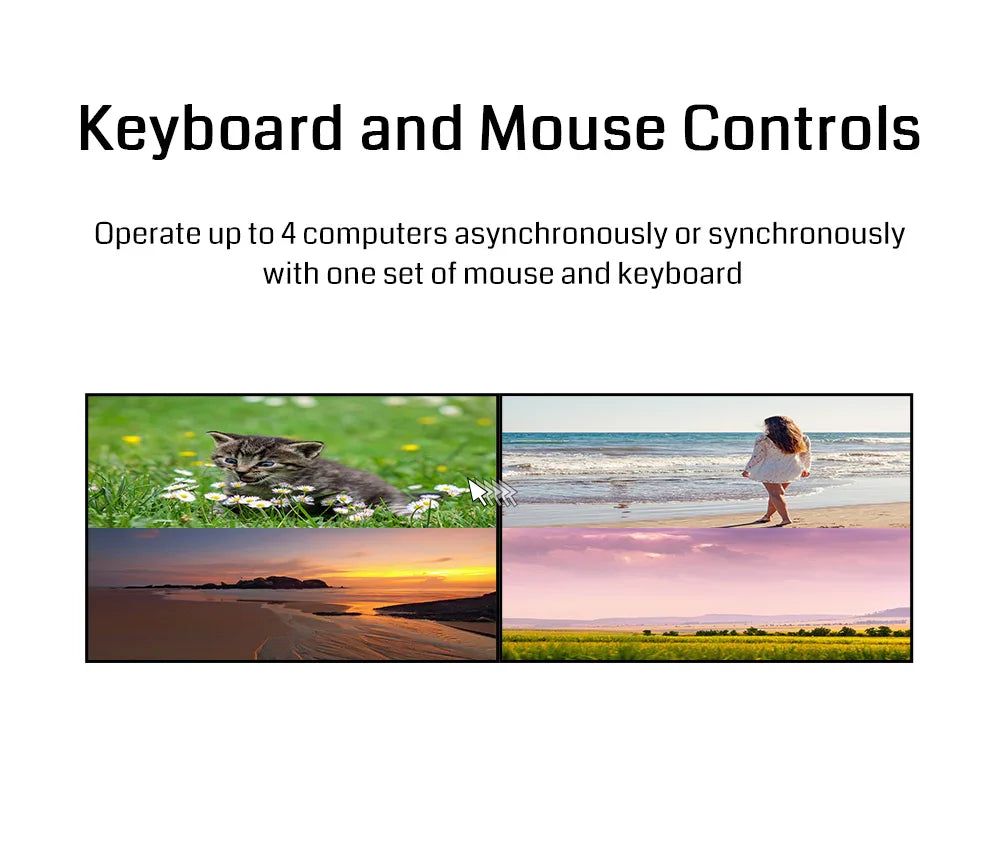

6、Enables one keyboard and mouse to operate up to 4 computers, either asynchronously or synchronously.
7、Offers multiple control methods: mouse, front-panel buttons, and infrared remote control. Functions include switching signals to full screen, 4-screen display, 2-screen display, scene recall, audio output cycling, video loop-out switching, and resolution adjustment.

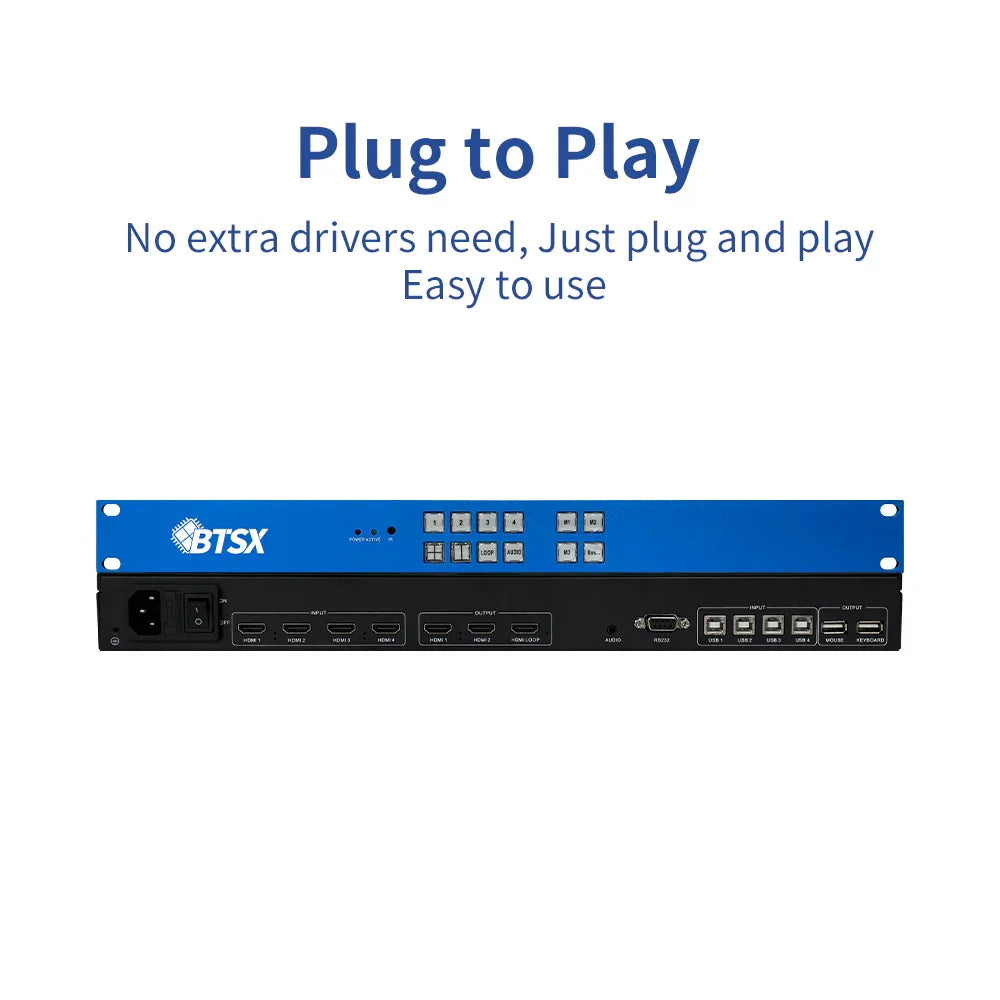

8、Features a hardware-only design. The system operates in a closed architecture without requiring a host computer or boot-up software, ensuring simplicity, stability, and superior output image quality.
9、Requires no operating system or WEB configuration software. All signal switching and independent window scaling can be easily performed using a keyboard and mouse.

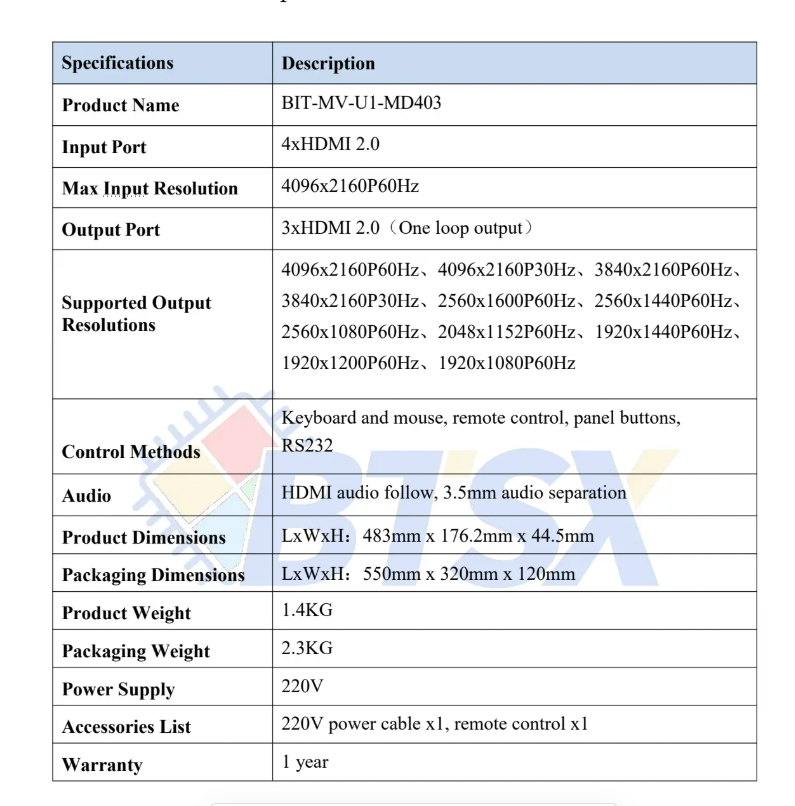

Specifications
| Specifications | Description |

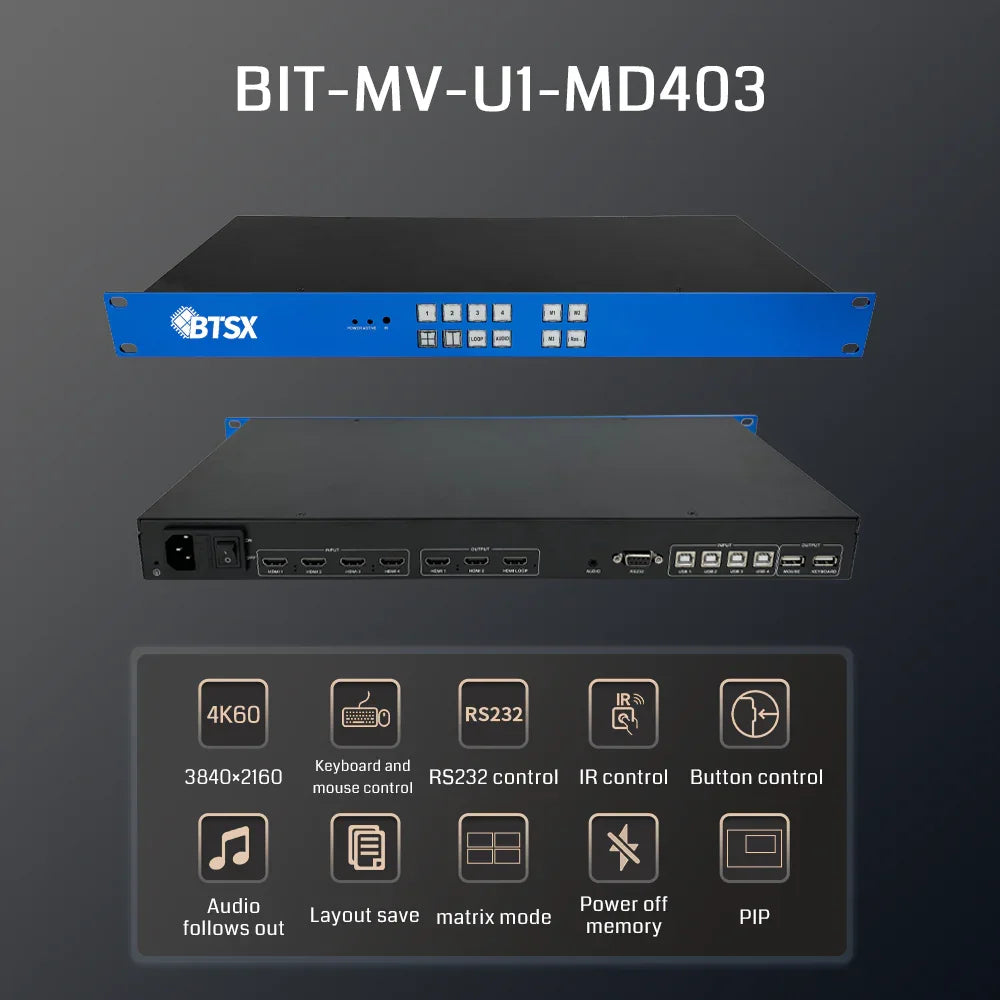

| Product Name | BIT-MV-U1-MD403 |
| Input Port | 4xHDMI 2.0 |
| Max Input Resolution | 4096x2160P60Hz |
| Output Port | 3xHDMI 2.0 (One loop output) |
| Supported Output Resolutions | 4096x2160P60Hz、4096x2160P30Hz、3840x2160P60Hz、 3840x2160P30Hz、2560x1600P60Hz、2560x1440P60Hz、 2560x1080P60Hz、2048x1152P60Hz、1920x1440P60Hz、 1920x1200P60Hz、1920x1080P60Hz |
| Control Methods | Keyboard and mouse, remote control, panel buttons, RS232 |
| Audio | HDMI audio follow, 3.5mm audio separation |

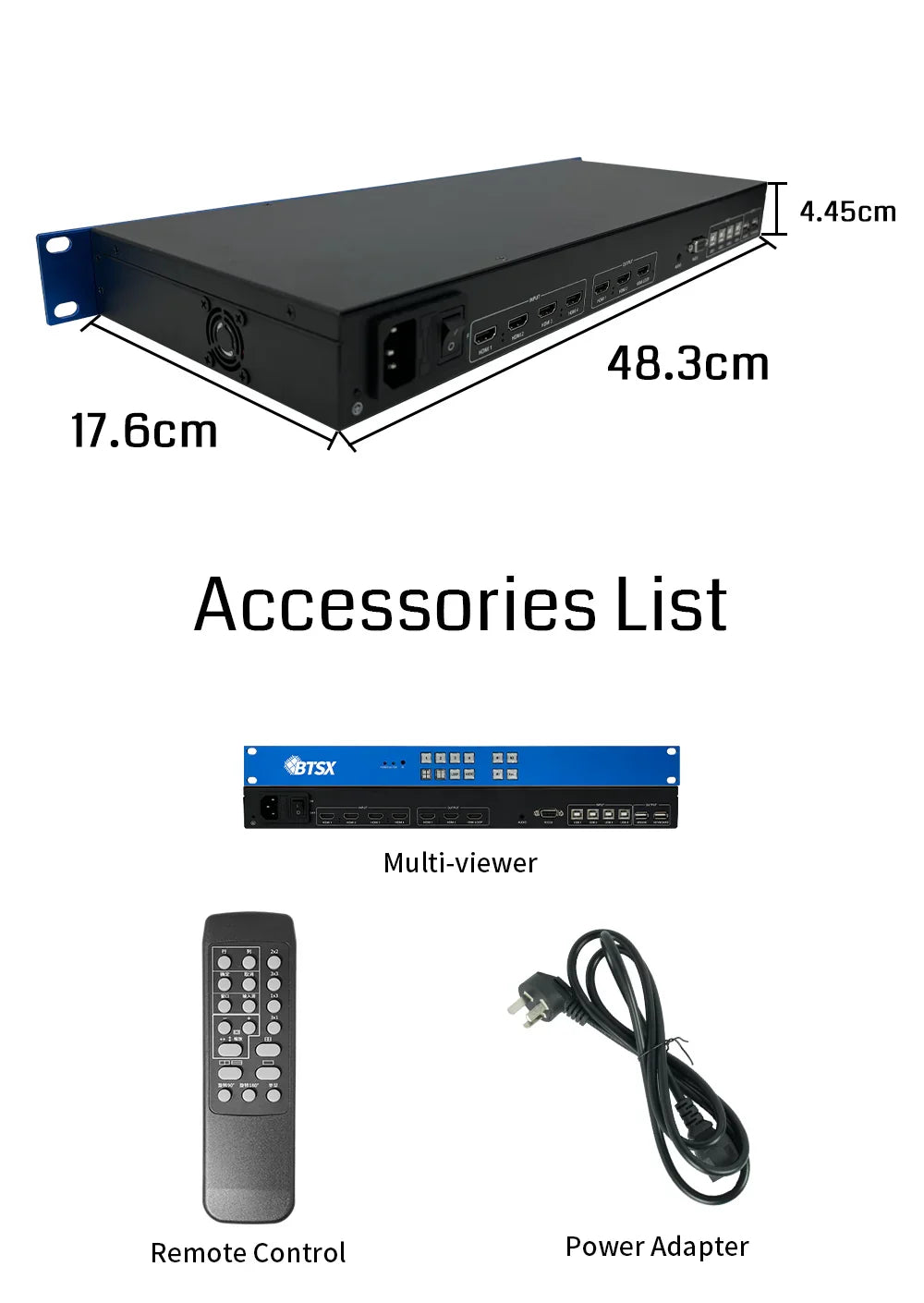

| Product Dimensions | LxWxH: 483mm x 176.2mm x 44.5mm |
| Packaging Dimensions | LxWxH: 550mm x 320mm x 120mm |
| Product Weight | 1.4KG |
| Packaging Weight | 2.3KG |
| Power Supply | 220V |
| Accessories List | 220V power cable x1, remote control x1 |
| Warranty3 | 3 year |
