Customizable 8K60 multi-screen 4K projection blending system with multiple channels

Customizable 8K60 multi-screen 4K projection blending system with multiple channels

$1,140.00 USD
$1,140.00 USD
Sale Sold out
Tax included.
Request Quote

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

1、 Supports 1 channel of 8K60 YUV420 signal input, with HDMI or DP as two options, and priority access to HDMI interface. Supports diversification to ensure clear images and rich details.
2、Supports 4-channel 4K60 output via HDMI ports.
3、Supports 1 × 1, 1 ×2, 1 ×3, 1×4, 2×1, 3×1, 4×1, and 2×2 tile configurations. No stretching, no distortion, and a wider field of view.
4、Support EDID management, flexible selection of EDID through dip switch.

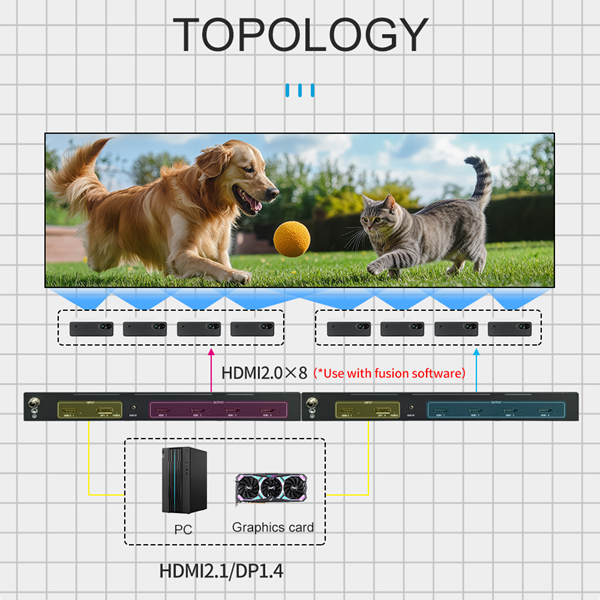

5、Support parallel use of multiple devices to ensure real-time display requirements on large
screens
6、Adopting a high-end programmable FPGA chip with 28nm technology and a fully hardware real-time processing architecture, the processing speed is ultra fast without delay.
7、Industrial grade design, thickened 6-layer PCB board, 16KV ultra strong anti-static ability, ultra strong product stability
8、Low power consumption, energy-saving and environmentally friendly design, equipped with overheating protection and anti-interference design, using 18W thermal conductivity material, internal heat dissipation, ensuring long-term stable operation of the equipment, suitable for
long-term use in various environments.
9、The structure supports desktop small boxes and can also add 1U ear mounted cabinets. At the same time, modular design is adopted for centralized power supply, with 2 cards combined
into 1 1U chassis and 4 cards combined into 1 2U chassis.
10、Paired with Bitvisus Window Opening Software, it can achieve 8K60 multi screen display

Brand Name

BIT-MSE-8K60Y-104Pro

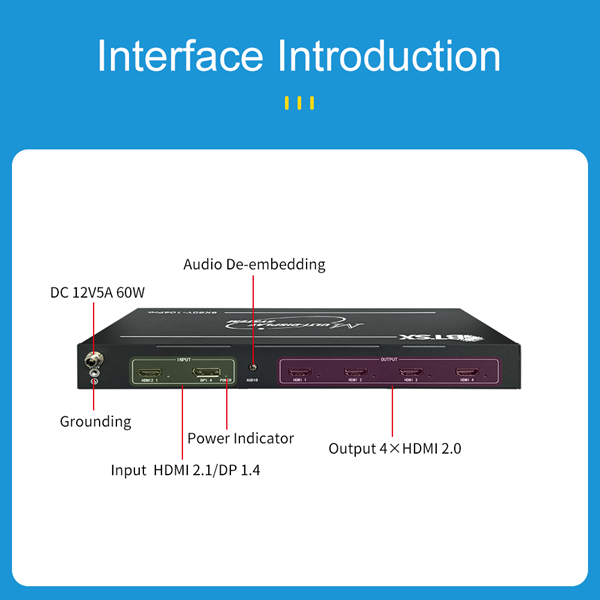

Input interface 1 ×HDMI 2. 1 、1 ×DP 1.4（Copper wire≤3Meters）
HDCP Support HDCP 2.2
Input the highest pixel clock frequency

1200MHz
Input maximum resolution 2×2：7680×4320P60 YUV 420 、7680×4800P60 YUV 420 3 × 1 ：3840×6480P60 YUV420 、3840×7200P60 YUV420

Input color format

RGB444 、YUV420
Output interface 4×HDMI 2.0（Copper wire≤10Meters）
Output the highest pixel clock frequency 600MHz
Output Resolution

3840×2160P60 、3840×2400P60 、3840×2160P30 、3840×

2400P30 、2560×1440P60 、2560×1600P60 、1920×1080P60、 1920×1200P60 、1920×1080P120 、1920×1200P120
Output Color Format RGB444
Color depth 8bit
Audio 3.5MM Audio separation 、HDMI Audio Pass-Through

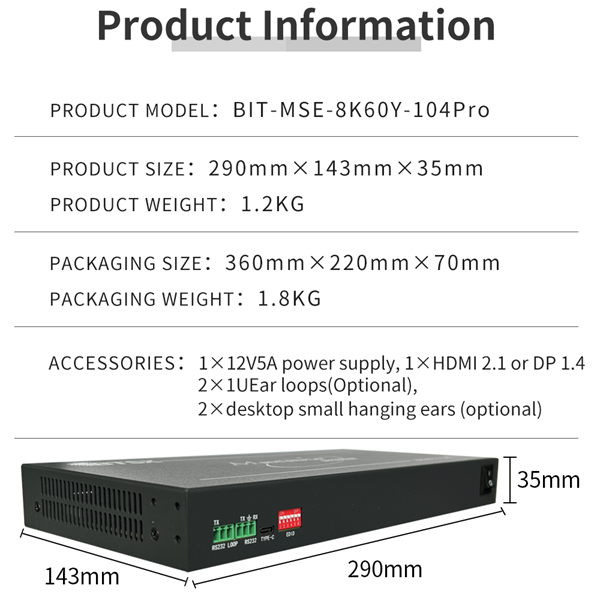

Product weight 1.2KG
After-salesservice 3years

Collapsible row

View full details

Frequently Asked Questions

What input and output interfaces does this video wall controller support?

t supports 12 HDMI 2.0 input interfaces and 12 HDMI 2.0 output interfaces. Both input and output have a maximum pixel clock frequency of 600MHz, enabling flexible multi-input and multi-output configurations.

What control methods are supported by this device?

The device supports multiple control methods, including RS232 serial port, web-based control, keypad control, and WEB API interface. You can access the web interface for flexible control via Windows computers, Mac computers, tablets, and mobile phones.

Does it support seamless switching? Will there be black screen or flickering during switching?

It supports seamless switching of input signals. During the switching process, there will be no black screen or flickering, ensuring smooth and stable presentations.

What display wall configurations does this video wall controller support?

It supports arbitrary configurations within 12 screens, such as 2x2+2x2+1x4 and various other combinations to meet different display requirements. It also supports calling and saving up to 12 preset scenes.

What is the warranty period? What is the operating temperature range?

The product comes with a 3-year after-sales warranty. The storage temperature range is -10°C to 50°C, and the operating temperature range is 0°C to 50°C, making it suitable for most indoor application environments.
