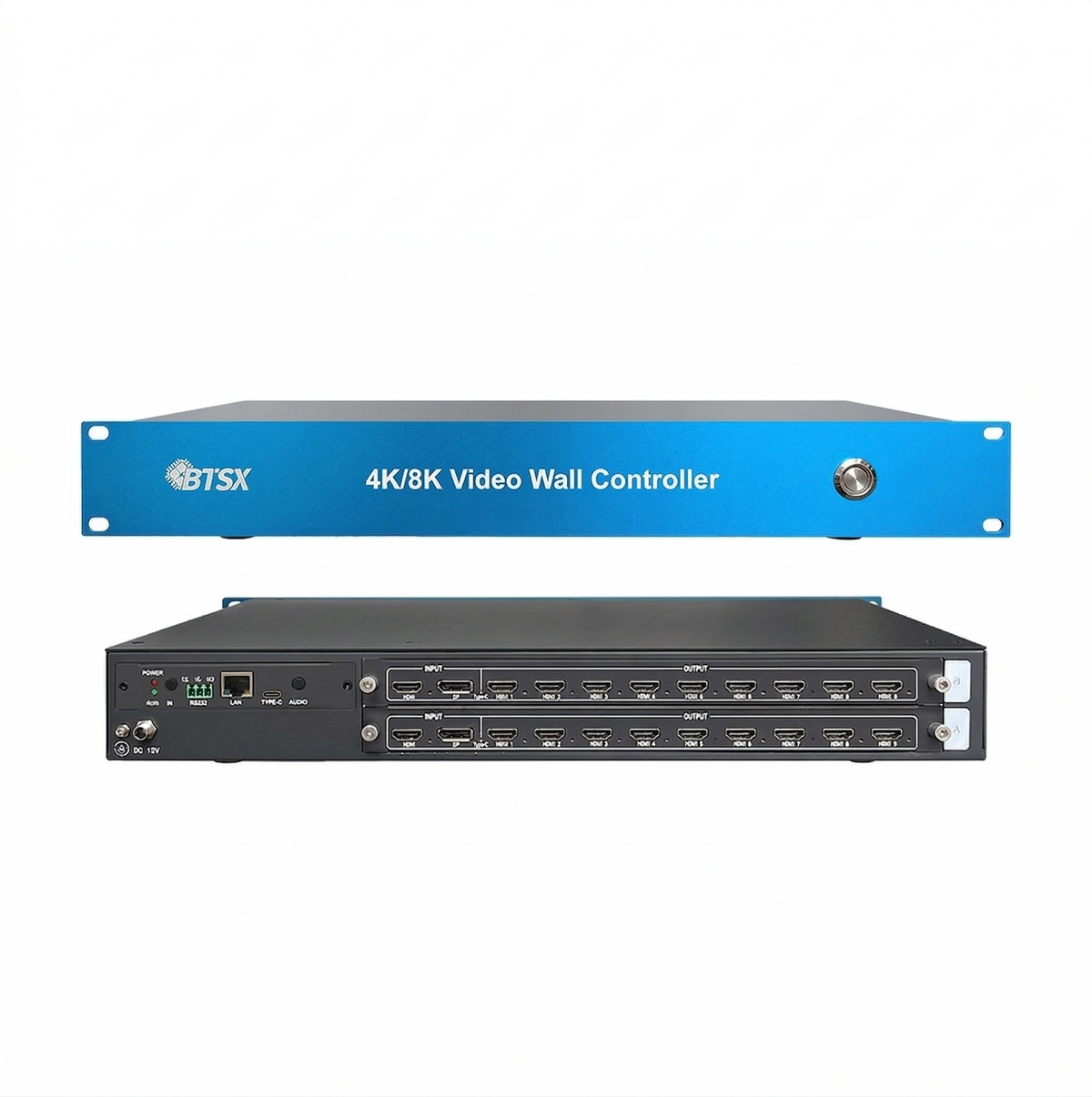

BIT-VWC-218Pro 4K60 Video Wall Controller (2-In 18-Out HDMI/DP)

BIT-VWC-218Pro is a modular 4K60 video wall controller built on a high-end 28nm FPGA with a fully hardware real-time processing architecture. Its modular plug-in card design supports a single-board 1-channel 4K60 input (selectable HDMI or DP interface) and 9 channels of 2K60 HDMI output, expandable up to 2 boards for 2-channel 4K60 splicing. With up to 18 HDMI outputs, it delivers M×N (M,N≤18, MN≤18) point-to-point splicing without stretching or deformation, plus seamless switching between 2 input sources — ideal for ultra-high resolution desktops, exhibition halls, projection fusion, command centers and LCD/LED multi-screen displays.

Key Features

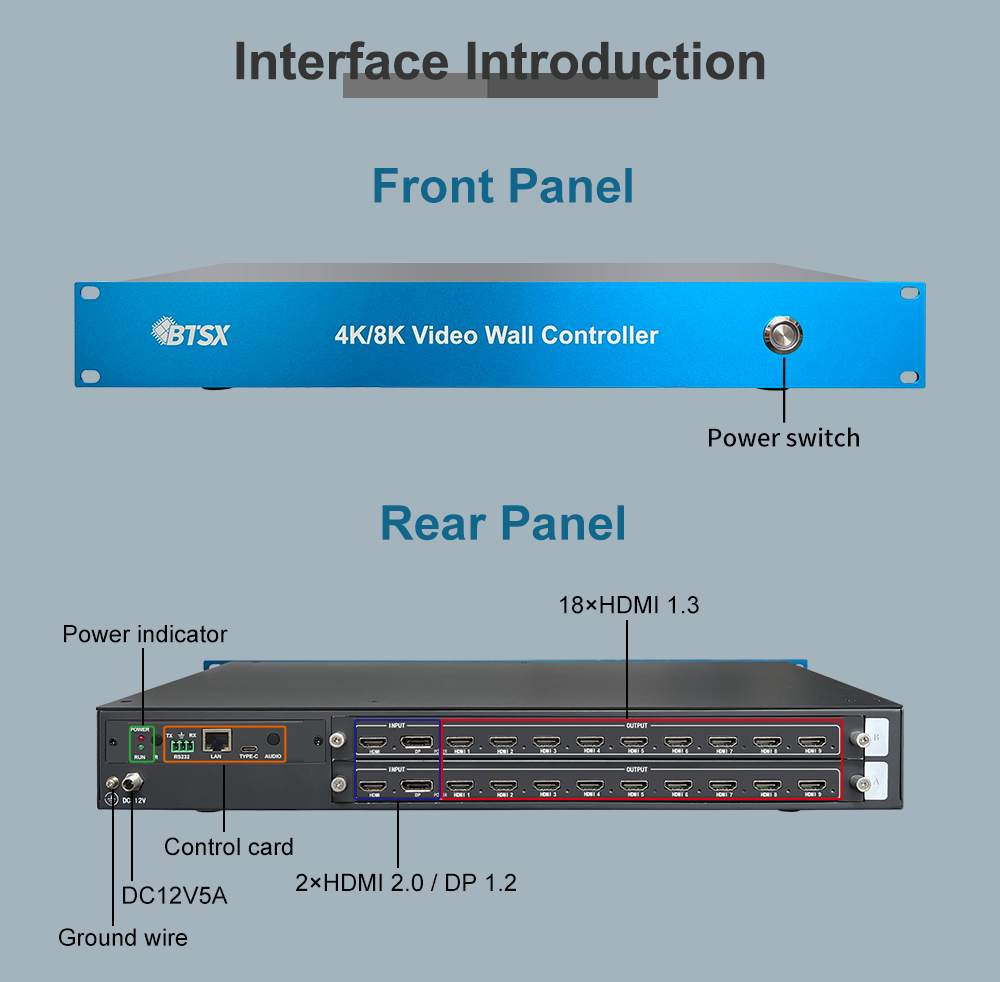

• 2-Channel 4K60 Input: 2× HDMI 2.0 and 2× DP 1.2 input ports (max input 4096×2160P60, 600MHz pixel clock); prioritizes HDMI for high resolution and diverse source compatibility.
• 18-Channel HDMI Output: 18× HDMI outputs with resolutions up to 1920×1200P60, plus 1080P60/1440×900/1280×800/720P60/1024×768 — flexibly adjustable per application and display device.
• M×N Point-to-Point Splicing: Supports M×N (M,N≤18, MN≤18) splicing without stretching or deformation; 1 input source can drive splicing across 18 display devices.
• Seamless Switching: Switch between 2 input sources without blurring or interruption for a smooth viewing experience.

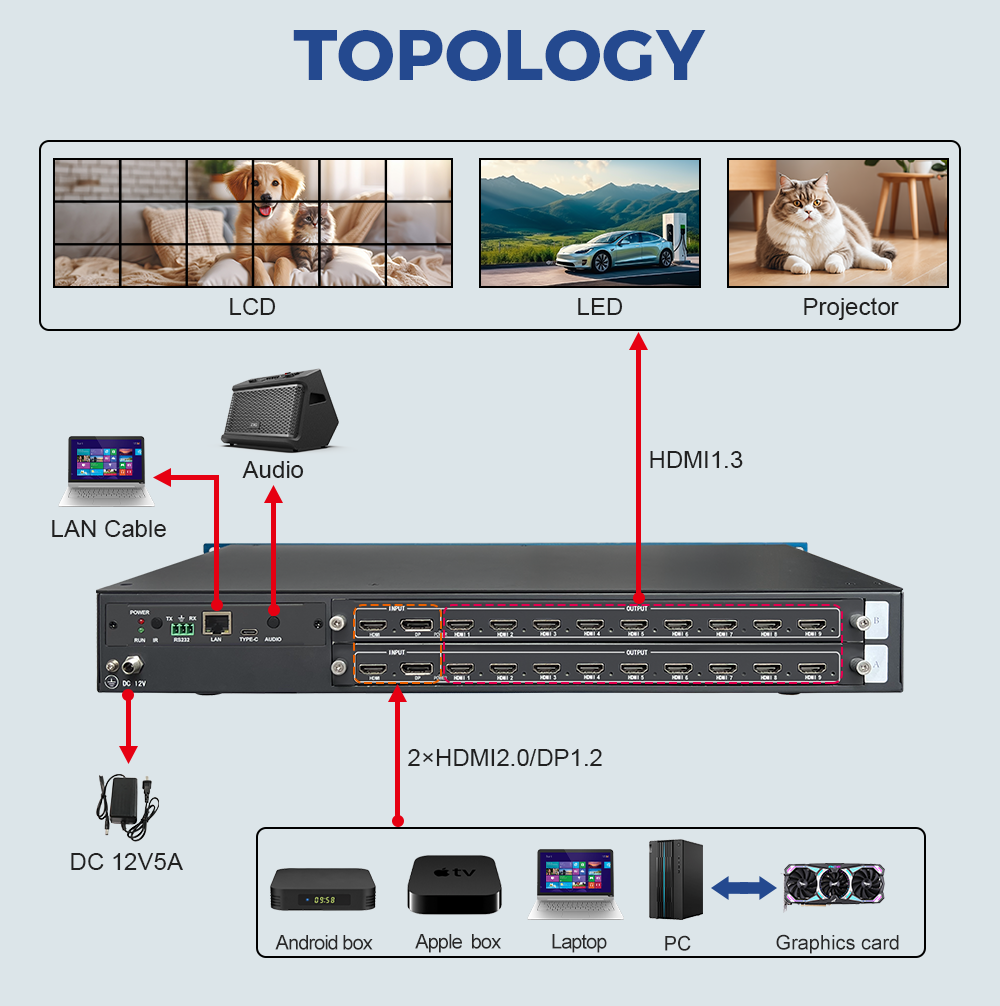

• Ultra-High Resolution Desktop: Pair with an independent graphics card (2-channel Surround or Mosaic mode) to achieve a super-high resolution desktop spanning the entire video wall.
• All-Output Synchronization: Synchronizes all output ports to fundamentally eliminate screen tearing, stuttering and unsynchronized multi-screen display.
• Bezel Correction & 180° Rotation: Independently fine-tune each output channel to compensate for screen border occlusion and installation misalignment; first-row 180° rotation auto-corrects inverted displays for the narrowest physical seam.
• Output Replication & Backup: Output channel replication turns idle interfaces into hot-backup resources, maximizing reliability.
• Flexible Control: Web control via browser (Windows, Android, iOS, macOS, Linux, HarmonyOS), RS232 central-control docking, HDMI CEC for one-click display power on/off, DHCP/static IP, network wake-up, and open API for secondary development.
• Professional Audio: HDMI audio sync output plus independent 3.5mm audio separation for flexible audio routing.
• Industrial-Grade Reliability: Thickened 6-layer PCB with 16KV ESD protection, overheating protection and anti-interference design for 24/7 stable operation.

Applications

Ultra-high resolution desktops, engineering displays, multi-channel projection fusion, exhibition halls, virtual reality (VR), large ring-screen cinemas, conference rooms, command centers, game halls, large advertising walls, LCD/LED multi-screen video walls.

Specifications

Note: The price shown is the sample price. If you want to get a business cooperation price, please chat with us or click Request Quote.
