12x12 4K60 HDMI Video Wall Controller

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right-corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

This advanced Video Wall Controller and HDMI Matrix Switcher is engineered to deliver unparalleled performance and flexibility for mission-critical display environments. It seamlessly manages a massive 12x12 matrix of 4K@60Hz signals via HDMI 2.0 interfaces, ensuring pristine high-resolution output for any application, from control rooms to digital signage.

1、Supports 12-channel 4K60HDMI2.0 input, 12-channel 4K60HDMI2.0 output, multiple input and multiple output, high resolution, to meet various application requirements.
2、Supports audio matrix, can provide external audio input, and can switch arbitrarily.

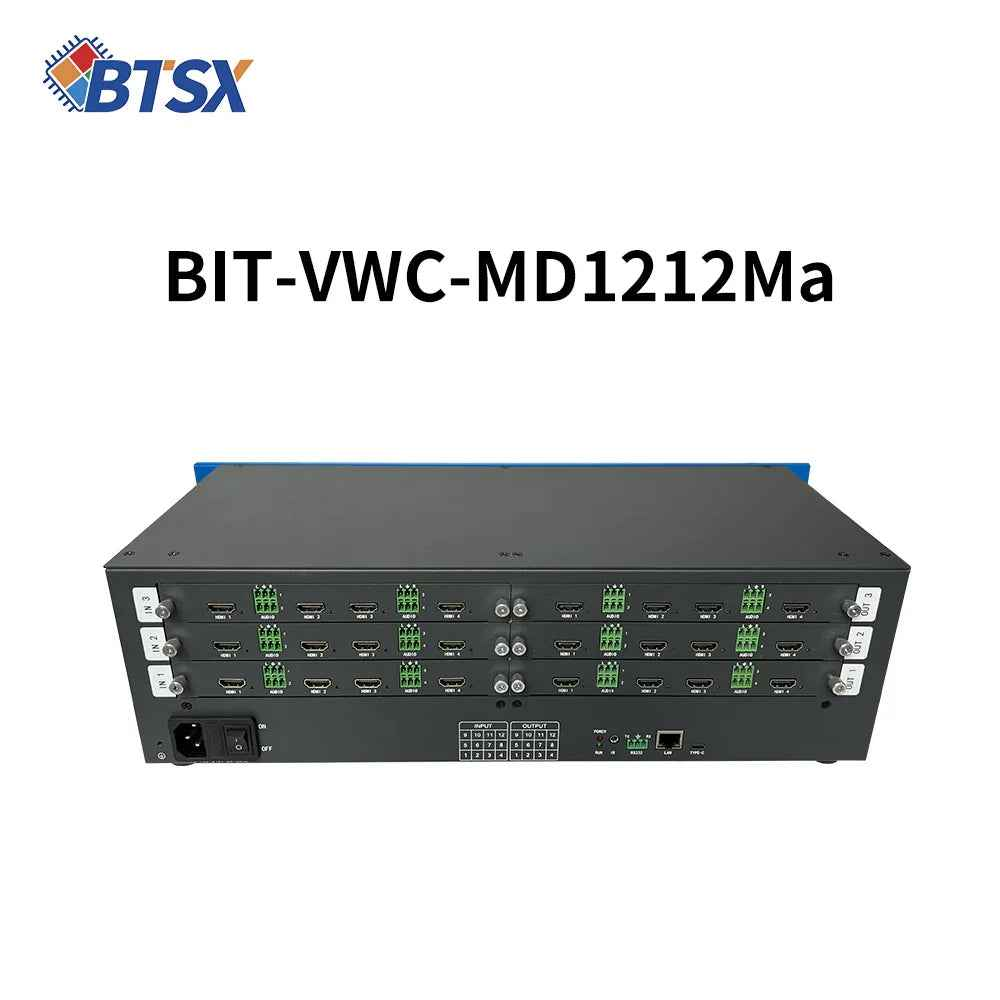

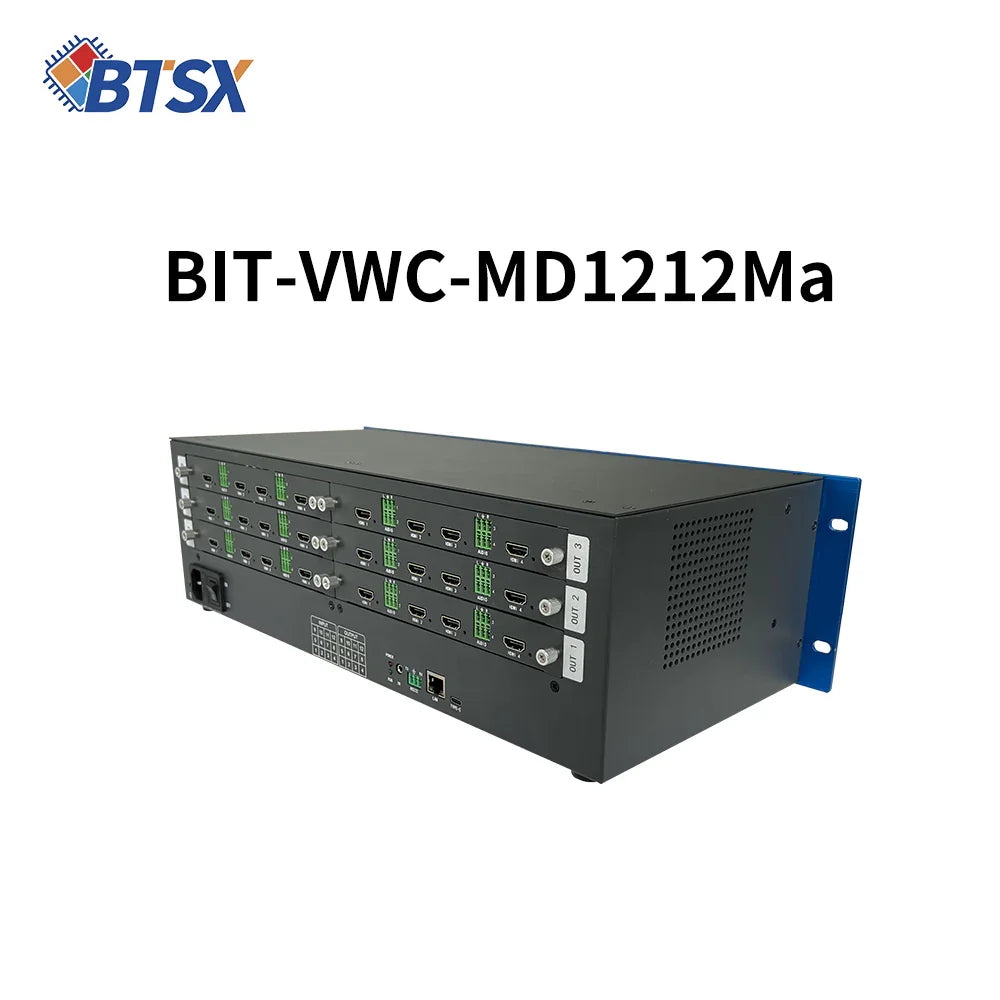

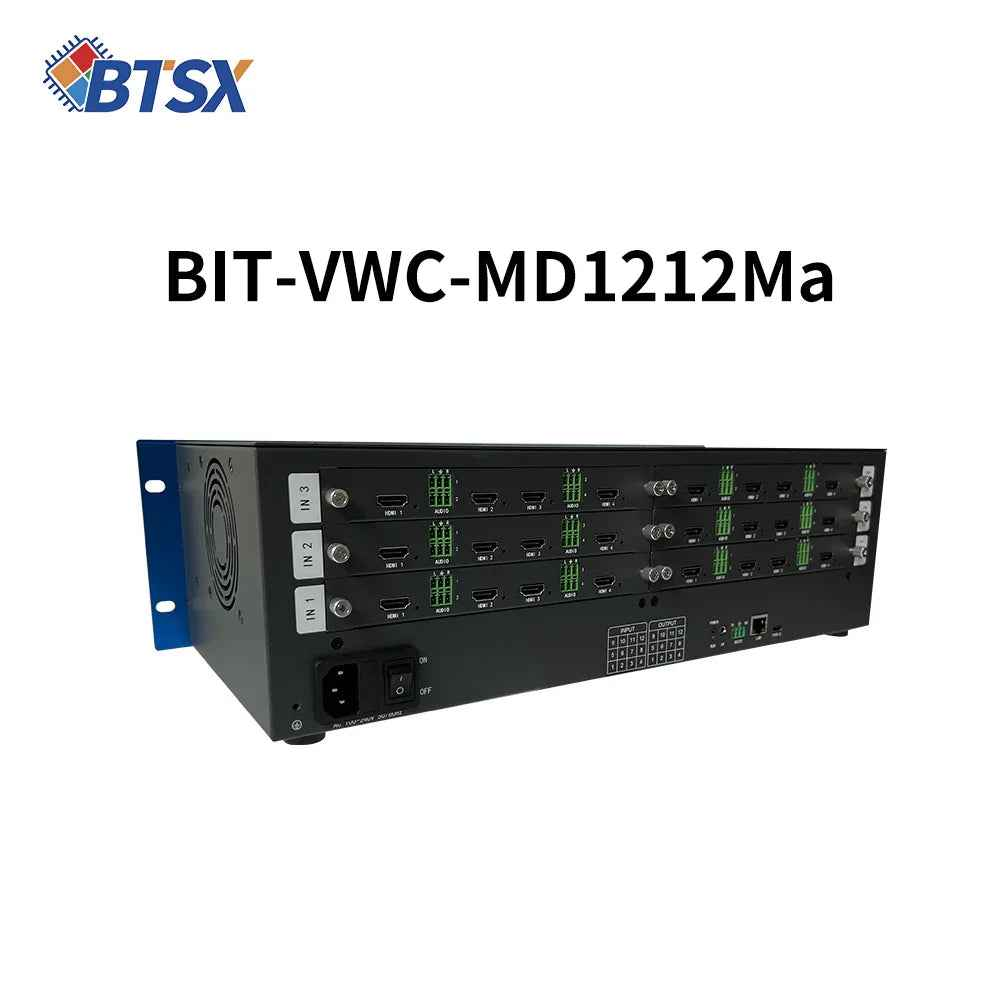

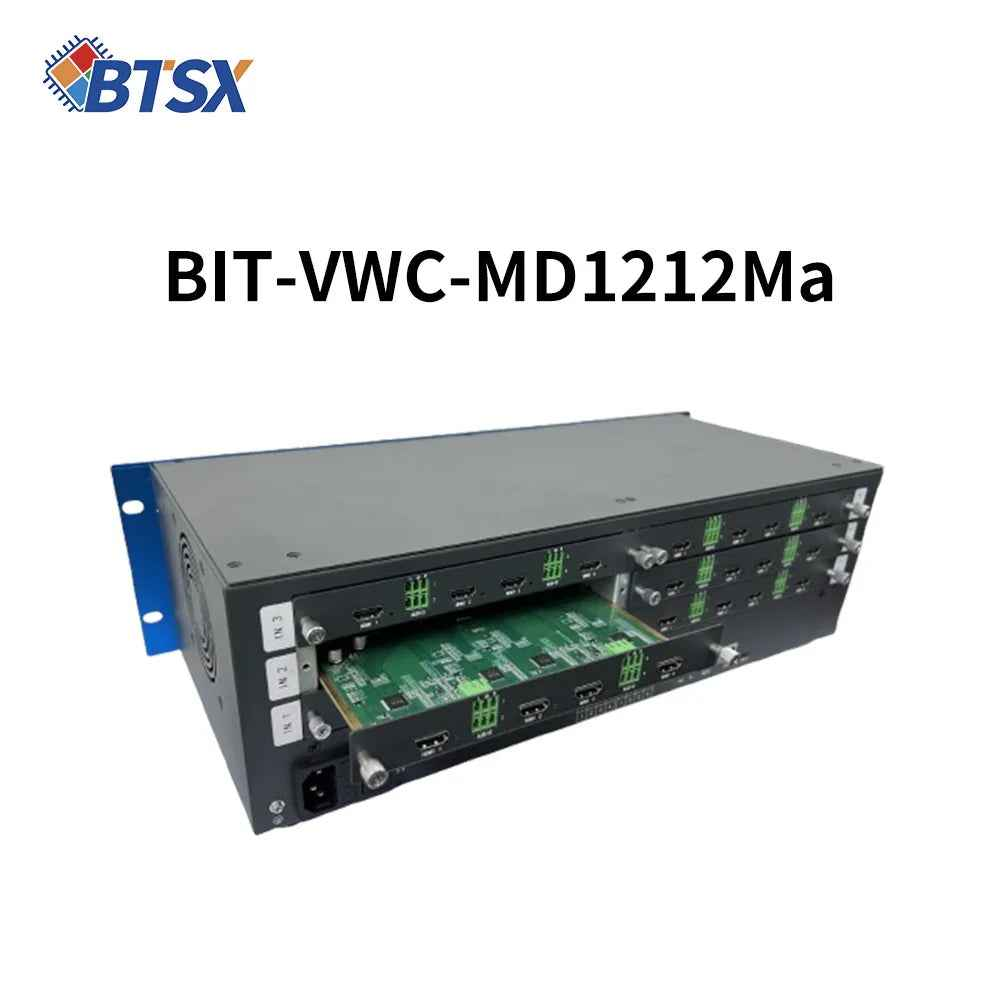

3、Plug-in chassis structure, 1 board 4-way output\input, input\output can choose 1-3 boards.
4、Supports keypad, RS232, network WEB, network API interface control, can log in to WEB on Windows computers, Apple computers, tablets, mobile phones and other devices for control, easily and flexibly realize the control and selection of input and output of the device;
5、Supports seamless switching of input signals, no black screen, no flashing screen.
6、Arbitrary splicing within 12 screens, such as 2x2+2x2+1x4 splicing.
7、Supports custom resolution of independent graphics card, supports EDID management function, and can use WEB to create and save custom EDID.
8、Supports blind plug-in setting of output interface, and can modify output sequence number arbitrarily without manual exchange of line sequence.
9、Supports calling and saving of 12 pre-planned scenes Supports separate operation of three screens, flexible setting of different scenes.
10、Provides WEBAPI interface, customers can carry out secondary development.
11、Built-in output signal enhancement to ensure signal stability and clarity during long-distance transmission.

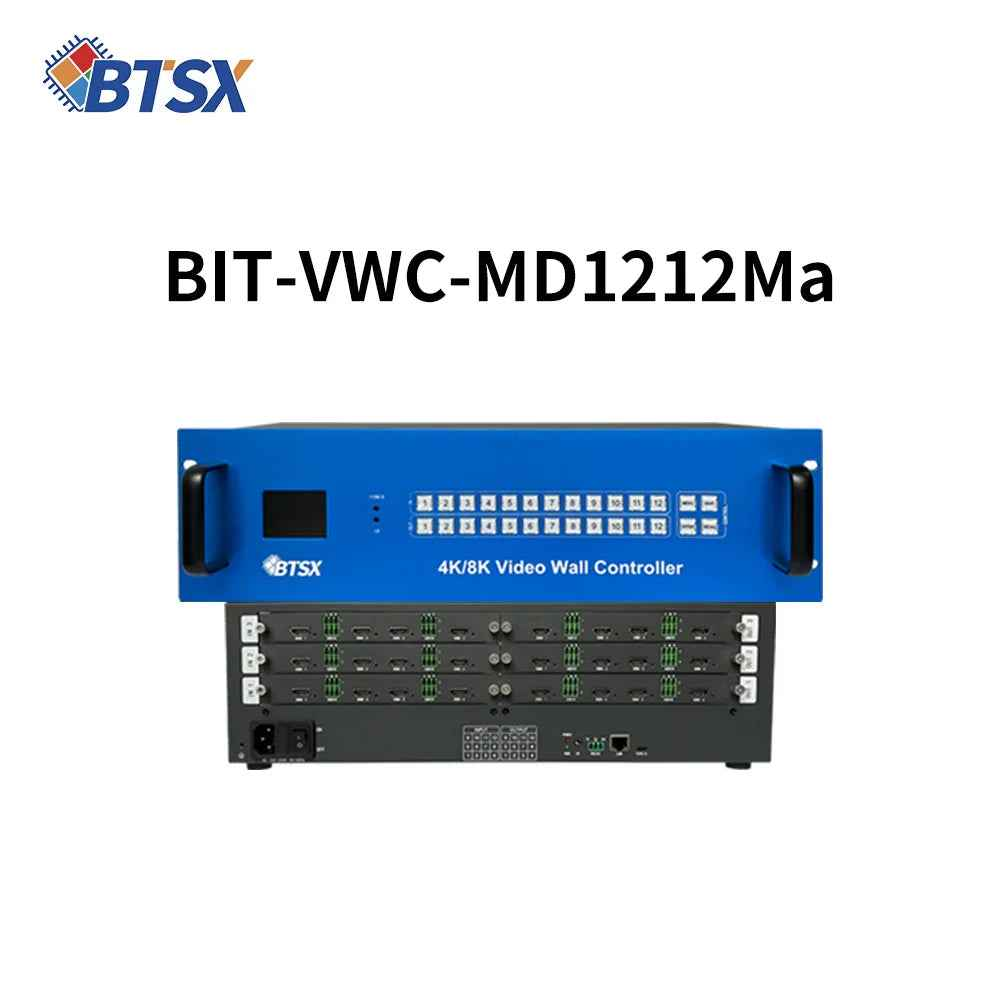

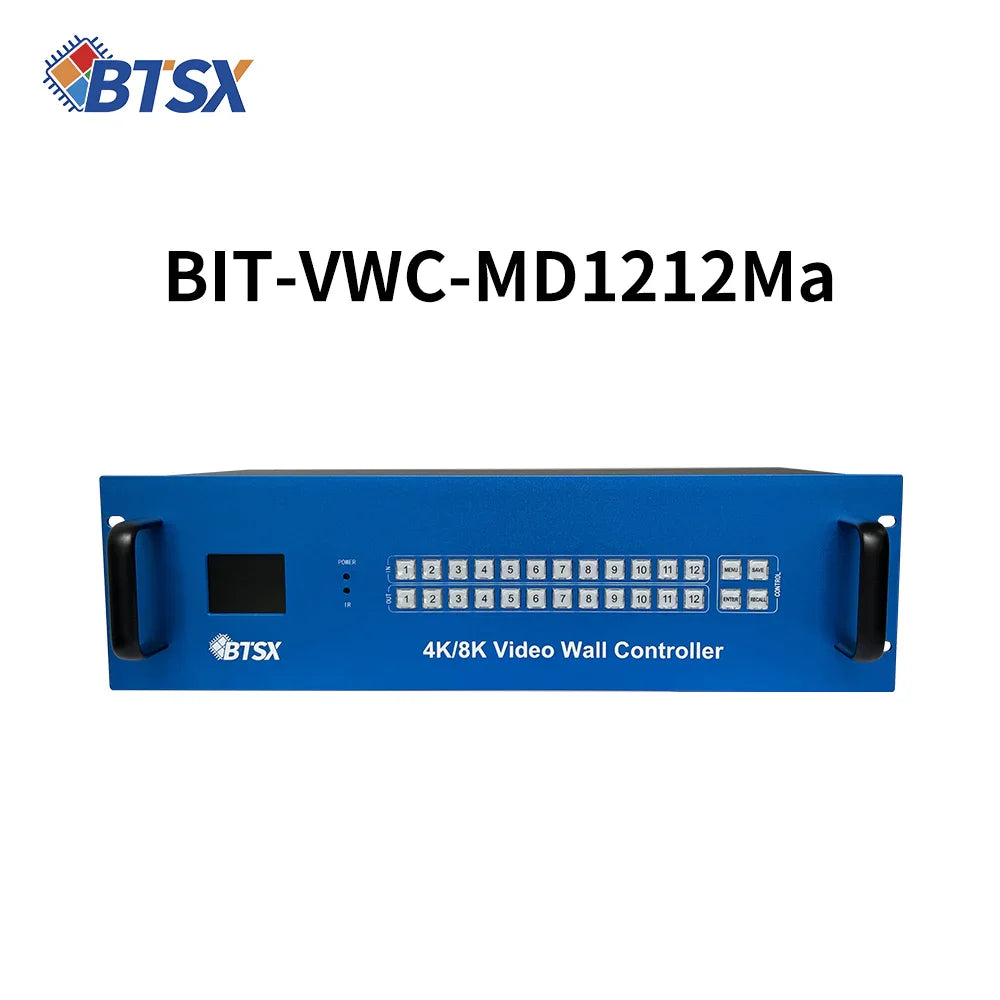

12x12 Video Wall Controller
