The 8K HDBaseT network extender can transmit networks within 150m

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

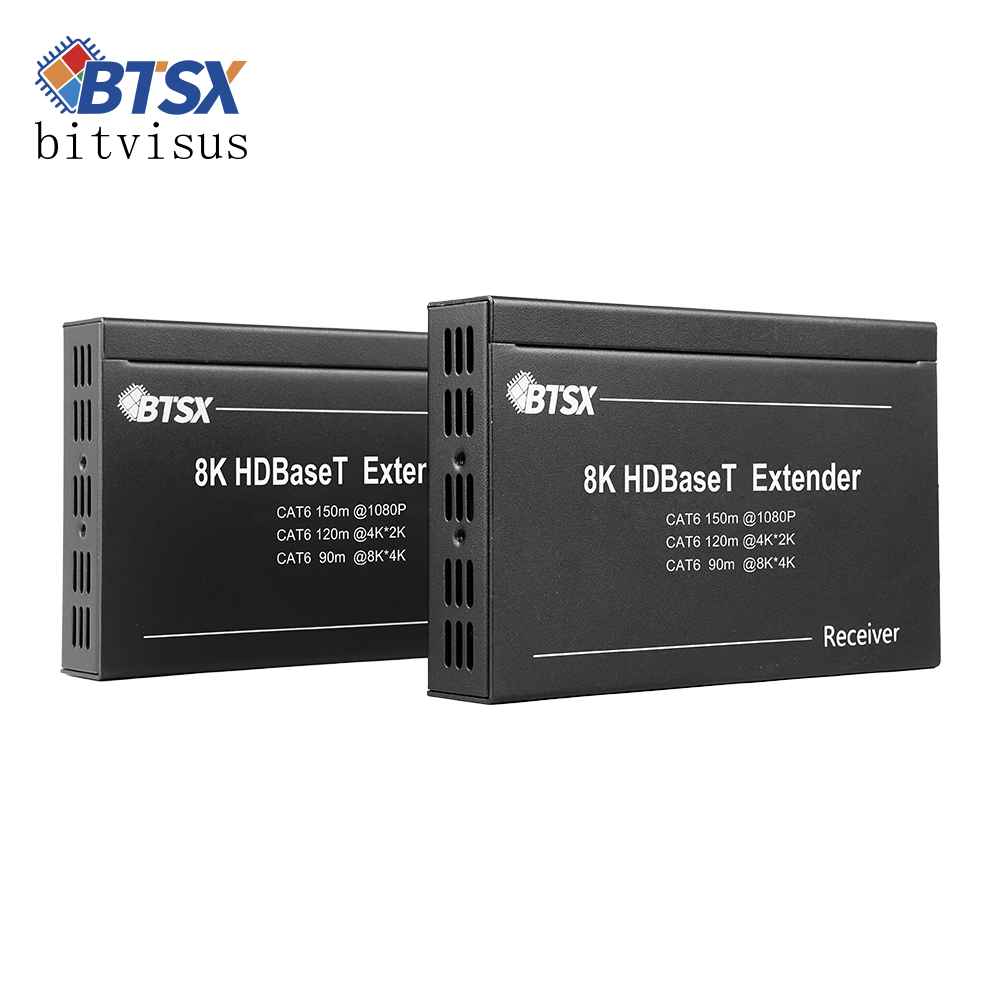

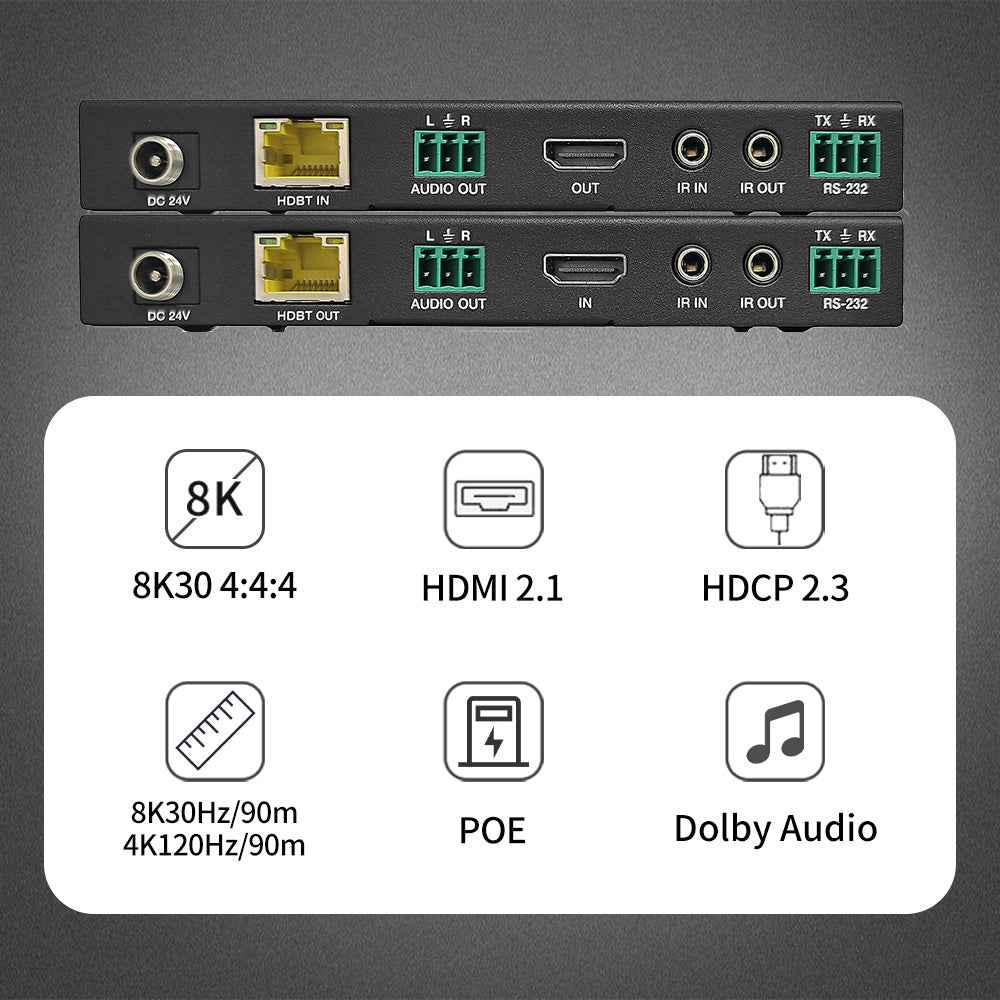

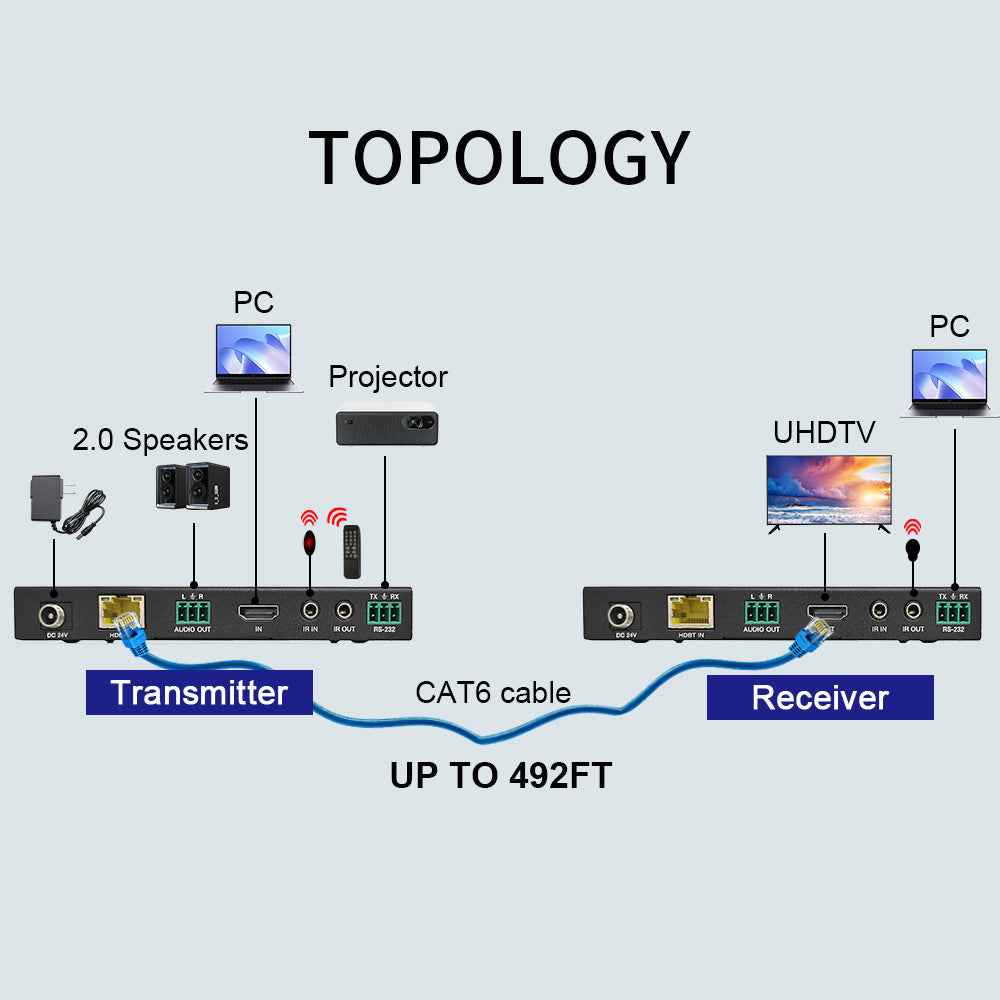

The BIT-Ex-HDBT-8K-150C is a high-performance HDBaseL network extender that enables long-distance transmission of HDMI, RS232, and infrared signals over CAT6 or above network cables. The transmission distance can reach up to 90m [8K30Hz (4:4:4) and 4K120Hz (4:4:4)], 120m [4K60Hz (4:4:4)], or 150m (1080p). With simplified cabling and exceptional flexibility, it provides efficient audio-video extension solutions for a wide range of applications, including home entertainment, commercial environments, conference rooms, classrooms, exhibition halls, data control centers, video surveillance centers, government agencies, medical facilities, and educational institutions.

Note: This product requires a straight-through network cable connection. Do not use a crossover connection method.

1、Supports all standard video resolutions in the industry, from VGA to WUXGA and 480i to 8K30
2、Transmission distance up to 90m [8K30Hz (4:4:4) and 4K120Hz (4:4:4)], 120m [4K60Hz (4:4:4)], or 150m (1080p)
3、Supports EDID management and passthrough
4、Supports audio formats: LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master
5、Supports bidirectional IR, RS232, and CEC passthrough
6、Supports HDR10, HDR10+, Dolby Vision, and HLG modes
7、Supports audio output and audio extraction
8、Supports PoE (Power over Ethernet)
9、Supports VRR, FreeSync/Adaptive Sync, and ALLM features
HDMI clock recovery on the HDBaseT™ receiver helps resolve HDCP, compatibility, and handshake issues
