BITVISUS

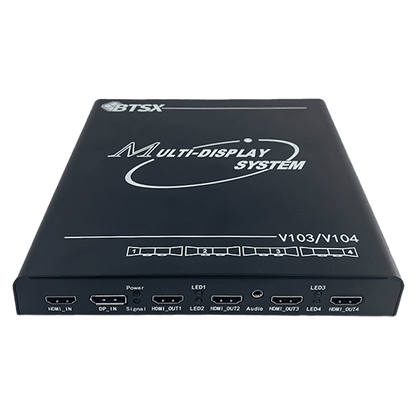

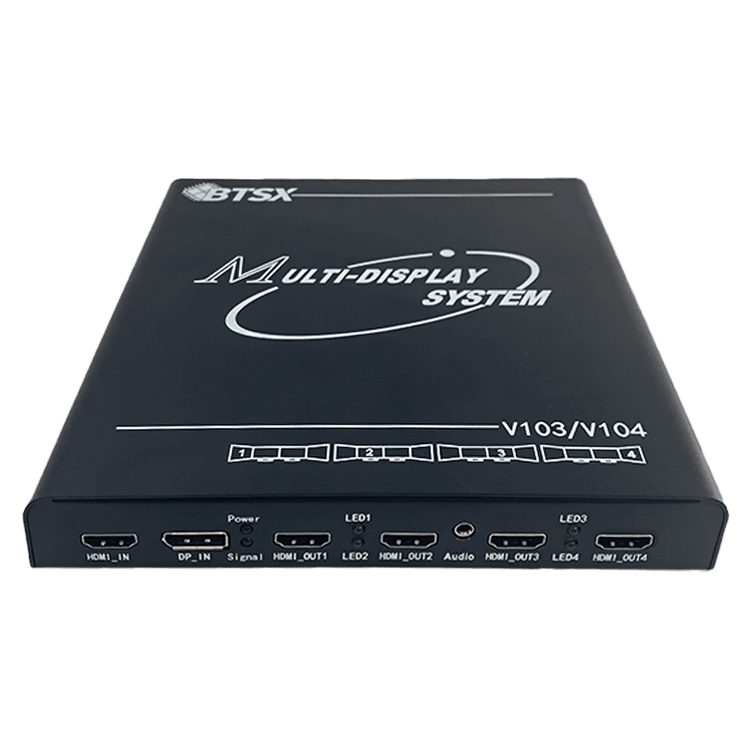

BIT-MSE-4K60-104HD Multi Screen High Resolution 1x4 1x3 1x2 Video Wall Controller Projection Fusion System HDMI/DP 1 In 4 Out

BIT-MSE-4K60-104HD Multi Screen High Resolution 1x4 1x3 1x2 Video Wall Controller Projection Fusion System HDMI/DP 1 In 4 Out

Regular price $263.99 USD
Regular price Sale price $263.99 USD
Sale Sold out
Plug Type

KEY FEATURESProfessional Video Wall Controller/Projection Fusion System. No need to set up, no stretching, no deformation. Support EDID burning and custom resolution

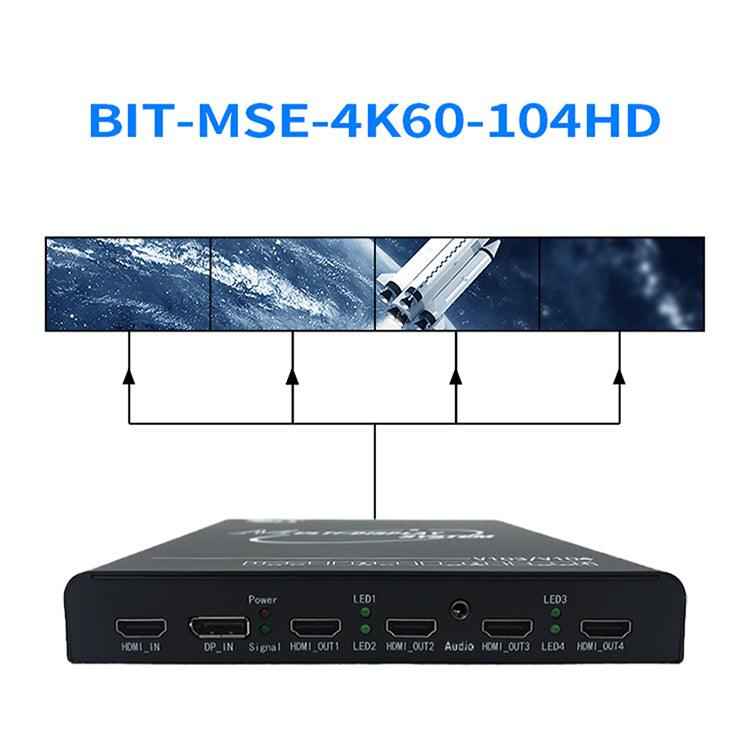

KEY FEATURESHDMI2.0/DP1.2 Inputs, 4 HDMI outputs support 3 display modes(1x2, 1x3, 1x4)

KEY FEATURESResolution up to 4K, 1x4 resolution is 7680x1200/7680x1080@60Hz, 1x3 resolution is 5760x1200/5760x1080@60Hz. Backward compatible with lower resolutions

KEY FEATURES28nm High-end programmable FPGA chip, full hardware real-time processing architecture, ultra-fast processing speed without delay.

KEY FEATURESTypical application includes Conference system, Commercial display, Exhibition Hall, Immersive room, Interactive projection, Digital Classroom, and Live stream.

Product Name BIT-MSE-4K60-104HD
Input Interface 1*DP 1.2, 1*HDMI 2.0
Output Interface 4*HDMI1.3
Input Pixel Clock Rate 600MHz
Output Pixel Clock Rate 165MHz
3 Screens Support Typical Resolution 5760x1200@60Hz 5760x1080@60Hz
3840x800@60Hz 3072x768@60Hz
4 Screens Support Typical Resolution 7680x1200@60Hz 7680x1080@60Hz
5120x800@60Hz 4096x768@60Hz
Factory Default Resolution 3072x768@60Hz
1x3 Max Supported Resolution 5760x1200@60Hz
1x4 Max Supported Resolution 7680x1200@60Hz
Hot Plugging
Power-off Memory
Output Distance 15m
Support custom resolution
Size(L*W*H) 18.5cm*20.3cm*2.8cm
Weight 1.5kg
Power supply 12V@2A AC-DC
