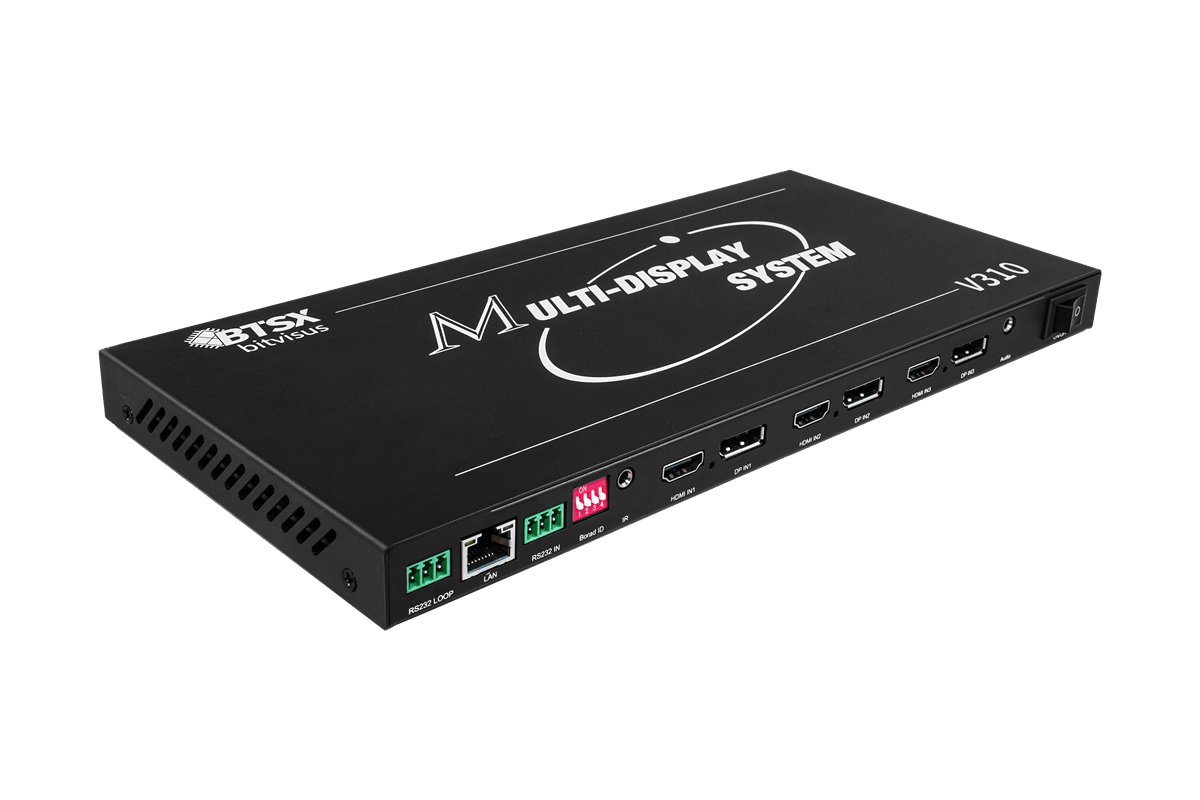

BIT-MSE-8K-310HD 8K Video Wall Controller 2x5 1x10 Multi-Projector System Processor HDMI/DP 3 In 10 Out

BIT-MSE-8K-310HD 8K Video Wall Controller 2x5 1x10 Multi-Projector System Processor HDMI/DP 3 In 10 Out

Regular price $496.00 USD
Regular price Sale price $496.00 USD
Sale Sold out
Plug Type
Request Quote

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

📌No need to repeat the settings, once set up and start using, no stretching, no deformation, support hot-plugging, and power-off memory.

📌3*HDMI2.0/ 3*DP1.2 input. Support multiple modes with 10 HDMI outputs (1x3, 1x4, 1x5, 1x6, 1x7, 1x8, 1x9, 2x2, 2x3, 2x4, 2x5 3x2, 3x3). Supports large-scale parallel use.

📌Video wall processor for Spanning multiple Monitors, multi-projector blending device. Support up to 8Kx2K 2x5 video wall& 1x10 8K video wall solution.

📌High-end programmable FPGA chip, full hardware real-time processing architecture.

📌Common application includes Video wall, multi-projector solution, Commercial display, Exhibition, Immersive room, Interactive projection, Digital Classroom, Digital signage

Product Name BIT-MSE-8K-310HD
Input Max Pixel Clock 600MHz
Output Maximum Pixel 165MHz

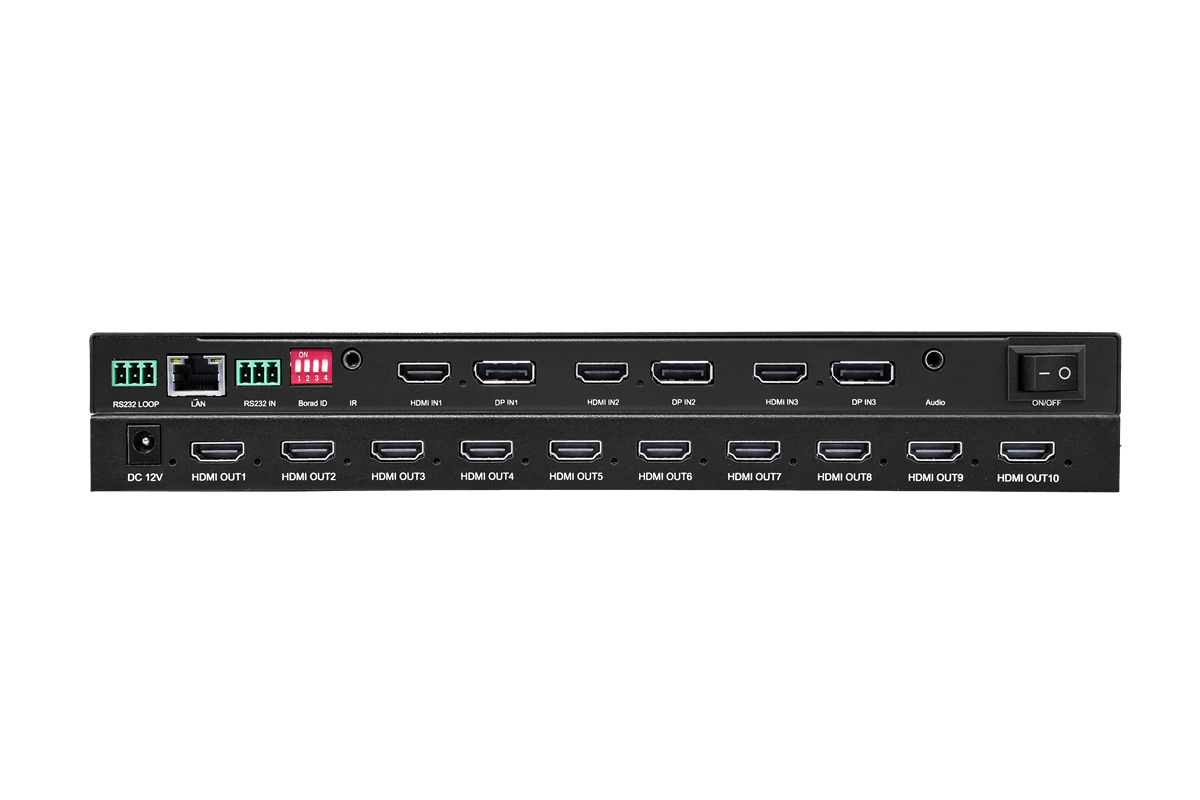

Input Interface Type 3*HDMI, 3*DP
Output Interface Type 10*HDMI
Audio output 3.5 mm jack
Single input
Recommended splice mode
1x10: 8000x600
1x9: 7200x600
1x7: 7168x768...
1:1 pixel mapping video wall:
1x4: 4*1920x1080
Two input
Recommended splice mode
1x10: 16000x900
2x5: 8000x1800
1:1 pixel mapping solution:
1x6: 6*1920x1080
1x8: 8*1920x1080
2x3: 3*1920x2*1080
2x4: 4*1920x2*1080
Three input
Recommended splice mode
1:1 pixel mapping solution:
1x9 9*1920x1080
3x1 1920x1080*3
3x2 2*1920x1080*3
3x3 5760x3240
Input Cable Length ≤3m
Output Cable Length ≤15m
Power Supply 12V@2A AC-DC power supply
Dimensions 186mmx204mmx29mm
Warranty 1 year
