BITVISUS

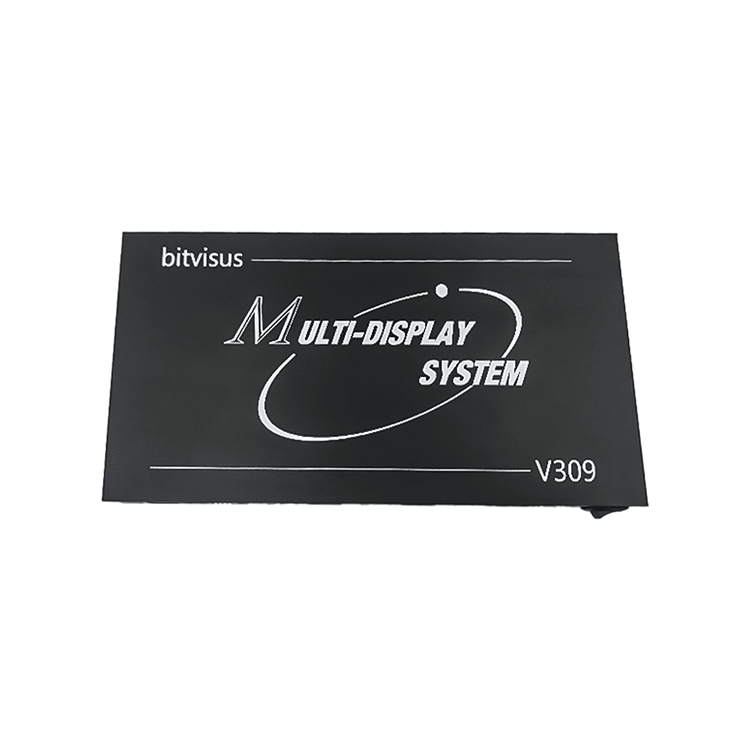

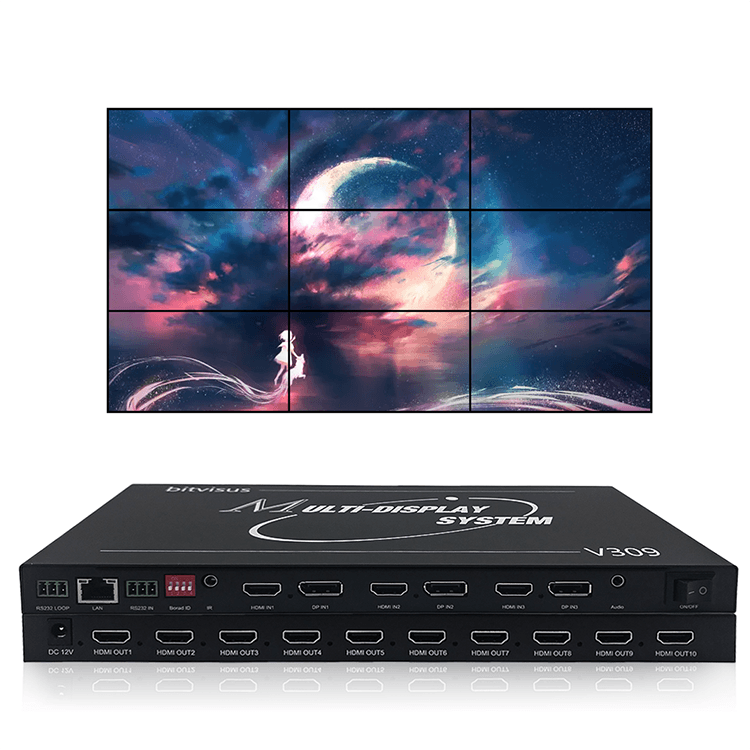

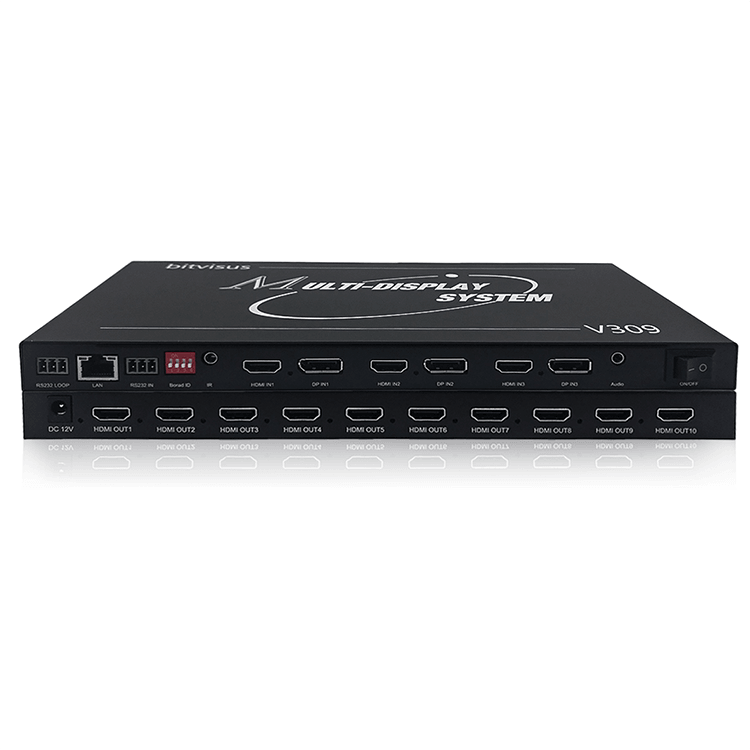

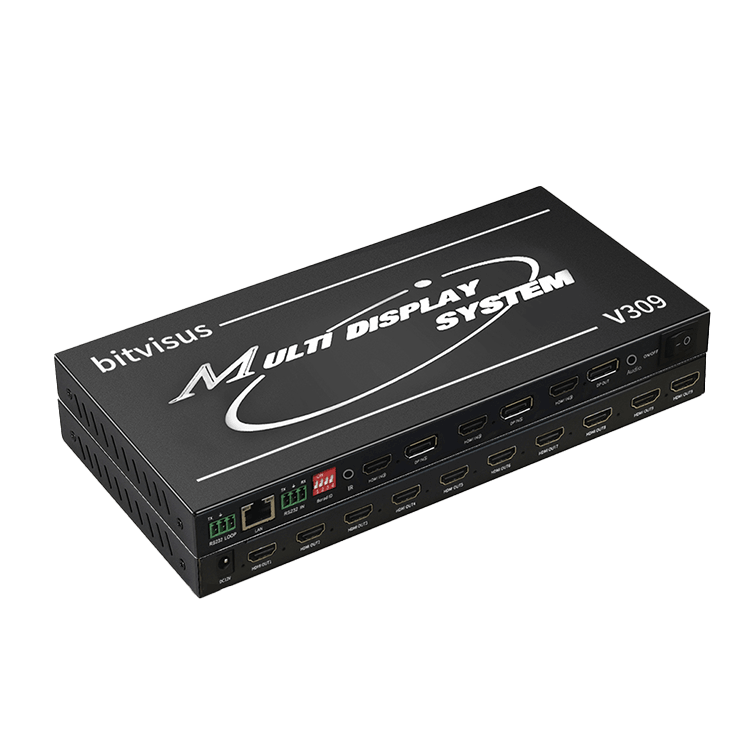

BIT-MSE-4K60-309HD 8K30Hz 4K60Hz 3x3 2x2 1x3 1x5 1x7 1x9 Projection Fusion System Video Wall Controller HDMI/DP 3 In 9 Out

BIT-MSE-4K60-309HD 8K30Hz 4K60Hz 3x3 2x2 1x3 1x5 1x7 1x9 Projection Fusion System Video Wall Controller HDMI/DP 3 In 9 Out

Regular price $396.99 USD
Regular price Sale price $396.99 USD
Sale Sold out
Plug Type

📌No need to set up, no stretching, no deformation, support hot-plugging, and power-off memory.

📌3*HDMI2.0/ 3*DP1.2 input. Support multiple modes with 9 HDMI outputs (1x3, 1x4, 1x5, 1x6, 1x7, 1x8, 1x9, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3). Supports large-scale parallel use.

📌For multi-desktop operation and multi-channel projection fusion devices. Up to 8K resolution.

📌45nm High-end programmable FPGA chip, full hardware real-time processing architecture, switching mode without delay.

📌Common application includes Conference system, Commercial display, Exhibition, Immersive room, Interactive projection, Digital Classroom, Live stream

Product Name BIT-MSE-8K-309HD
Input Interface 3*DP1.2, 3*HDMI1.4
Output Interface 9*HDMI1.3
Input Max Pixel Clock Rate 600MHz
Output Max Pixel Clock Rate 165MHz
5 Screens Typical Resolution 5x1920x1200@60Hz
5x1920x1080@60Hz
5x1280x800@60Hz
5x1024x768@60Hz
7 Screens Typical Resolution 7x1920x1200@60Hz
7x1920x1080@60Hz
7x1280x800@60Hz
7x1024x768@60Hz
Factory Default Resolution 3072x768@60Hz
3x3 Max. Resolution 5760x3240@60Hz
1x9 Max. Resolution 17280x1200@60Hz
1x3 Max. Resolution 5760x1200@60Hz
1x4 Max. Resolution 7680x1200@60Hz
Hot Plugging
Power-off Memory
Output Distance 15m
Size(L*W*H) 290mm*142mm*22mm
Weight 2kg
Power supply 12V@2A AC-DC
