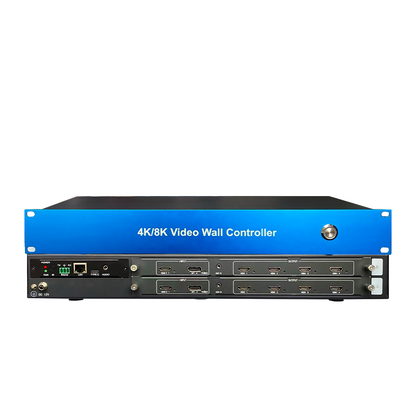

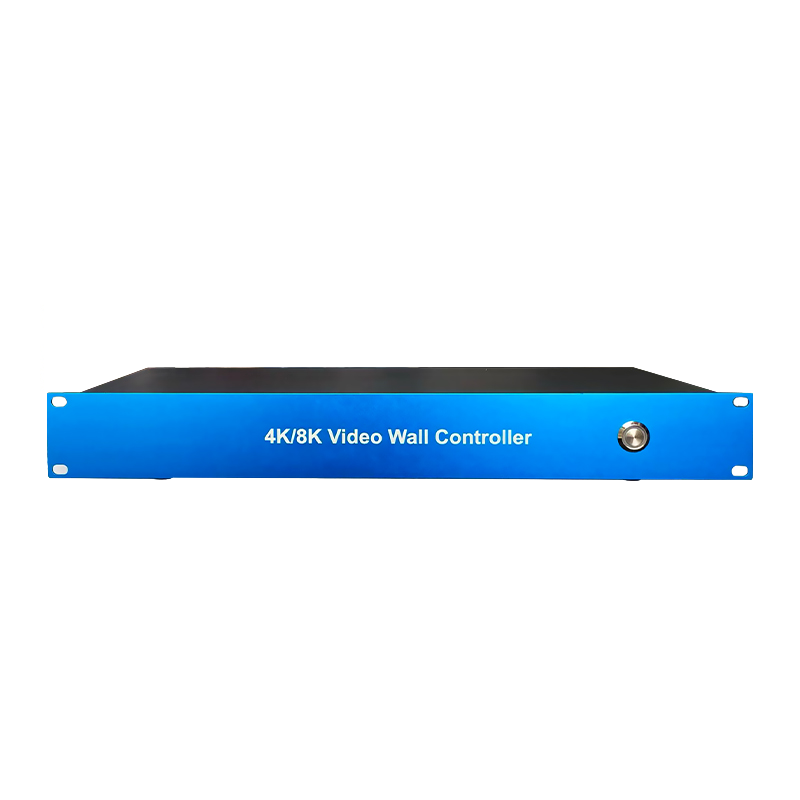

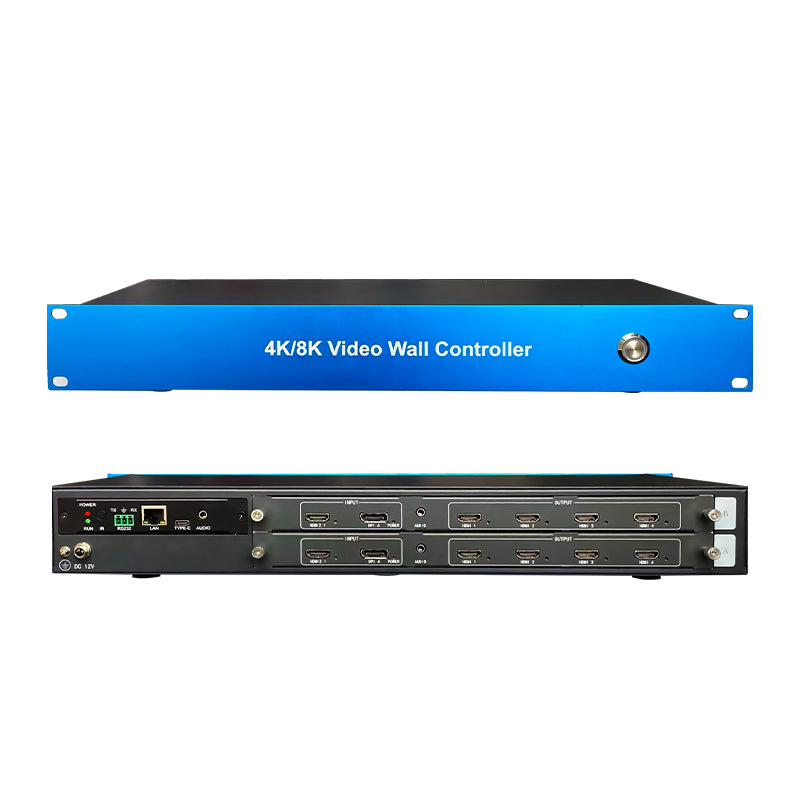

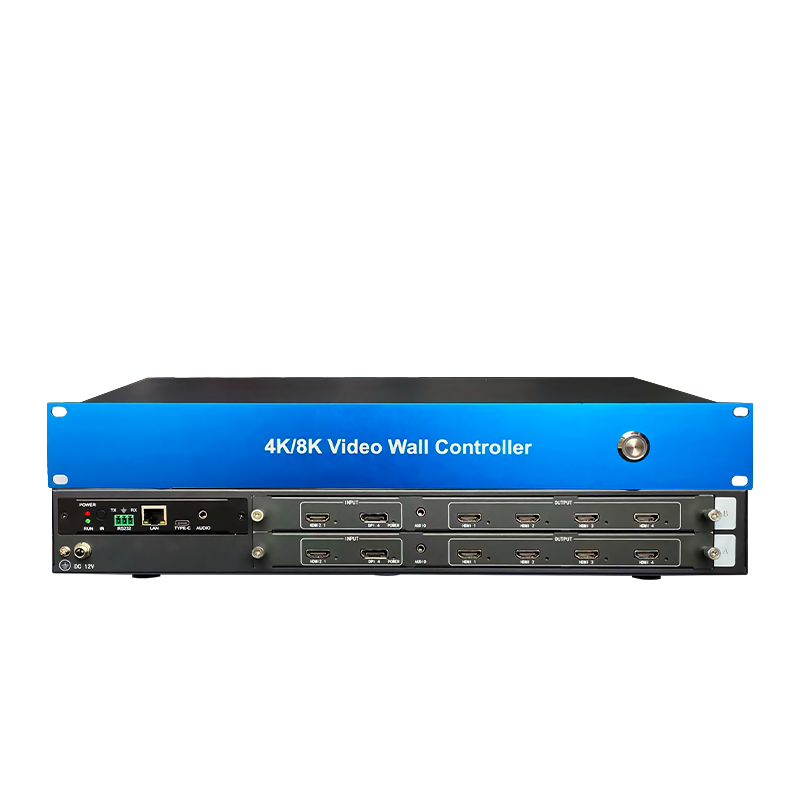

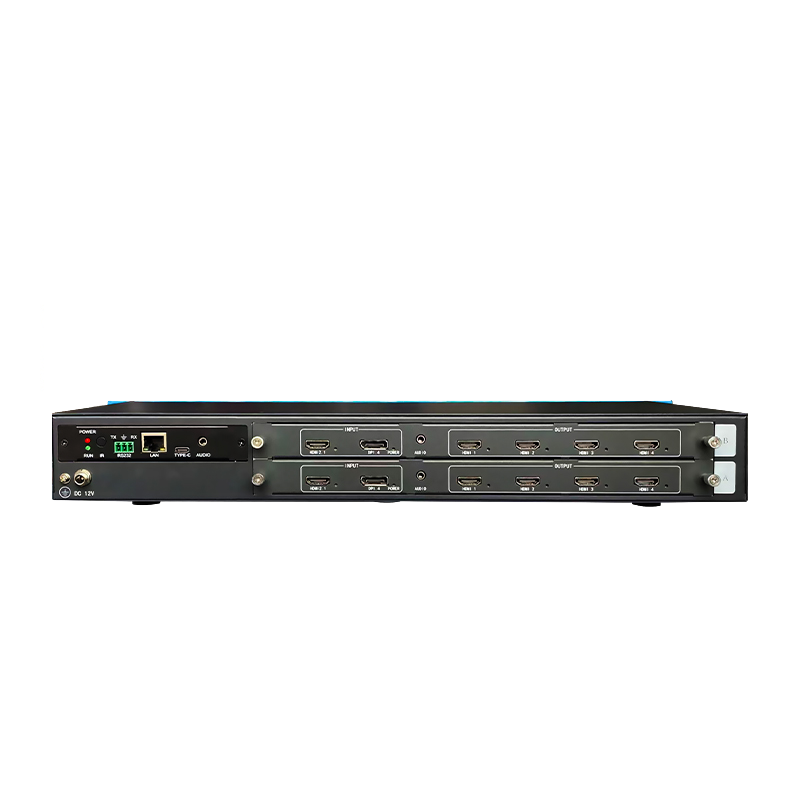

BIT-MSE-8K60Y-208Pro 8K60 Multi-Screen Extender | 2 In 8 Out | HDMI 2.1 & DP 1.4 | Video Wall Controller

BIT-MSE-8K60Y-208Pro 8K60 Multi-Screen Extender | 2 In 8 Out | HDMI 2.1 & DP 1.4 | Video Wall Controller

Regular price $6,193.10 USD
Regular price Sale price $6,193.10 USD
Sale Sold out
Request Quote

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

📌 Supports 2-channel 8K60 signal input with HDMI or DP optional;HDMI takes priority when
both are connected,supporting diverse applications and ensuring clear images with rich
details.
📌 Supports output resolutions including 4K60,4K30,1080P60,1200P60,1080P120,and
1200P120,with 8 HDMI output interfaces,compatible with various display devices and
resolution requirements.It can be flexibly adjusted according to specific application needs and
device configurations,providing more choices and adaptability.
📌Supports RS232 and Ethernet web control.
📌Supports multi-output synchronization,no screen tearing,free of lag and frame drops,ensuring
consistent display.
📌Supports M×N point-to-point splicing (M,N≤8,MN≤8)without stretching or distortion,
delivering a wider field of view.
📌Supports DHCP auto IP acquisition and manual IP configuration,flexibly adapting to different
network environments.
📌Supports output channel duplication and backup,fully utilizing all physical interfaces and
converting idle ports to hot backup resources.
📌 Supports synchronization of all output ports,fundamentally eliminating screen tearing,lag and
desynchronization,achieving ultra-smooth and consistent multi-screen display.
📌Supports HDMI audio-video synchronous output and independent 3 .5mm audio separate
output,providing professional and flexible audio routing solutions to meet all-round demands
from simple display to complex system integration.
📌 Supports Wake-on-LAN and software command power on/off,enabling remote centralized
management and intelligent power consumption control,an essential function for modern and
efficient operation and maintenance systems.
📌Supports EDID management without external software programming.
📌Provides comprehensive,stable and open API interfaces,empowering integrators and
developers with deep customization and unlimited integration capabilities,turning hardware
into core components of an intelligent ecosystem.
📌Supports API for secondary development.
📌Adopts high-end programmable FPGA chip with 28nm process,full hardware real-time
processing architecture,ultra-fast processing speed without delay.
📌Industrial-grade design,thickened 6 -layer PCB,16KV ultra-high anti-static capability,and
excellent product stability.
📌Adopts modular plug-in card design,allowing users flexible configuration and supporting
future hot upgrades,providing ultimate flexibility,easy maintenance and long-term investment
protection.
📌Low-power,energy-saving and eco-friendly design with overheat protection and
anti-interference features.Adopts 18W thermal conductivity material for internal heat
dissipation,ensuring stable long-time operation in various environments.

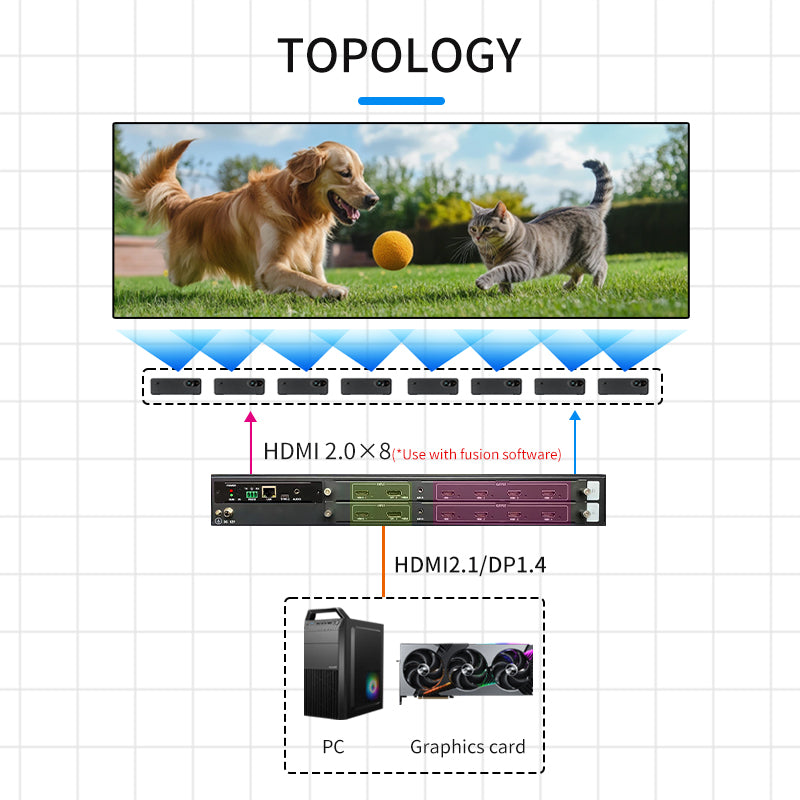

📌Used with Bitvisus Windowing software to realize 8K60 multi-screen display.

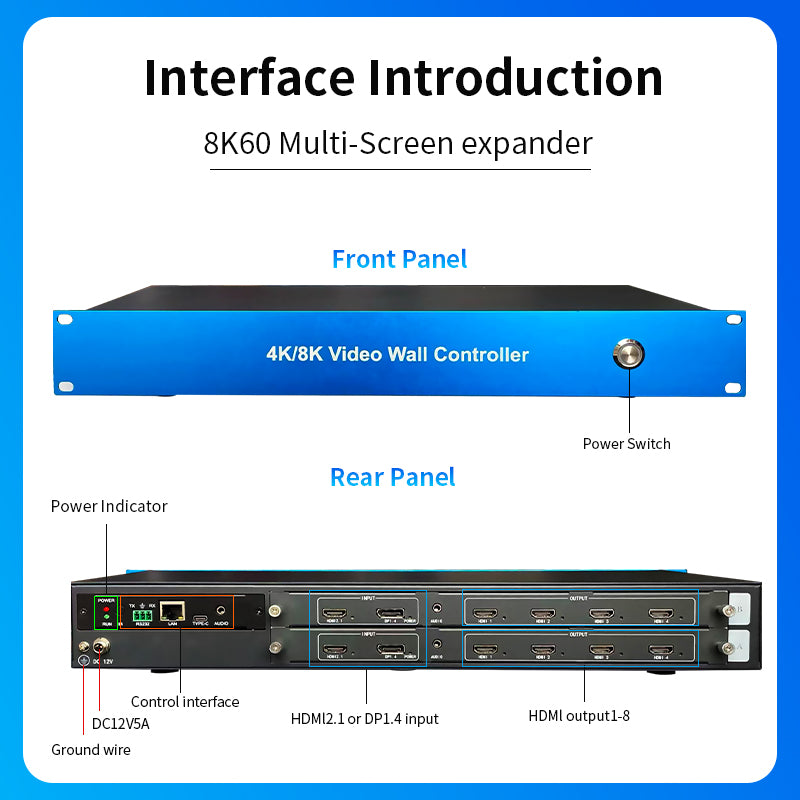

Product Name BIT-MSE-8K60Y-208Pro
Input Port 2×HDMI 2.1 2×DP 1.4 、(Copper Wire3 Meters
HDCP Supports HDCP2.2
Maximum Input Pixel Clock Frequency 1200MHz
Maximum Input Resolution

Maximum Width8192

Maximum Height8192

See Chapter 5 for details
Input Color Forma RGB444 YUV444 YUV422
Input Color Depth 3840x2160@60Hz
1x3/3x1 Max Supported Resolution 8bit
Output Port 8×HDMI 2.0Copper Wire5 Meters
Maximum Output Pixel Clock Frequency 600MHz
Output Resolution

3840×2400P60 3840×2160P60 3840×2400P30 3840×

2160P30 2560×1600P60 2560×1440P60 1920×1200P120 1920×1080P120 1920×1200P60 1920×1080P60
Output Color Forma RGB444
Output Color Depth 8bit
Weight 3.5KG

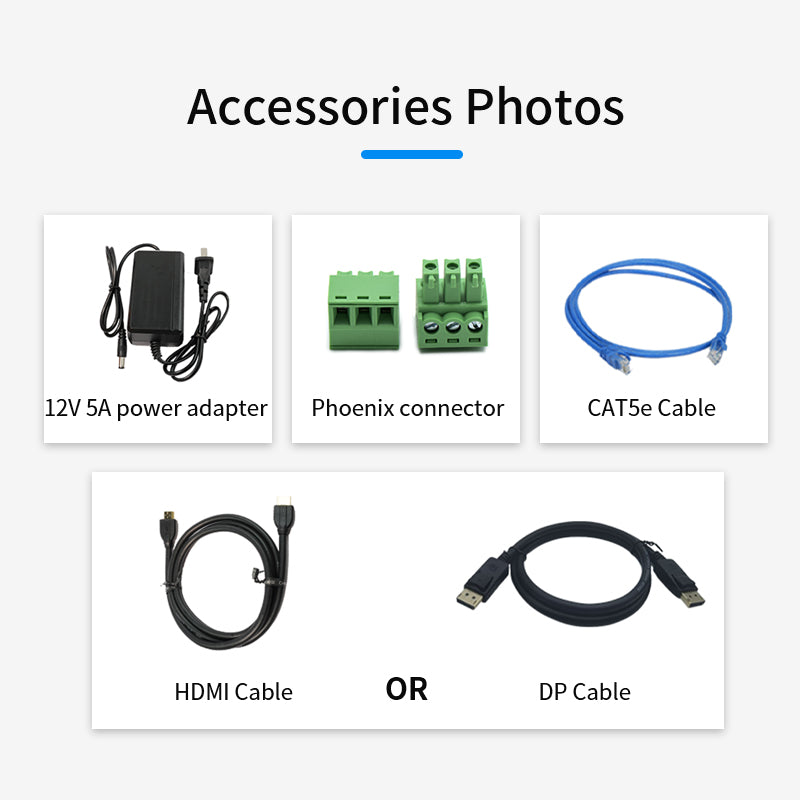

Accessories List

1×12V5A DC Power Adapter

2×HDMI 2. 1 Cable or DisplayPort 1.4 Cable

1×Category 5e (CAT5e) Network Cable

1×Screw Terminal Block (Phoenix Type)
