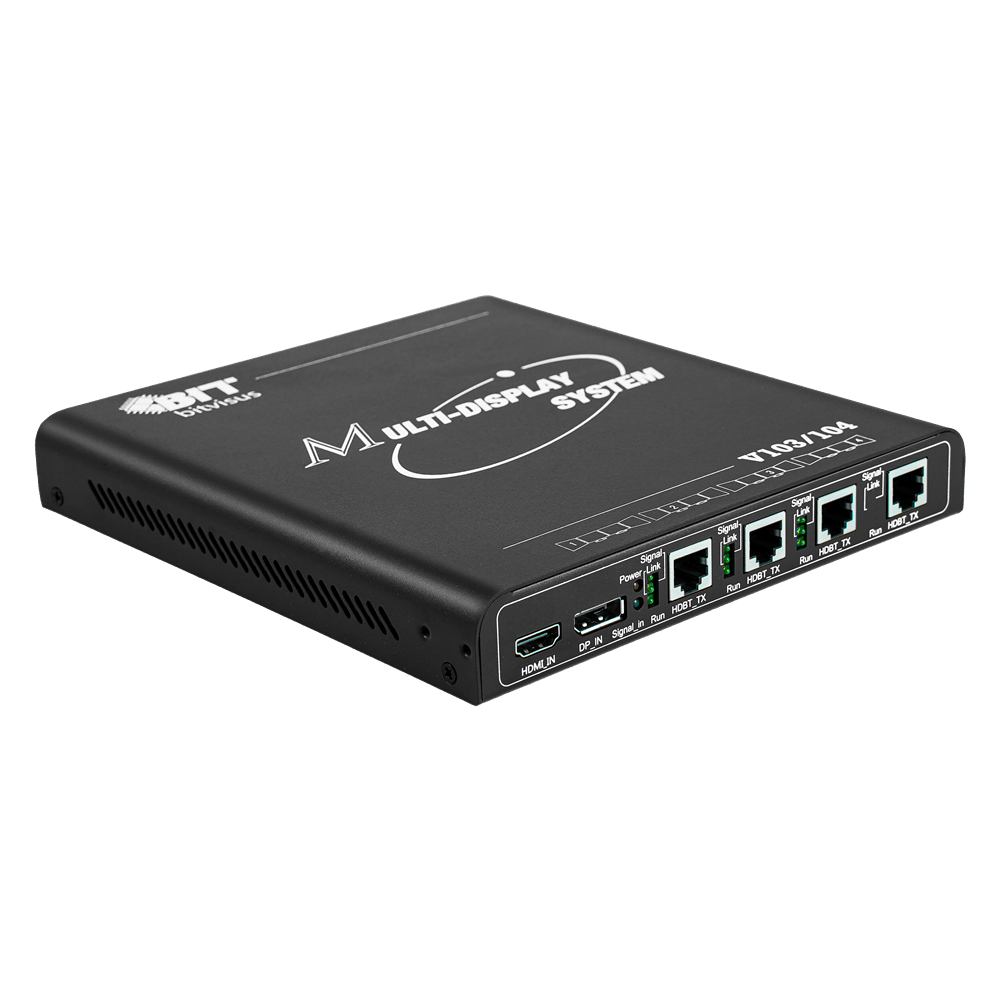

BIT-MSE-HDBT-4K60-104PRO 4K60Hz 2x2 1x4 4x1 1x3 3x1 Video Wall Controller Projection Fusion System 1 HDMI/DP Input 4 Outputs

BIT-MSE-HDBT-4K60-104PRO 4K60Hz 2x2 1x4 4x1 1x3 3x1 Video Wall Controller Projection Fusion System 1 HDMI/DP Input 4 Outputs

Regular price $650.00 USD
Regular price Sale price $650.00 USD
Sale Sold out
Plug Type
Request Quote

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

📌Professional Video Wall Controller/Projection Fusion System. No need to set up, no stretching, no deformation. Support EDID burning and custom resolution

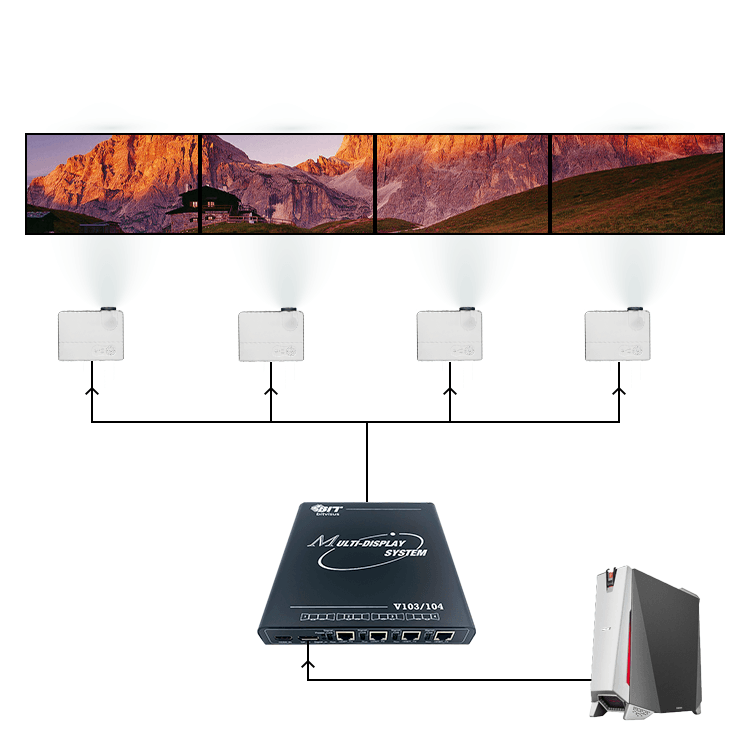

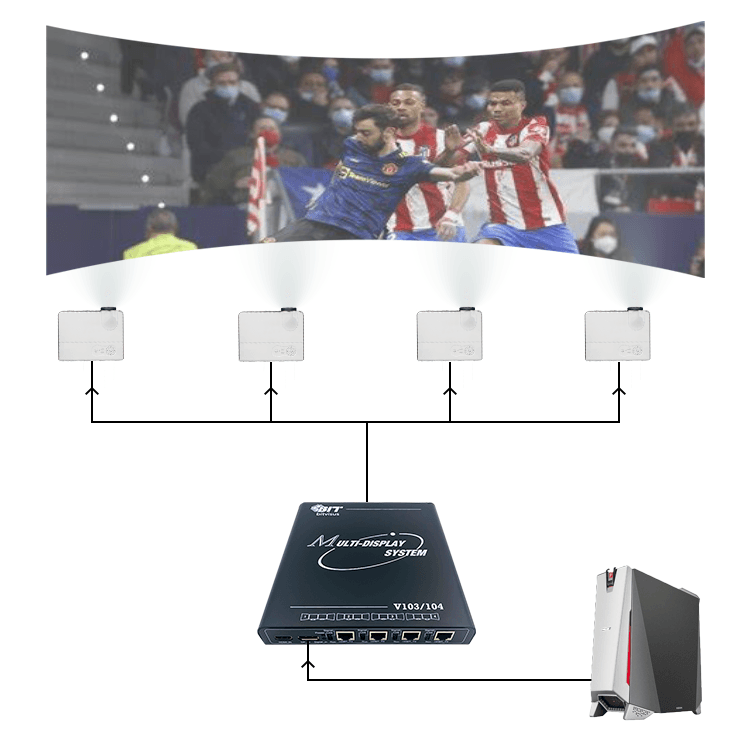

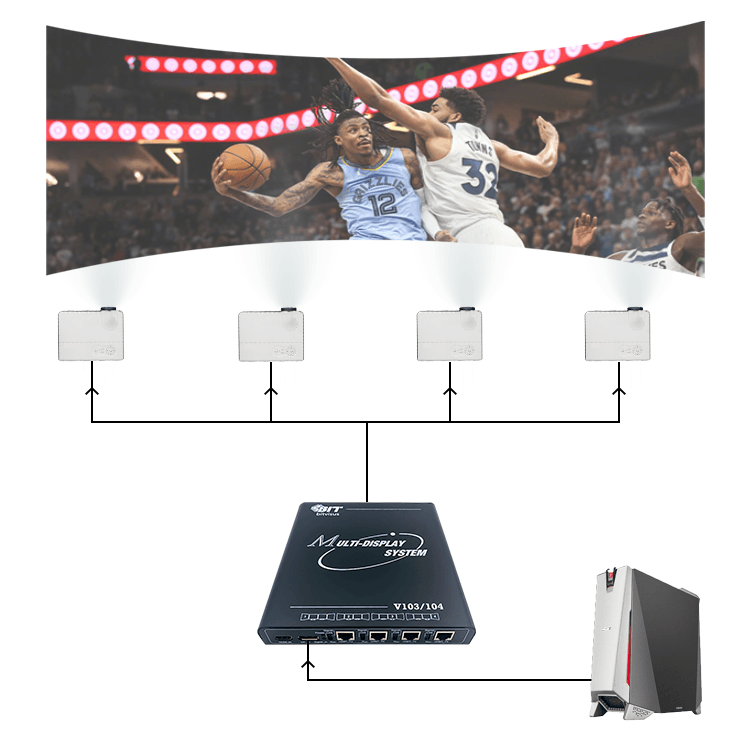

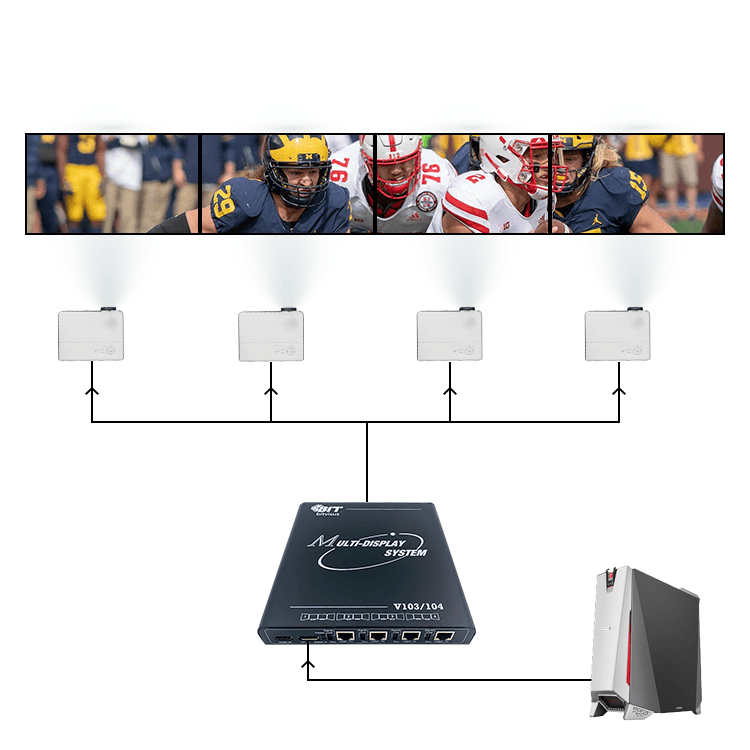

📌HDMI 2.0/DP 1.2 Inputs, 4 HDBaseT RJ45 outputs support various display modes(2x2, 1x2, 1x3, 1x4)

📌Up to 4K resolution, 150m transmission distance. 2x2 resolution is 3840x2400@60Hz. Backward compatible with lower resolutions.

📌28nm High-end programmable FPGA chip, full hardware real-time processing architecture, switching mode without delay.

📌Typical application includes Conference system, Commercial display, Exhibition Hall, Immersive room, Interactive projection, Digital Classroom, and Live stream.

Product Name BIT-MSE-HDBT-4K60-104PRO

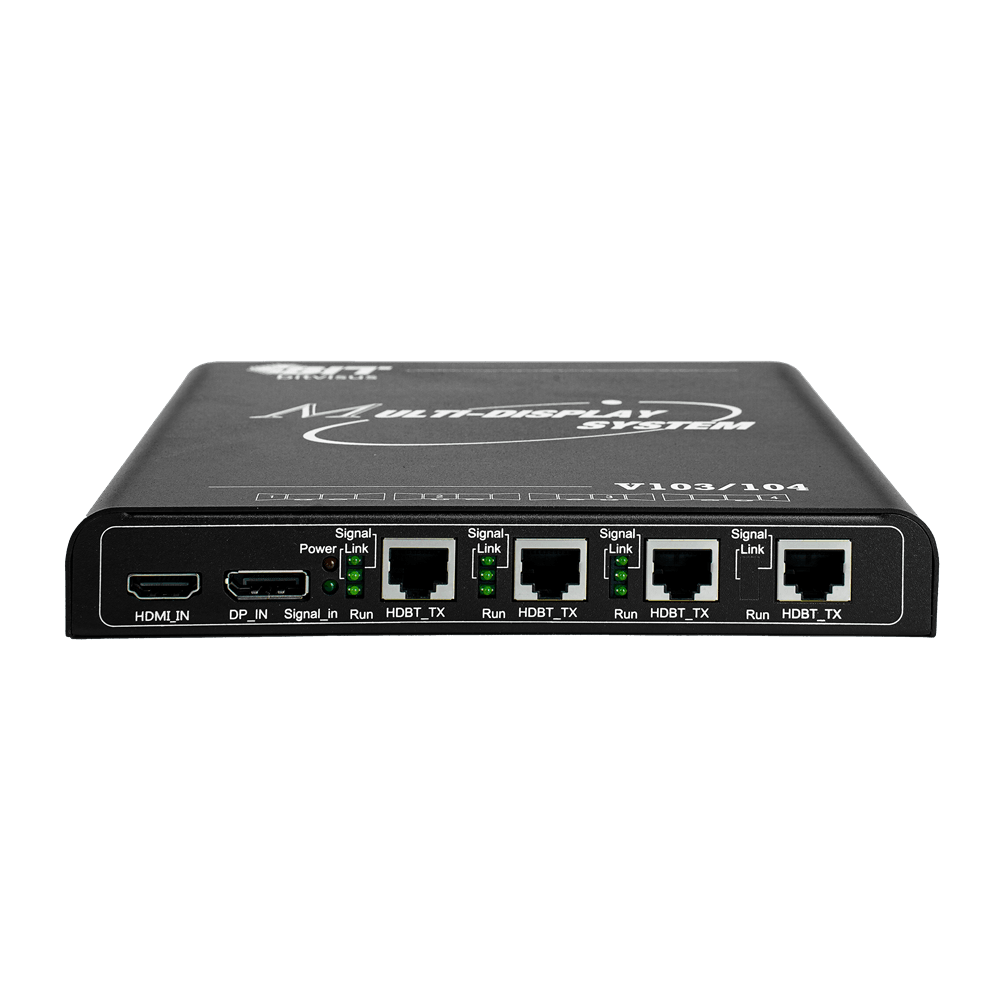

Input Interface 1*DP 1.2, 1*HDMI 2.0
Output Interface 4*HDBaseT RJ45
Input Pixel Clock Rate 600MHz
Output Max Pixel Clock Rate 300MHz
3 Screens Typical Resolution 3x1280x800@60Hz
1024x768x3@60Hz
3x1920x1200@60Hz
1920x1200x3@60Hz
4 Screens Typical Resolution 2x1920x1080x2@60Hz
4x1024x768@60Hz
4x1920x1200@60Hz
1920x1200x4@60Hz
Factory Default Resolution 3840x2160@60Hz
2x2 Max Supported Resolution 3840x2160@60Hz, 3840x2400@60Hz
1x2/2x1 Max. Resolution 7680x2160@30Hz, 3840x4320@30Hz
1x3/3x1 Max. Resolution 1920x3600@60Hz, 5760x1200@60Hz
1x4/4x1 Max. Resolution 1920x4800@60Hz, 7680x1200@60Hz
Hot Plugging
Power-off Memory
Output Distance 15m
Support custom resolution
Size(L*W*H) 36.2X21.5X7.3 cm
Weight 1.5kg

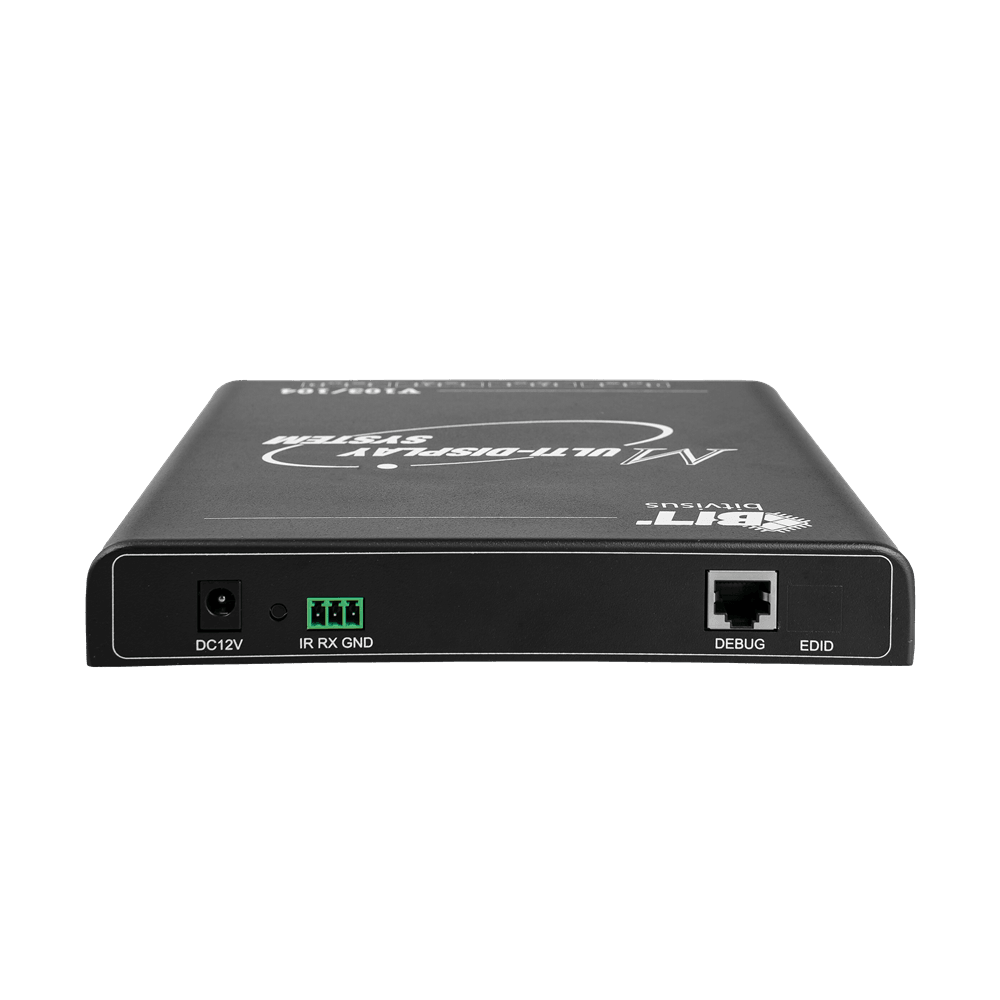

Power supply 12V@2A AC-DC
