4K 60Hz Seamless Multi Viewer Switcher Screen Splitter Exhibition Meeting Display Live Steaming

4K 60Hz Seamless Multi Viewer Switcher Screen Splitter Exhibition Meeting Display Live Steaming

$275.00 USD
$275.00 USD
Sale Sold out
Request Quote

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

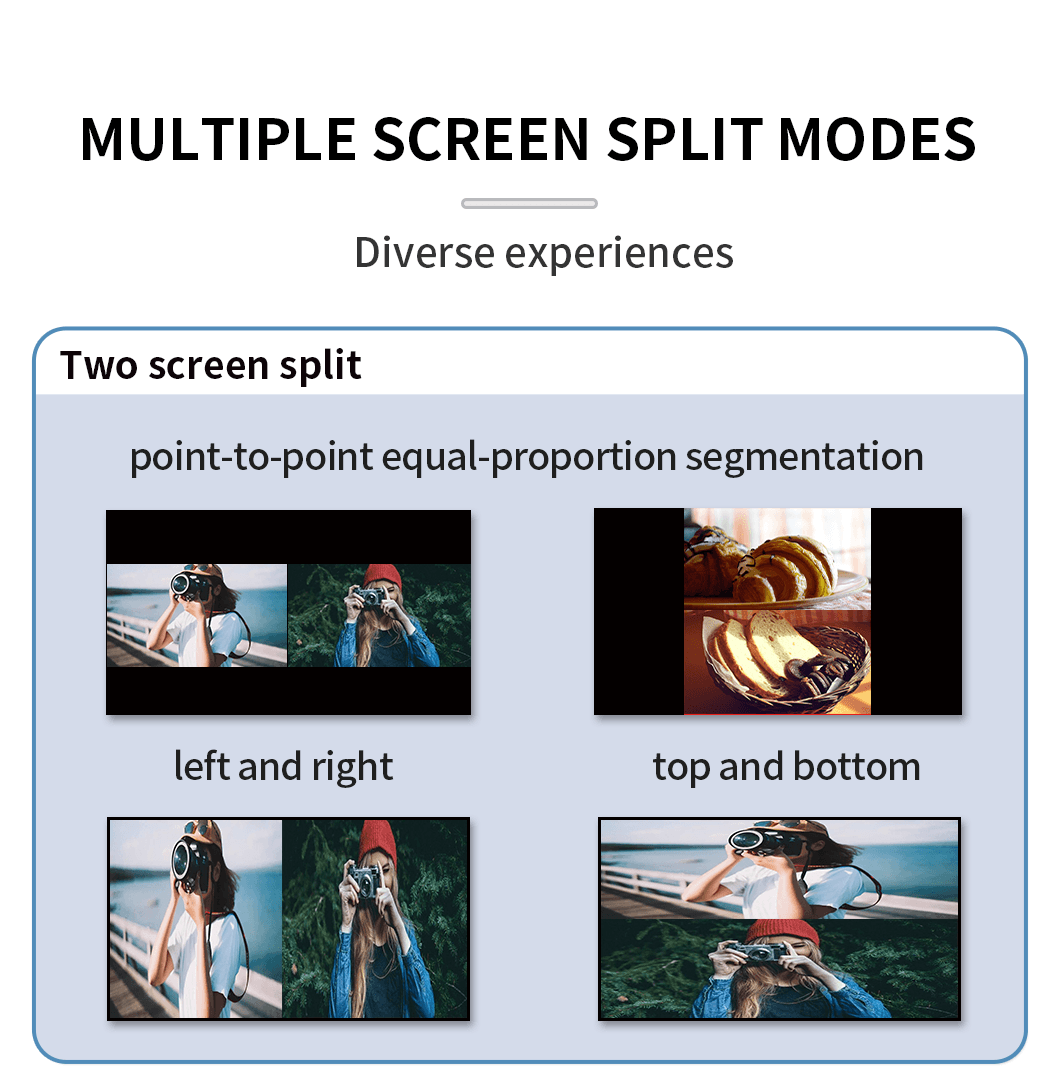

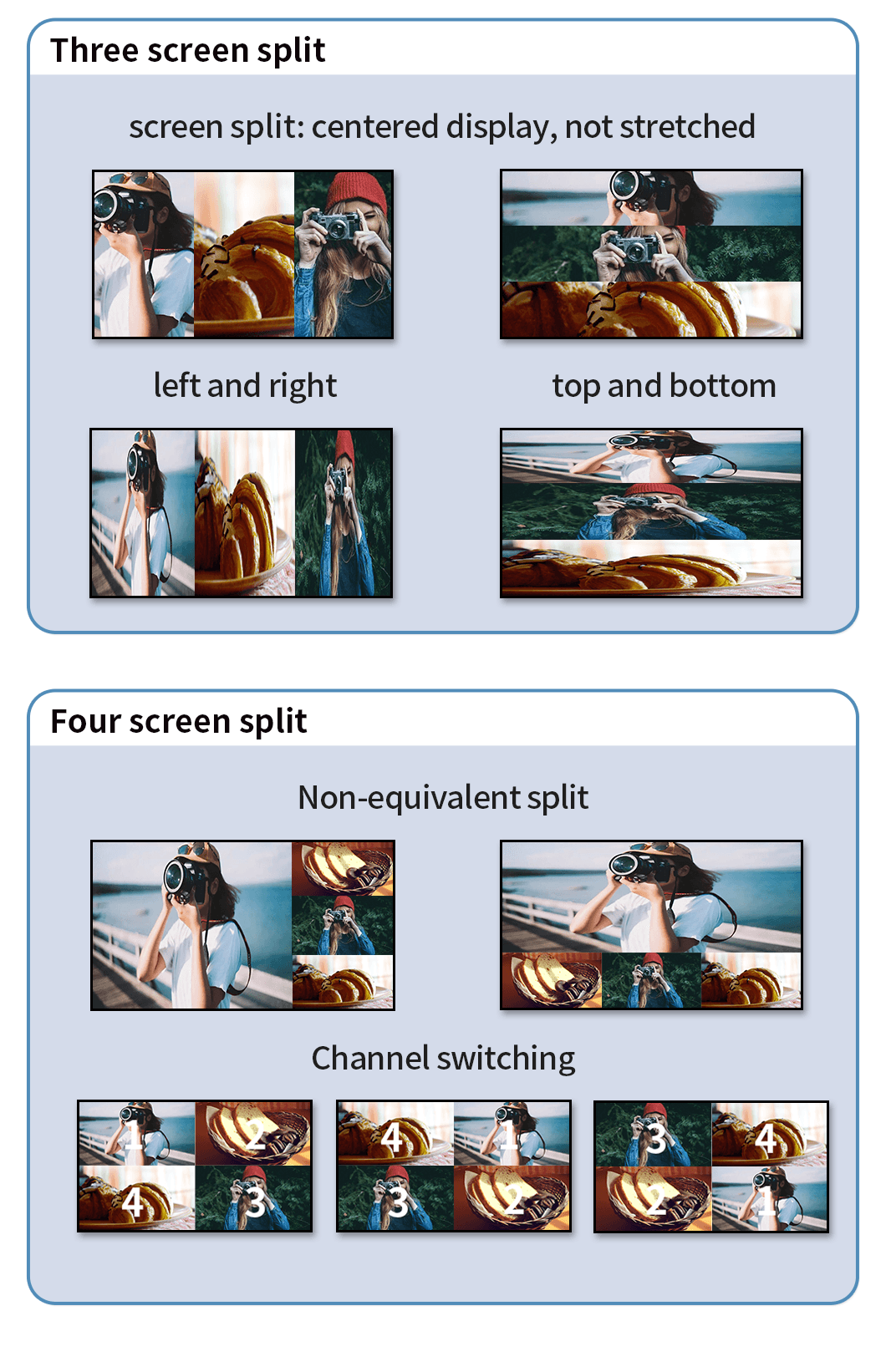

📌[Multiple Split Modes]Single screen auto-Scroll, left/right split, top/bottom split, quartile split, One big three small screen split. Switch mode without delay.

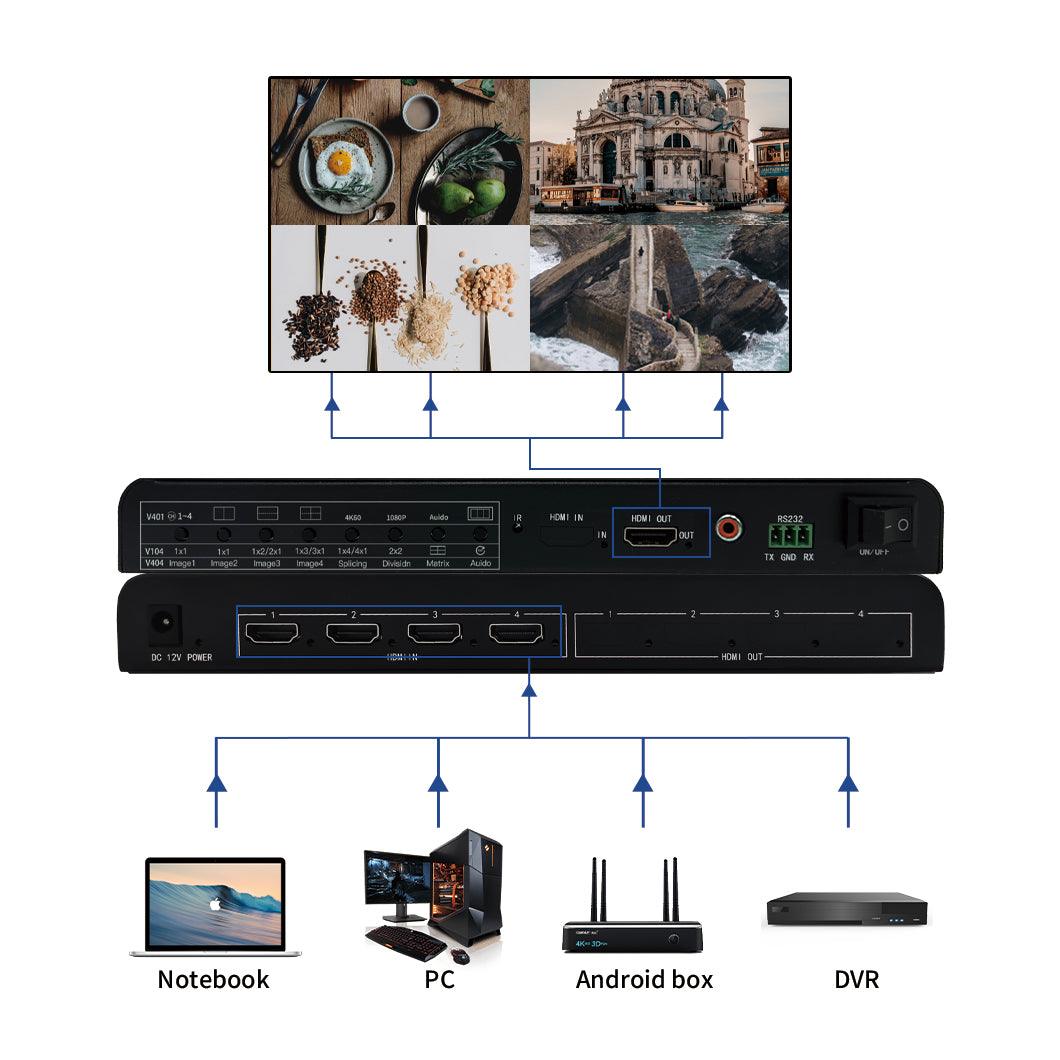

📌[High-performance]4*HDMI1.4 inputs resolution 1920x1080@60Hz, 1*HDMI2.0 output resolution 4K/3840x2160@60Hz.

📌[Various Control Modes]buttons control, IR remote control, RS232 via PC control. Support audio channel switching.

📌[Hardware Devices]No software required, plug and play, support Power-off memory.

📌Applications: Meeting, Conference Room Display, Control room display, Live streaming, Multi-system multi-host operation, Surgical Display System.

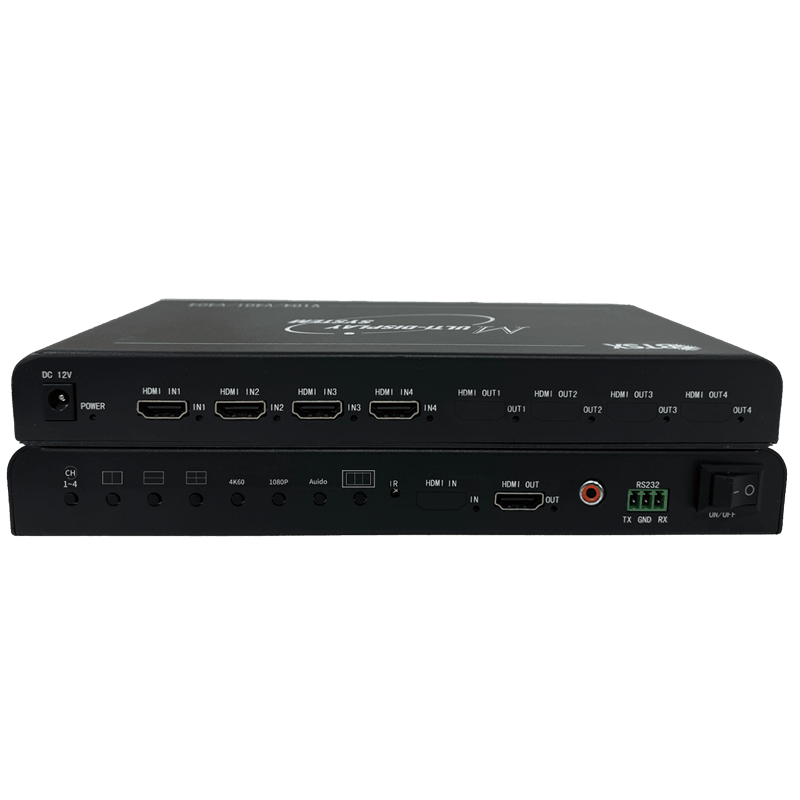

Product name BIT-MV-4K60-401
Input Max Resolution 1920x1080@60Hz
Input Signal 4*HDMI 1.4
Output Max Resolution 3840x2160@60Hz
Output interface 1*HDMI 2.0
Audio Output HDMI/SPDIF
Control Method Button, Remote control, RS232
Factory Default Resolution 1920x1080@60Hz
Display Modes Single screen loop, 2 windows(split into left and right or top and bottom), 4 windows
Operating Temperature 0℃-50℃
Power Rating 12W
Size 233mm * 108mm * 28.7mm
Power Supply 12V@2A AC-DC

Collapsible row

View full details

Frequently Asked Questions

What input and output interfaces does this video wall controller support?

t supports 12 HDMI 2.0 input interfaces and 12 HDMI 2.0 output interfaces. Both input and output have a maximum pixel clock frequency of 600MHz, enabling flexible multi-input and multi-output configurations.

What control methods are supported by this device?

The device supports multiple control methods, including RS232 serial port, web-based control, keypad control, and WEB API interface. You can access the web interface for flexible control via Windows computers, Mac computers, tablets, and mobile phones.

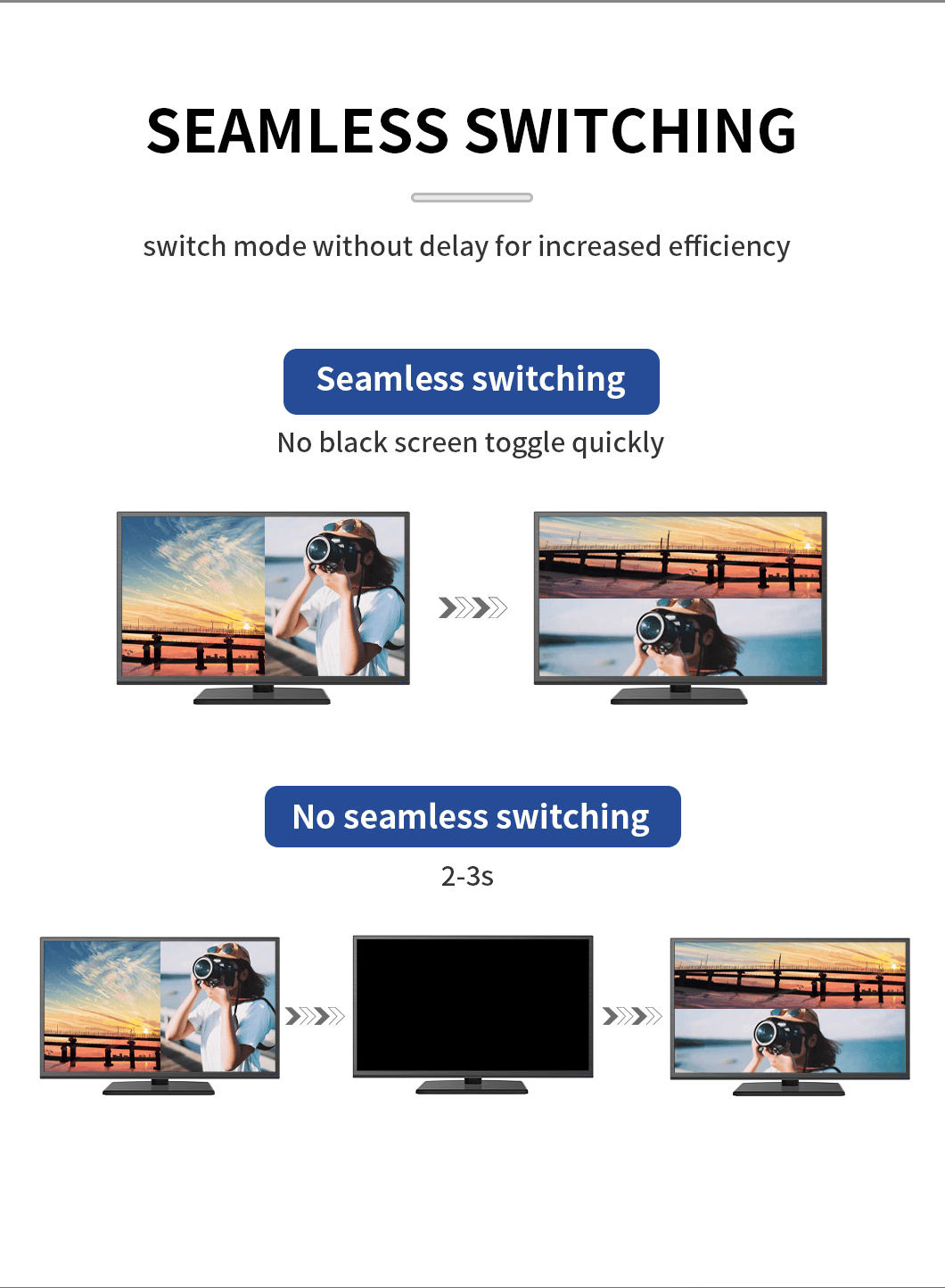

Does it support seamless switching? Will there be black screen or flickering during switching?

It supports seamless switching of input signals. During the switching process, there will be no black screen or flickering, ensuring smooth and stable presentations.

What display wall configurations does this video wall controller support?

It supports arbitrary configurations within 12 screens, such as 2x2+2x2+1x4 and various other combinations to meet different display requirements. It also supports calling and saving up to 12 preset scenes.

What is the warranty period? What is the operating temperature range?

The product comes with a 3-year after-sales warranty. The storage temperature range is -10°C to 50°C, and the operating temperature range is 0°C to 50°C, making it suitable for most indoor application environments.
