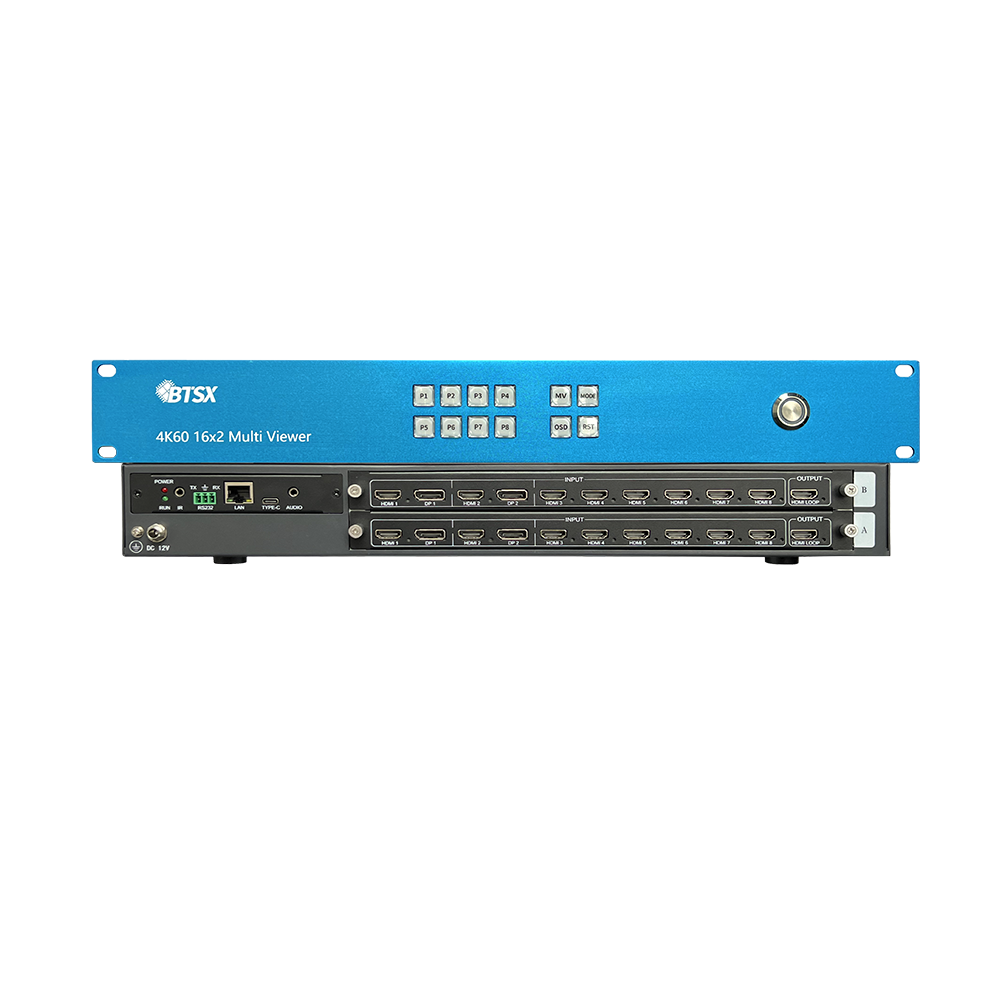

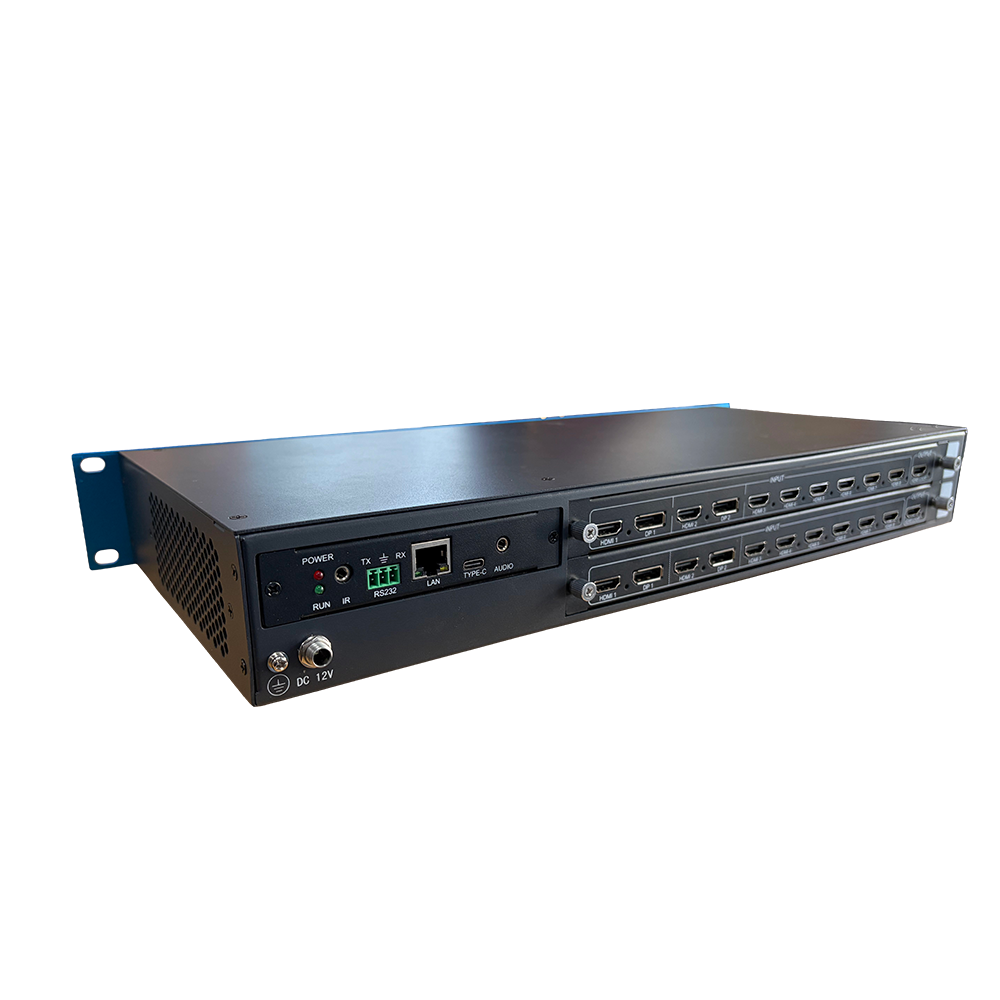

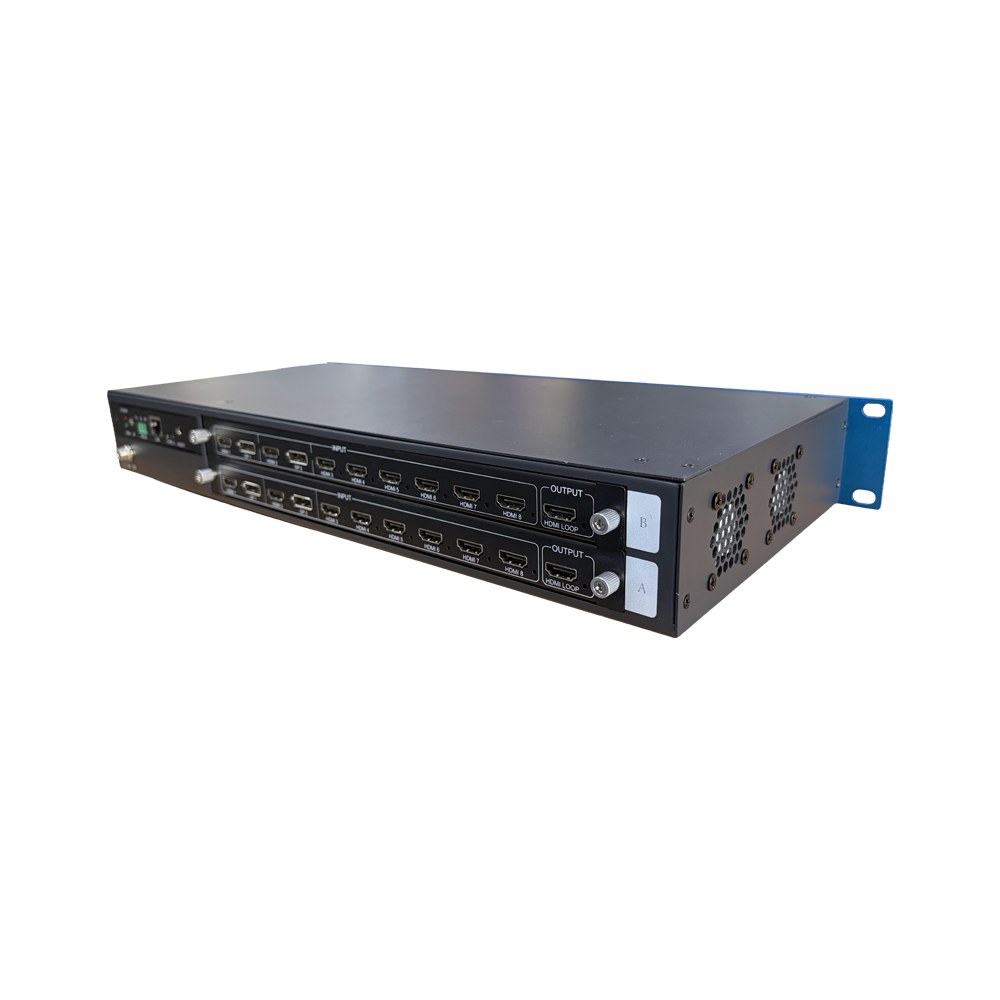

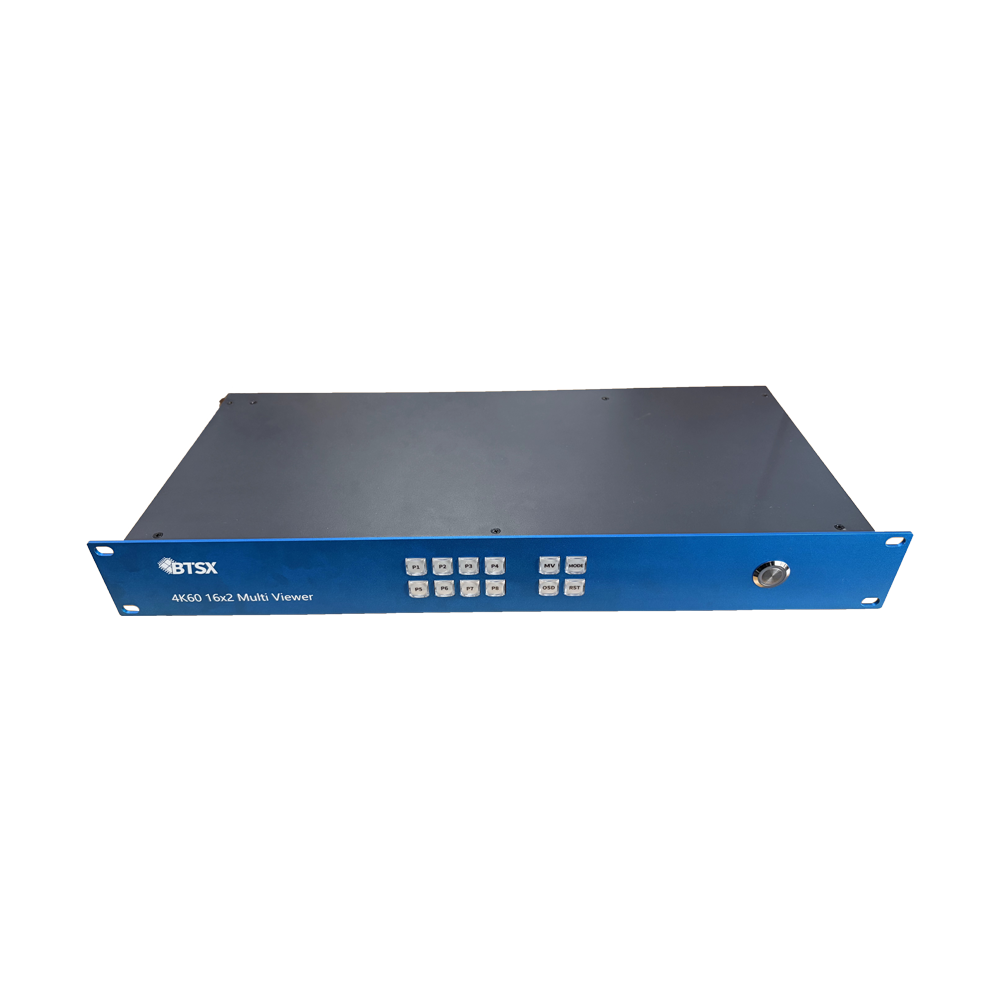

16-Channel 4K60 Multi-Viewer

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

BIT-MV-4K60-1602 is a 4K60 sixteen screen splitter independently developed by Bitvisus. It can display sixteen screens on two display devices and supports any splitting layout. Each screen can seamlessly switch input sources, and the switching between splitting modes does not blur, providing a high user experience to meet the application needs in different scenarios. Widely used in various fields such as security monitoring, broadcasting and television, video conferencing, industrial production, and instrument monitoring

1、Supports 8 4K60 inputs, including 4 HDMI or DP options, and 4 HDMI inputs. And 8 1080P inputs, providing HDMI interface to ensure clear images and rich details；
2、 Supports 4K60, 4K30, 1080P60 output, compatible with multiple display devices and
resolution requirements, can be flexibly adjusted according to specific application needs and device configurations, providing more choices and adaptability
3、 Capable of displaying 16 input signals on a single display device, achieving multi screen display and improving work efficiency and monitoring capabilities；
4、 Support seamless switching of input signals for each window, without blacking out, improving user experience, optimizing viewing experience, and reducing operational interference；
5、Support arbitrary segmentation layout, maximum 15×15 segmentation lines, flexible
application；
6、 Support OSD display, check device confidence, can be turned on or off；
7、 Supports HDMI audio output and 3.5MM audio separation；

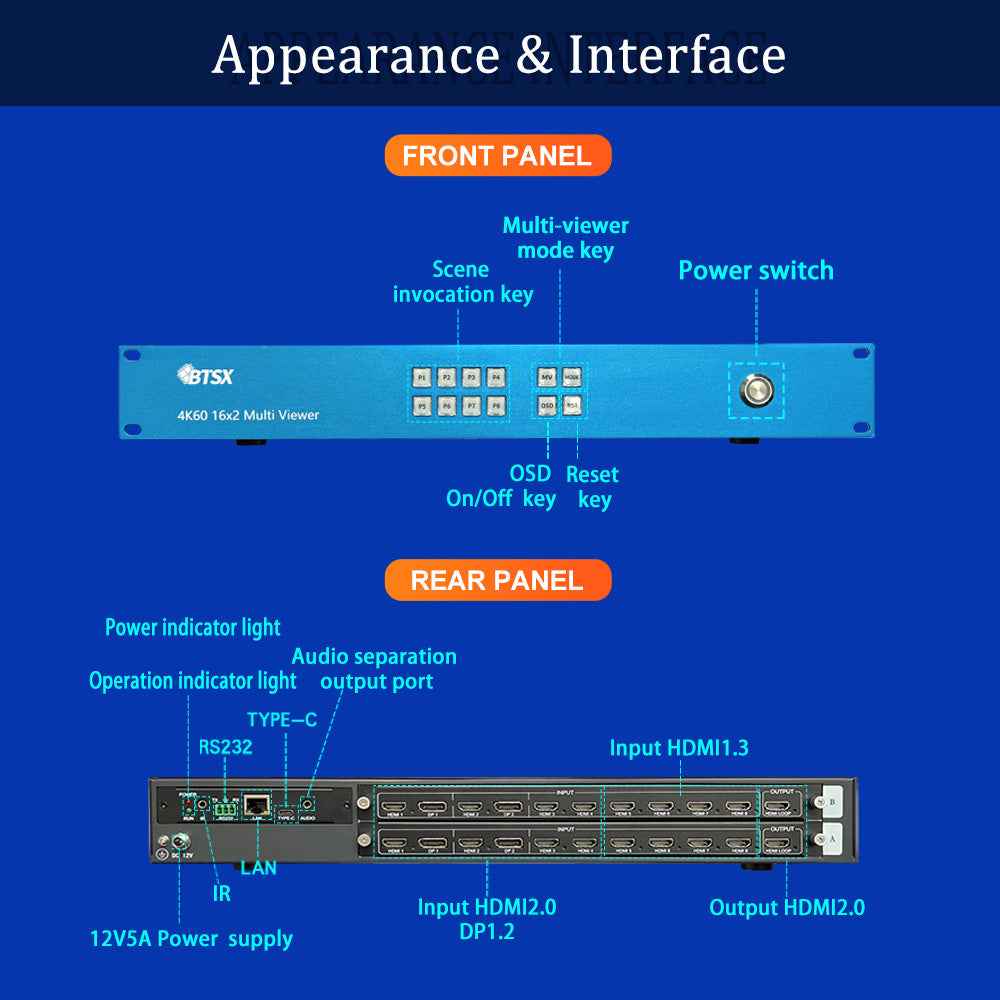

8、 Support buttons, remote control, RS232, web control, intuitive control interface and operation mode, simplify the setup process；
9、 Support custom modification of IP addresses and DHCP automatic allocation；
10、Provide desktop small boxes and rack mounted structures for flexible installation according to different scenarios；
11、 Equipped with overheat protection and anti-interference design, using 18W thermal
conductivity material, internal heat dissipation, ensuring long-term stable operation of the
equipment, suitable for long-term use in various environments.
