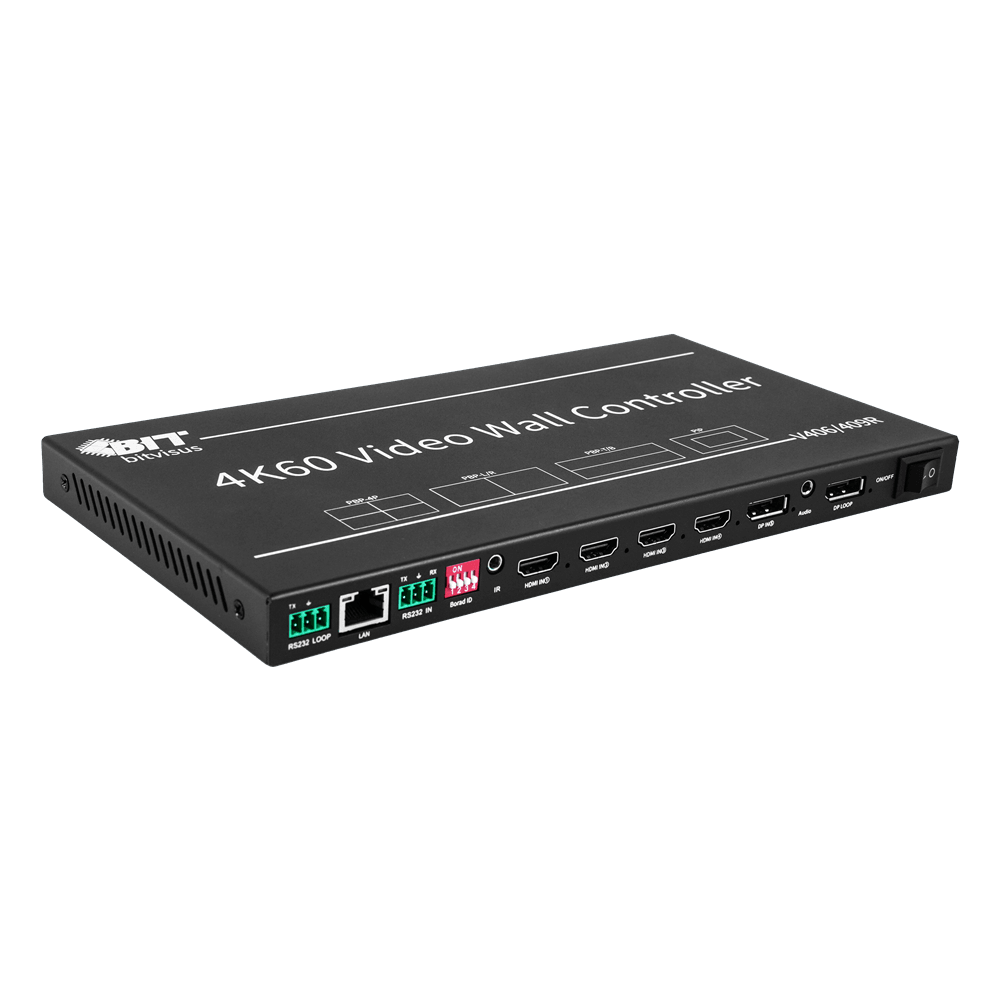

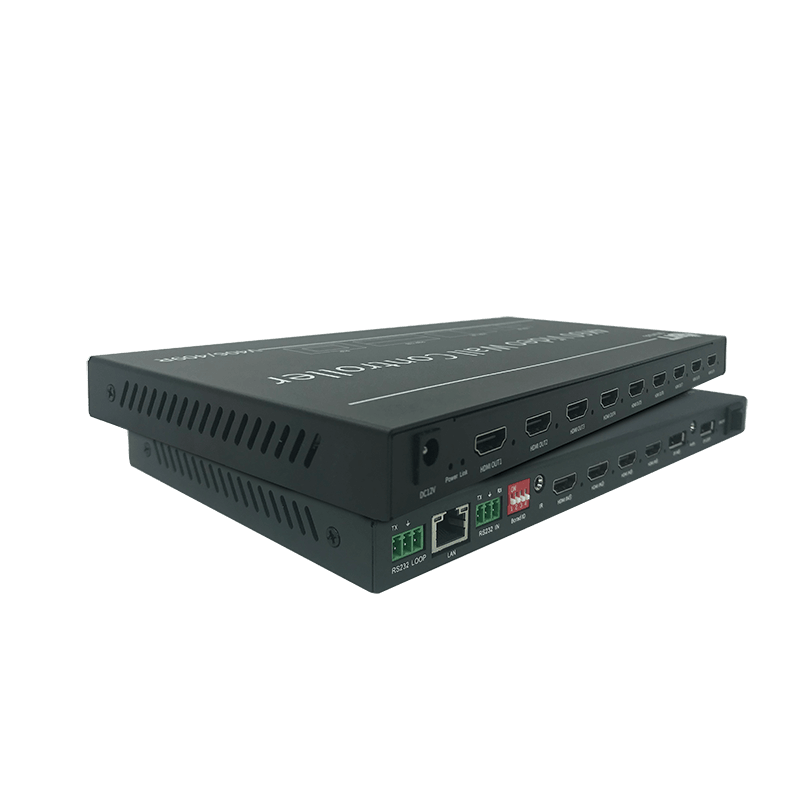

BIT-VWC-409R 4K 60Hz LCD Video Wall Controller Processor 3x3 2x4 4x2 2x2 2x3 3x2 HDMI DP Rotation Remote Control RS232

BIT-VWC-409R 4K 60Hz LCD Video Wall Controller Processor 3x3 2x4 4x2 2x2 2x3 3x2 HDMI DP Rotation Remote Control RS232

Regular price $499.00 USD
Regular price Sale price $499.00 USD
Sale Sold out
Plug Type
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

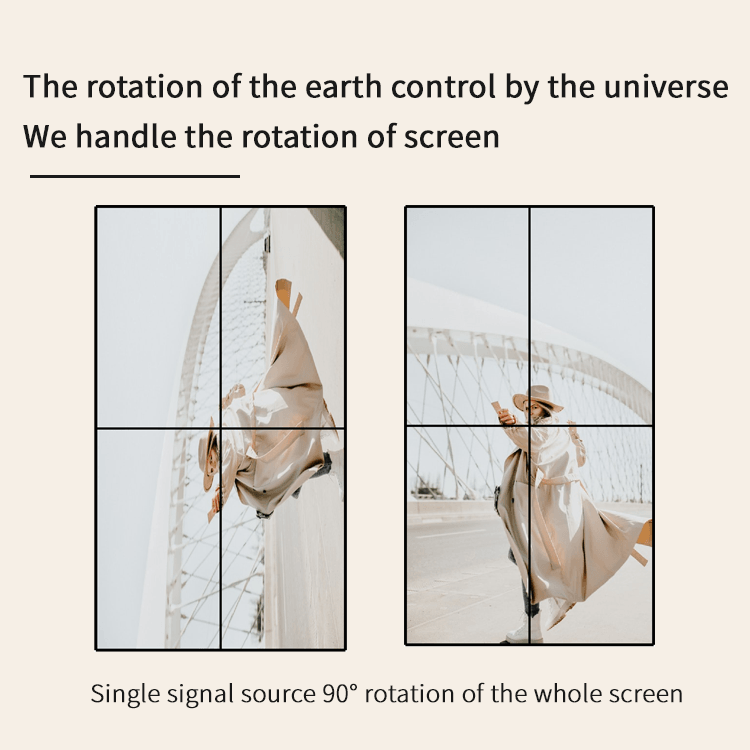

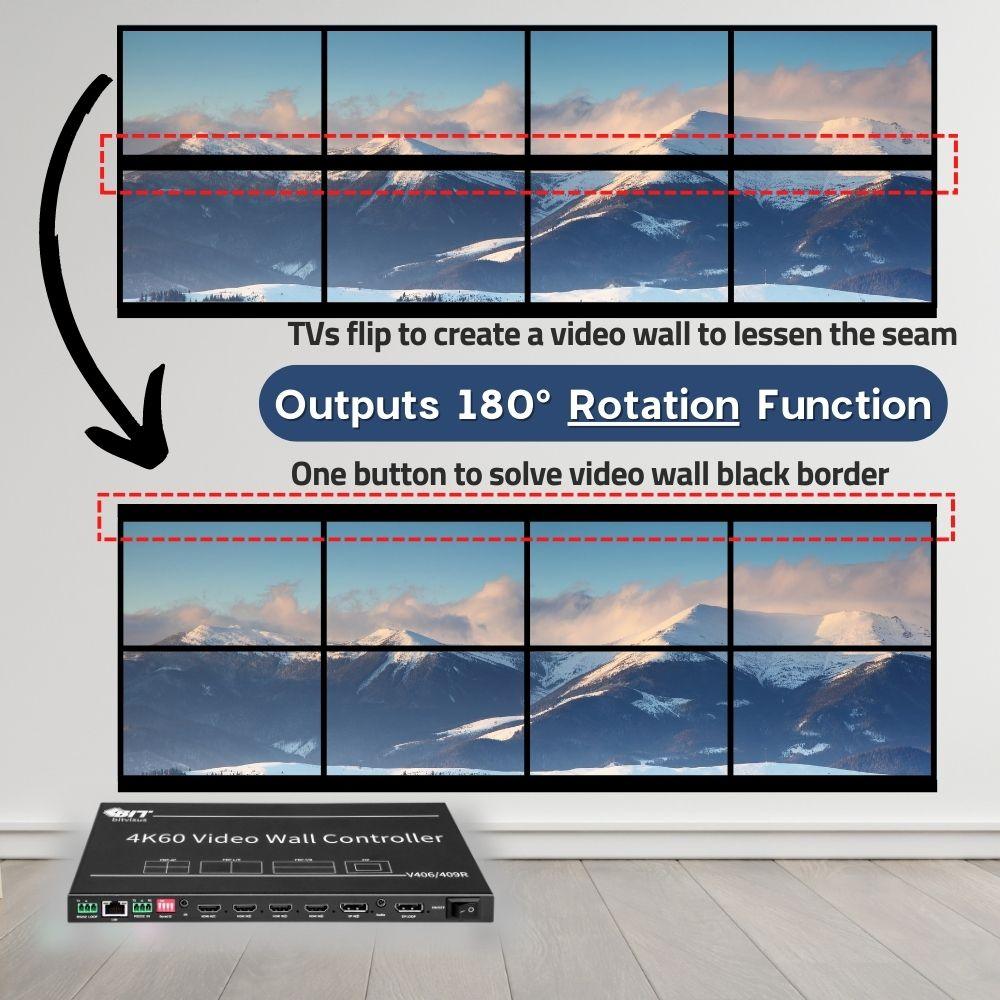

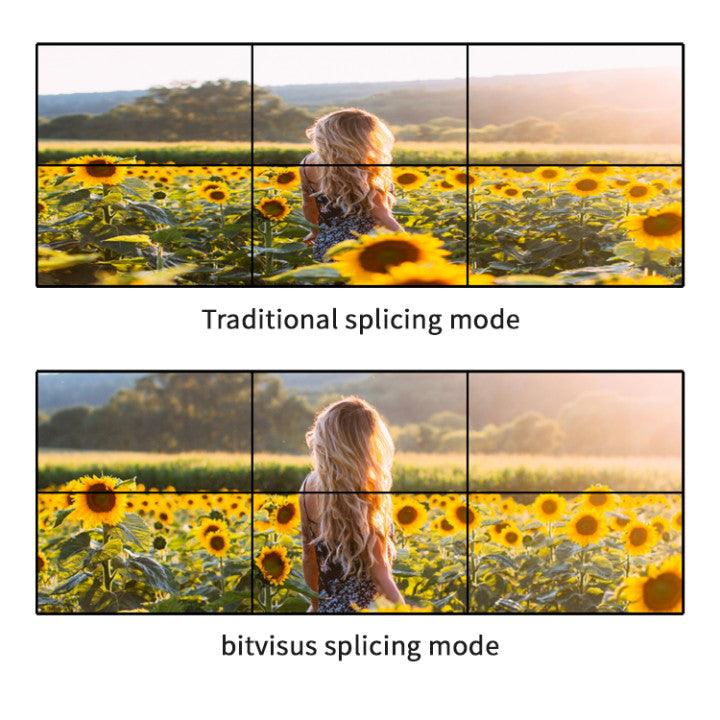

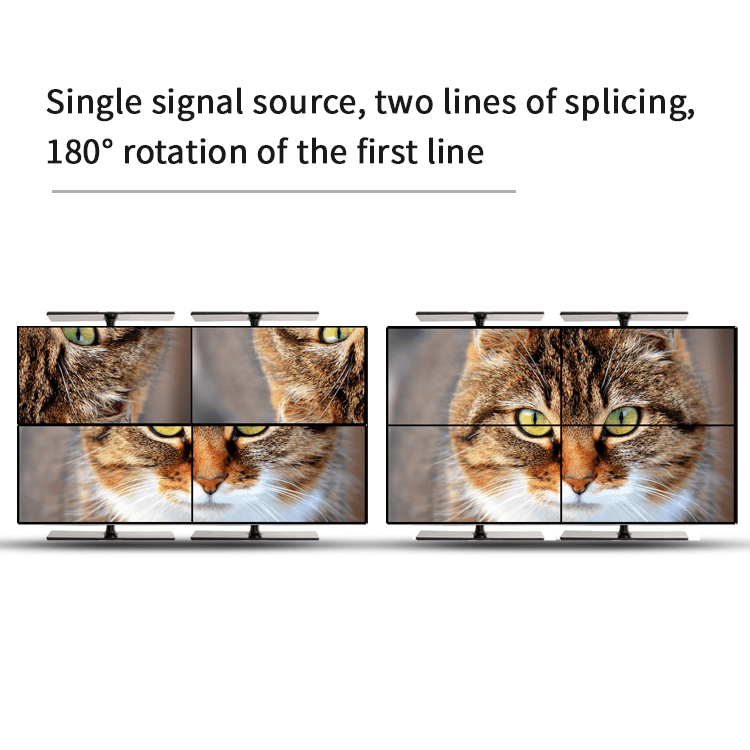

📌Plug and play, no stretching, no deformation, and no need to compress the input source. Support input source 90° rotation and output first line 180° rotation.

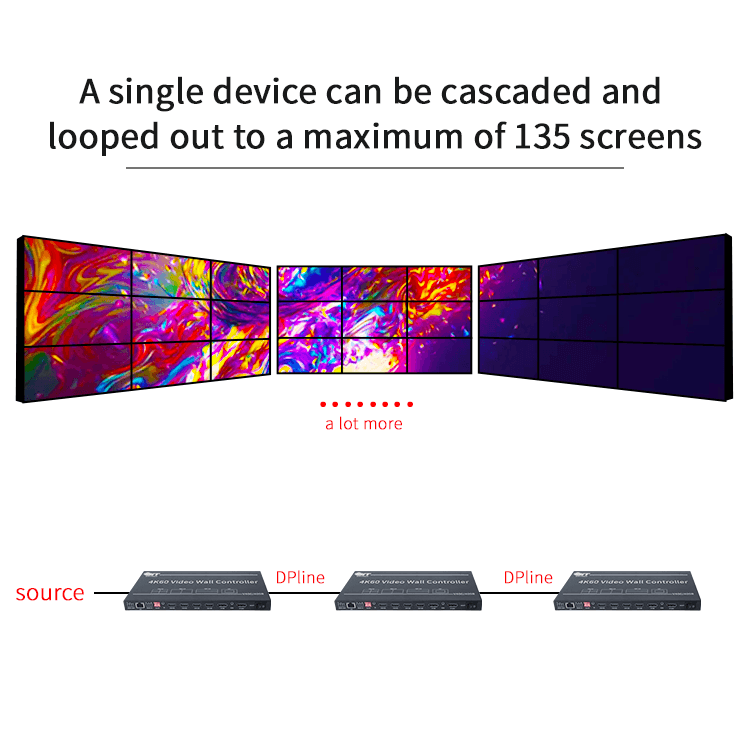

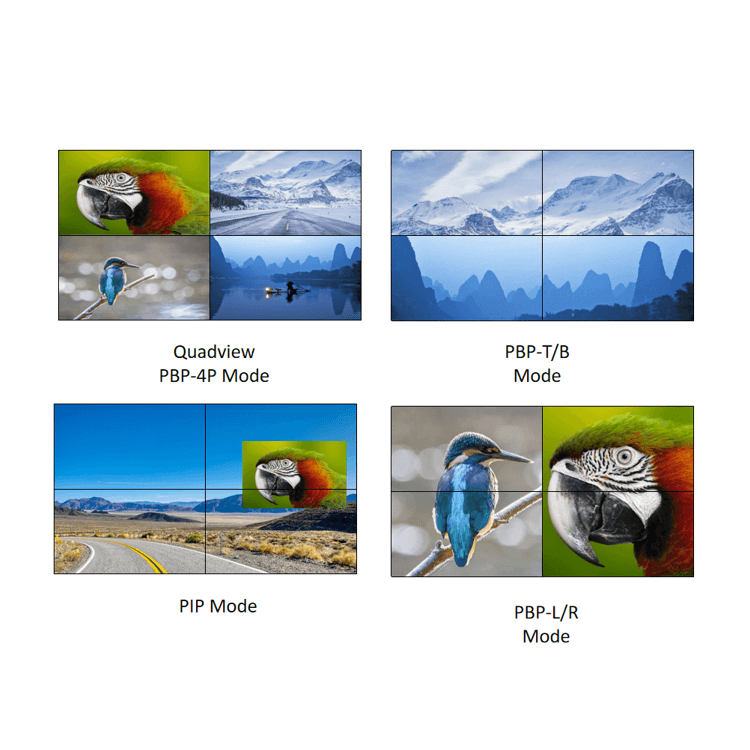

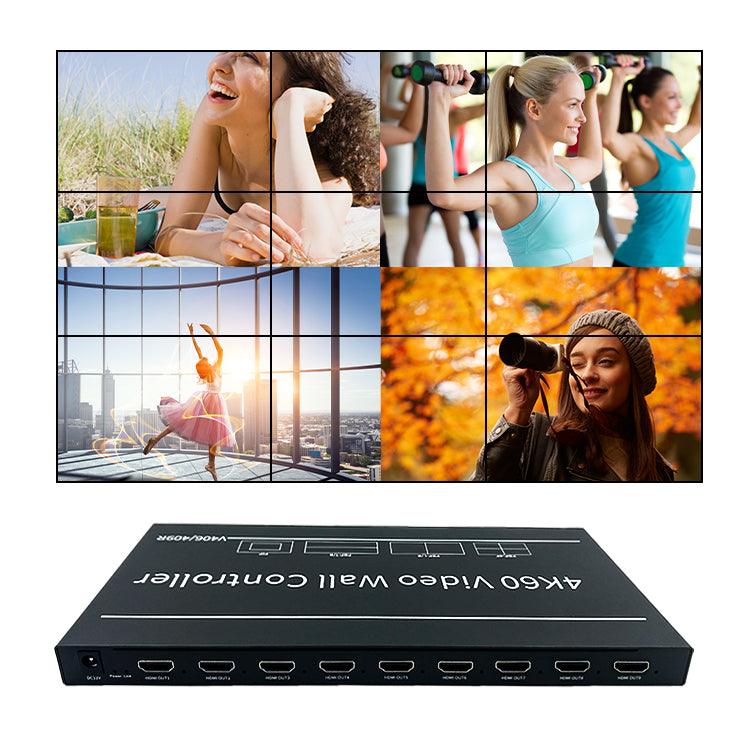

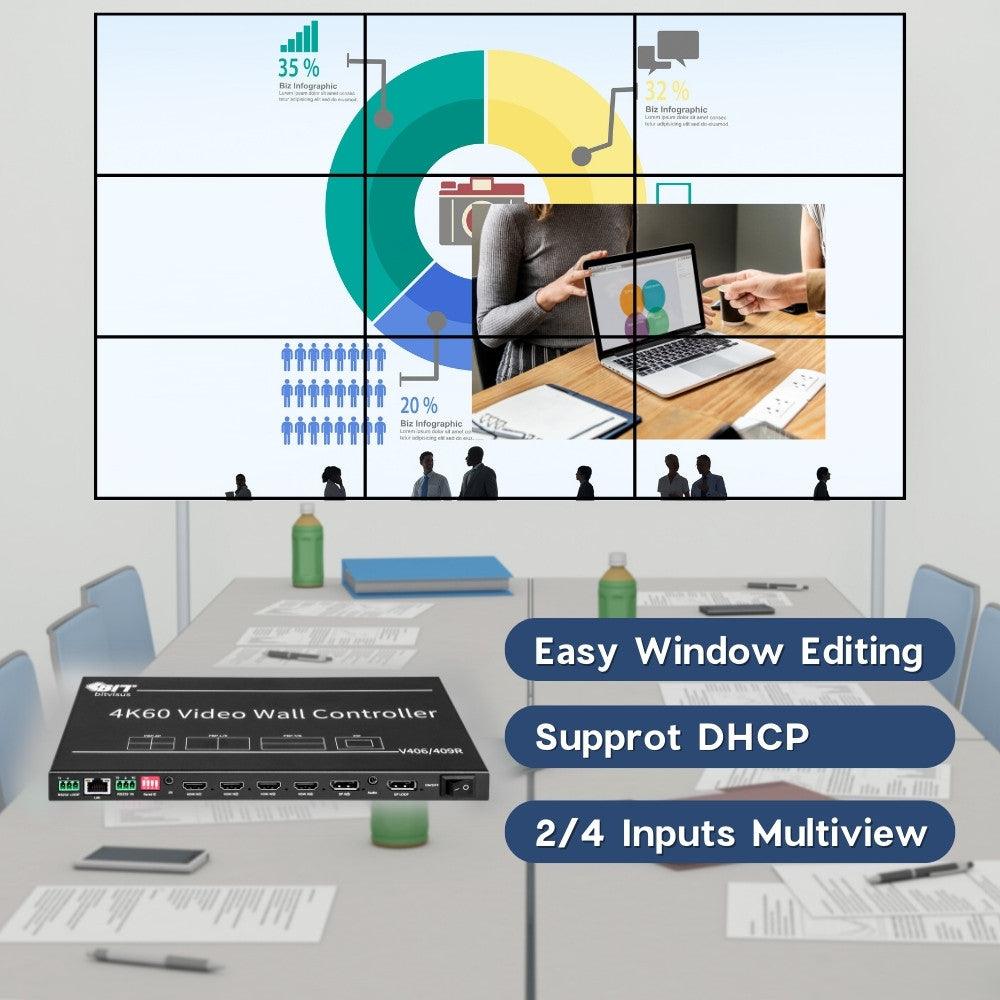

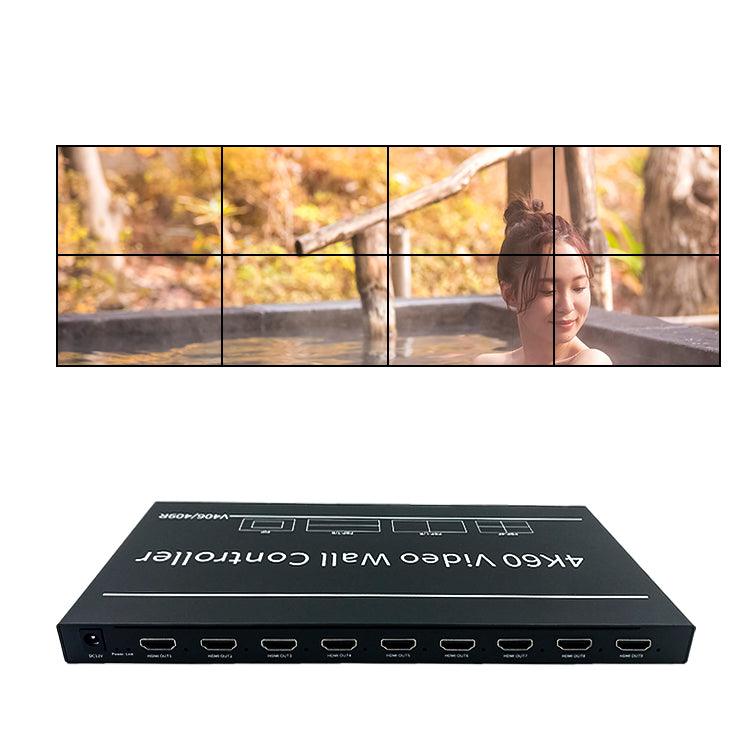

📌HDMI 2.0/DP 1.2 Inputs, 9 HDMI outputs support various display modes(2x2, 2x3, 3x2, 1x4, 4x1). Support multiple picture-in-picture modes, and multi-device parallel use.

📌Single Output Support 1920x1080@60Hz, Input Max. resolution support 3840x2160@60Hz.

📌High-end programmable FPGA chip, full hardware real-time processing architecture, switching mode without delay.

📌Typical application includes exhibition hall, indoor advertising, digital signage, commercial display, control room display, Immersive room, and interactive projection.

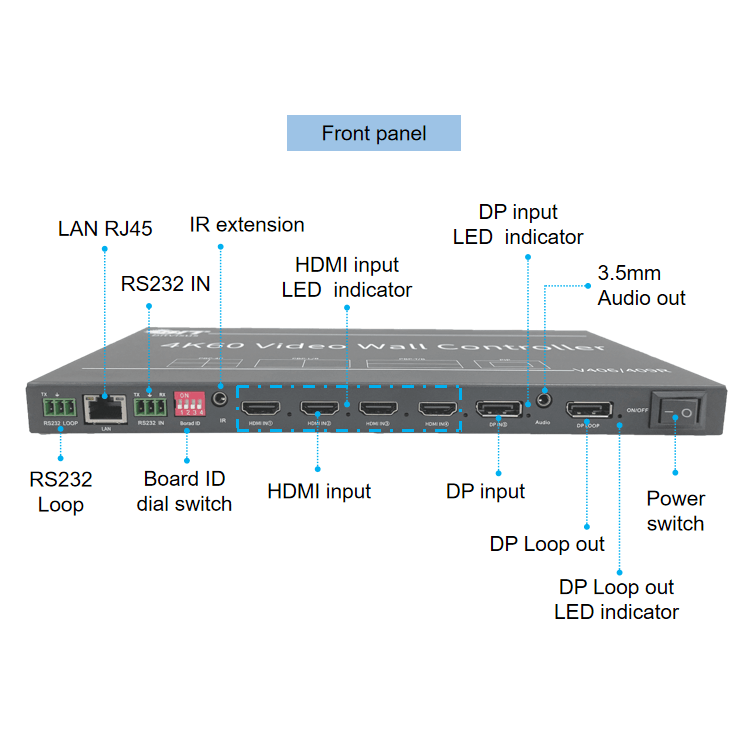

Product name BIT-VWC-409R
Input Max Pixel Clock Rate 600MHz
Input Max Resolution 3840*2160@60Hz

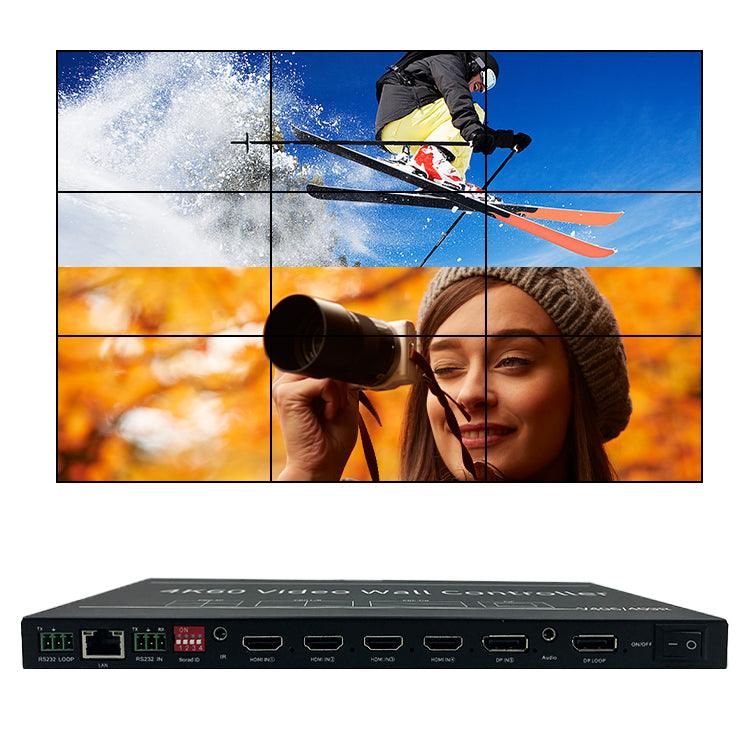

DP Signal Display port 1.2*1
HDMI Input Signal HDMI 2.0*1,HDMI 1.4 *3
Output Max Pixel Clock Rate 165MHz
Single Output Screen Max. Resolution 1920*1080@60Hz

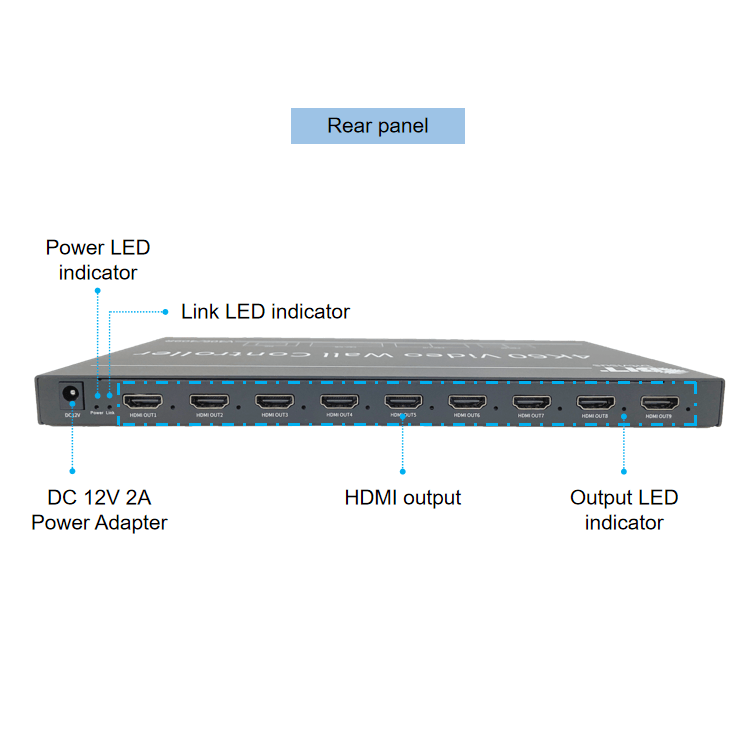

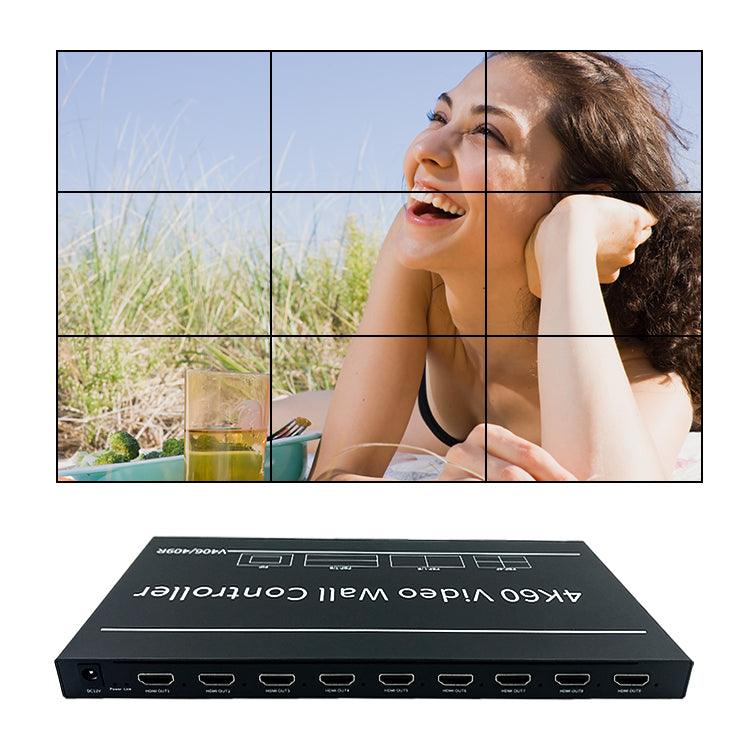

HDMI output interface 9*HDMI 1.3
Audio Output 3.5 mm headphone jack

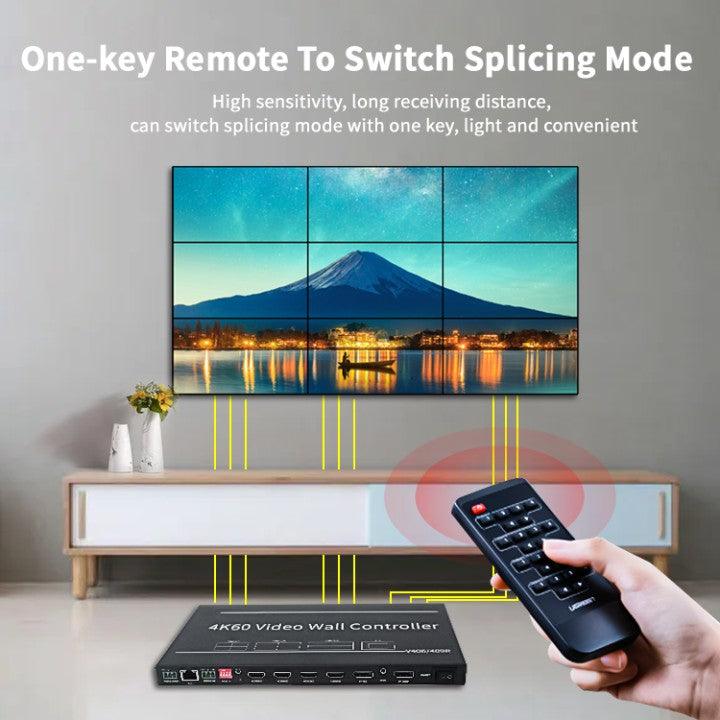

Control Method Remote control, RS232 serial port (looped out)
Factory Default Resolution HDMI:3840*2160@30Hz
DP:3840*2160@60Hz
Support Custom Resolution Yes
Operating Temperature 0℃-50℃
Power Rating 12W
Power supply 12V@2A AC-DC
Weight 2000g
Size 270mm * 143.5mm * 20.5mm

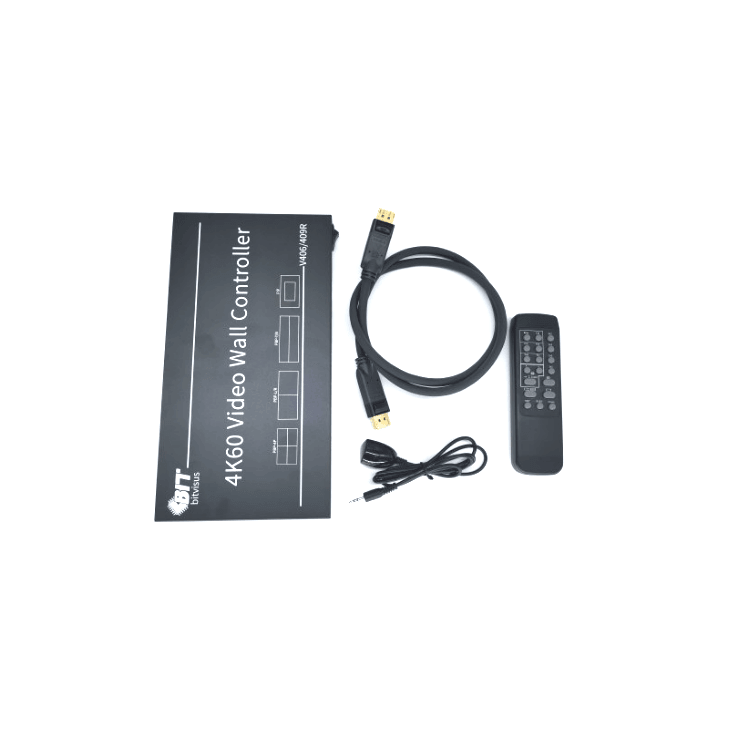

Annex One DP Cable
One 12V@2A AC-DC
One remote control
Power Supply 12V@2A AC-DC



Download 🔽409R Control
