BIT-VWC-4K60-104 4K60Hz LCD 2x2 1x4 4x1 1x3 3x1 1x2 2x1 Video Wall Controller Processor 180°Rotation Seamless 1 In 4 Out HDCP

BIT-VWC-4K60-104 4K60Hz LCD 2x2 1x4 4x1 1x3 3x1 1x2 2x1 Video Wall Controller Processor 180°Rotation Seamless 1 In 4 Out HDCP

Regular price $283.00 USD
Regular price Sale price $283.00 USD
Sale Sold out
Plug Type
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

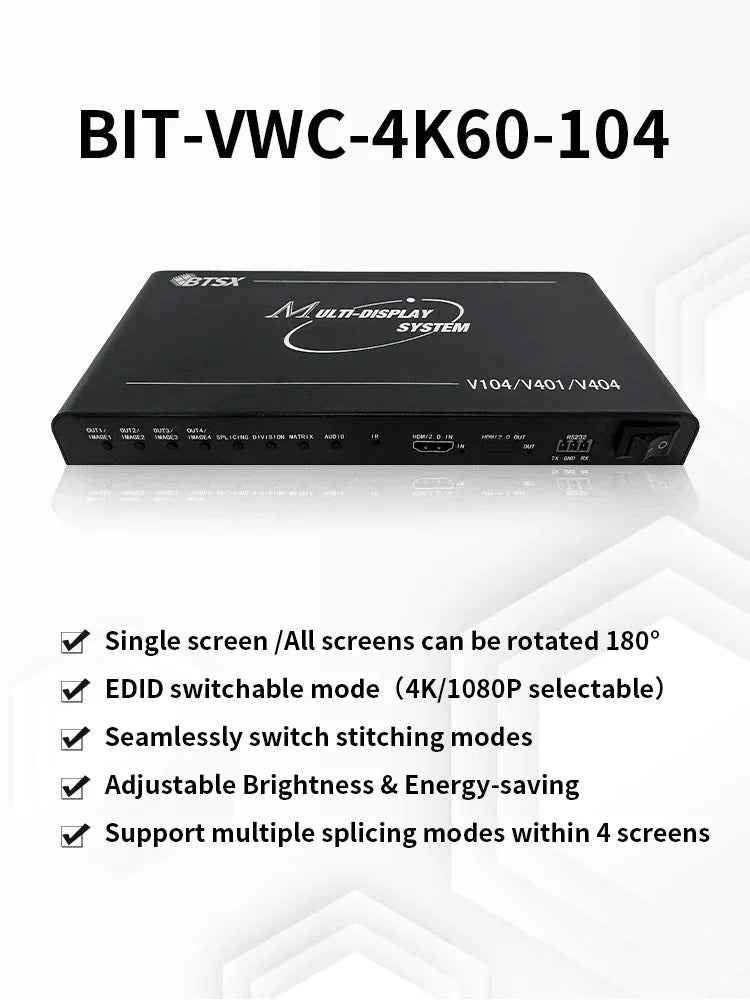

📌Plug and play, no stretching, no deformation, and no need to compress the input source. Support 180° rotation of every screen display.

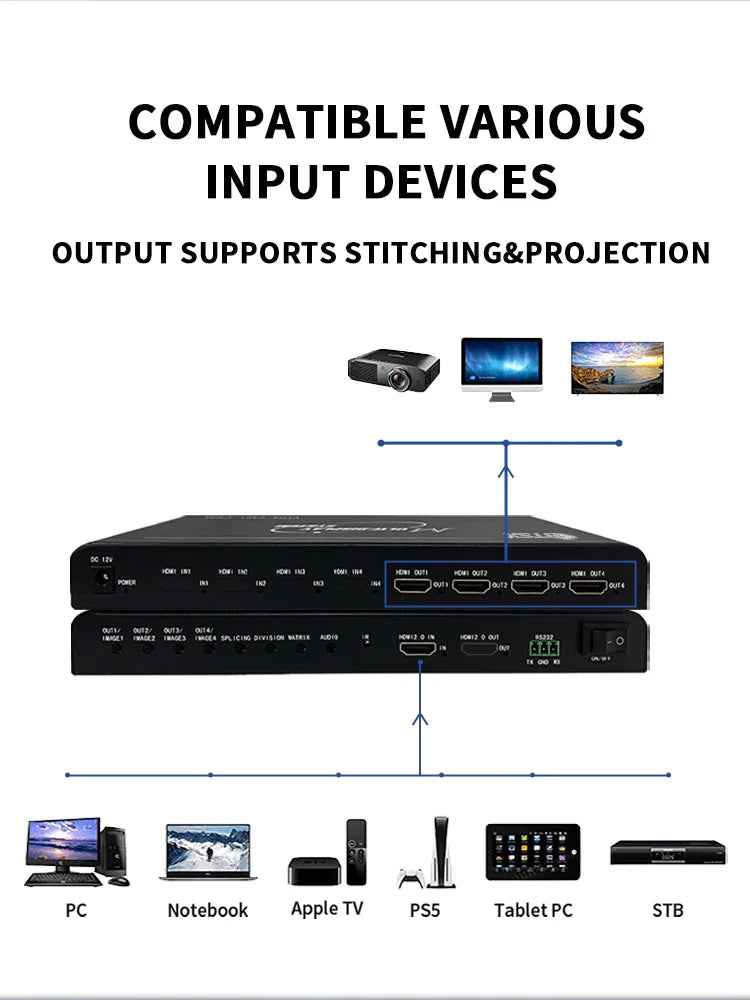

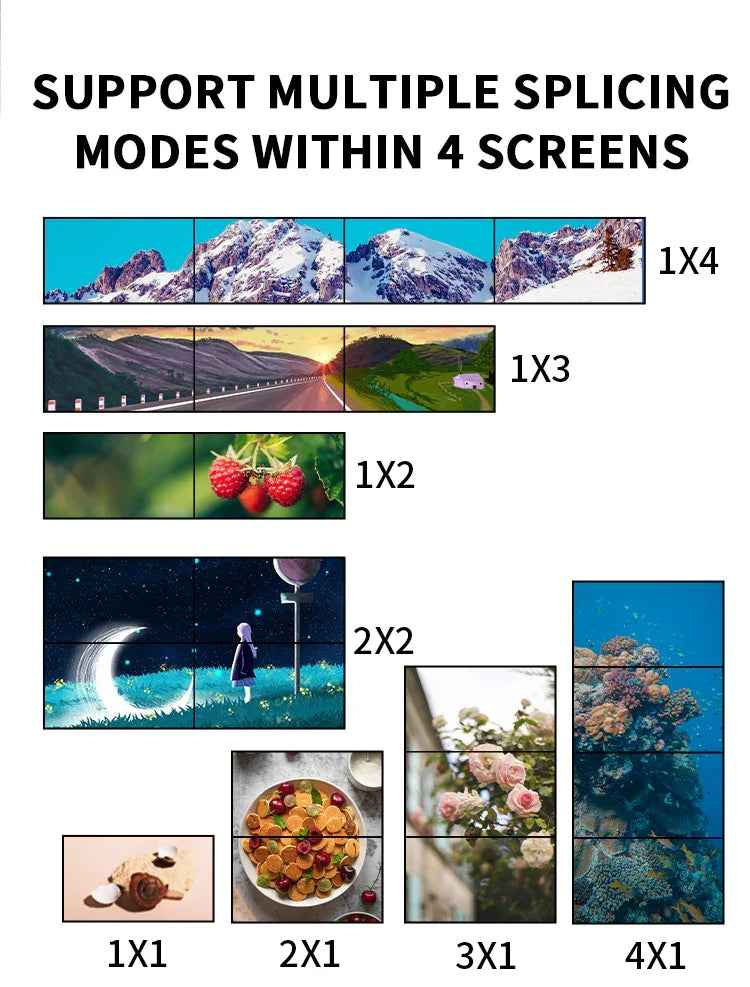

📌HDMI 2.0/DP 1.2 Inputs, 4 HDMI outputs support various display modes(2x2, 1x3, 3x1, 1x4, 4x1, 1x2, 2x1). Support multiple picture-in-picture modes, and large-scale cascade parallel use.

📌Single Output Support 1920x1080@60Hz, Input Max. resolution support 3840x2160@60Hz.

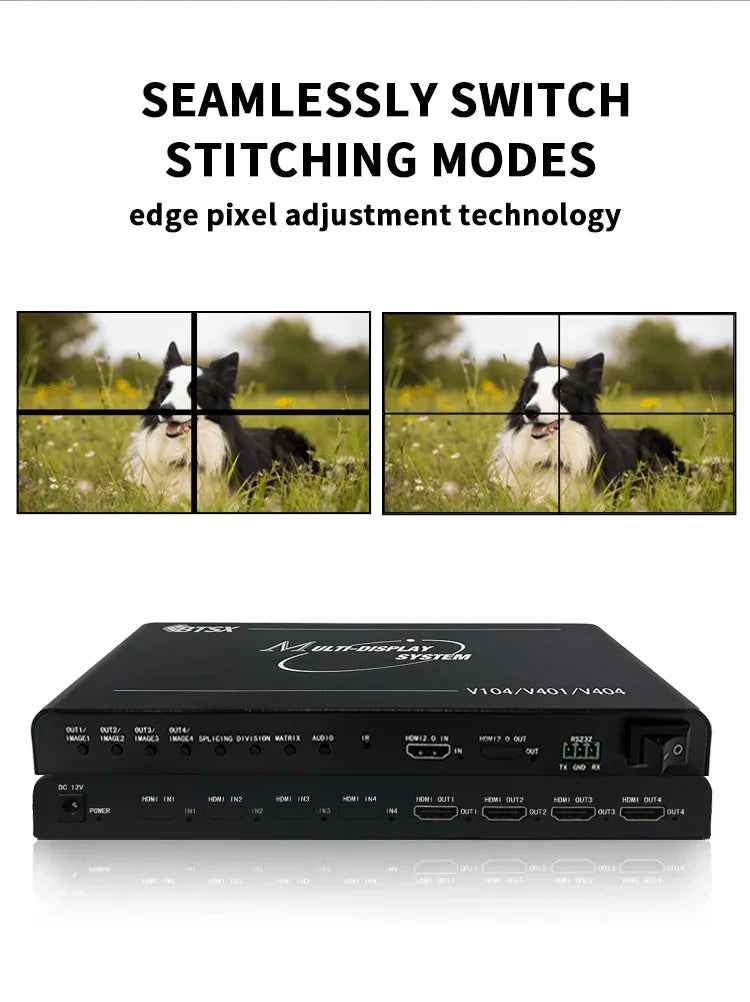

📌High-end programmable FPGA chip, full hardware real-time processing architecture, switching mode without delay.

📌Applications: exhibition hall, indoor advertising video wall, digital signage, commercial display, control room, and interactive projection.

Product Name BIT-VWC-4K60-104
Input Signal 1*HDMI 2.0
Output Signal 4*HDMI
HDCP
HDCP 1.4
Input Pixel Clock Rate 600MHz
Output Pixel Clock Rate 165MHz
Single Output Max. Resolution 1920x1080@60Hz
Input Supports Resolution 1920x1080@30/60Hz 3840x2160@30/60Hz
Factory Default Resolution 3840x2160@30Hz
Control Method Button control, remote control, PC host computer (through RS232 serial port)
Power Rating 12W
Hot Plugging
Power-off Memory
Output Distance 15m
Size(L*W*H) 235mm*130mm*30mm
Weight 2kg
Power supply 12V@2A AC-DC
