BITVISUS

MultiViewer Splicing 2x2 1x4 4x1 1x3 3x1 4 In 4 Out HDMI Matrix Video Wall Controller Processor Splitter Video HDMI Switcher

MultiViewer Splicing 2x2 1x4 4x1 1x3 3x1 4 In 4 Out HDMI Matrix Video Wall Controller Processor Splitter Video HDMI Switcher

$275.00 USD
$275.00 USD
Sale Sold out
Request Quote

🎯 Enterprise Quote Available

Get volume pricing and technical consultation for your project

📞 Request Quote Now | 💬 Chat with Sales Team

Sample price shown: $275 | Business cooperation pricing available

🏆 Professional-Grade Video Wall Controller

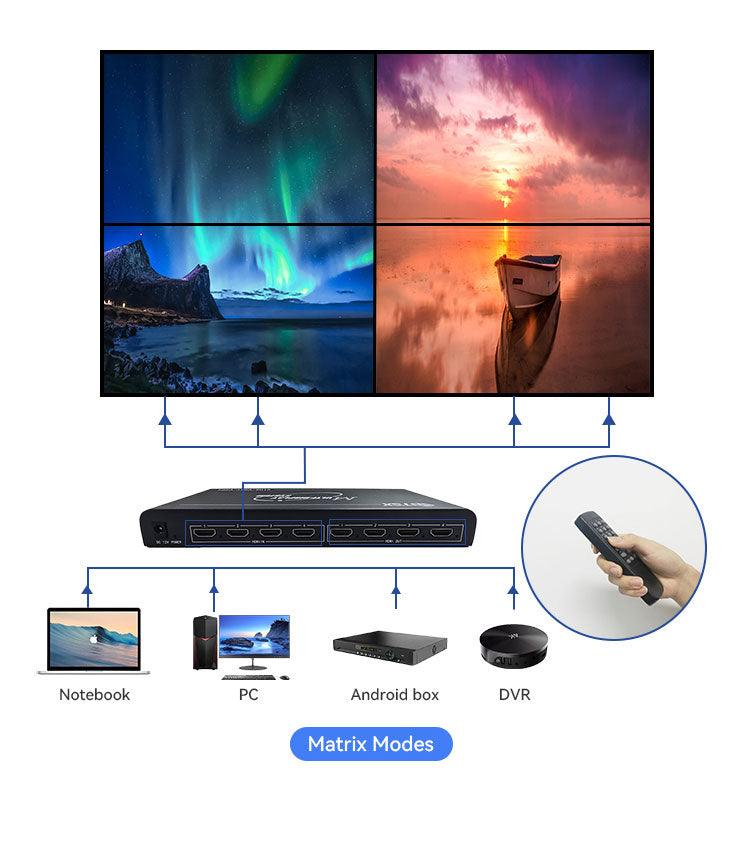

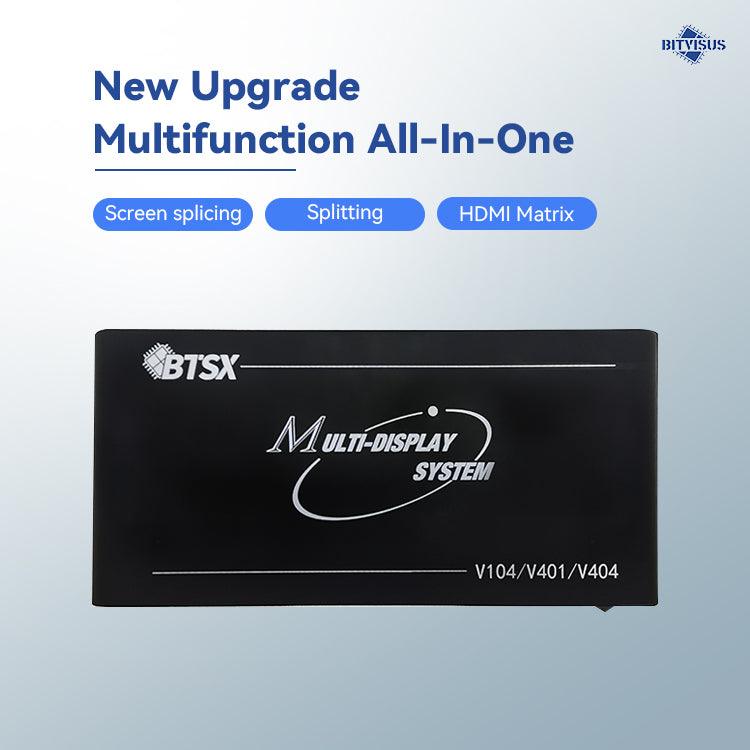

All-in-One Solution: Multi-Viewer + HDMI Matrix + Video Wall Controller in a single device

  • 📌 4 In 4 Out HDMI 1.3 - Seamless switching without delay, stretching, or distortion

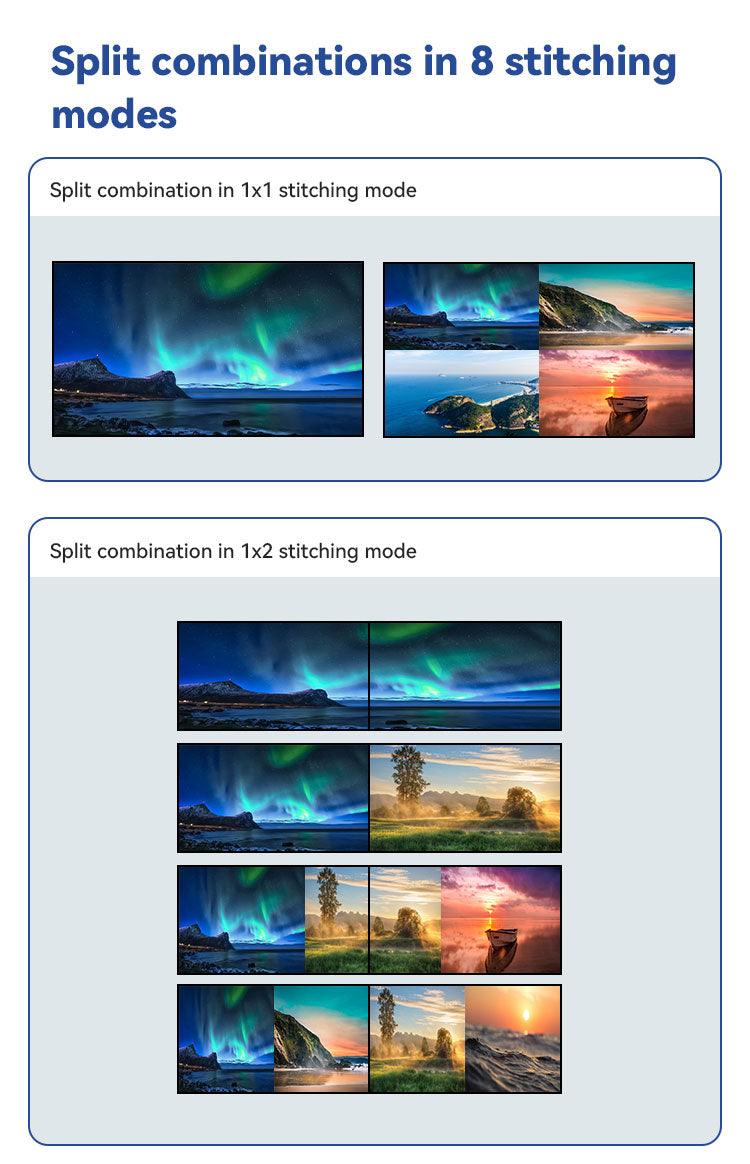

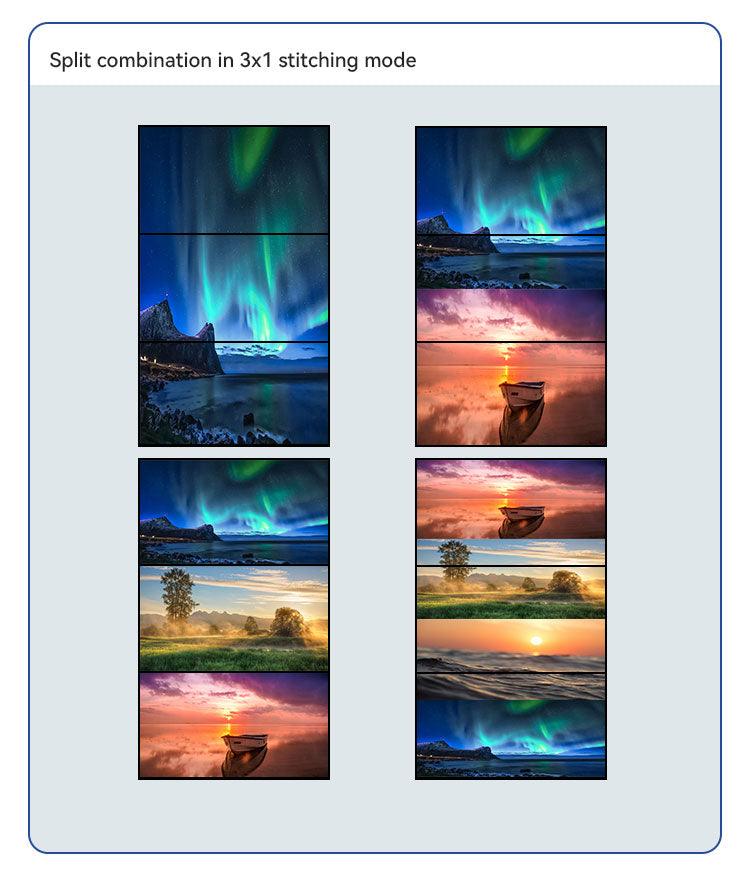

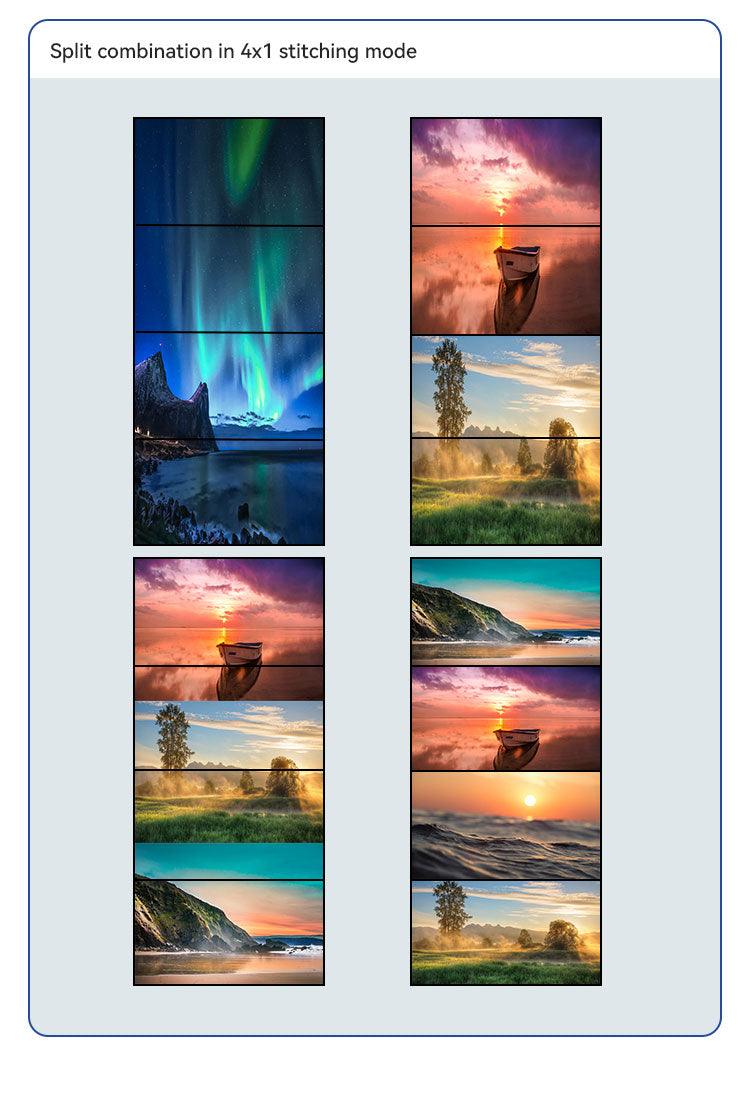

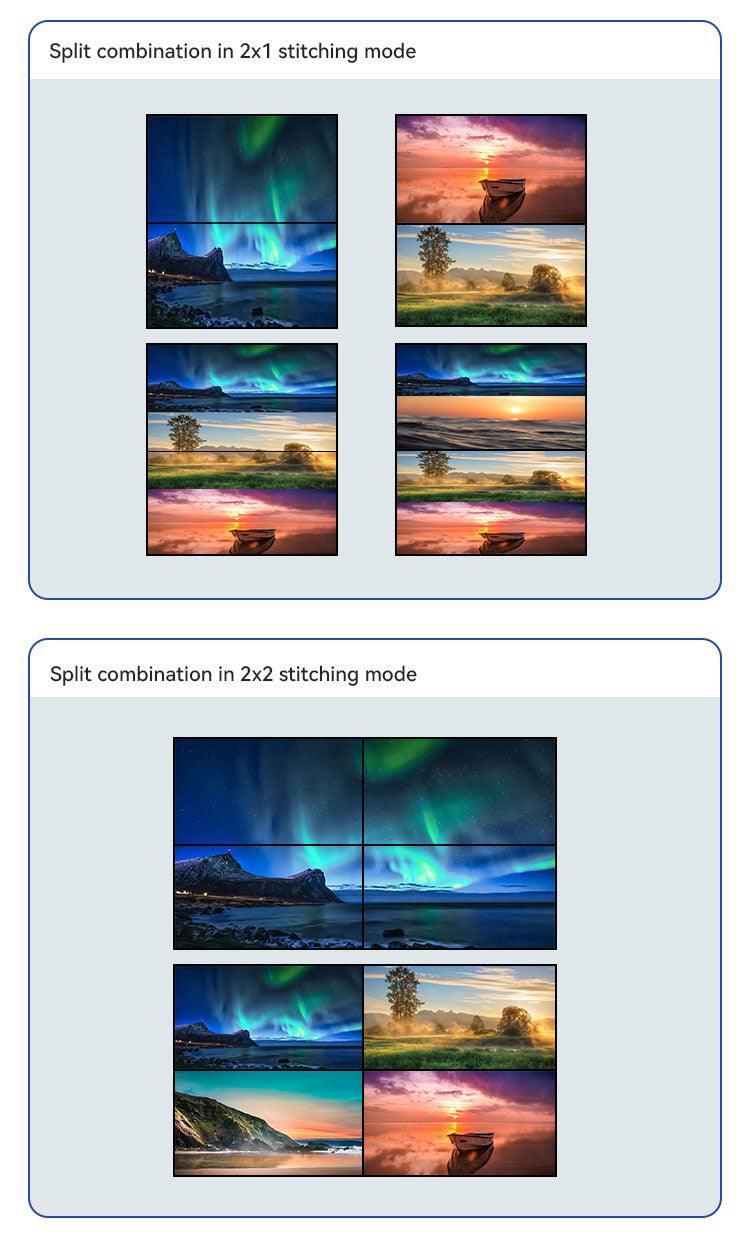

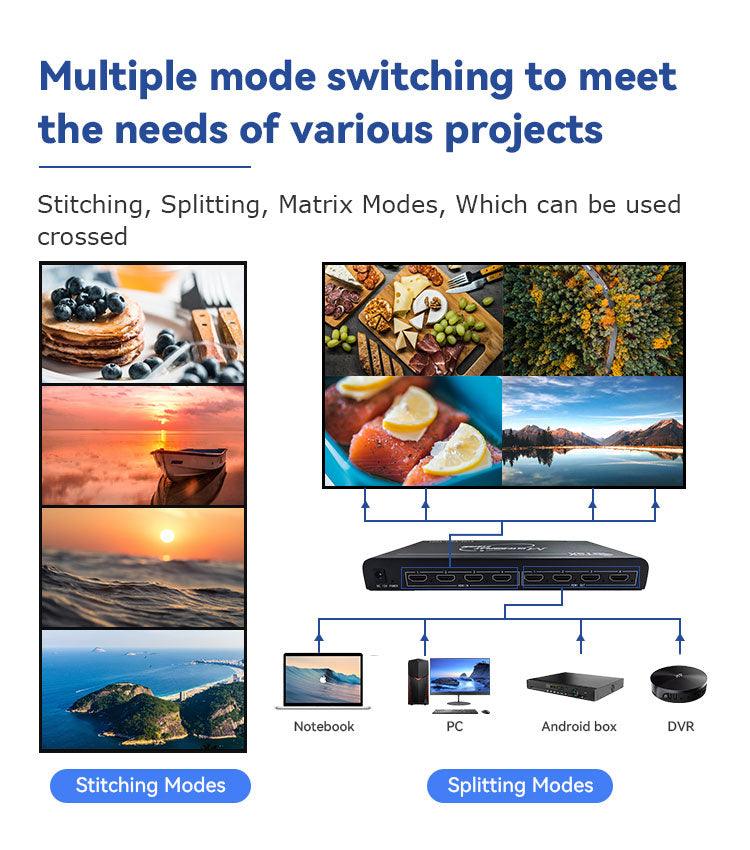

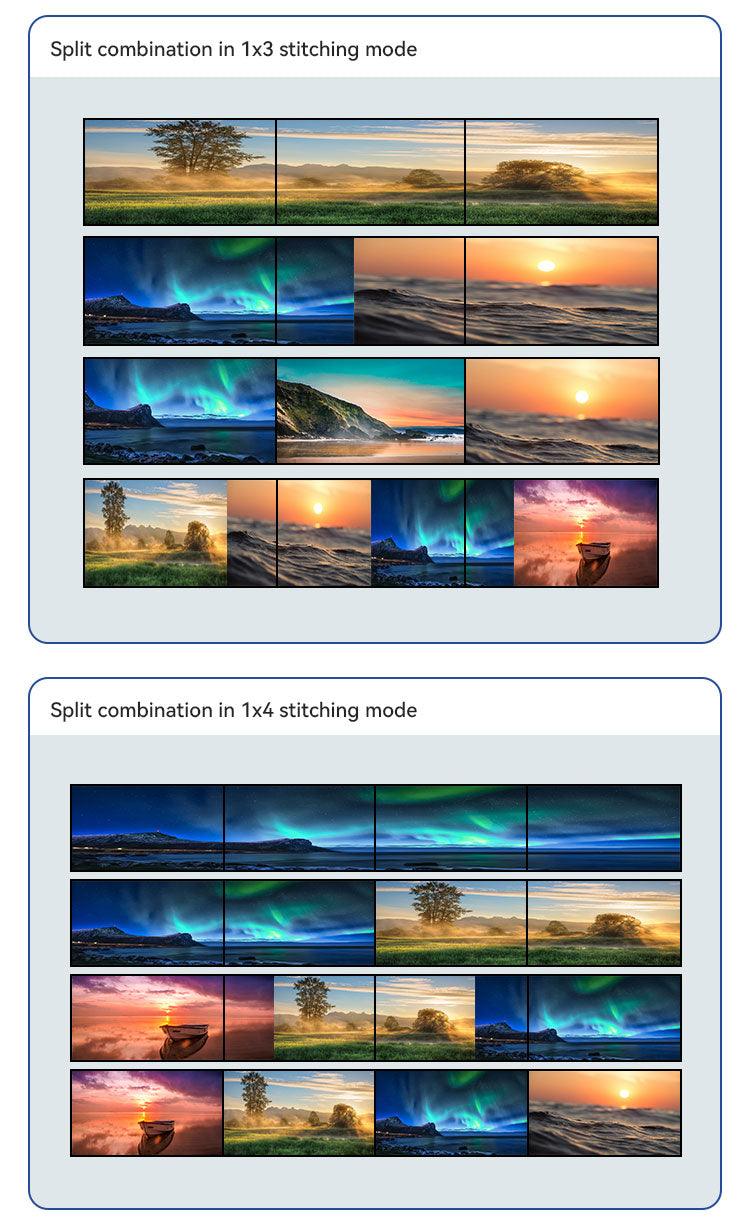

  • 📌 Multiple Display Modes: Splicing (2x2), Splitting (1x4, 4x1, 1x3, 3x1), Matrix - combine modes as needed
  • 📌 4K Output Support: 3840x2160@60Hz in 2x2 configuration | 1920x1080@60Hz per output
  • 📌 Zero-Latency Processing: 40nm FPGA chip with full hardware real-time architecture

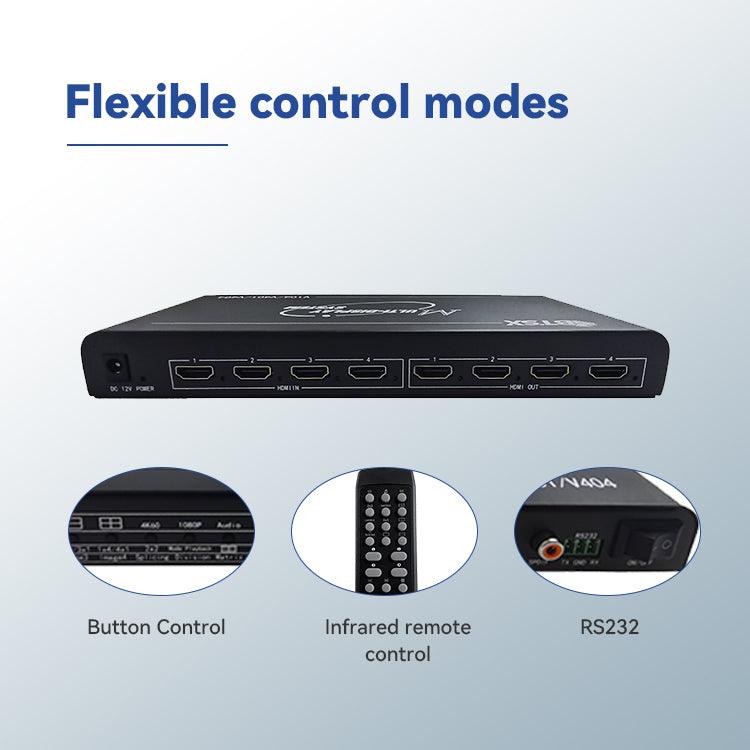

  • 📌 Flexible Control: Remote control, front panel buttons, RS232 serial port for automation
  • 📌 Hot-Swap & Memory: Hot-plugging support + power-off memory retention

✅ Control Rooms & Command Centers | ✅ Security Operations Centers (SOC) | ✅ Corporate Conference Rooms | ✅ Digital Signage & Exhibition Halls | ✅ Broadcast & Production Studios | ✅ Educational & Training Facilities

Specification Details

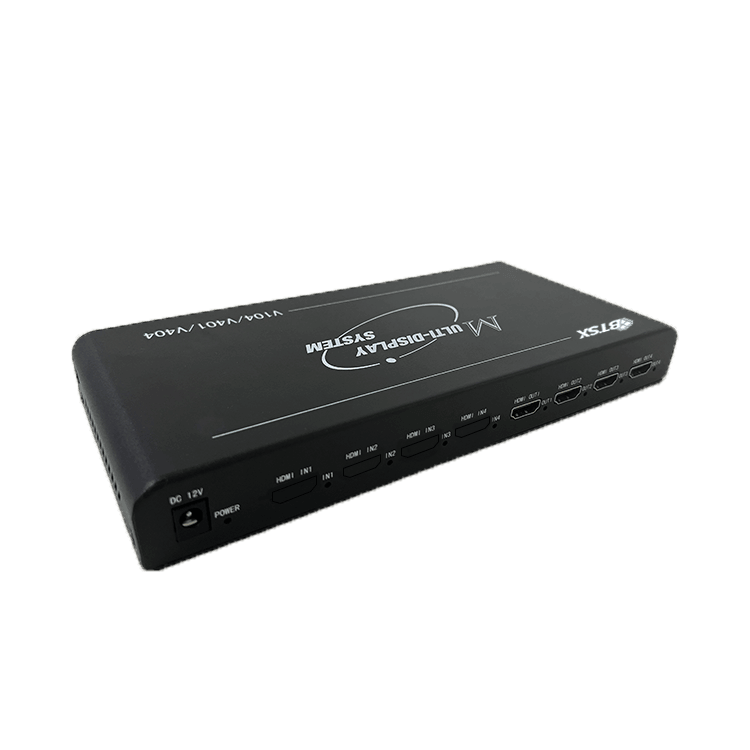

Model Number BIT-VWC-FHD-404 / BIT-VWC-LT404
Input Ports 4 × HDMI 1.3 (165MHz max pixel clock)
Output Ports 4 × HDMI 1.3 (165MHz max pixel clock, 15m cable distance)
Input Resolution Up to 1920×1080@60Hz per input
Output Resolution Single: 1920×1080@60Hz | 2×2 Splicing: 3840×2160@60Hz (4K)
Processing Architecture 40nm FPGA chip | Full hardware real-time processing | Zero latency
Control Interfaces Front panel buttons | IR remote control | RS232 serial port (PC control)
Power Consumption 12W (12V@2A AC-DC adapter included)
Dimensions (L×W×H) 233 × 108 × 28.7 mm (9.2" × 4.3" × 1.1")
Weight 0.635 kg (1.4 lbs)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Special Features ✓ Hot-plugging support | ✓ Power-off memory | ✓ Modular expansion ready
Origin Designed and manufactured in China

✅ Quality Guarantee: Factory-tested with strict QC standards
✅ Technical Support: Lifetime technical assistance via email/chat
✅ Integration Ready: Compatible with BITVISUS projection fusion systems and matrix switchers
✅ Documentation Included: User manual, RS232 command protocol, installation guide

📄 Host Computer Control Software (Windows)
📄 Request Full Datasheet & Integration Guide

Our team can design integrated video wall systems for your specific requirements. Contact us for:
• Multi-location installations
• Custom control room configurations
• System integration consulting
• Volume pricing for projects

→ Request Enterprise Quote | 💬 Chat with Technical Sales

Collapsible row

View full details

Frequently Asked Questions

What input and output interfaces does this video wall controller support?

t supports 12 HDMI 2.0 input interfaces and 12 HDMI 2.0 output interfaces. Both input and output have a maximum pixel clock frequency of 600MHz, enabling flexible multi-input and multi-output configurations.

What control methods are supported by this device?

The device supports multiple control methods, including RS232 serial port, web-based control, keypad control, and WEB API interface. You can access the web interface for flexible control via Windows computers, Mac computers, tablets, and mobile phones.

Does it support seamless switching? Will there be black screen or flickering during switching?

It supports seamless switching of input signals. During the switching process, there will be no black screen or flickering, ensuring smooth and stable presentations.

What display wall configurations does this video wall controller support?

It supports arbitrary configurations within 12 screens, such as 2x2+2x2+1x4 and various other combinations to meet different display requirements. It also supports calling and saving up to 12 preset scenes.

What is the warranty period? What is the operating temperature range?

The product comes with a 3-year after-sales warranty. The storage temperature range is -10°C to 50°C, and the operating temperature range is 0°C to 50°C, making it suitable for most indoor application environments.
