BITVISUS

BIT-VWC-8K60-427Max HDMI Video Wall Controller

BIT-VWC-8K60-427Max HDMI Video Wall Controller

$3,839.00 USD
$3,839.00 USD
Sale Sold out
Model
View full details
Get a quote

The price shown is the sample price. If you want to Get a Business cooperation price, please click the button in the right corner to chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

Description

Modular plug-in card design, 5-channel 8K60 input (HDMI 2.1 / DP 2.1 / Type-C), up to 5-select-4, seamless switching among 5 sources.

27-channel HDMI output, point-to-point M x N splicing (M, N <= 27, MN <= 27), no stretching, no deformation.

Multi-picture modes: Single / Dual (PiP) / Triple / Quad; up to 5x8K60 switching, or 2x8K60 + 2x4K60 in quad mode.

Web control via LAN (Windows / Android / iOS / macOS / Linux / HarmonyOS), RS232 for central control, pure hardware, no PC required.

All-output sync with no tearing or frame drop; HDMI CEC smart linkage; per-channel bezel adjustment.

28nm high-end FPGA, full-hardware real-time processing, zero latency; industrial 6-layer PCB, 16KV ESD protection, 24/7 stable operation.

Open API and SDK for secondary development; DHCP or static IP; WOL and software on/off; EDID management without external tools.

Ideal for command centers, broadcast studios, immersive rooms, large advertising walls, simulation, exhibition halls and control rooms.

Specification
Product BIT-VWC-8K60-427Max
Model BIT-VWC-8K60-427Max (family: 409Max / 418Max / 427Max)

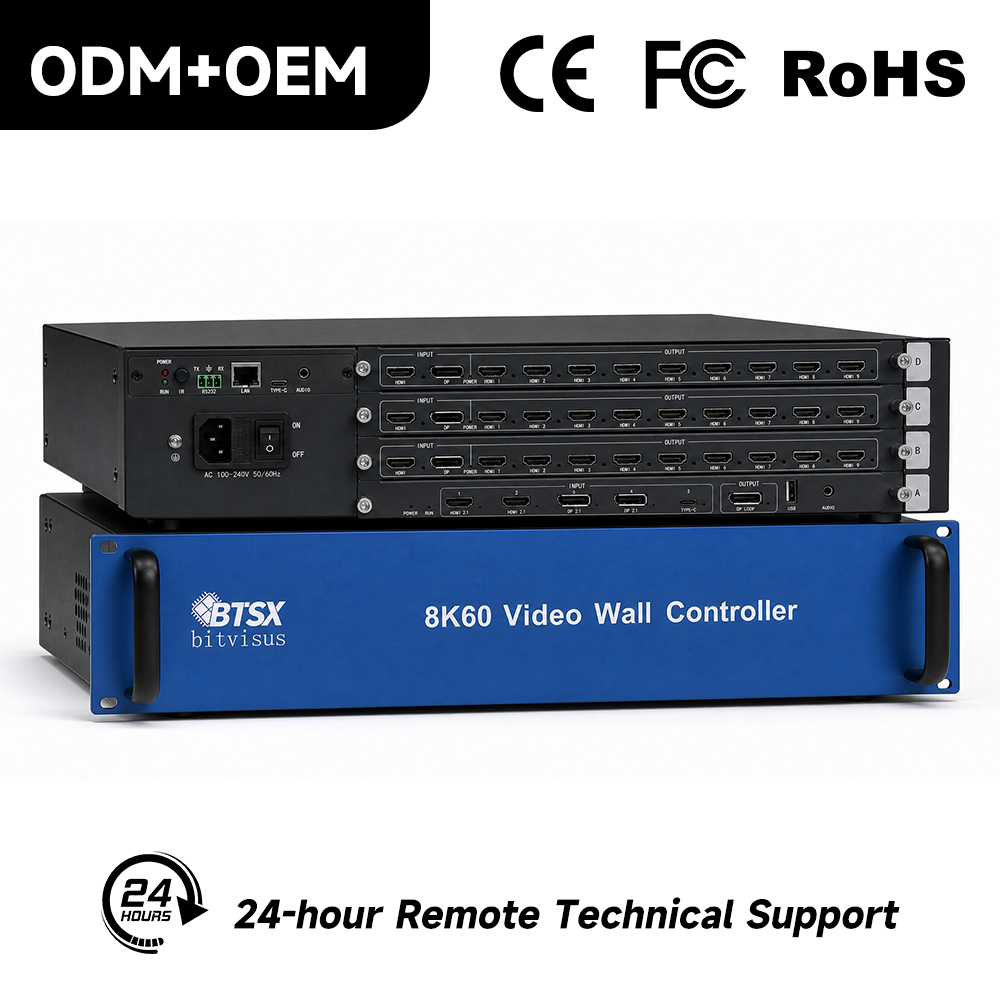

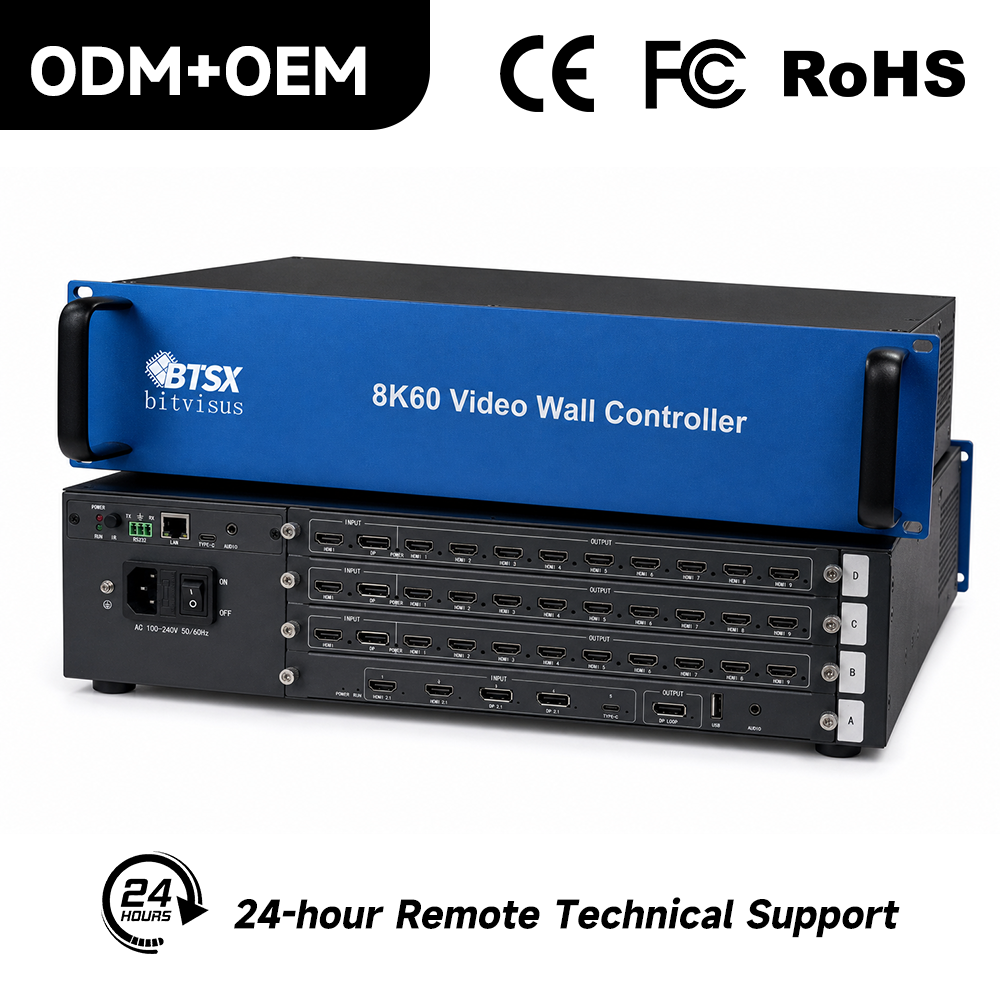

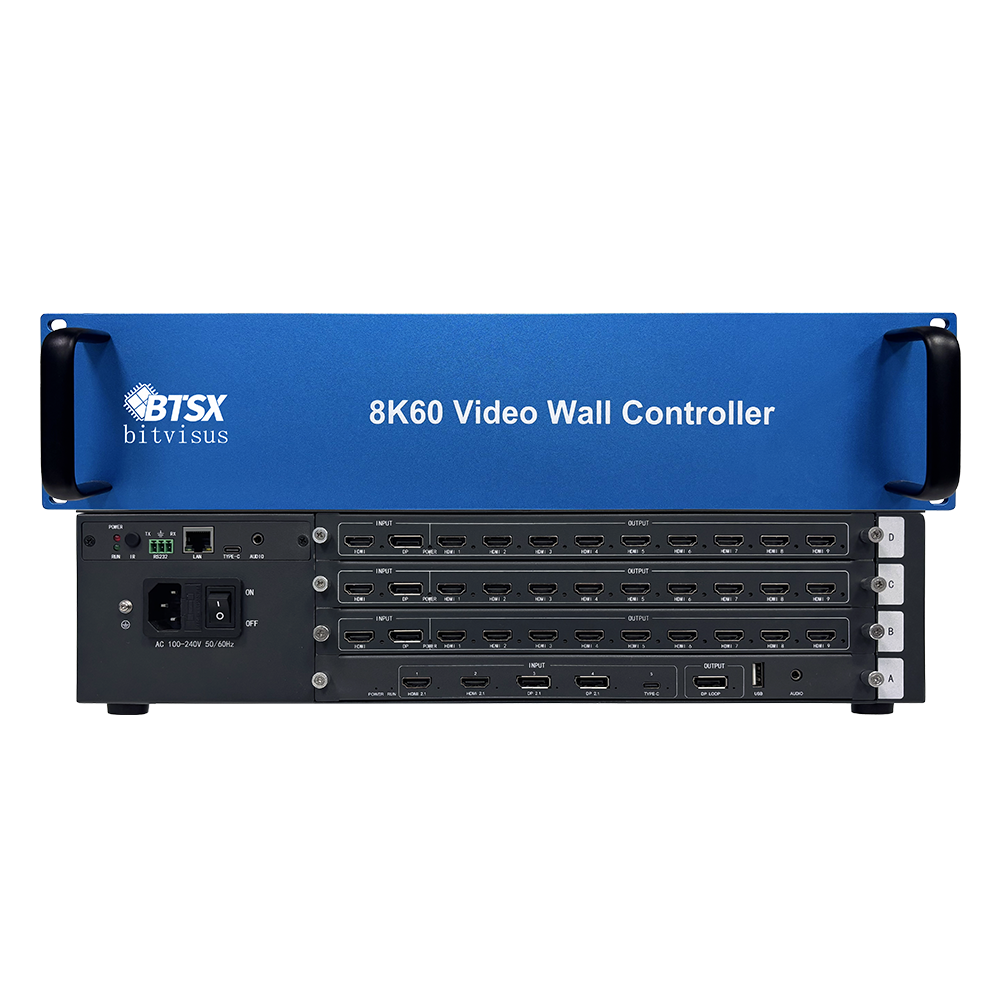

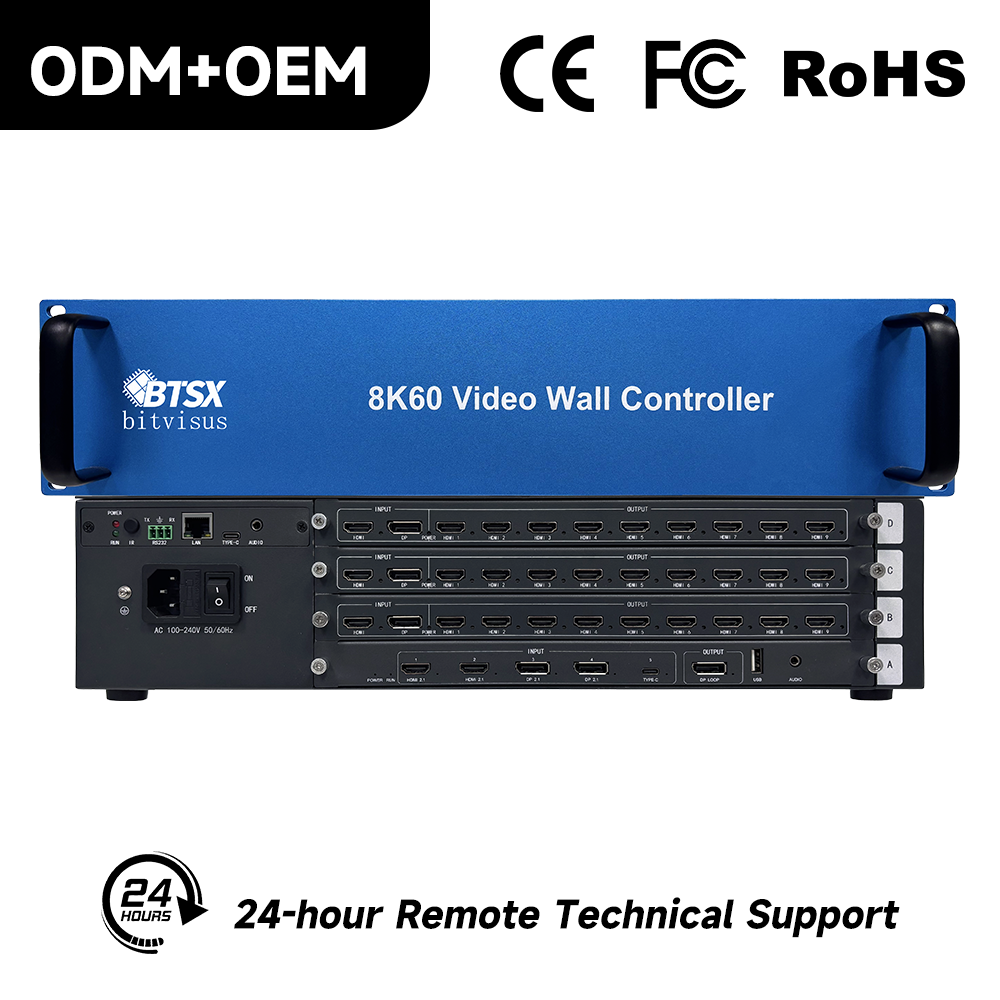

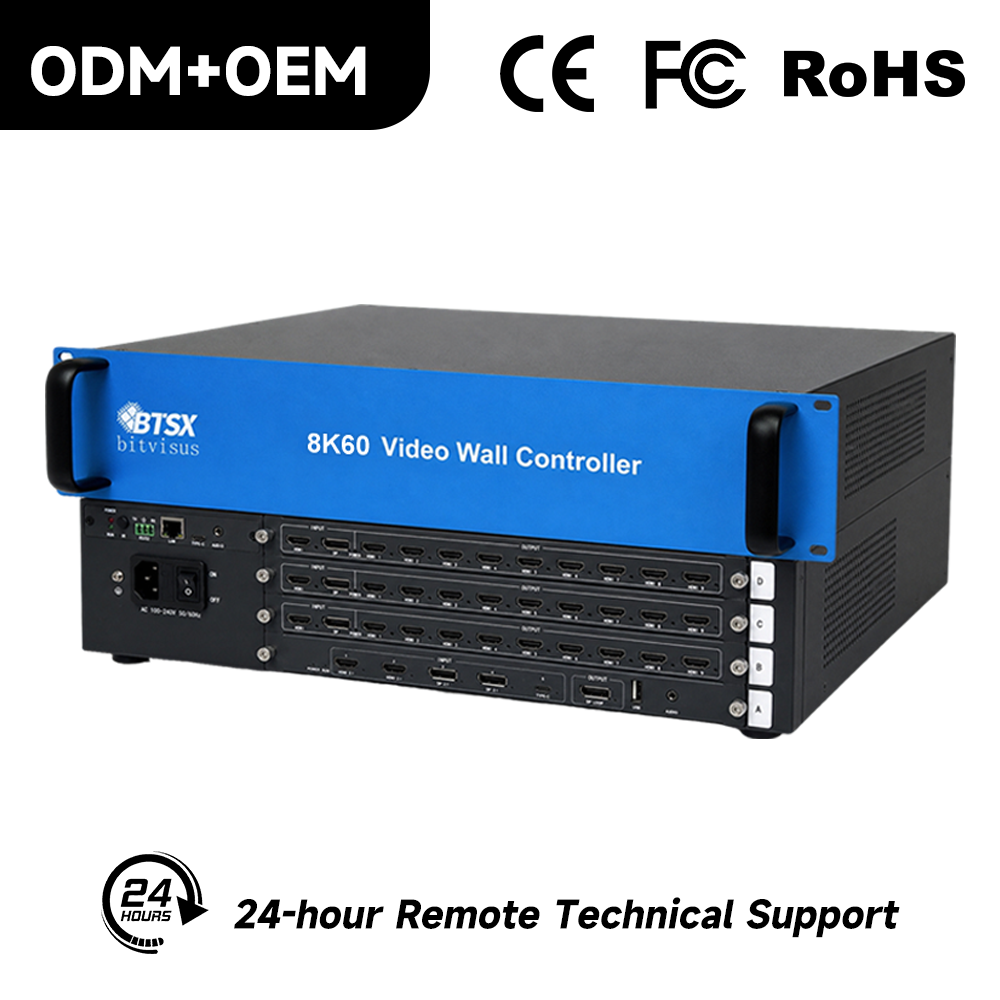

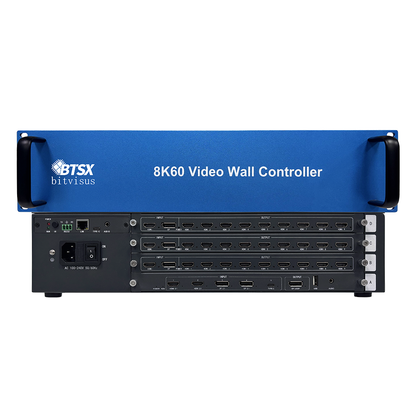

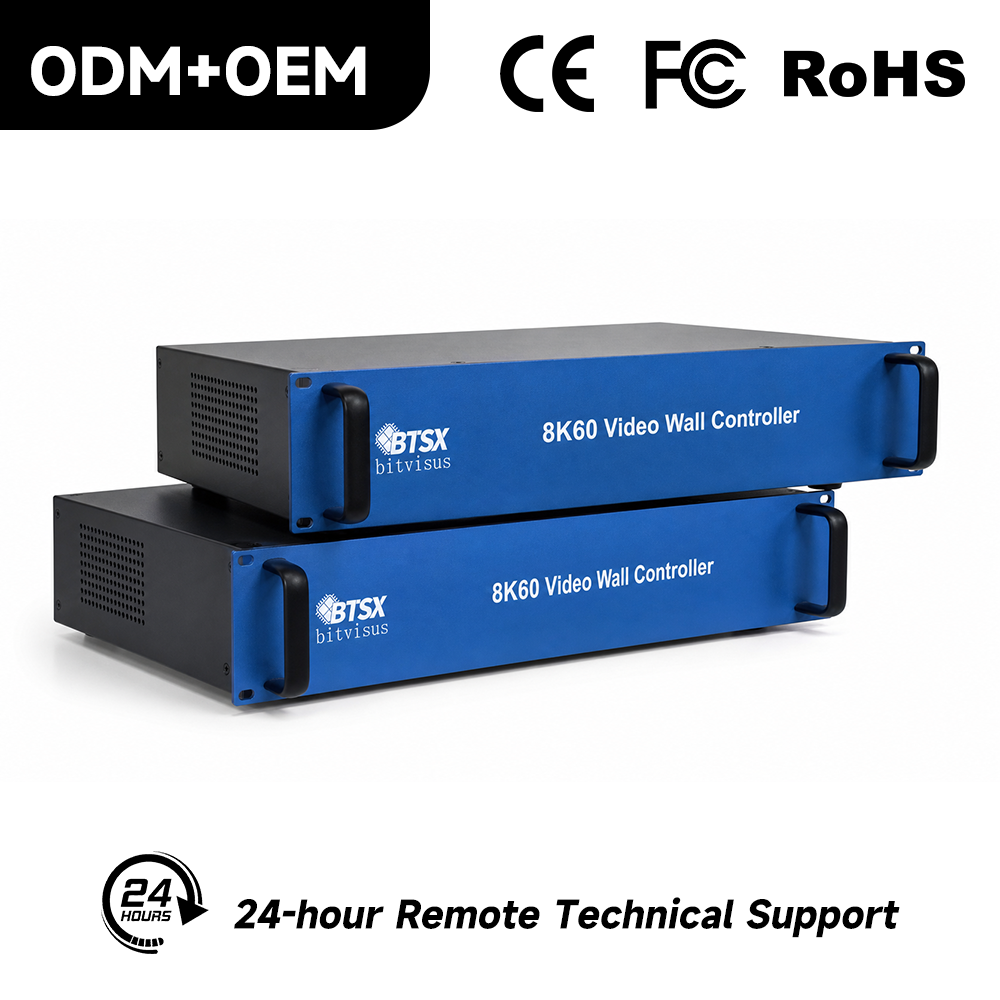

Casing 2U rack mount, modular plug-in card design
Input max cards / channels 1 card / 5 channels (HDMI 2.1 x2, DP 2.1 x2, Type-C x1)
Output max cards / channels 3 cards / 27 channels (HDMI 1.3)
Max input resolution 7680x4320@60 (8K60), HDCP 2.3, max 8192x8192
Single-output resolution 1920x1080@60 / 1920x1200@60
Splicing modes M x N (M,N <= 27, MN <= 27): 1xN(N<=27), 2xN(<=13), 3xN(<=9), 4xN(<=6), 5xN(<=5), 6xN(<=4), 7xN(<=3), 8xN(<=3), 9xN(<=3), Nx1(<=27)
Multi-picture Single / Dual (PiP) / Triple / Quad; up to 5x8K60 switch or 2x8K60+2x4K60 quad
Control Web via LAN, RS232 central control, front panel; OS: Win/Android/iOS/macOS/Linux/HarmonyOS
Video sync All-output synchronization, no tearing, no frame drop
CEC HDMI CEC supported for smart linkage
Bezel Per-channel bezel adjustment
Network DHCP or static IP (default 192.168.1.192)
Power 220V, 116W (409Max: 48W / 418Max: 82W / 427Max: 116W)
Working temperature 0-50 C (storage -10-50 C)
Dimensions (LxWxH) 483 x 200 x 100 mm
Weight 5.9 KG (409Max: 5.1 / 418Max: 5.5 / 427Max: 5.9 KG)
Package 570 x 340 x 180 mm / 8.1 KG
Accessories 1x 220V power cable, 1x HDMI 2.1 or DP 2.1 cable, 1x CAT5E cable, 1x Phoenix terminal block
Warranty 1-Year
Chip / Architecture 28nm high-end FPGA, full-hardware real-time processing, zero latency
API Open API / SDK for secondary development
