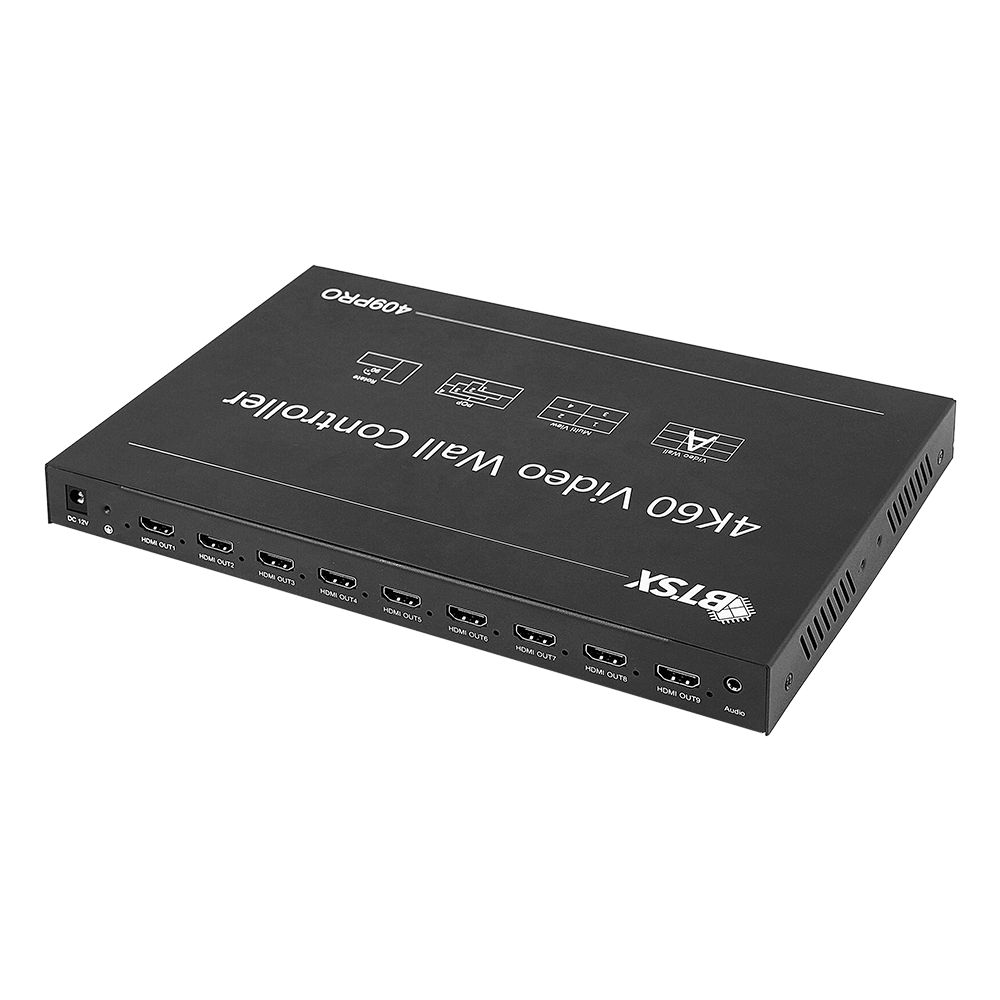

BITVISUS 4K Video Wall Controller - Professional Multi-Screen Display Processor

BITVISUS 4K Video Wall Controller - Professional Multi-Screen Display Processor

Regular price $1,028.00 USD
Regular price Sale price $1,028.00 USD
Sale Sold out
Request Quote

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

The newly launched 4K60 Ultra HD video processor by Bitvisus can display multiple dynamic images across several screens, while also enabling switching of up to 4 channels of signal input, expansion and splicing through 9 output ports, and can be flexibly operated via various control methods.

1.  The motherboard adopts an FPGA + multi-thread parallel processing hardware architecture with anti-static design. It operates without an operating system, requires no maintenance, and features a self-developed core computing mechanism. Its excellent image processing performance avoids issues such as system crashes, hardware conflicts, and viruses.
2.  Supports 4 channels of 4Kx2K@60 input, with different resolutions programmable for each input port. It supports EDID management, including reading, modifying, and customizing Extended Display Identification Data (EDID), enhancing compatibility with display devices and allowing the output signals to adapt to various application scenarios.
3.  Supports input and output rotation: inputs can be rotated by 90°, 180°, or 270°, while outputs support 180° top row rotation.
4.  Supports multi-window control, easily enabling Picture-outside-Picture (POP) tiling mode, Picture-in-Picture (PIP) overlay mode, arbitrary image overlay, roaming, cross-screen display, scaling, and other functions.
5.  Supports signal cropping functions, including black bar removal and trimming of input signals. This enriches methods for screen control and perfectly resolves issues such as black borders from source signals or allows for local signal magnification.
6.  Supports seamless real-time signal switching, achieving true "zero-second" switching of input signals. The switching process is free from black screens or lag, supports manual input positioning, and enables precise alignment.
7.  Supports adjustment of image effects such as color, saturation, and other parameters, addressing color reproduction issues from source signals. Features include image freeze, image mirroring, gamma mode, and panel gamma mode.
8.  Supports control via IR remote, RS232, TCP/IP, and PC software, and includes keyboard shortcuts for easy configuration and quick operation.
9.  Offers optional audio separation, with audio output configurable to follow HDMI OUT 1, ALL ON, or ALL OFF.
10. Supports hot-swapping, power-off memory, parameter readback via PC software, and storage of up to 10 presets.
11. Supports full-channel color depth of 24bit and pixel format RGB444, delivering high-quality video image output.
12. Features an eco-friendly low-power design with internal conduction cooling, requiring no external heat dissipation measures. Offers flexible installation options (desktop or wall-mount). When paired with Bitvisus windowing software, it enables arbitrary and additional windowing functionalities.

Diagram BIT-VP-U1-IC409Pro
Input Interface Type HDMI 2.0x4, DP 1.2x2
HDCP 2.2
Input Interface Maximum Video Pixel Frequency 600MHz
Maximum Resolution 4096x2160@60Hz
Input Color Depth 24bit
Colour Format RGB444, YUV444, YUV422, YUV420
Output Interface Type HDMI 1.3x9 (≤15m), HDMI 2.0x1(LOOP, Not available by default, optional)
Output Interface Maximum Video Pixel Frequency 165MHz
Output Resolution 1920x1080@60Hz/1920x1200@60Hz
Control Method Infrared remote control, serial port RS232, PC host computer
Power Supply DC 12V/5A
Power Consumption 30W
Storage/Working Temperature -10~50°C/0~80°C
Shell Material All iron, all aluminium options
Product Size LxWxH: 437mmx177mmx45mm
Package Size LxWxH: 540mmx290mmx110mm
Net Weight 2.2KG (iron), 1.5KG (aluminium)
