HDMI Video Wall Controller (1x9)

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

The BIT-VWC-LT109 is a 4K60 video wall processor, an industrial-grade high-performance product specifically developed for multi-desktop operation and multi-channel image processing and display requirements. It features 1 channel of 4K60 input with an HDMI interface, and 9 channels of 2K60 output with HDMI interfaces. Multiple units can also be cascaded to expand the number of output channels. It is widely used in ultra-high-resolution desktops, engineering displays, multi-channel projection blending, exhibition halls, virtual reality, large-scale dome theaters, conference rooms, command centers, gaming halls, large advertising walls, LCD/LED multi-screen displays, and many other application fields.

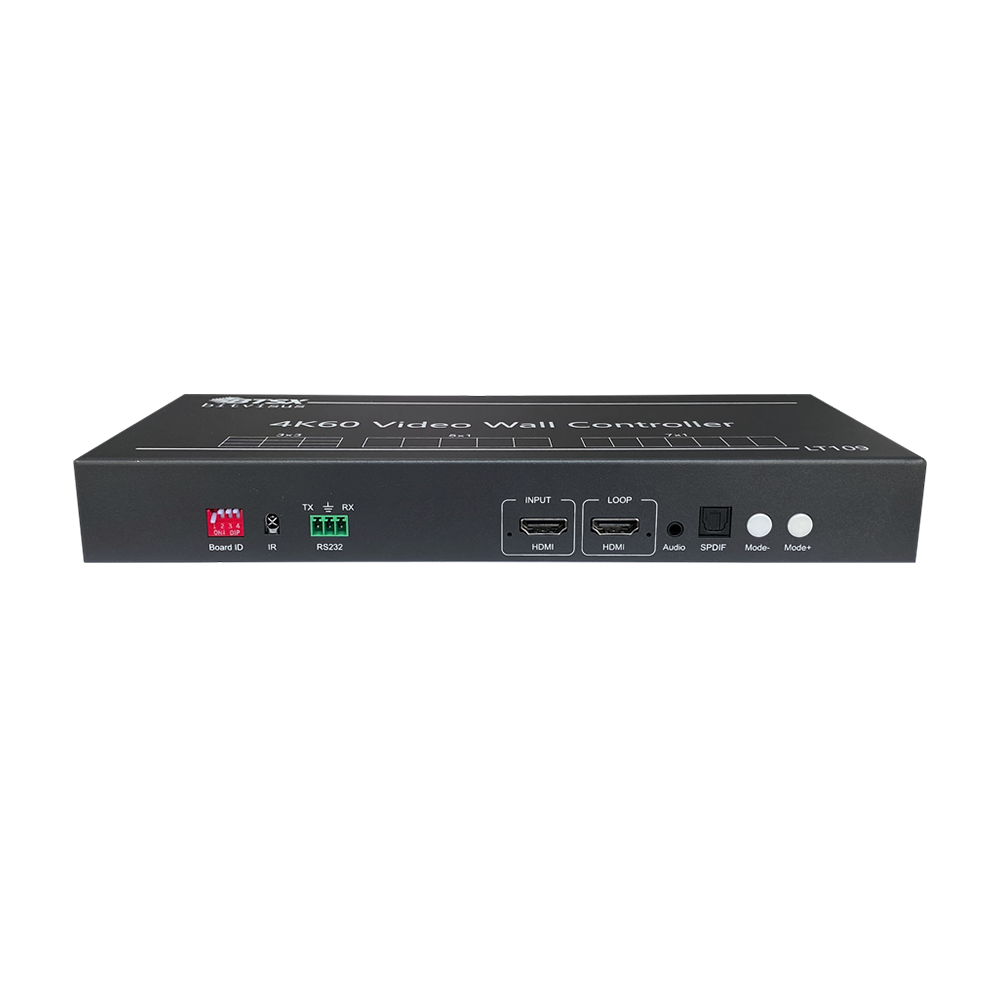

1、Supports 1 channel of 4K60 signal input via HDMI interface, ensuring clear images with rich details.

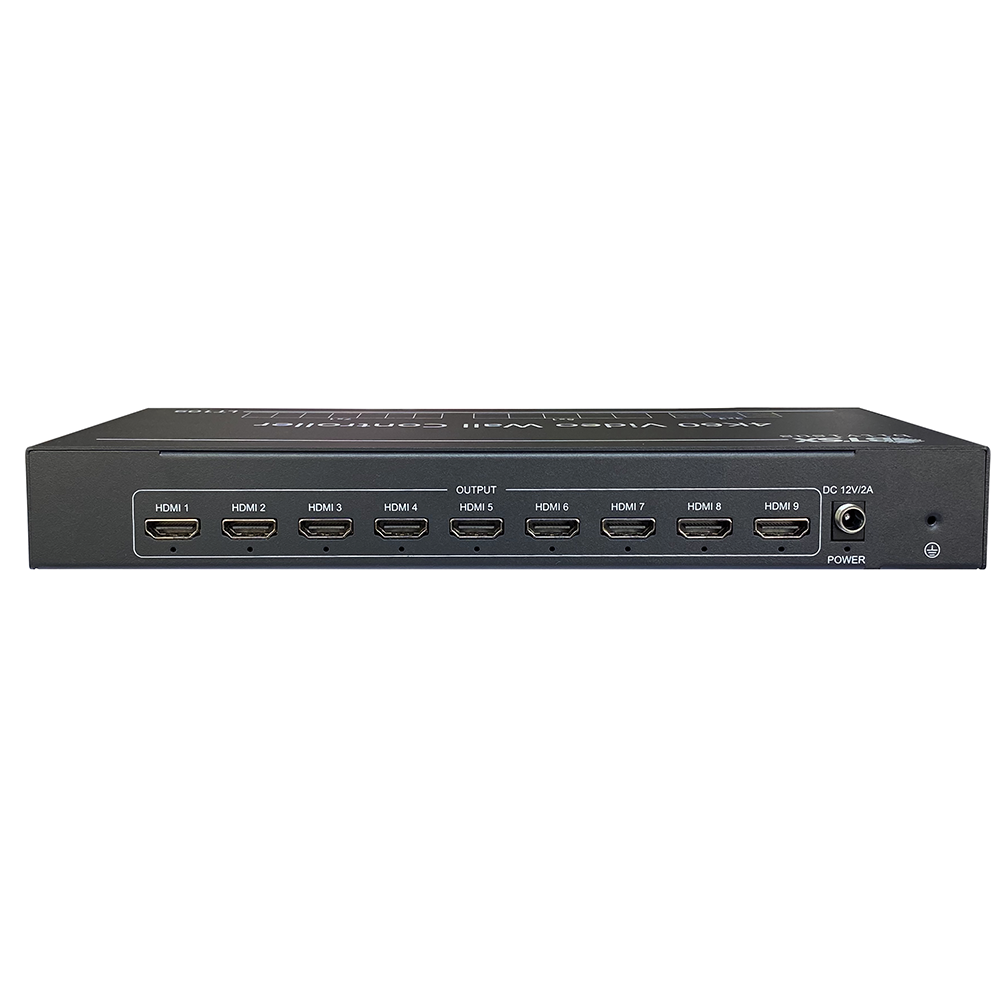

2、Supports 9 channels of 2K60 signal output via HDMI interface, delivering resolutions of 1920×1080P60 and 1280×720P60, while also supporting custom non-standard resolutions for greater flexibility and adaptability.

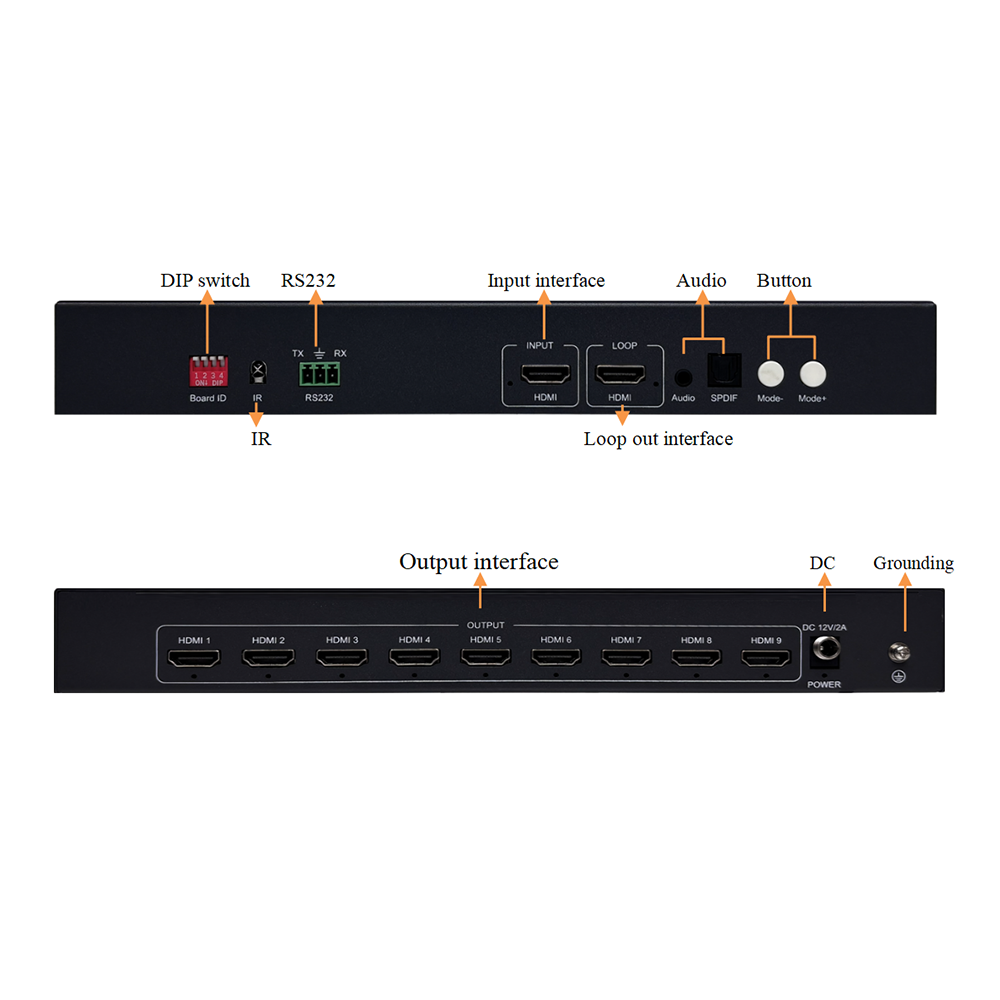

3、Supports control via buttons, remote control, and RS232.

4、Supports up to 23 splicing configurations (M×N, where M, N ≤ 9, and MN ≤ 9) on a single unit, with no stretching or distortion, providing a broader field of view.

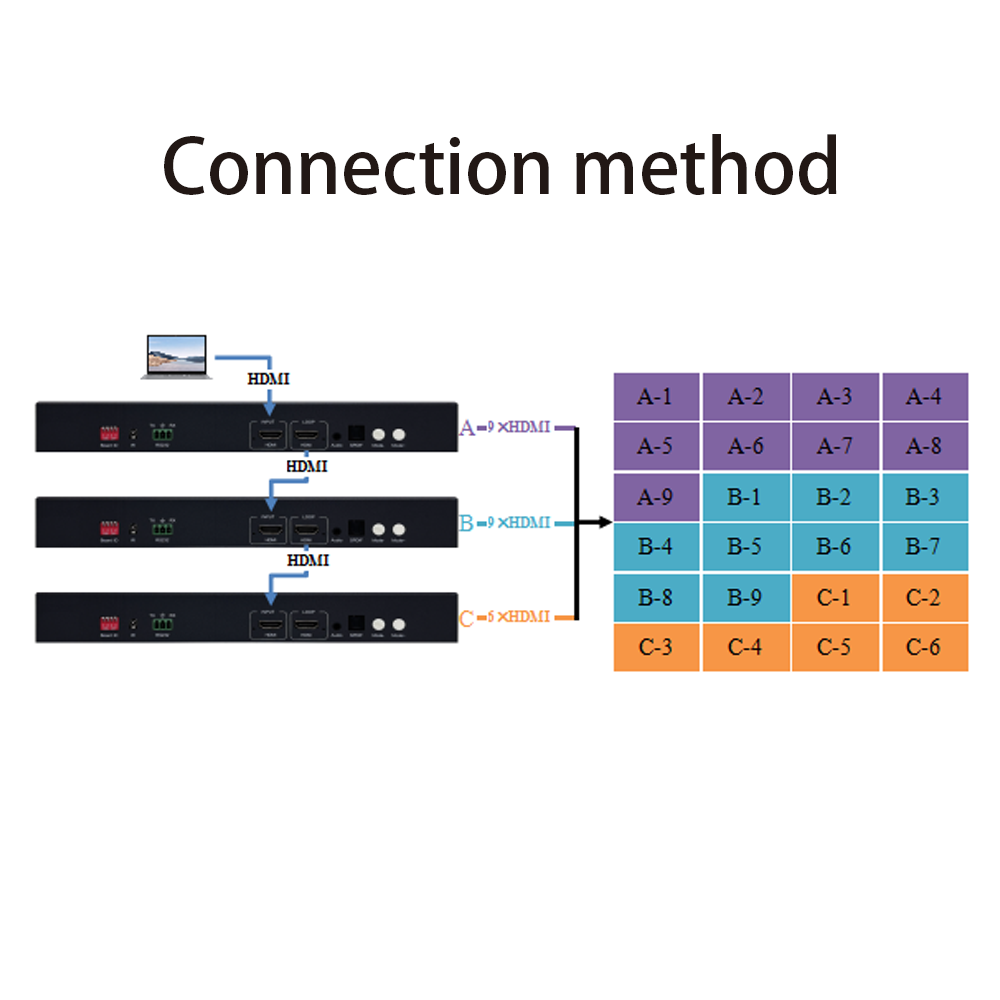

5、Supports cascading of up to 16 units, enabling seamless splicing across up to 144 display units.

6、Compatible with independent graphics cards for multi-unit parallel operation, expanding the number of output channels to meet real-time large-screen display demands.

7、 Synchronizes all output ports, fundamentally eliminating screen tearing, stuttering, and synchronization issues to achieve smooth and consistent multi-screen display effects.

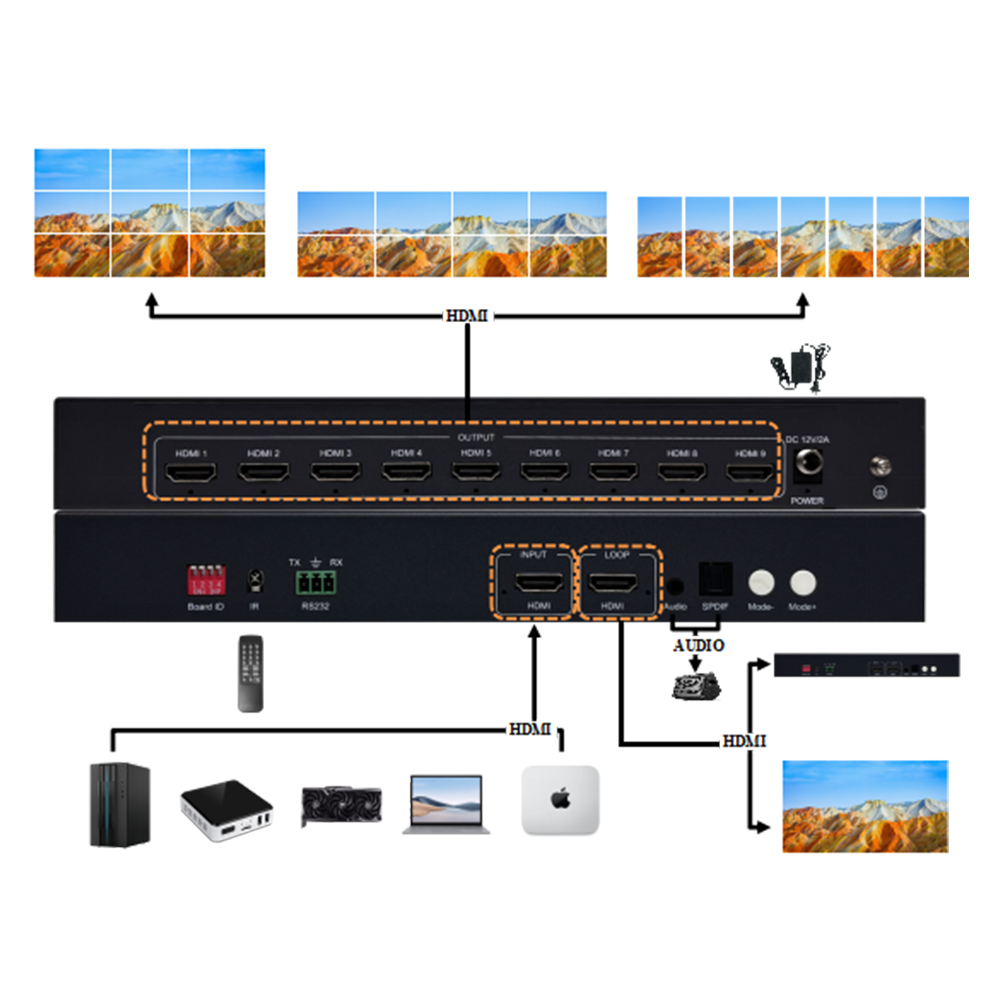

8、Features an HDMI local loop output interface for flexible preview of the final large-screen display, serving as a professional tool for precise control, technical monitoring, and signal backup.

9、Supports output channel duplication and backup, making full use of all physical interfaces by converting idle ones into hot backup resources.

10、Supports 180° rotation of the first output row, automatically correcting image orientation when the top row of display units in the video wall is installed upside-down, enabling flexible installation, unified viewing angles, and minimized physical bezels for enhanced visual immersion.

11、Supports synchronized HDMI audio-video output and independent 3.5mm/SPDIF audio separation output, providing a professional and flexible audio routing solution for applications ranging from simple displays to complex system integration.

12、Features EDID management, allowing input resolution adjustment via remote control without external software programming.

13、Utilizes a 40nm high-end programmable FPGA chip and a fully hardware-based real-time processing architecture, delivering ultra-fast processing with zero delay.

14、Designed with low power consumption and environmental protection in mind, equipped with overheating protection, anti-interference design, and internal heat dissipation to ensure stable long-term operation in various environments.

15、Compatible with Bit-Vision's windowing software, enabling 4K60 multi-screen display.
