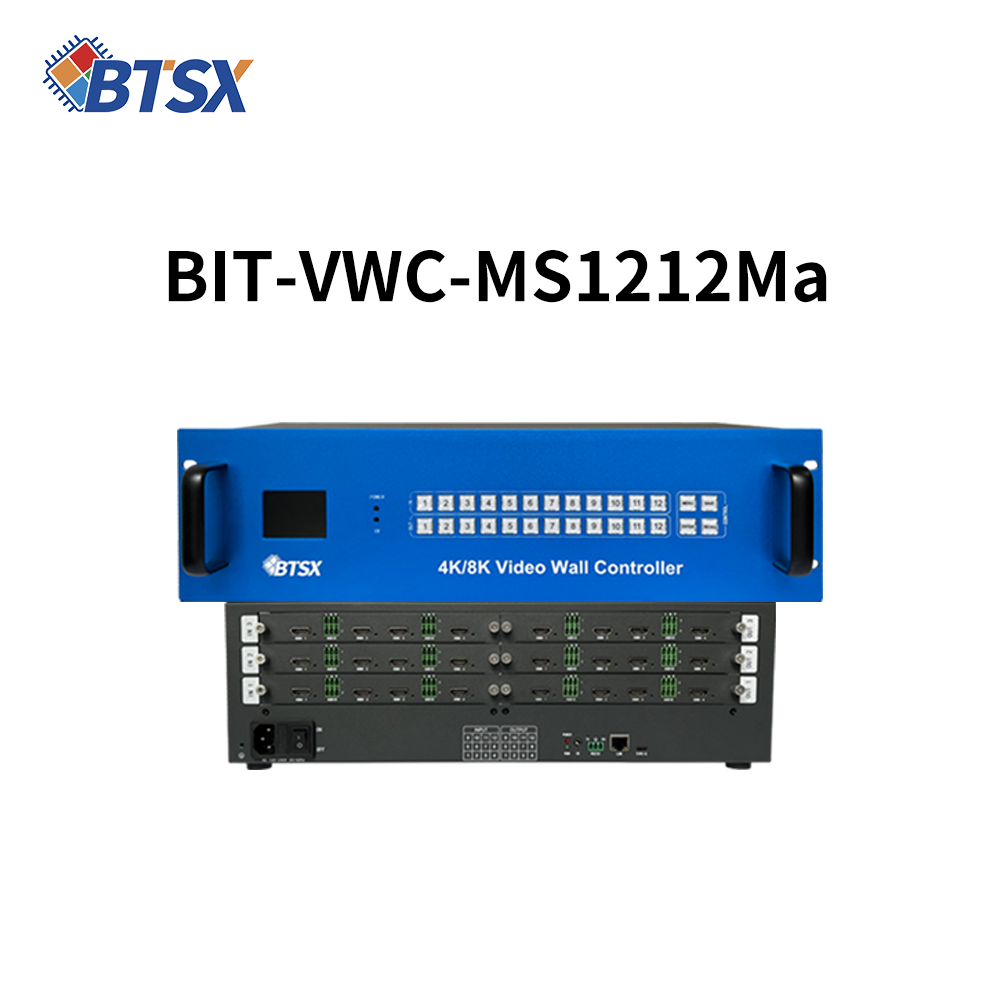

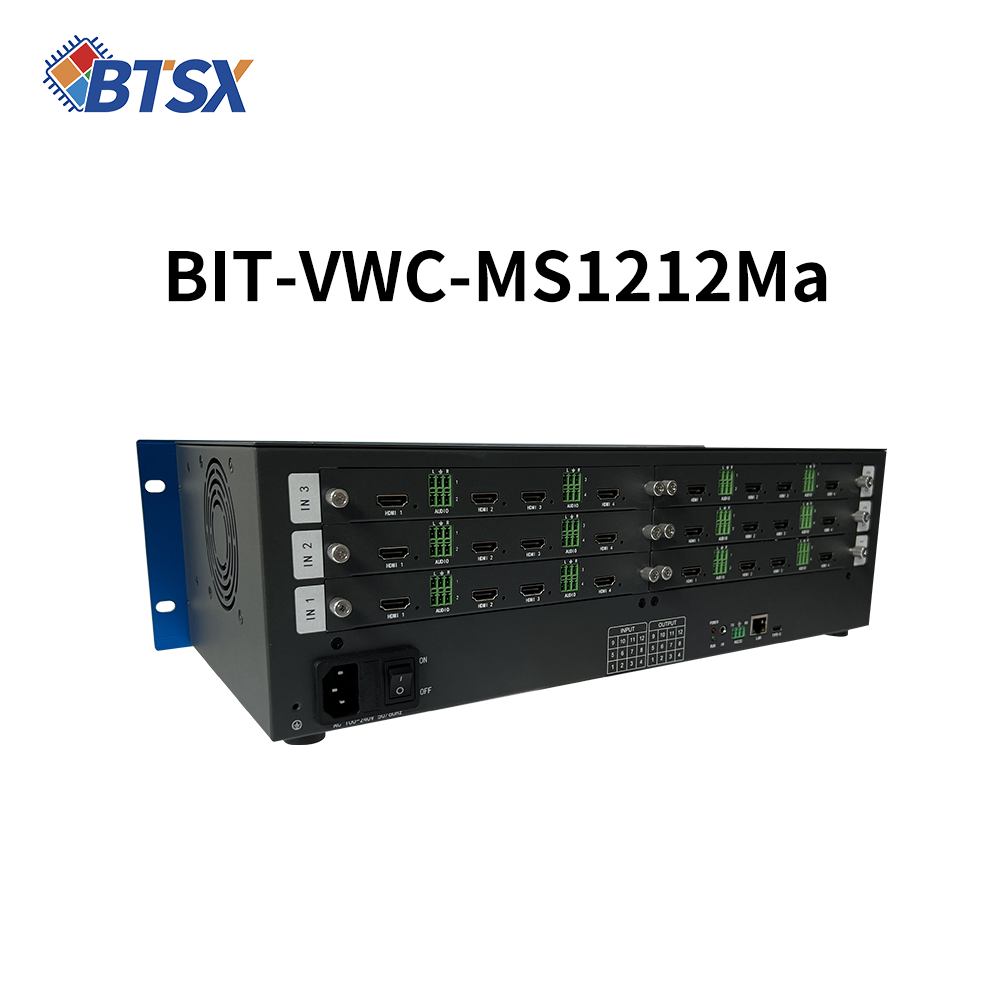

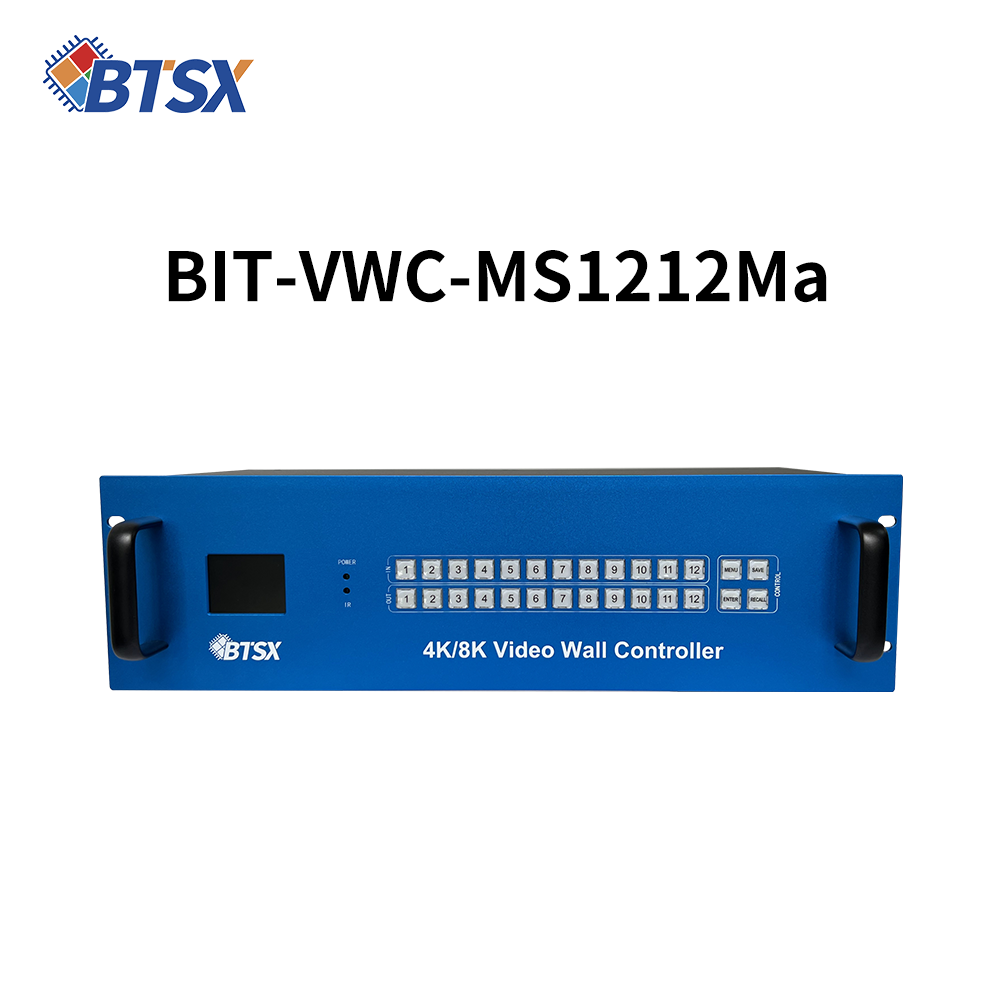

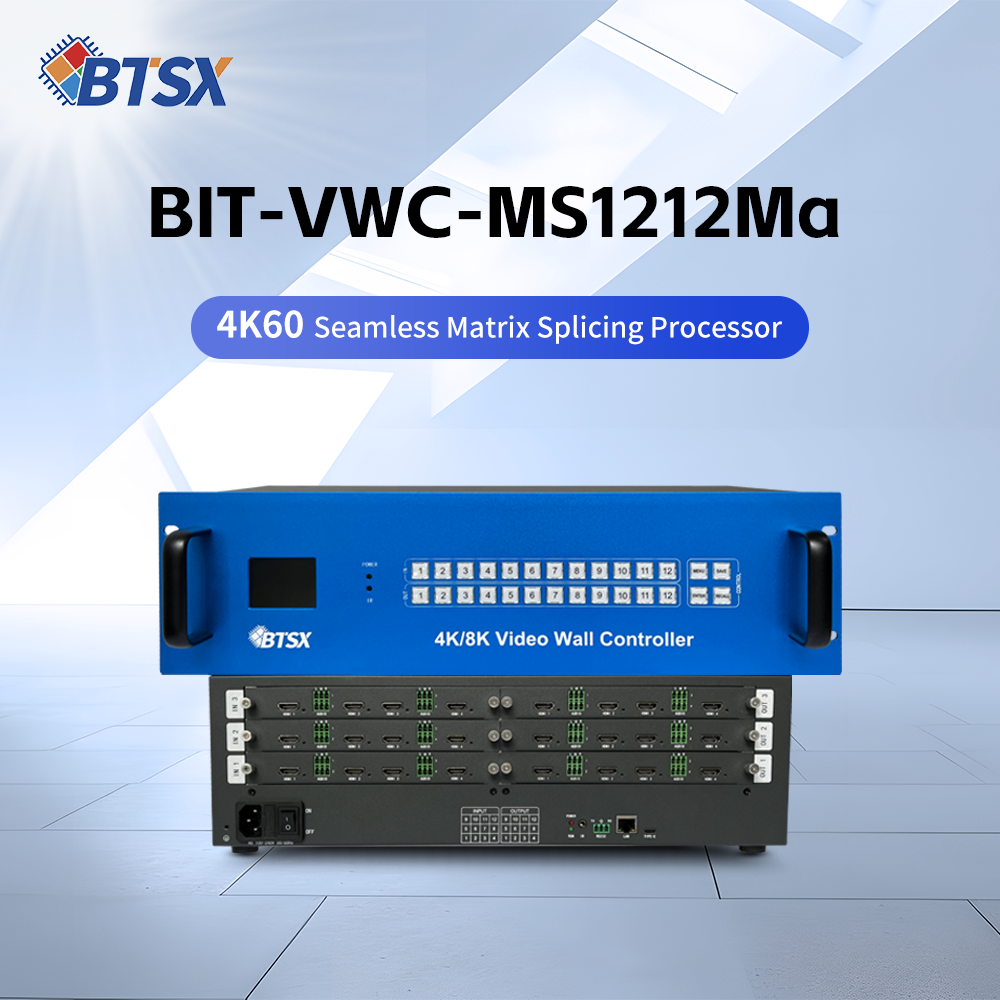

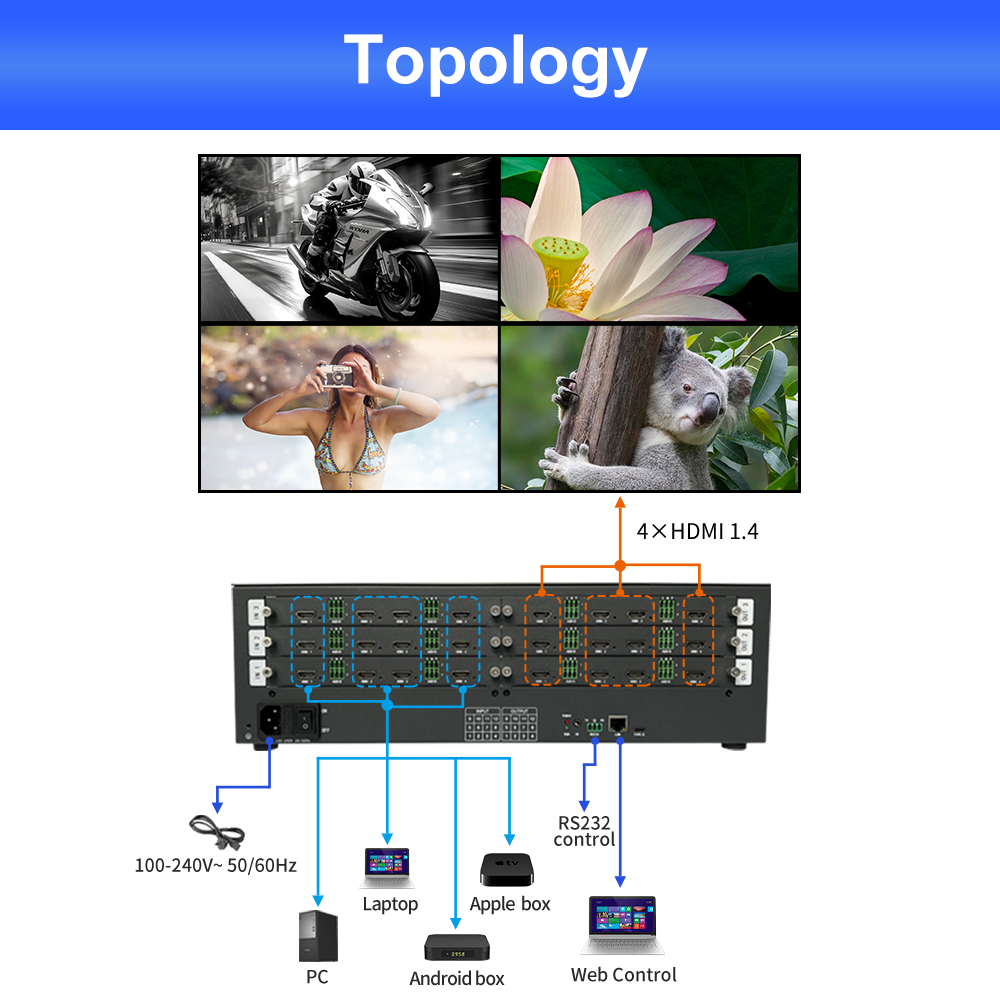

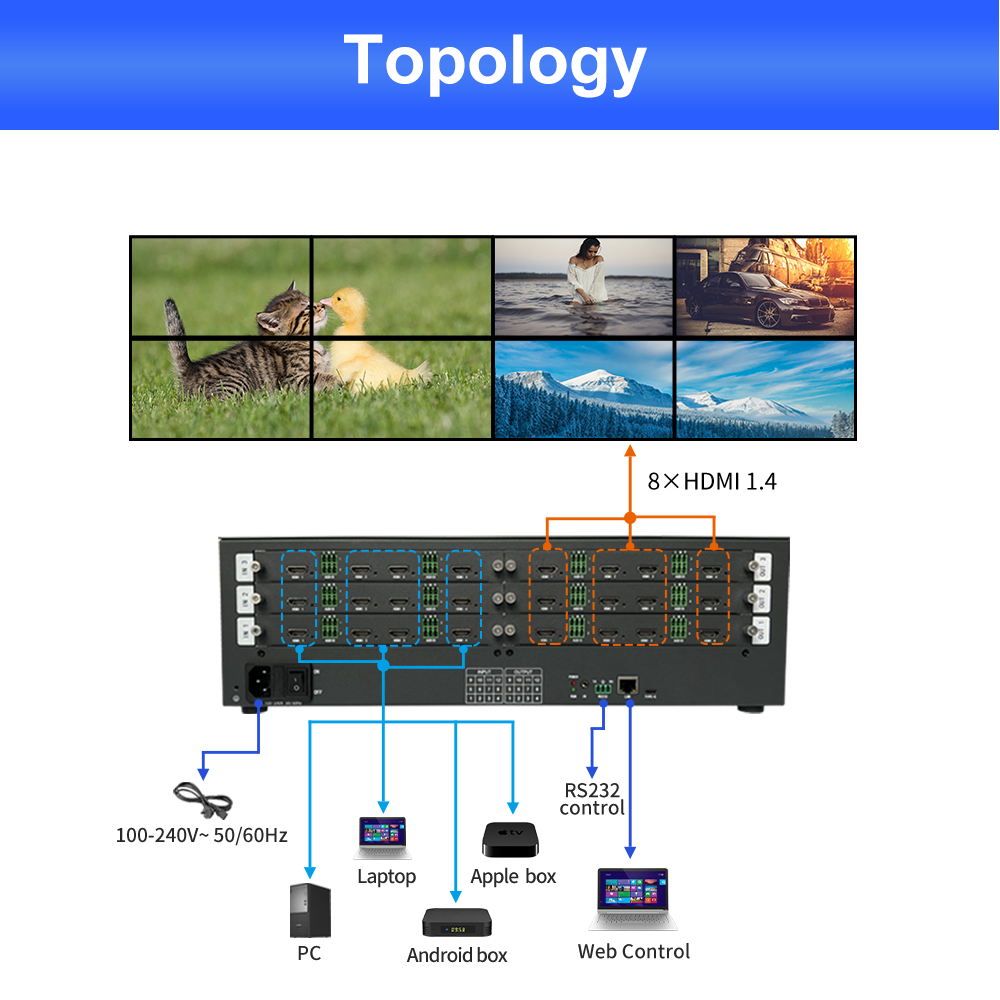

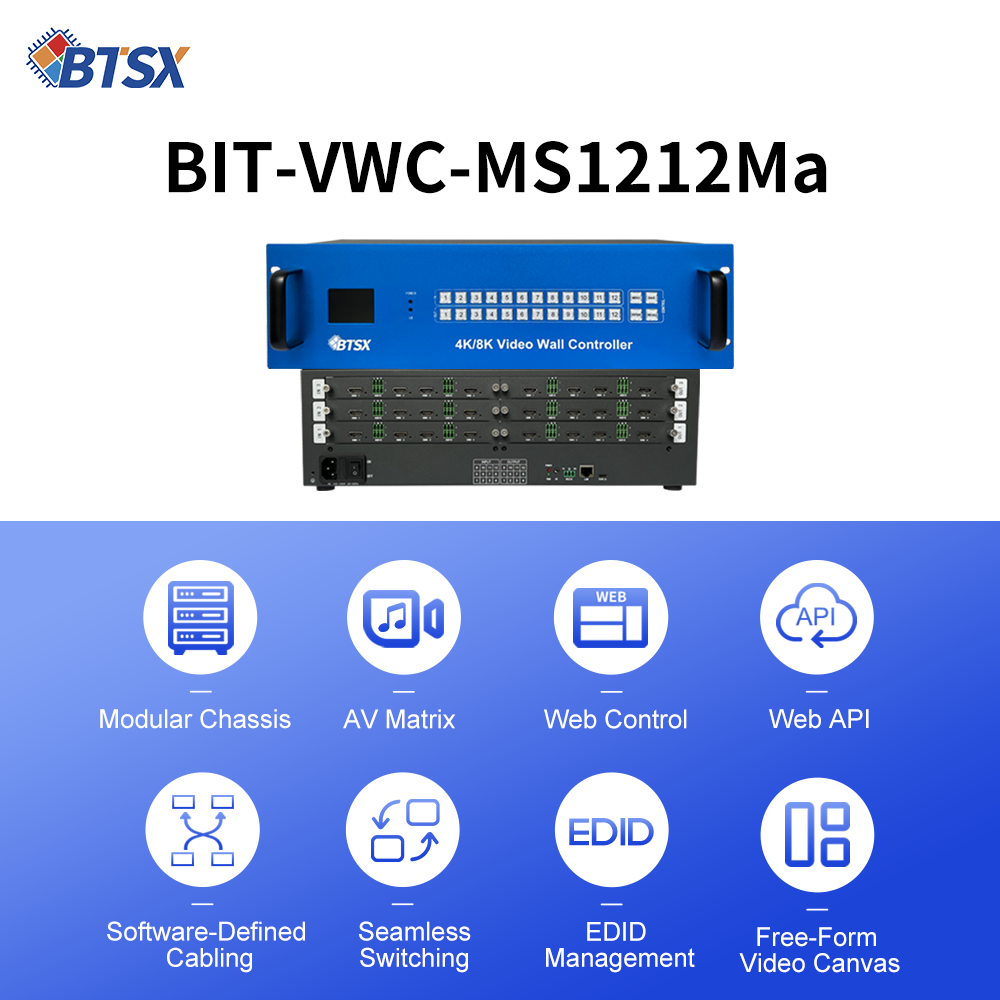

BIT-VWC-MS1212Ma is a 4K60 modular seamless matrix splicing processor built for professional video wall installations. With 12 HDMI 2.0 inputs and 12 HDMI 1.4 outputs, it delivers flexible M×N splicing, seamless switching, and free-form video canvas layouts for command centers, exhibitions, meeting rooms, digital billboards, and multimedia classrooms.
Key Features

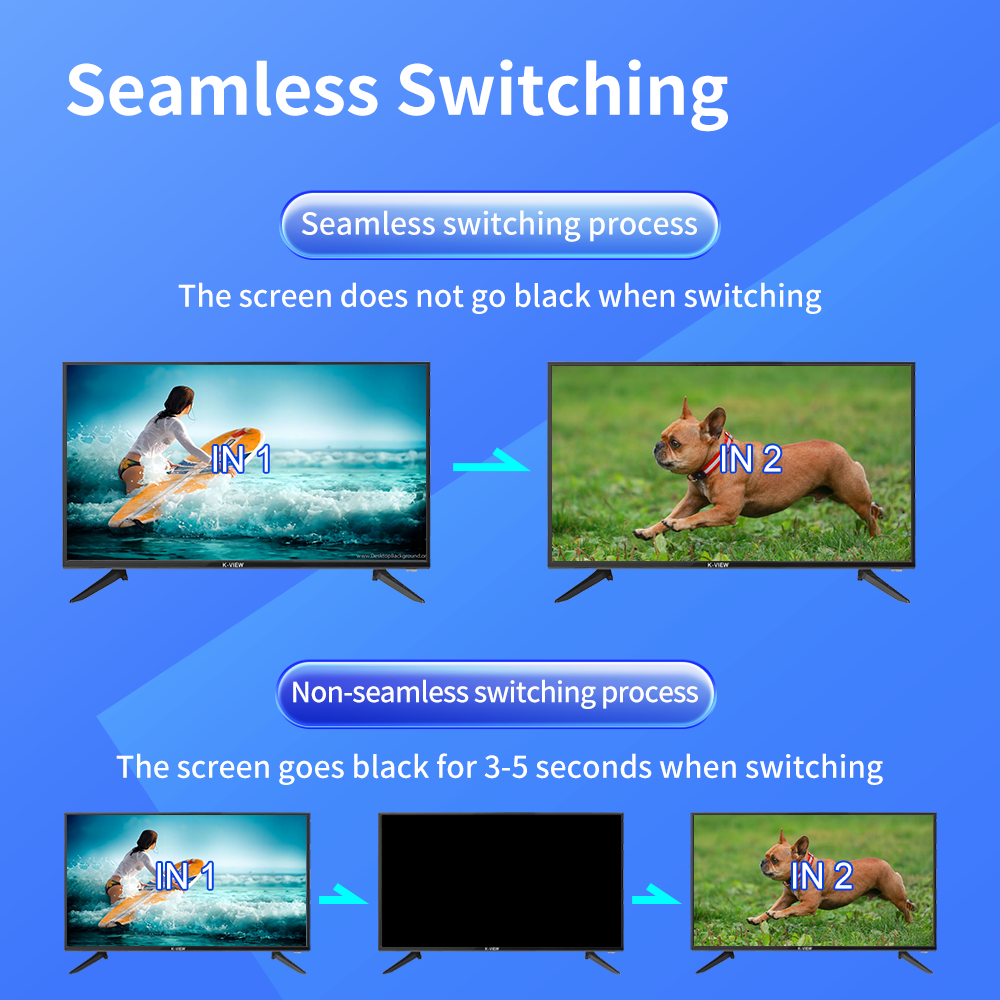

- 4K60 Seamless Matrix Switching: Switch between 12 HDMI 2.0 inputs and 12 HDMI 1.4 outputs without black screen.

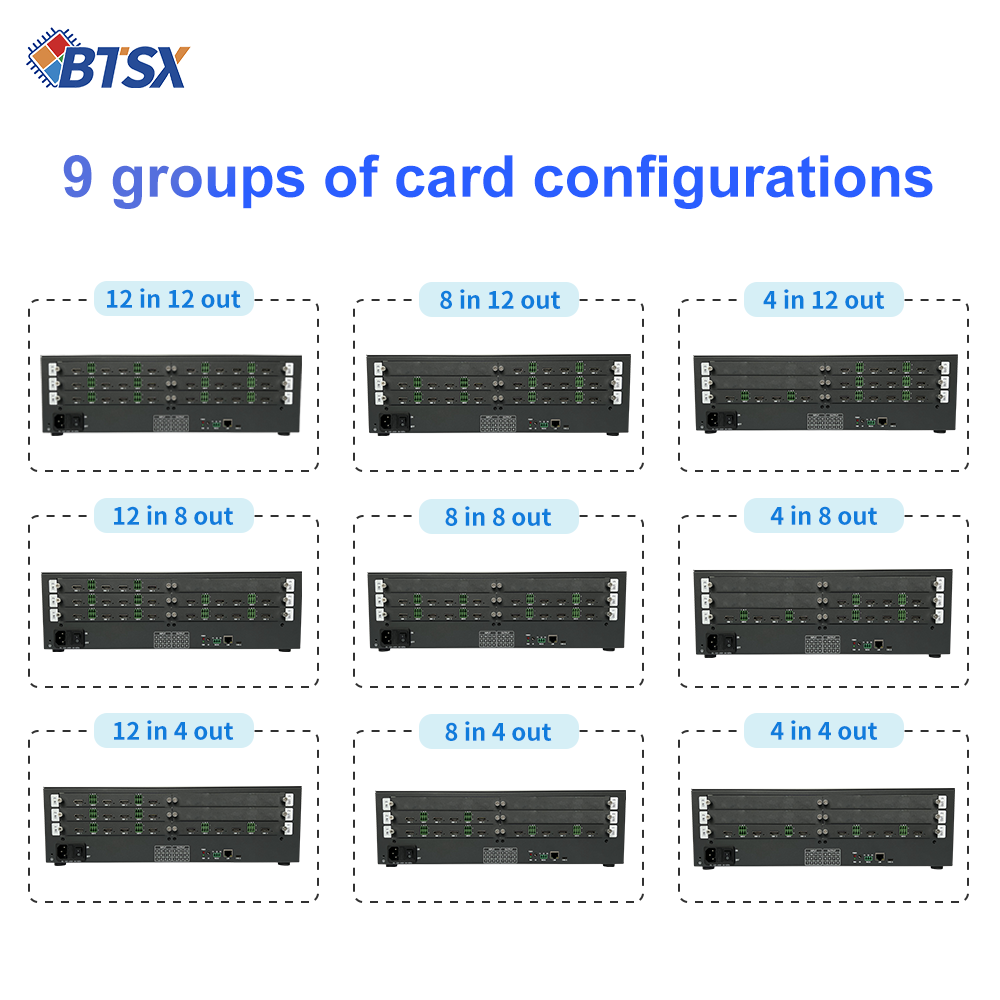

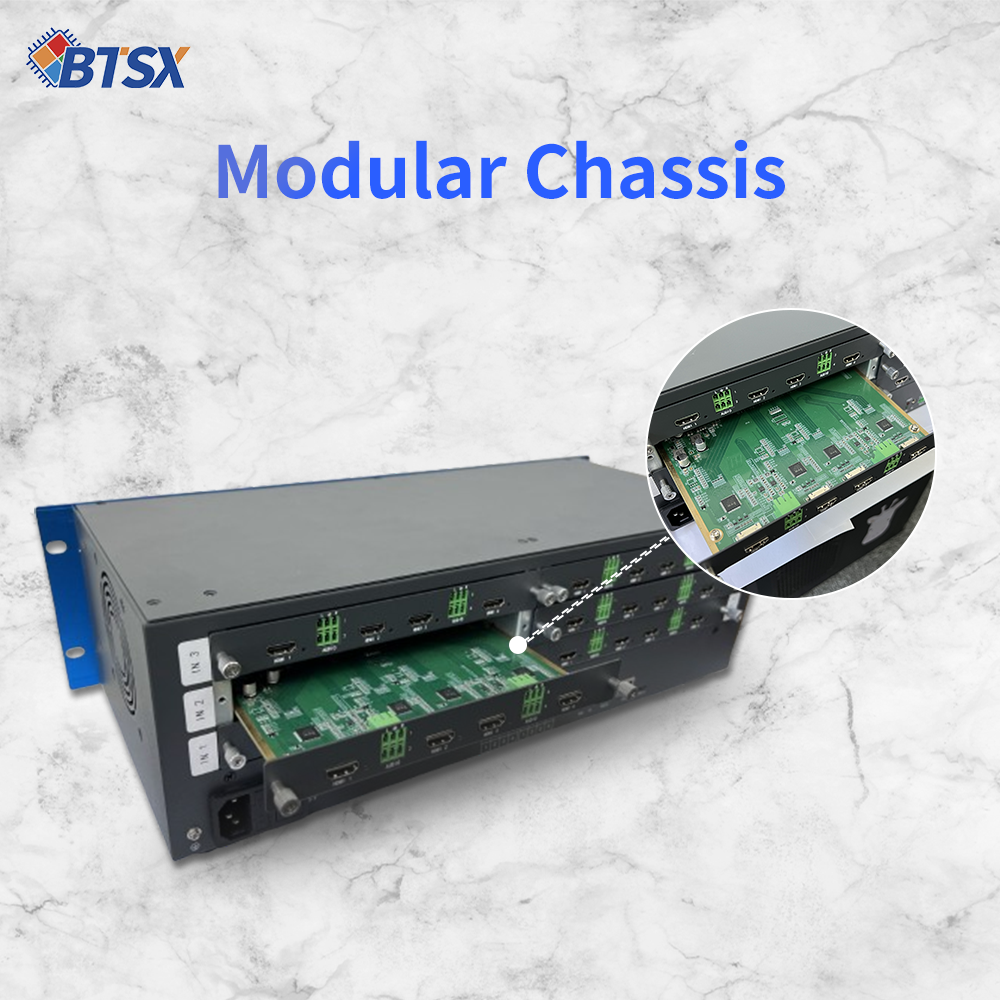

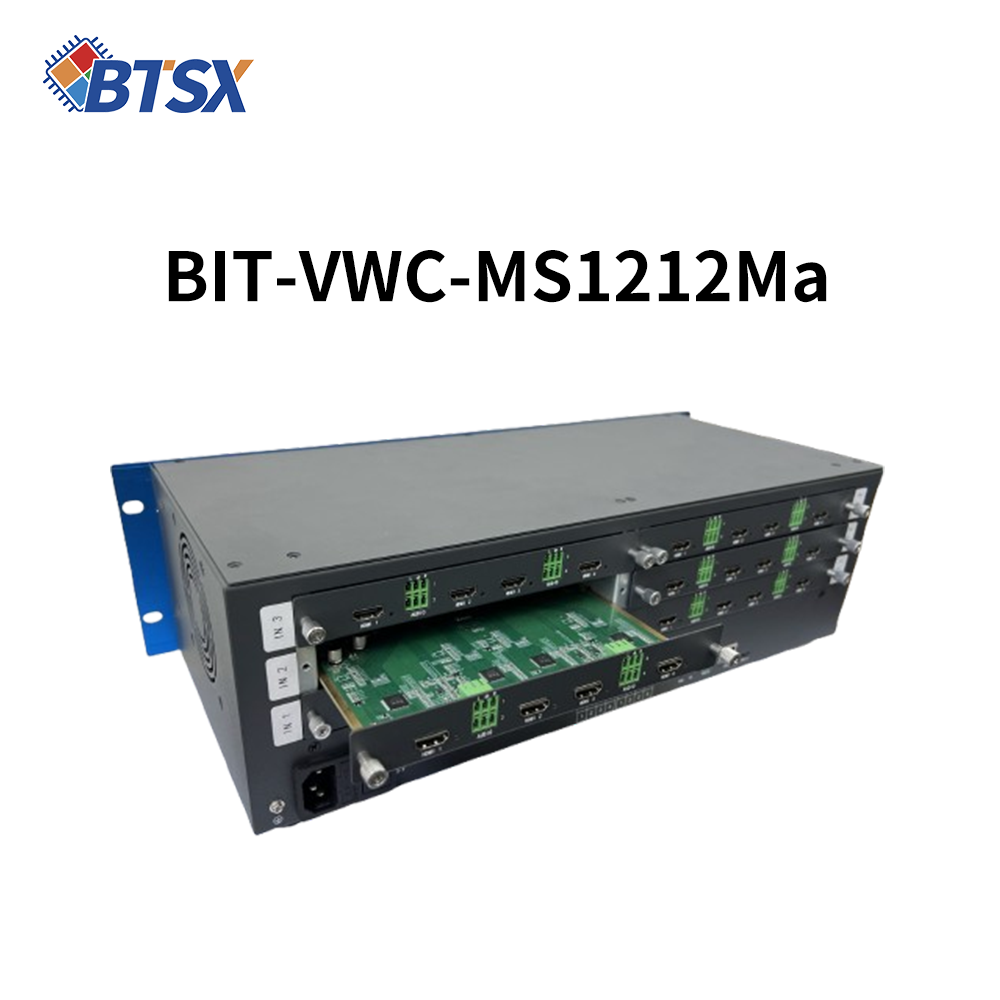

- Modular Chassis: Hot-swappable input/output cards; supports 9 card configurations (4×4, 4×8, 4×12, 8×4, 8×8, 8×12, 12×4, 12×8, 12×12).

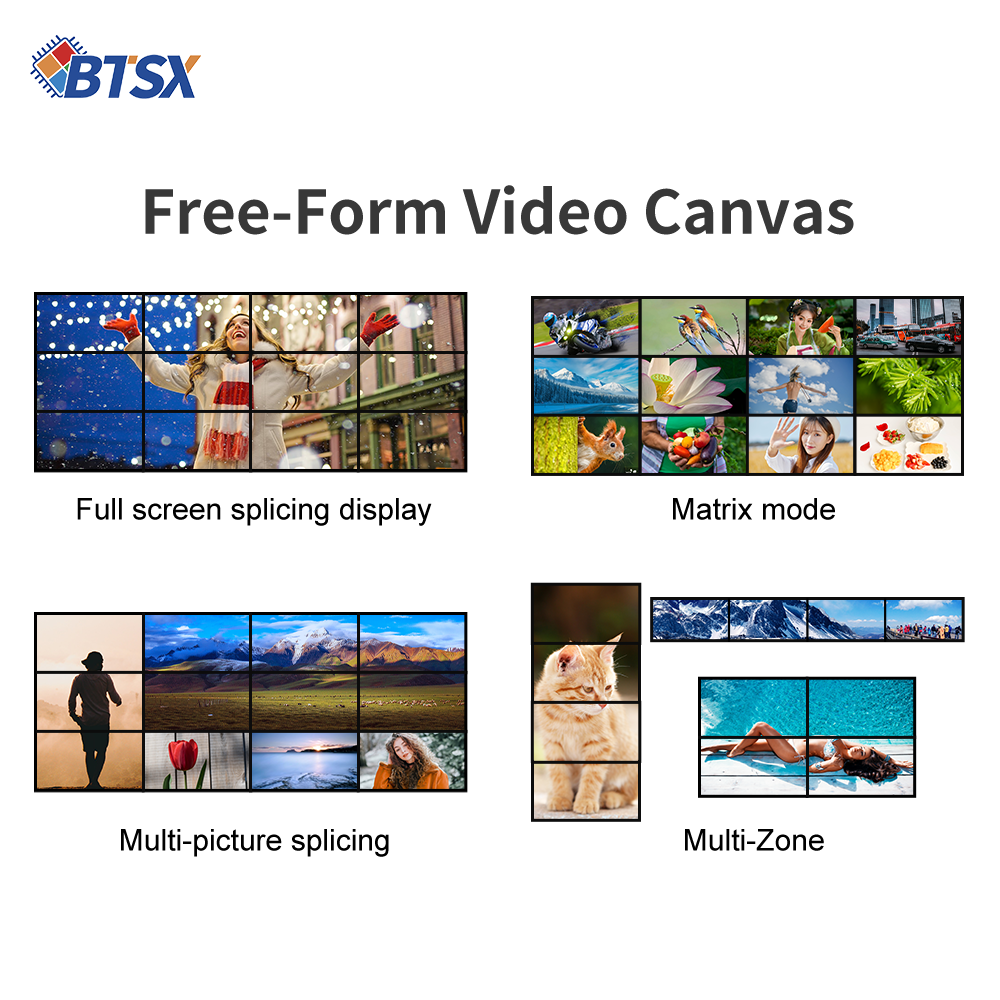

- Free-Form Video Canvas: Full-screen splicing, matrix mode, multi-picture splicing, and multi-zone layouts.

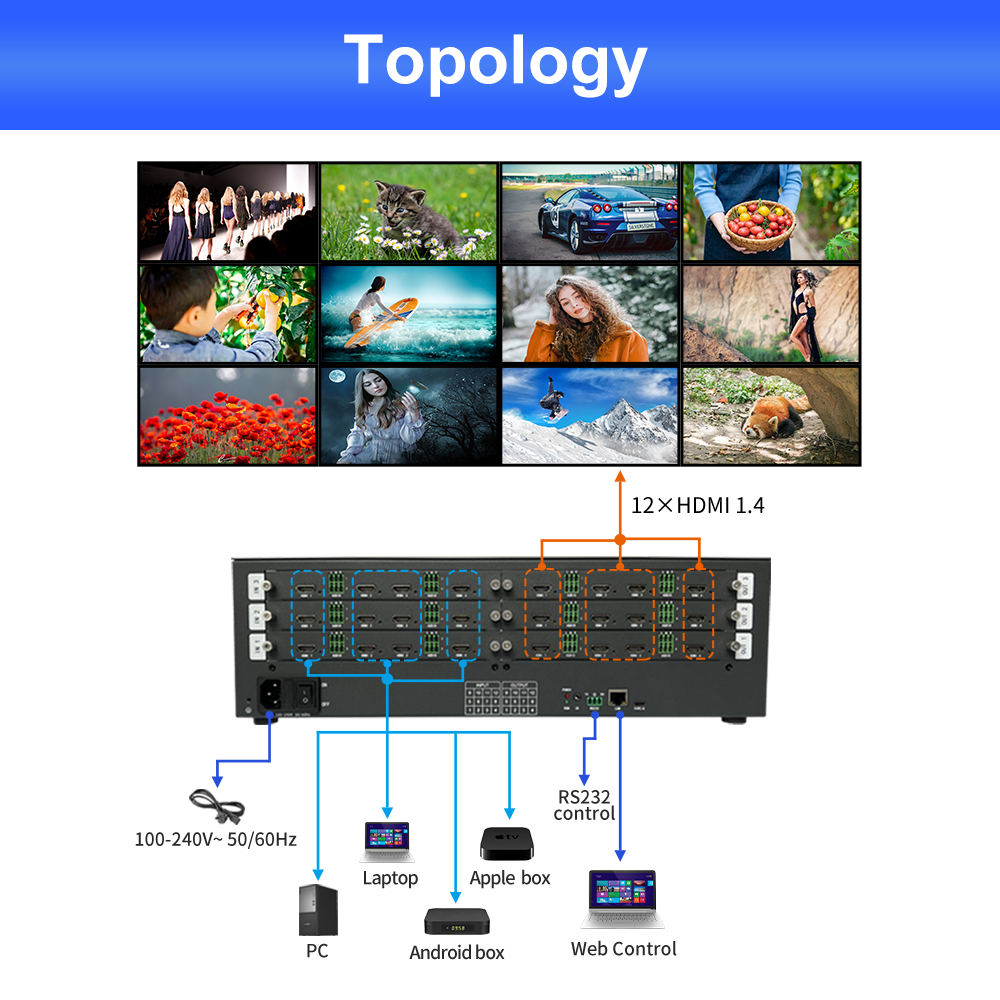

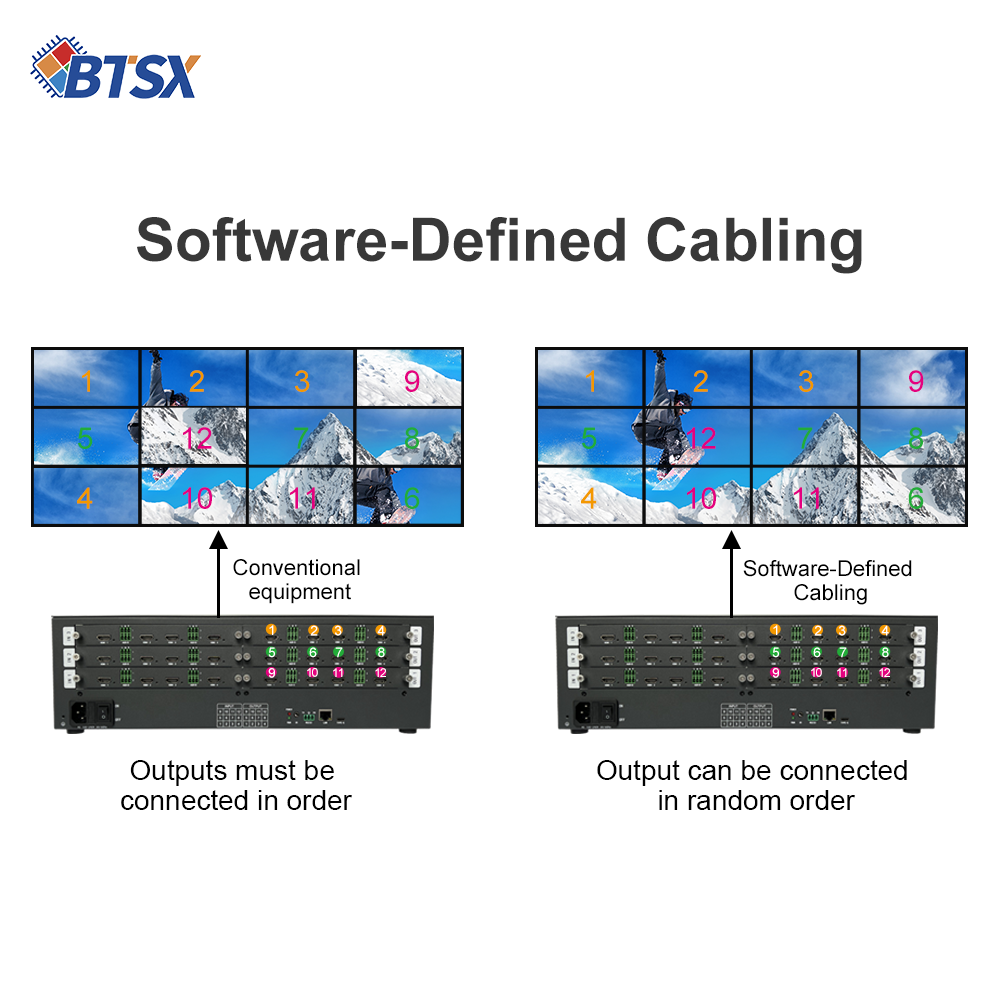

- Software-Defined Cabling: Output displays can be connected in any order and remapped via software.
- EDID Management: Easily switch EDID via web interface to match source and display capabilities.
- Flexible Control: Web control (cross-platform), RS232, front panel buttons, and IR remote.
- Web API: Provides web API for developing your own control UI.

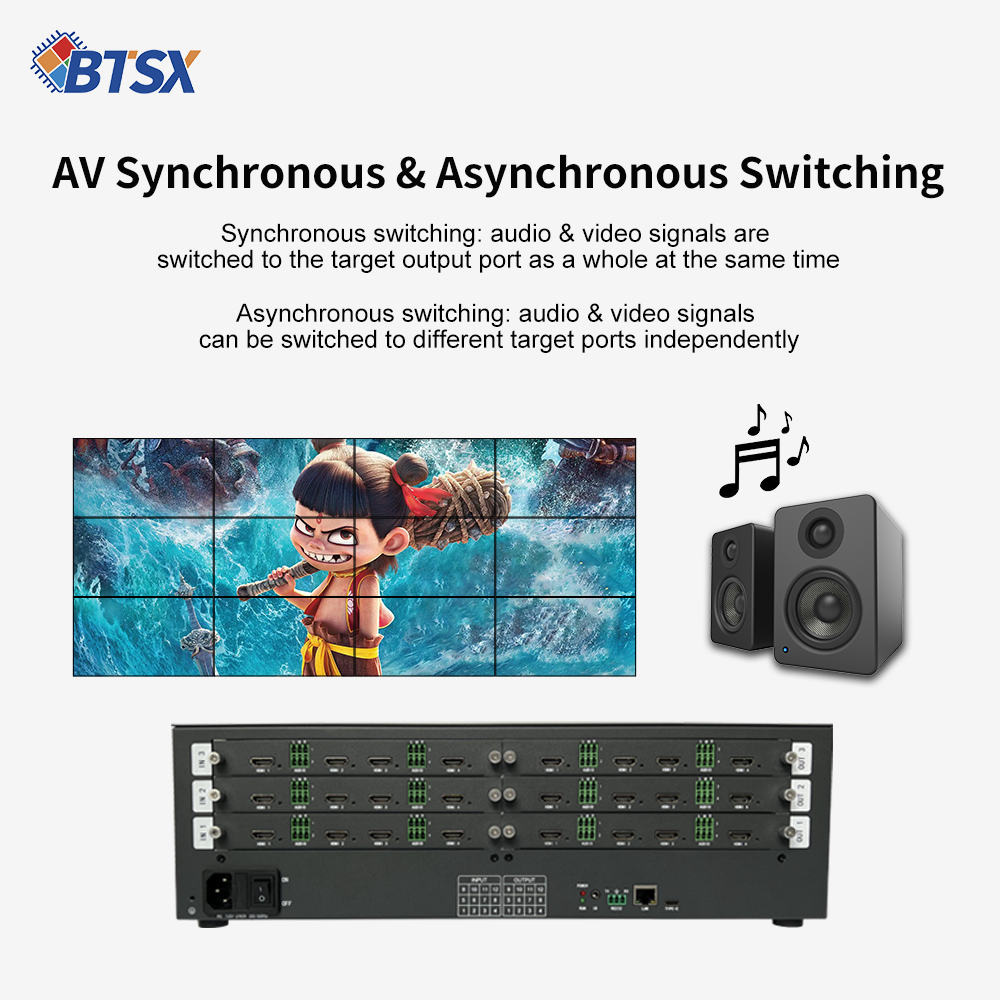

- AV Sync/Async Switching: Route audio and video together or independently to different outputs.
Applications

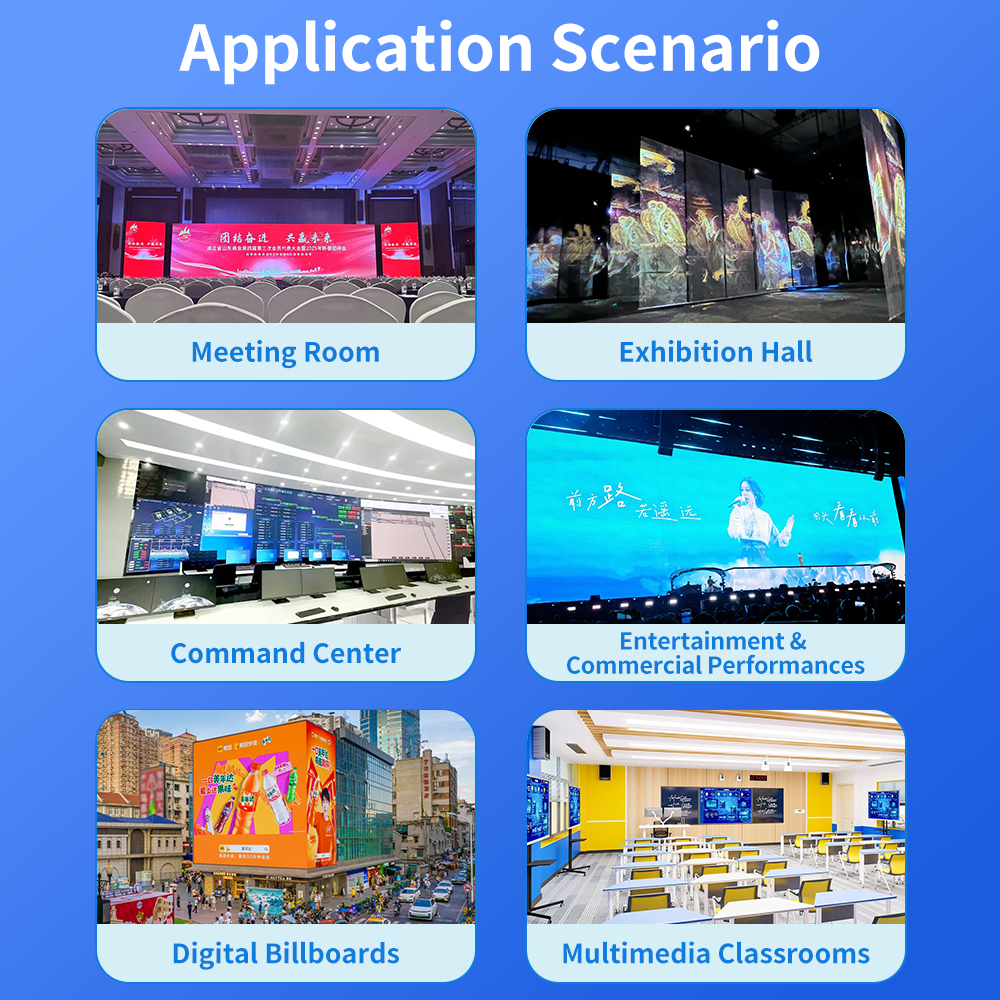

Meeting rooms, exhibition halls, command centers, entertainment & commercial performances, digital billboards, multimedia classrooms.
Specifications
| Model | BIT-VWC-MS1212Ma |
| Video Inputs | 12 × HDMI 2.0 |
| Video Outputs | 12 × HDMI 1.4 |
| Max Resolution | 4K60 (3840×2160@60Hz) |
| Switching Type | Seamless (no black screen) |

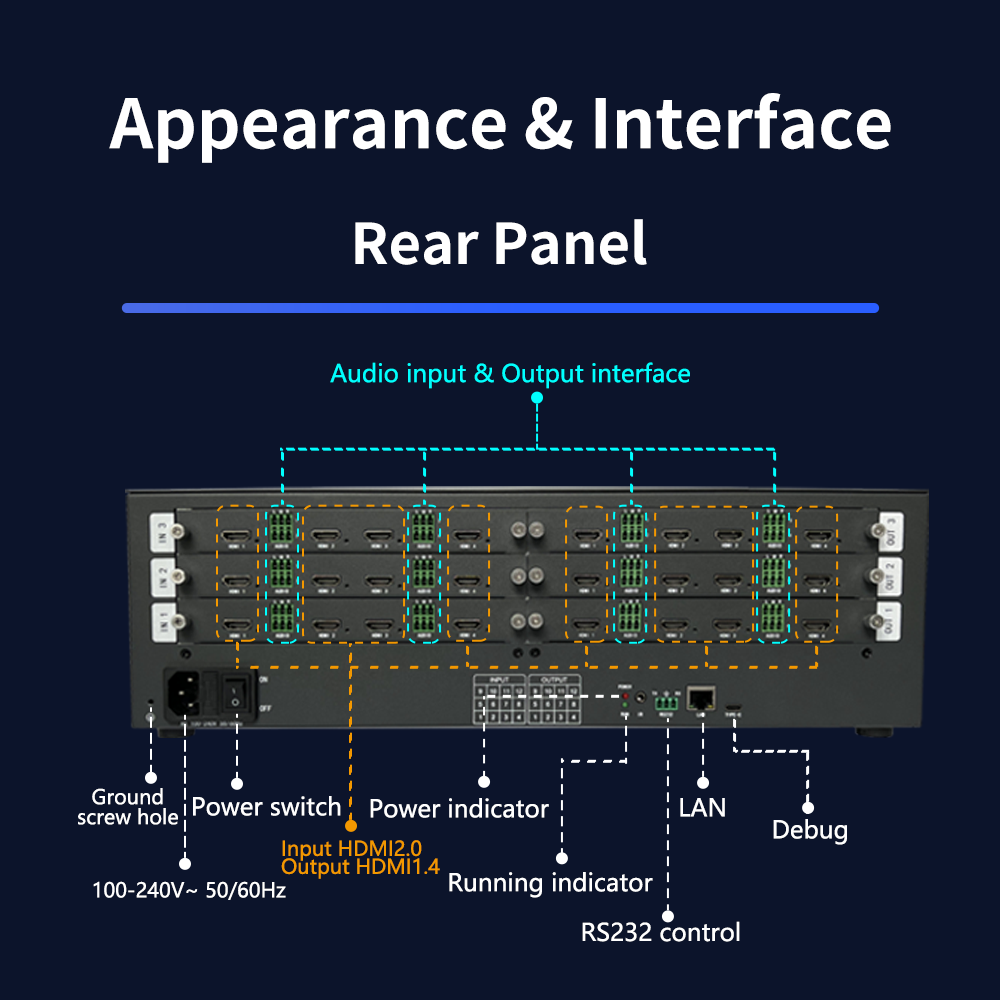

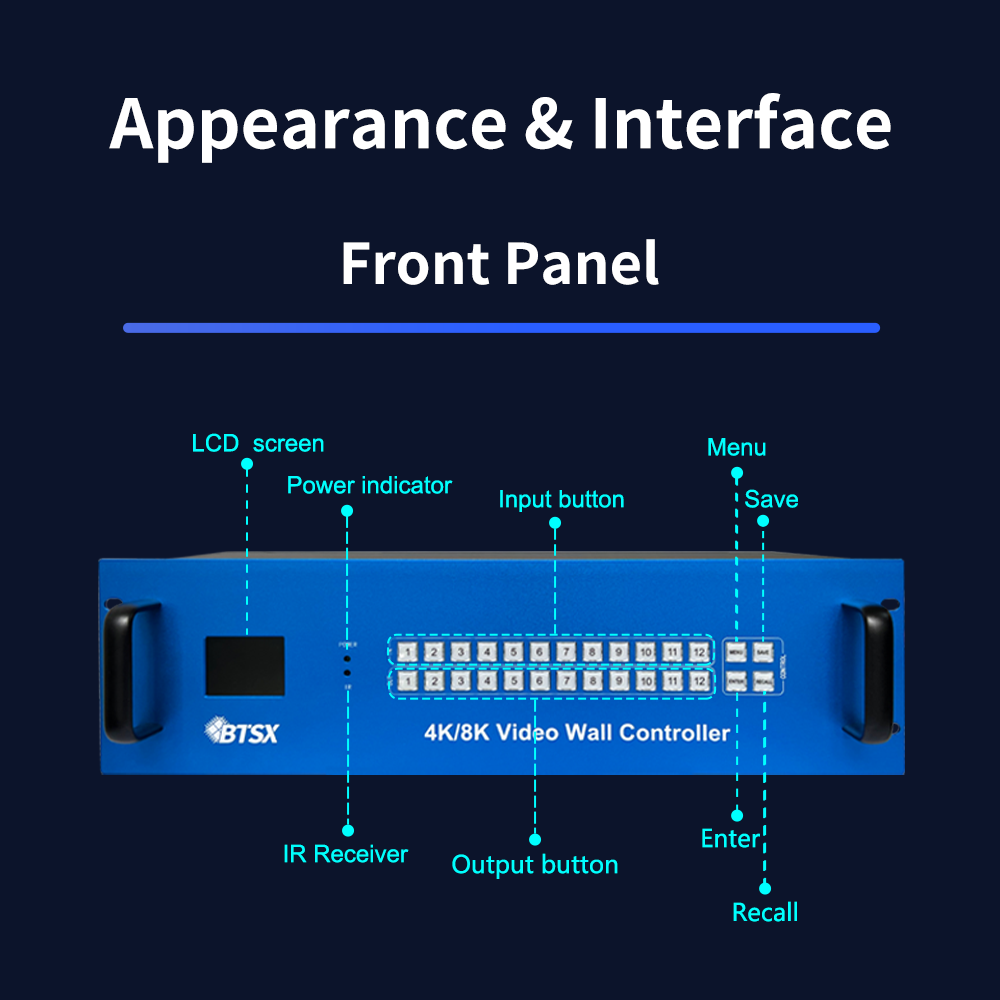

| Control Methods | Web control, RS232, front panel buttons, IR |
| Audio | Audio input & output interface (Phoenix terminal) |
| Network | LAN (RJ45) |
| Power Supply | 100-240V~ 50/60Hz |

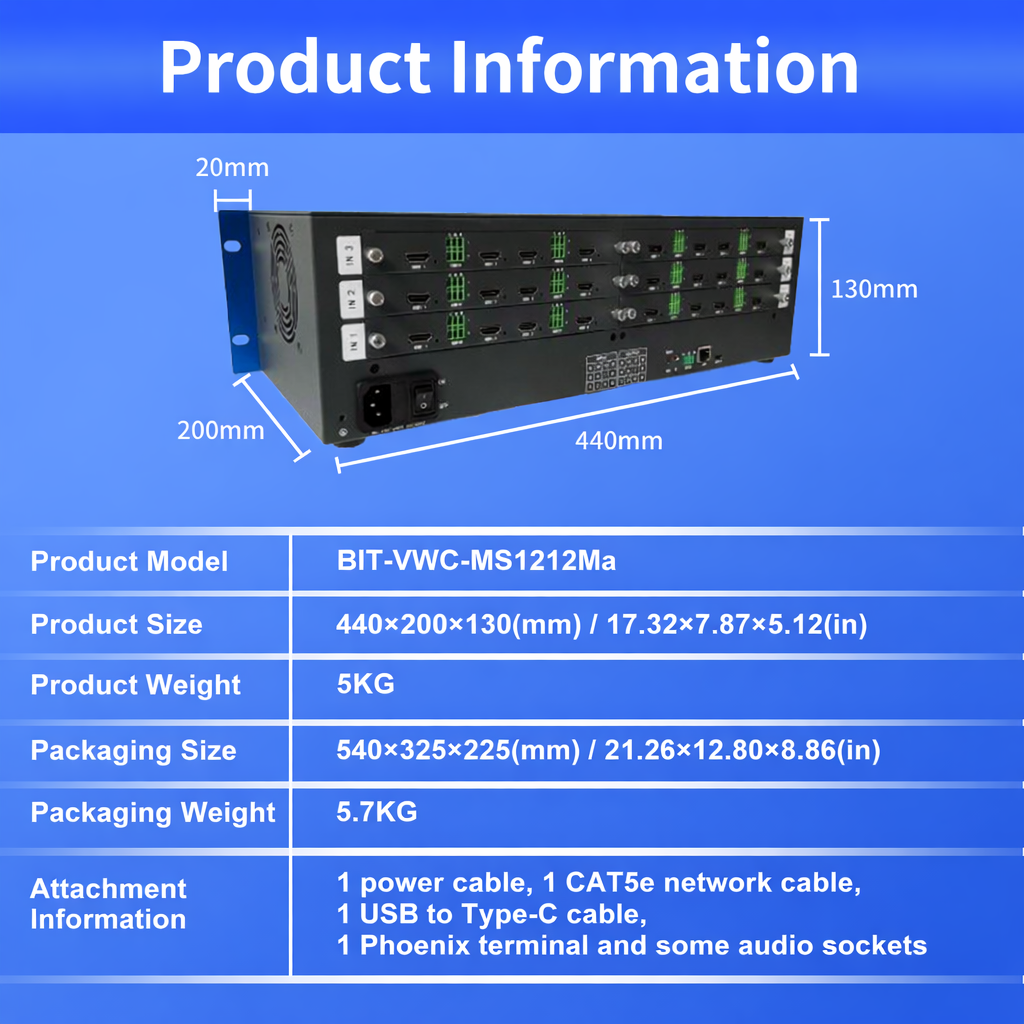

| Product Size | 440 × 200 × 130 mm / 17.32 × 7.87 × 5.12 in |
| Product Weight | 5 kg |
| Packaging Size | 540 × 325 × 225 mm / 21.26 × 12.80 × 8.86 in |
| Packaging Weight | 5.7 kg |

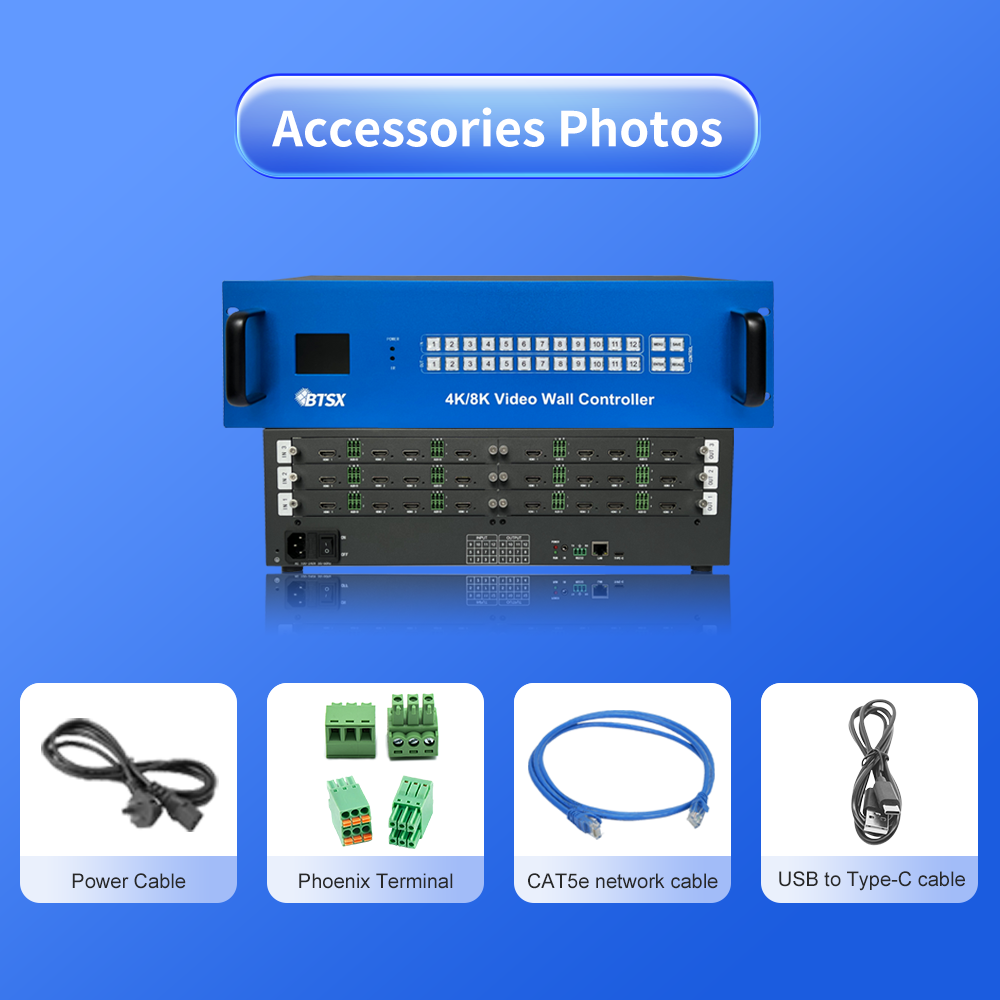

| Included Accessories | Power cable, CAT5e network cable, USB to Type-C cable, Phoenix terminal, audio sockets |
Note: The price shown is the sample price. If you want to get a business cooperation price, please chat with us or click Request Quote.
