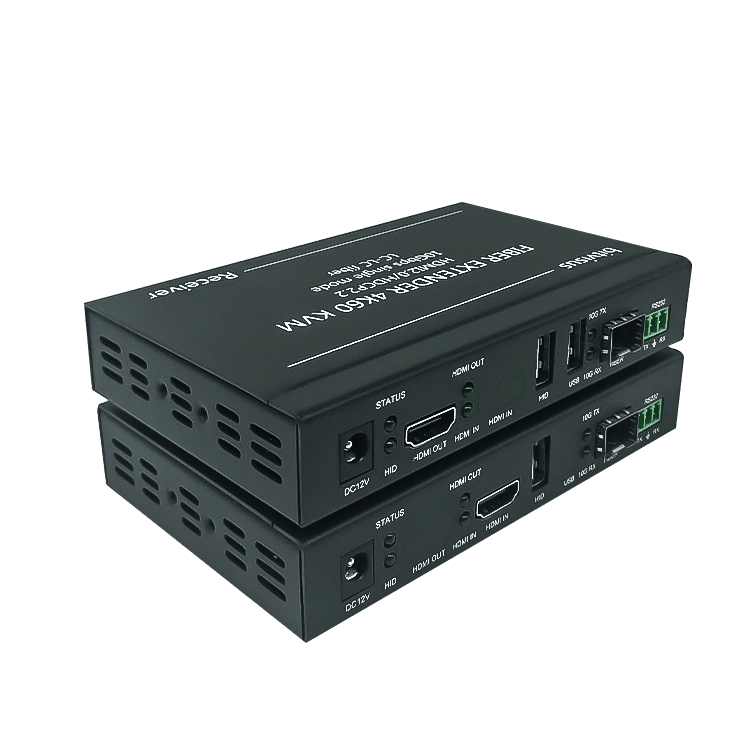

4Kx2K HDMI KVM Extender USB Extender Over Fiber 10km HDMI to Fiber Converter RS232 HDCP

4Kx2K HDMI KVM Extender USB Extender Over Fiber 10km HDMI to Fiber Converter RS232 HDCP

$269.00 USD
$269.00 USD
Sale Sold out
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

📌Support Up to 4K30Hz 4K*2K Video Signal. HDMI to Fiber Optic Converter.

📌Extend up to 10km for 4K resolution with Single-mode single-core/dual-core fiber.  Multimode fiber can extend 300m.

📌Stable and reliable performance. Support Power over Ethernet(POE)

📌Support USB 1.0, KVM extension function. HDMI 1.4 & HDCP 1.4, HDMI audio output.

📌Support RS232, Plug & play setup without any software installation.

Specification Details
Product name BIT-Ex-Fib-4K-KVM
Input TX: HDMI1.4, RS232 Signal
RX: LC-LC Single-mode/Multi-mode Fiber
Output TX: LC-LC Single-mode/Multi-mode Fiber
RX: HDMI1.4 (≤5m), RS232 Signal
Audio
 Audio via HDMI
Resolution Support 4K30Hz downwards compatible
Signal Format Supports various common resolutions and VESA, HDTV standard signals
Color Space RGB 4:4:4
Pixel Clock 297MHz
Transmission Bandwidth 10.2Gbps
Transmission Distance Single-mode: 10KM Multi-mode: 300M
KVM USB1.0, Keyboard and Mouse
CEC Supported
Interface Protocol HDMI1.4, HDCP1.4, DVI1.0, VGA compatible
Power supply DC 12V@2A
Power 7w
Weight 500g
Size 135mm*85mm*25mm
Warranty 1 Year

Collapsible row

View full details

Frequently Asked Questions

What input and output interfaces does this video wall controller support?

t supports 12 HDMI 2.0 input interfaces and 12 HDMI 2.0 output interfaces. Both input and output have a maximum pixel clock frequency of 600MHz, enabling flexible multi-input and multi-output configurations.

What control methods are supported by this device?

The device supports multiple control methods, including RS232 serial port, web-based control, keypad control, and WEB API interface. You can access the web interface for flexible control via Windows computers, Mac computers, tablets, and mobile phones.

Does it support seamless switching? Will there be black screen or flickering during switching?

It supports seamless switching of input signals. During the switching process, there will be no black screen or flickering, ensuring smooth and stable presentations.

What display wall configurations does this video wall controller support?

It supports arbitrary configurations within 12 screens, such as 2x2+2x2+1x4 and various other combinations to meet different display requirements. It also supports calling and saving up to 12 preset scenes.

What is the warranty period? What is the operating temperature range?

The product comes with a 3-year after-sales warranty. The storage temperature range is -10°C to 50°C, and the operating temperature range is 0°C to 50°C, making it suitable for most indoor application environments.
