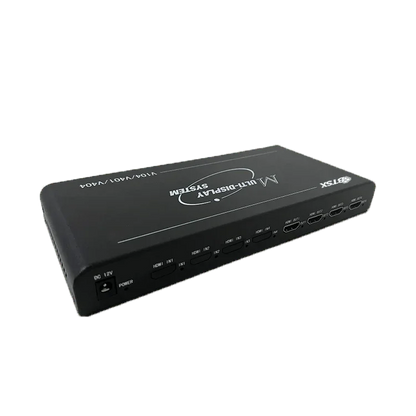

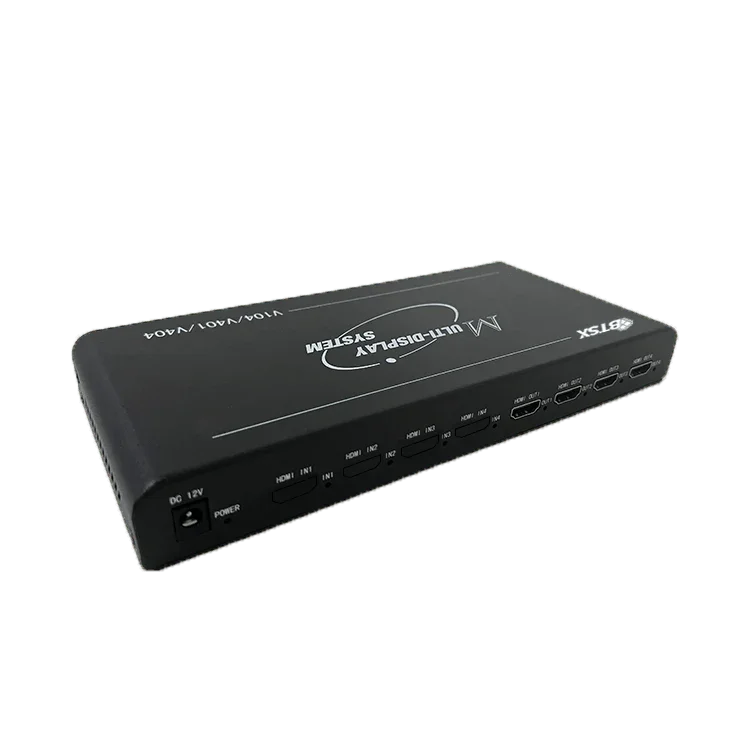

BIT-VWC-4K60-104 4K60Hz LCD 2x2 1x4 4x1 1x3 3x1 1x2 2x1 Video Wall Controller Processor 180°Rotation Seamless 1 In 4 Out HDCP

BIT-VWC-4K60-104 4K60Hz LCD 2x2 1x4 4x1 1x3 3x1 1x2 2x1 Video Wall Controller Processor 180°Rotation Seamless 1 In 4 Out HDCP

$570.00 USD
$570.00 USD
Sale Sold out
Plug Type
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

📌Plug and play, no stretching, no deformation, and no need to compress the input source. Support 180° rotation of every screen display.

📌HDMI 2.0/DP 1.2 Inputs, 4 HDMI outputs support various display modes(2x2, 1x3, 3x1, 1x4, 4x1, 1x2, 2x1). Support multiple picture-in-picture modes, and large-scale cascade parallel use.

📌Single Output Support 1920x1080@60Hz, Input Max. resolution support 3840x2160@60Hz.

📌High-end programmable FPGA chip, full hardware real-time processing architecture, switching mode without delay.

📌Applications: exhibition hall, indoor advertising video wall, digital signage, commercial display, control room, and interactive projection.

Product Name BIT-VWC-4K60-104
Input Signal 1*HDMI 2.0
Output Signal 4*HDMI
HDCP
 HDCP 1.4
Input Pixel Clock Rate 600MHz
Output Pixel Clock Rate 165MHz
Single Output Max. Resolution 1920x1080@60Hz
Input Supports Resolution 1920x1080@30/60Hz 3840x2160@30/60Hz
Factory Default Resolution 3840x2160@30Hz
Control Method Button control, remote control, PC host computer (through RS232 serial port)
Power Rating 12W
Hot Plugging √
Power-off Memory √
Output Distance 15m
Size(L*W*H) 235mm*130mm*30mm
Weight 2kg
Power supply 12V@2A AC-DC

Collapsible row

View full details

Frequently Asked Questions

What input and output interfaces does this video wall controller support?

t supports 12 HDMI 2.0 input interfaces and 12 HDMI 2.0 output interfaces. Both input and output have a maximum pixel clock frequency of 600MHz, enabling flexible multi-input and multi-output configurations.

What control methods are supported by this device?

The device supports multiple control methods, including RS232 serial port, web-based control, keypad control, and WEB API interface. You can access the web interface for flexible control via Windows computers, Mac computers, tablets, and mobile phones.

Does it support seamless switching? Will there be black screen or flickering during switching?

It supports seamless switching of input signals. During the switching process, there will be no black screen or flickering, ensuring smooth and stable presentations.

What display wall configurations does this video wall controller support?

It supports arbitrary configurations within 12 screens, such as 2x2+2x2+1x4 and various other combinations to meet different display requirements. It also supports calling and saving up to 12 preset scenes.

What is the warranty period? What is the operating temperature range?

The product comes with a 3-year after-sales warranty. The storage temperature range is -10°C to 50°C, and the operating temperature range is 0°C to 50°C, making it suitable for most indoor application environments.
