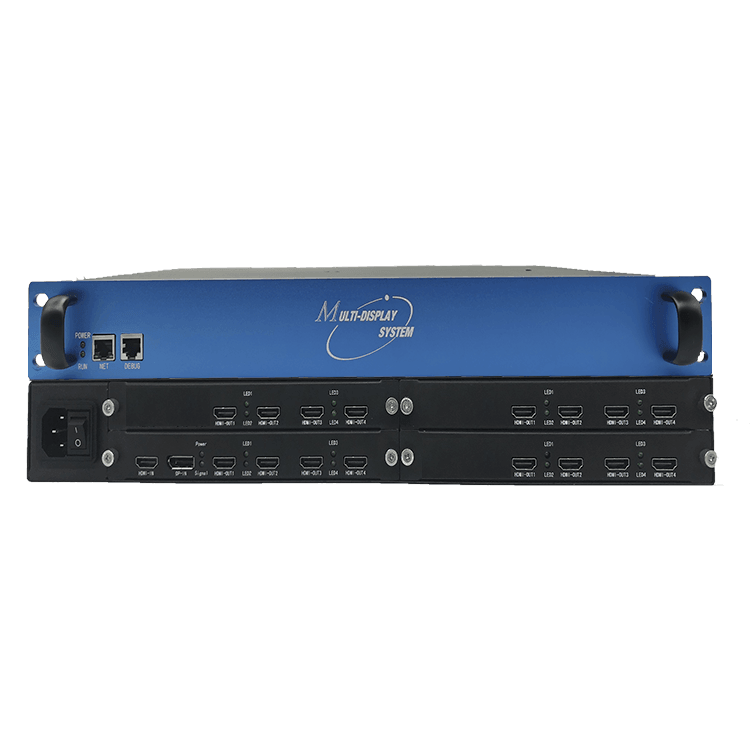

BIT-VWC-U1-116 Modular 1U Rack Unit 8K 16K Video Wall Controller Processor Web Control RS232

BIT-VWC-U1-116 Modular 1U Rack Unit 8K 16K Video Wall Controller Processor Web Control RS232

$3,789.00 USD
$3,789.00 USD
Sale Sold out
Modular version
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

📌No need to set up, no stretching, no deformation, support hot-plugging, and power-off memory.

📌16 HDMI outputs support various display modes (4x4, 8x2, 2x8, 4x3, 3x4, 3x3, 4x2,2x4, etc.)

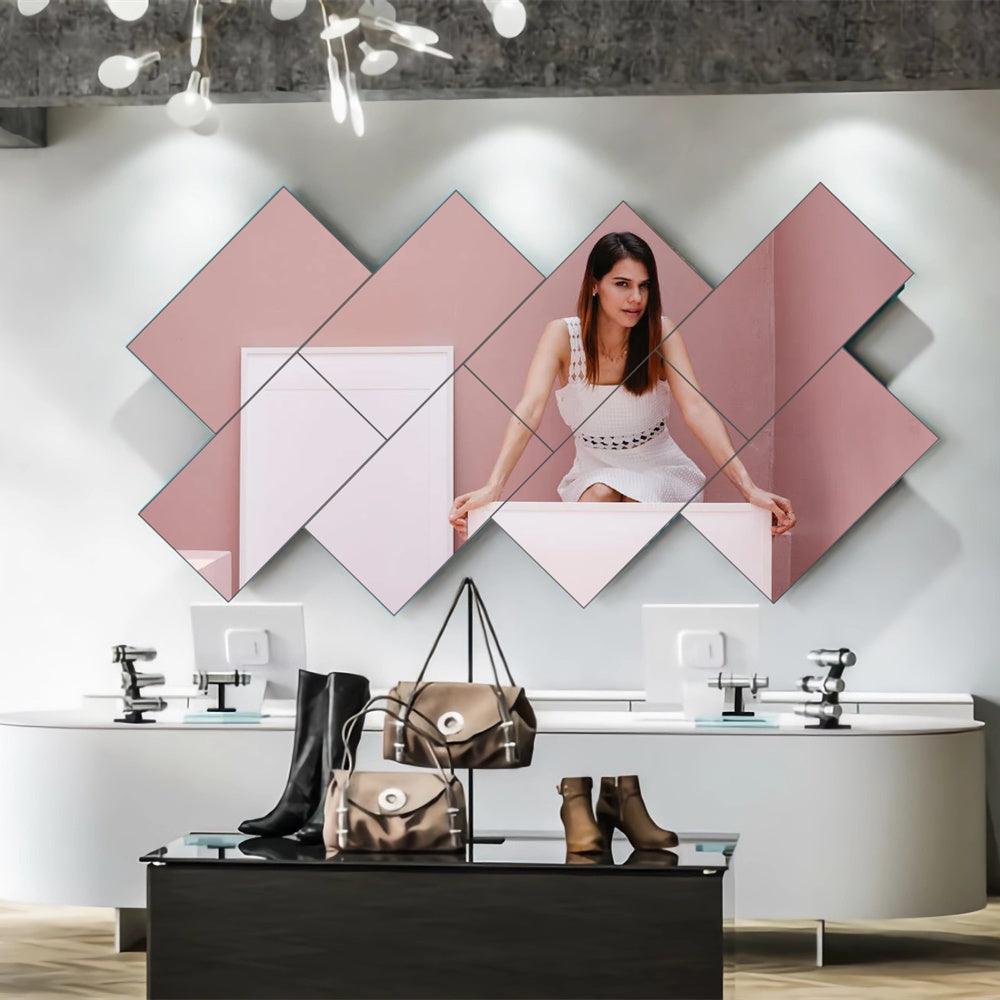

📌Support artistic video wall, irregular video wall, creative video wall, Non-rectangular video wall and support large-scale parallel use.

📌High-end FPGA chip, Modular 1U Rack Unit, Single module 1 input 4 output, easy to increase according to resolution requirements

📌Common application includes Artistic video wall, Commercial display, Exhibition, Immersive room, Interactive projection.

Product Name BIT-MSE-U1-116
Input interface 1*DP 1.2, 1*HDMI 2.0
Output interface 16*HDMI 1.3
Input Max. Pixel Clock Rate 600MHz
Output Max. Pixel Clock Rate 16*165MHz
4x4 Max. Resolution
 5120x2880@30Hz
8x2 Max. Resolution 2560x5760@30Hz
2x8 Max. Resolution 7680x1080@60Hz
4x3 Max. Resolution 3840x2880@50Hz
3x4 Max. Resolution 5120x2160@50Hz
5x3 Max. Resolution 3840x3600@30Hz
3x5 Max. Resolution 6400x2160@30Hz
3x3 Max. Resolution 5760x3240@30Hz
Hot Plugging √
Power-off Memory √
Web Control √
Size(L*W*H) 480mm*390mm*52mm
Weight 6kg
Power supply 100-240V

Collapsible row

View full details

Frequently Asked Questions

What input and output interfaces does this video wall controller support?

t supports 12 HDMI 2.0 input interfaces and 12 HDMI 2.0 output interfaces. Both input and output have a maximum pixel clock frequency of 600MHz, enabling flexible multi-input and multi-output configurations.

What control methods are supported by this device?

The device supports multiple control methods, including RS232 serial port, web-based control, keypad control, and WEB API interface. You can access the web interface for flexible control via Windows computers, Mac computers, tablets, and mobile phones.

Does it support seamless switching? Will there be black screen or flickering during switching?

It supports seamless switching of input signals. During the switching process, there will be no black screen or flickering, ensuring smooth and stable presentations.

What display wall configurations does this video wall controller support?

It supports arbitrary configurations within 12 screens, such as 2x2+2x2+1x4 and various other combinations to meet different display requirements. It also supports calling and saving up to 12 preset scenes.

What is the warranty period? What is the operating temperature range?

The product comes with a 3-year after-sales warranty. The storage temperature range is -10°C to 50°C, and the operating temperature range is 0°C to 50°C, making it suitable for most indoor application environments.
