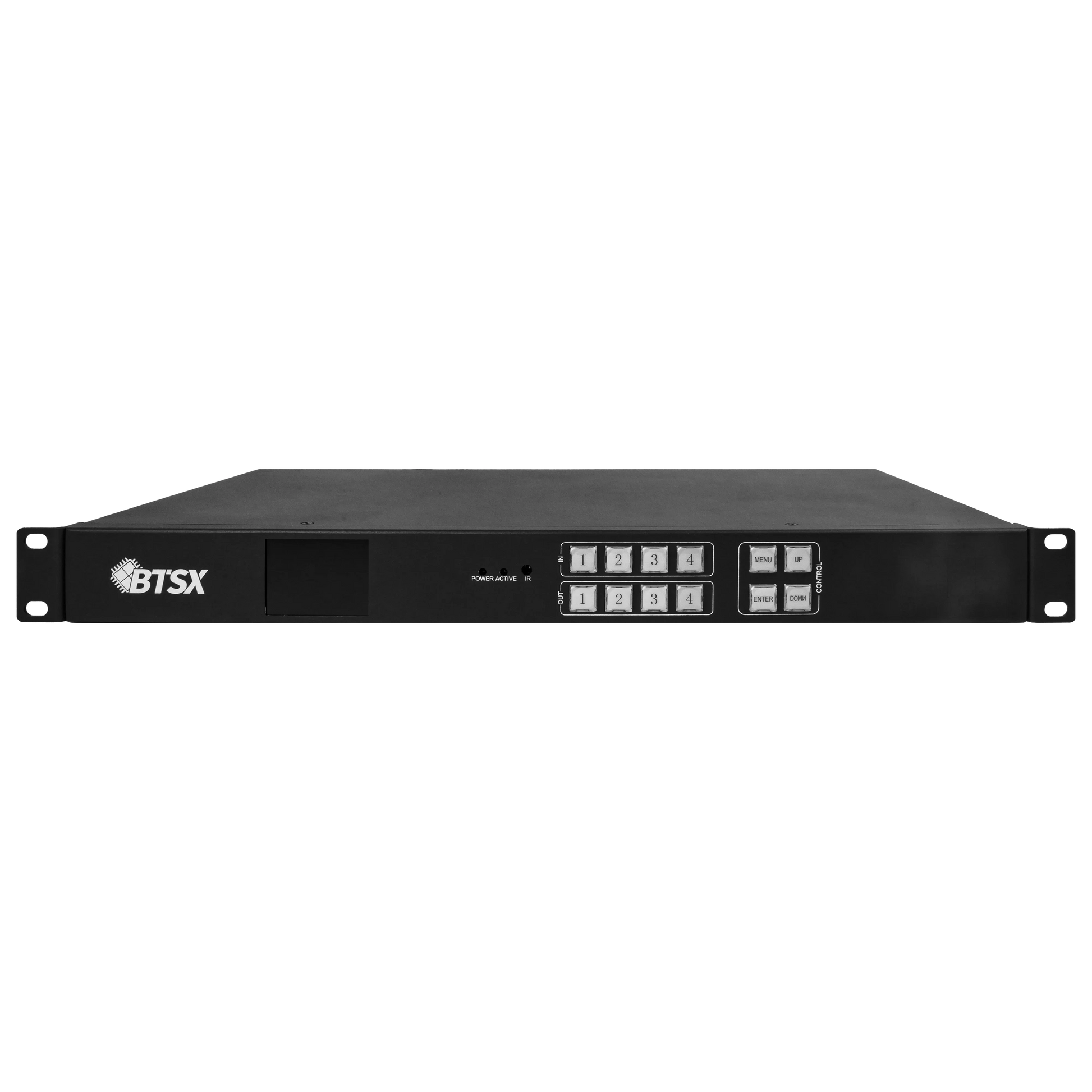

4K60 HDMI Video Wall Controller

Get a quote

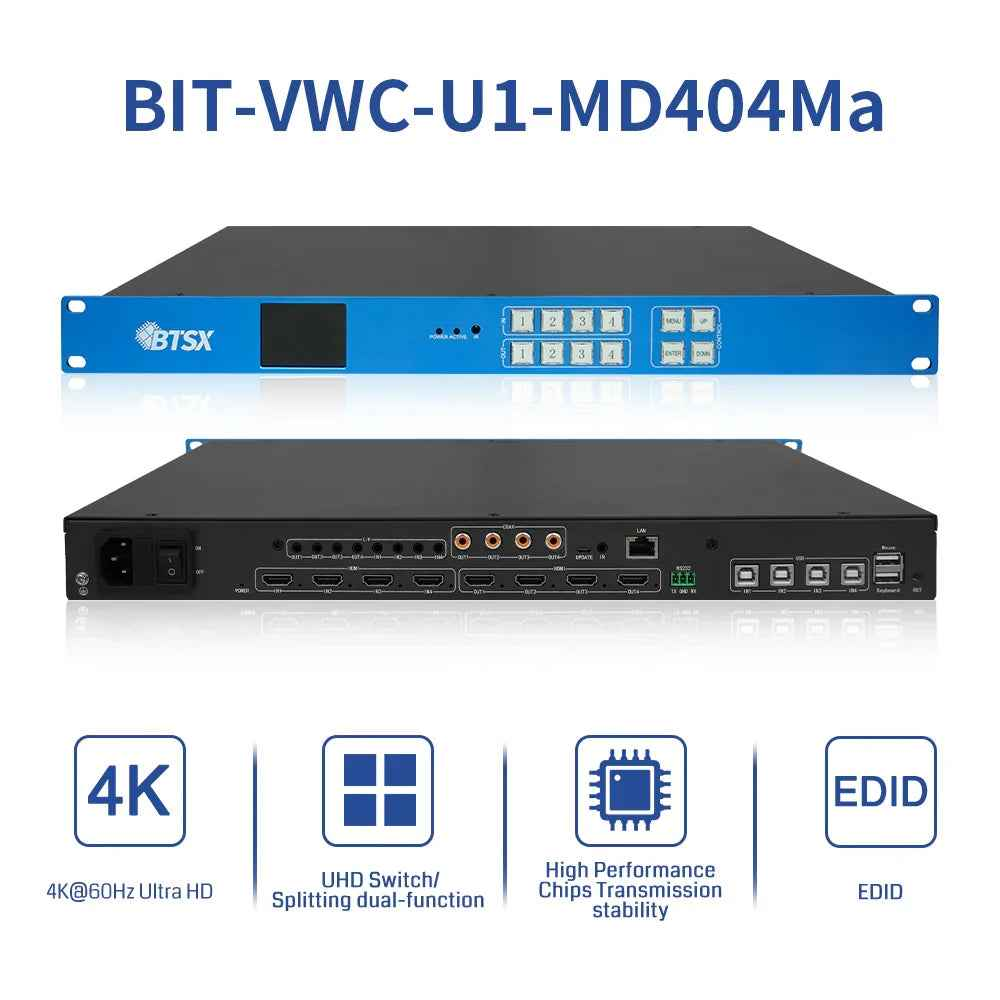

BIT-VWC-U1-MD404Ma is a new audio/video processor with splicing matrix and open window roaming launched by BitVision, the product has a high-definition processing chip and supports 4-way 4K60 input and 4-way 4K60 output. Using HDMI input interface, HDMI output interface. Apply to the command and control system, multi-screen video surveillance, engineering display applications, multimedia conference halls, game rooms and so on.

Description

1.4K Ultra HD: Input/output 4-way HDMI 2.0 interface, the highest resolution up to 4096x2160@60, backward compatible;

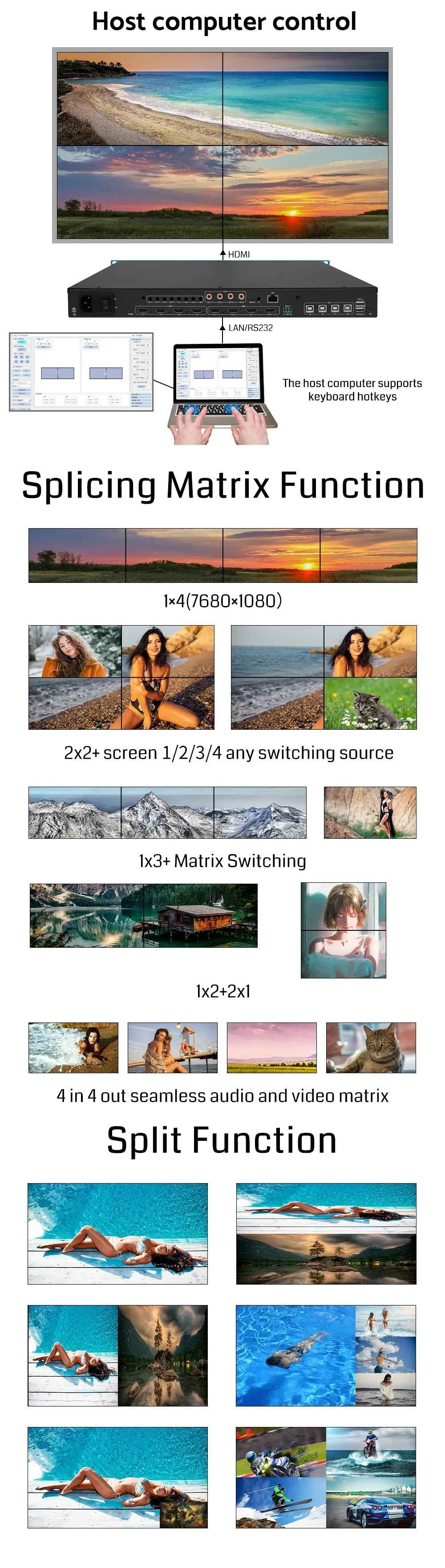

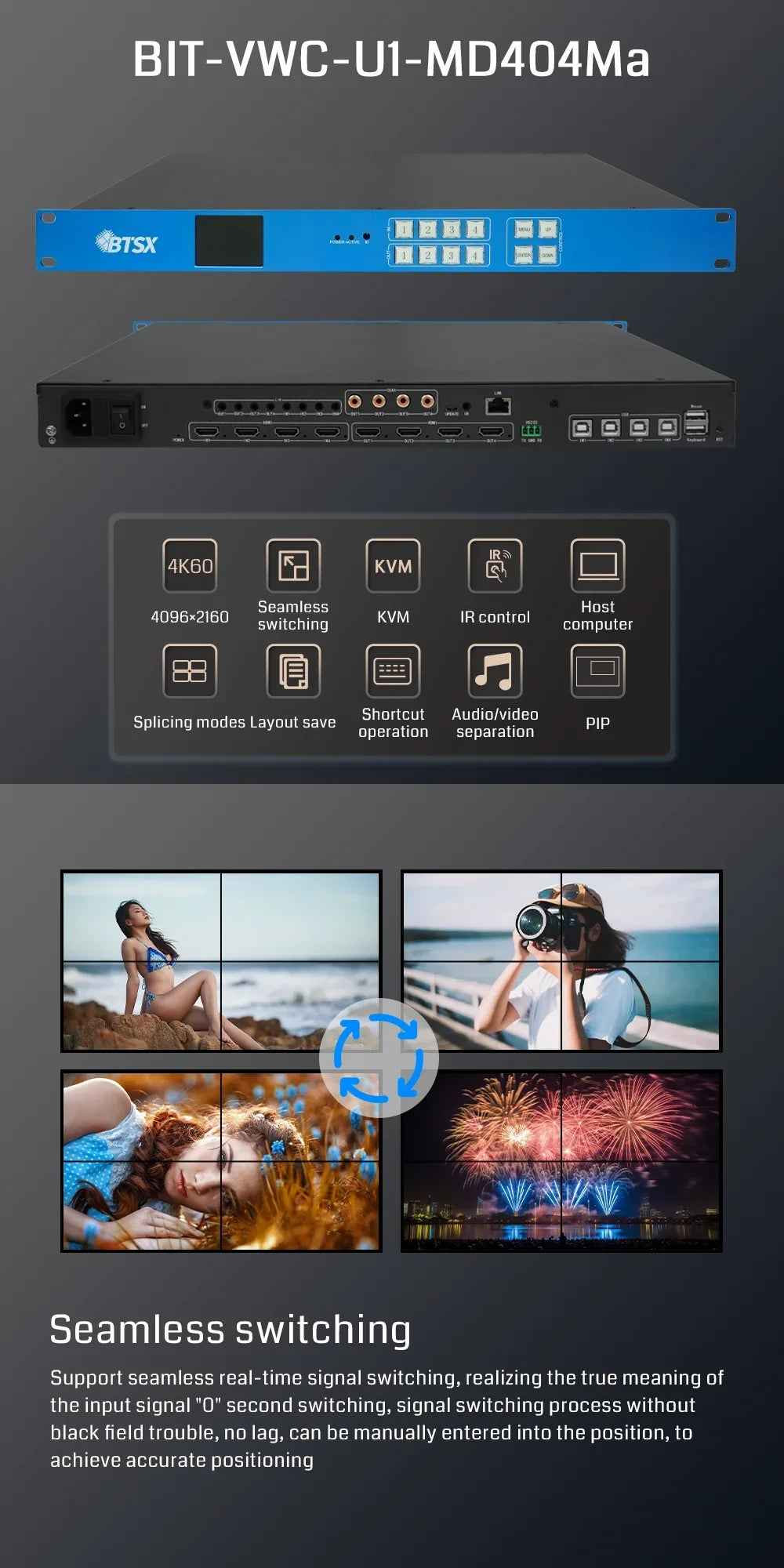

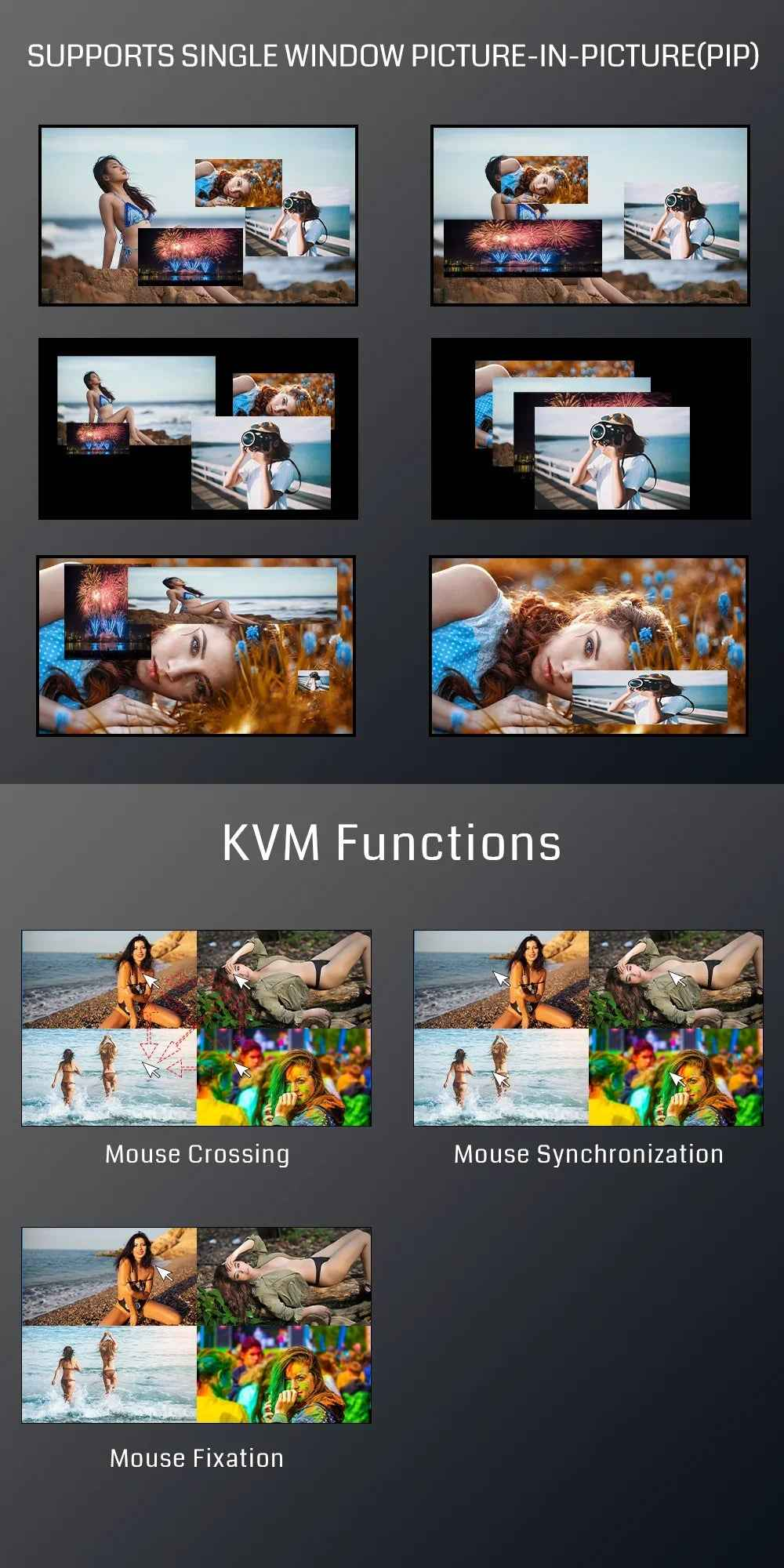

2.Support point-to-point splicing matrix, splicing overlay, splicing 2 curtain seamless switching, any split roaming overlay.
3.Support for audio and video separation:
 Input two types of audio:
 Input 4-way HDMI interface audio, input 3.5mm interface audio (TRS).
 Output three types of audio:
 output 4-way HDMI interface audio with out, output 4-way 3.5mm interface audio (TRS),
 output 4-way S/PDIF interface audio Audio processing, S/PDIF interface sources only.
4.Multiple control methods: support IR infrared remote control, panel buttons,  Windows host computer, serial RS232, Web pages
5.Support for customizing the device IP, multiple devices for convenient management;.
6.Support customized output resolution;
7.Plug and Play: Compact form factor, pure hardware,rugged design,easy to install and use
8.Eco-friendly and energy-efficient:
  Low power consumption design with CE,RoHS,FCC certification.
  Typical application
 Applications in command and dispatch system, multi-screen video surveillance,engineering
 display applications, multimedia conference halls, game rooms, etc.

Specification
