BITVISUS

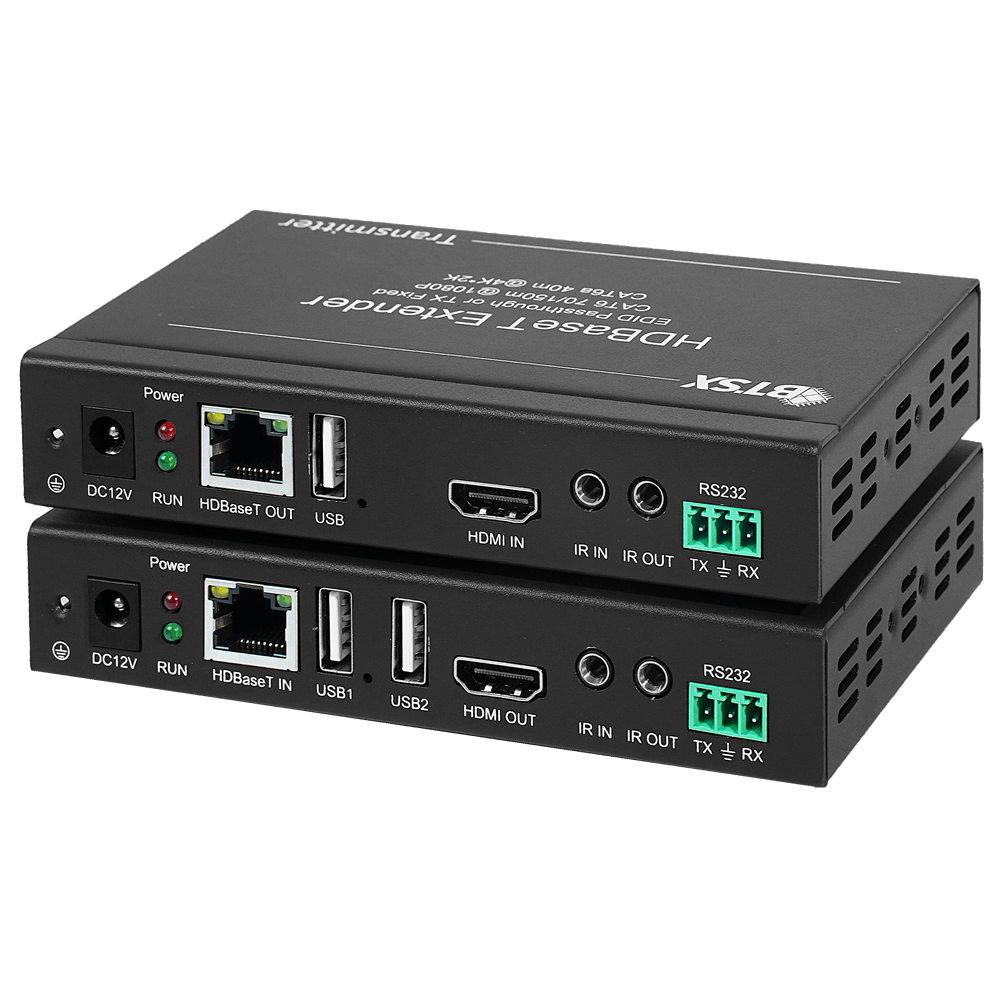

1080P FHD HDMI KVM Extender USB Extender Over Network 150m HDBaseT Converter RS232 HDCP

1080P FHD HDMI KVM Extender USB Extender Over Network 150m HDBaseT Converter RS232 HDCP

Regular price $221.00 USD
Regular price Sale price $221.00 USD
Sale Sold out
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

📌1080p/FHD HDMI Extender HDMI1.4 Standard with 6Gbps bandwidth, resolutions up to 1200@60Hz RGB4:4:4, support HDCP 2.2, Audio output with HDMI.

📌Extend up to 150m for 1080p/FHD resolution with Network cable Ethernet cable CAT5/CAT6E, Bi-directional IR/RS232 function. Support POE Network cable power supply.

📌HDBaseT standard protocol, data transmission is more stable, image quality is not compressed, and image quality is not lost

📌Plug & Play, Support USB interface KVM signal transmission

📌FREE LIFETIME SUPPORT: All Bitvisus Products include a One-Year Manufacturer Warranty and free lifetime technical support

Specification Details
Product name BIT-Ex-HDBT-150
Input TX: HDMI1.4, RS232 Signal
RX: CAT6E,150m
Output TX: CAT6E,150m
RX: HDMI1.4, RS232 Signal
Audio
Audio via HDMI
HDCP HDCP2.2
Resolution Support 1200p/1080p@60Hz downwards compatible
Signal Format Supports various common resolutions and VESA, HDTV standard signals
Color Space RGB 4:4:4
Pixel Clock 165MHz
Bandwidth 6Gbps
Transmission Distance 1080p (using CAT6E network cable)150m
KVM USB1.0, Keyboard and Mouse
RS232 Supported, Bi-Direction pass-through
IR Supported, Bi-Direction pass-through
EDID Support EDID pass-through/ EDID emulation
CEC Supported, Bi-Direction pass-through
Interface Protocol HDMI1.4, HDCP2.2, DVI1.0, VGA compatible
Power supply DC 12V@2A
Power 7w
Weight 500g
Size 105*76*27mm
Warranty 1 Year
