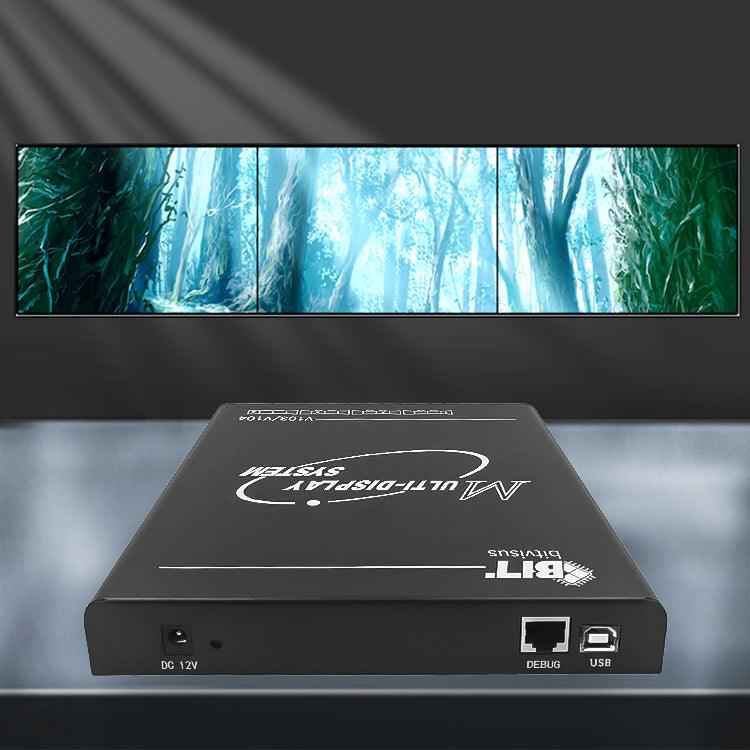

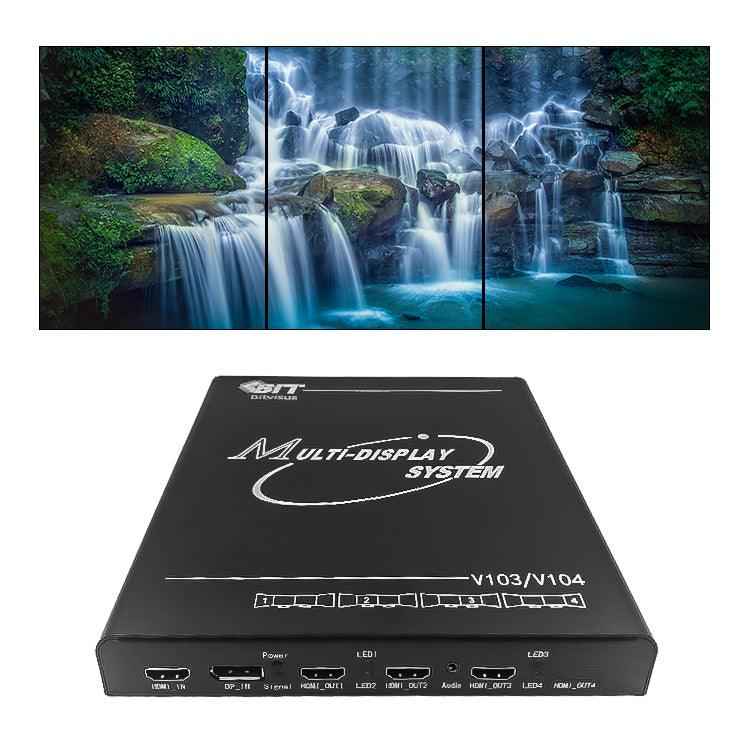

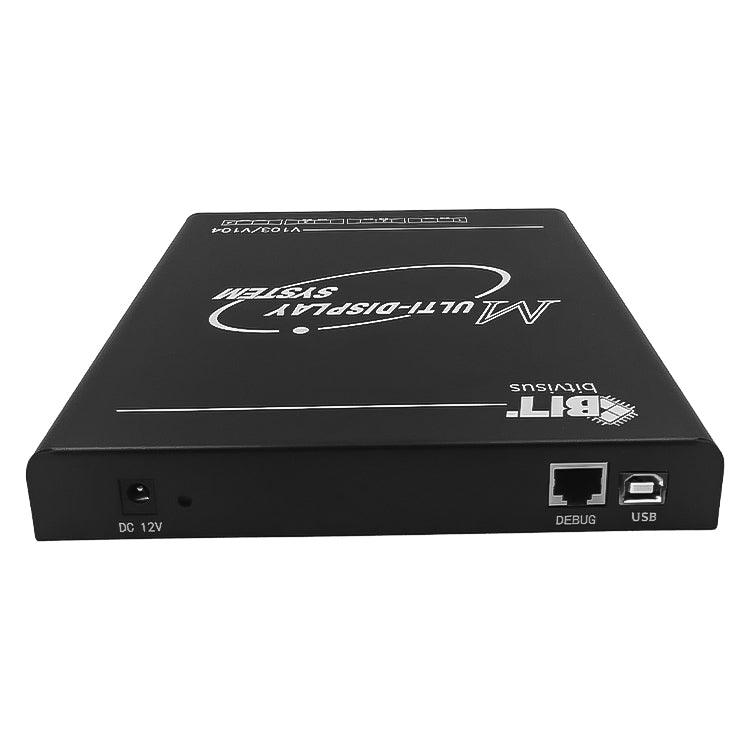

BIT-MSE-4K60-103PRO 4K60Hz 1x3 3x1 1x2 2x1 Video Wall Controller Projection Fusion System HDMI/DP 1 Input 3 Output

BIT-MSE-4K60-103PRO 4K60Hz 1x3 3x1 1x2 2x1 Video Wall Controller Projection Fusion System HDMI/DP 1 Input 3 Output

Regular price $340.00 USD
Regular price Sale price $340.00 USD
Sale Sold out
Plug Type
Request Quote

📌Professional Video Wall Controller/Projection Fusion System. No need to set up, no stretching, no deformation. Support EDID burning and custom resolution

📌HDMI 2.0/DP 1.2 Inputs, 4 HDBT RJ45 outputs support various display modes(2x2, 1x2, 1x3, 1x4)

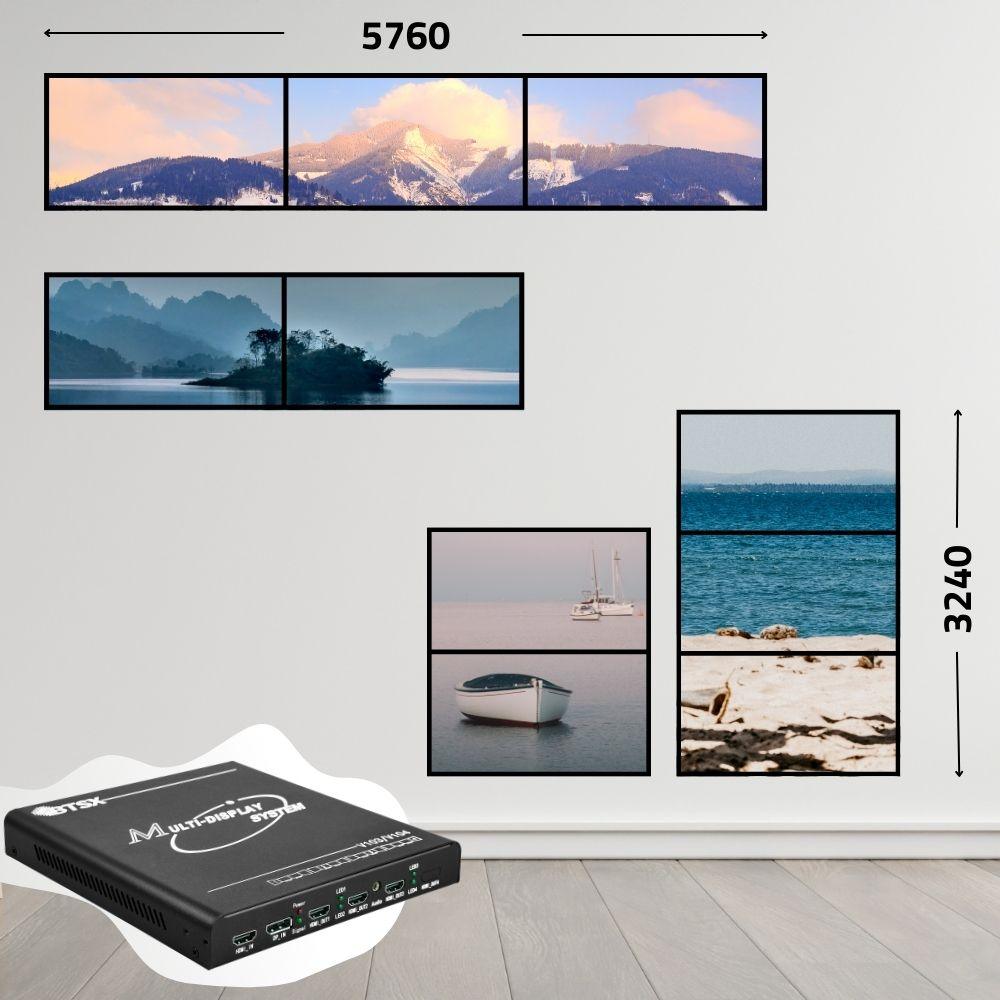

📌Up to 4K resolution. 1x3/3x1 Max. resolution is 5760x1200@60Hz/1920x3600@60Hz. 1x2/2x1 Max. resolution is 7680x2160@30Hz/3840x4320@30Hz. Backward compatible with lower resolutions.

📌28nm High-end programmable FPGA chip, full hardware real-time processing architecture, switching mode without delay.

📌Typical application includes Conference system, Commercial display, Exhibition Hall, Immersive room, Interactive projection, Digital Classroom, and Live stream.

Product Name BIT-MSE-4K60-103PRO

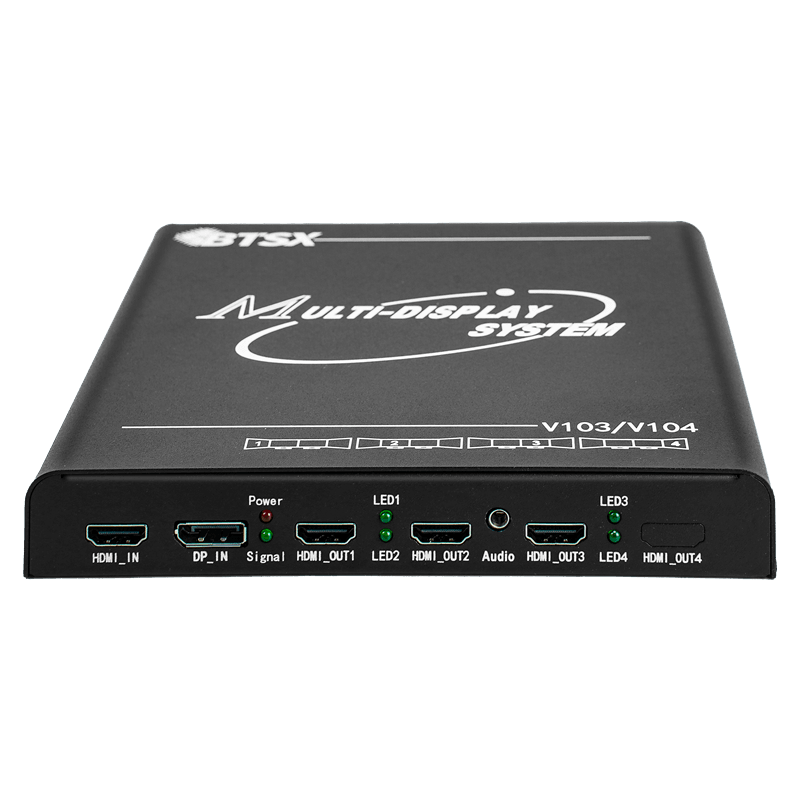

Input Signal 1*DP, 1*HDMI
Output Signal 3 HDMI
Input Max Pixel Clock Rate 600MHz
Output Max Pixel Clock Rate 300MHz
3 Screens Support Typical Resolution 5760x1200@60Hz 5760x1080@60Hz
3840x800@60Hz 3072x768@60Hz
Factory Default Resolution 3840x2160@60Hz
1x2/2x1 Max Supported Resolution 7680x2160@30Hz/3840x4320@30Hz
3x1/1x3 Max Supported Resolutio 1920x3600@60Hz/5760x1200@60Hz
Hot Plugging
Power-off Memory
Output Distance 15m
Support custom resolution
Size(L*W*H) 18.5cm*20.3cm*2.8cm
Weight 1.5kg
Power supply 12V@2A AC-DC
