BITVISUS

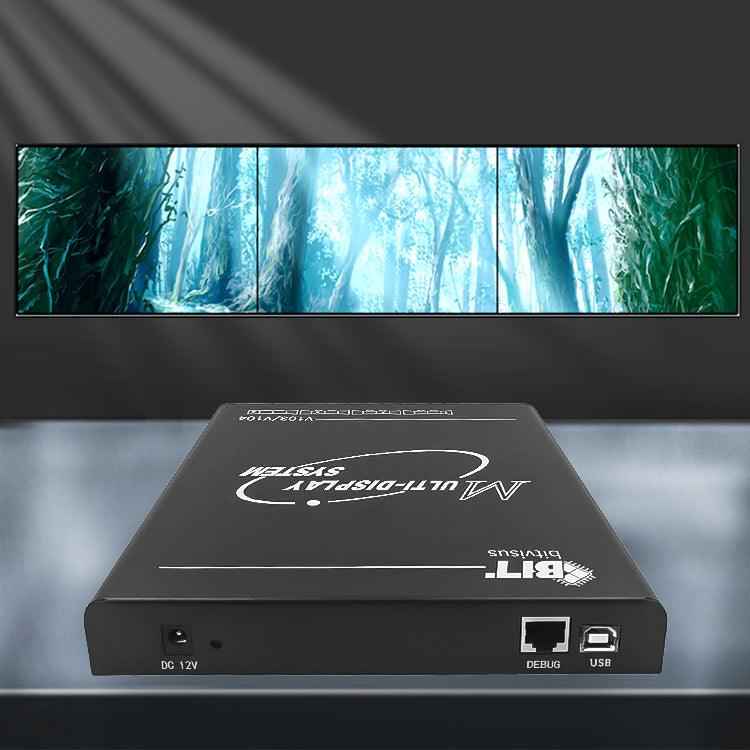

BIT-MSE-4K60-103PRO 4K60Hz 1x3 3x1 1x2 2x1 Video Wall Controller Tv Wall Processor HDMI/DP 1 Input 3 Outputs

BIT-MSE-4K60-103PRO 4K60Hz 1x3 3x1 1x2 2x1 Video Wall Controller Tv Wall Processor HDMI/DP 1 Input 3 Outputs

Regular price $340.00 USD
Regular price Sale price $340.00 USD
Sale Sold out
Plug Type
Request Quote

📌Professional Video Wall Controller/Tv Wall Processor. Support vertical screen video wall. No need to set up, no stretching, and no deformation.

📌1*HDMI 2.0/1*DP 1.2 Inputs, 3*HDMI 1.4 outputs, support various display modes( 1x2, 2x1, 1x3, 3x1)

📌Up to 4K resolution. Multiple devices can make higher resolutions like 8K 16K video walls with the graphics card spanning function.

📌28nm High-end programmable FPGA chip, full hardware real-time processing architecture, switching mode without delay.

📌Typical application includes Control Room, Conference system, Commercial display, Exhibition Hall, Immersive room, Interactive projection, Digital Classroom, and Live stream.

Product Name BIT-MSE-4K60-103PRO
Input Interface 1*HDMI 2.0/1*DP 1.2
Output Interface 3*HDMI 1.4
Input Max Pixel Clock Rate 600MHz
Output Max Pixel Clock Rate 300MHz
3 Screens Support Typical Resolution 5760x1200@60Hz 5760x1080@60Hz
3840x800@60Hz 3072x768@60Hz
Factory Default Resolution 3840x2160@60Hz
1x2/2x1 Max Supported Resolution 7680x2160@30Hz/3840x4320@30Hz
3x1/1x3 Max Supported Resolutio 1920x3600@60Hz/5760x1200@60Hz
Hot Plugging
Power-off Memory
Output Distance 15m
Support custom resolution
Size(L*W*H) 18.5cm*20.3cm*2.8cm
Weight 1.5kg
Power supply 12V@2A AC-DC
