BIT-MV-U1-MD403 4K60 PIP Seamless Switching Matrix Switcher LCD KVM Multi-Picture Split Processor

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

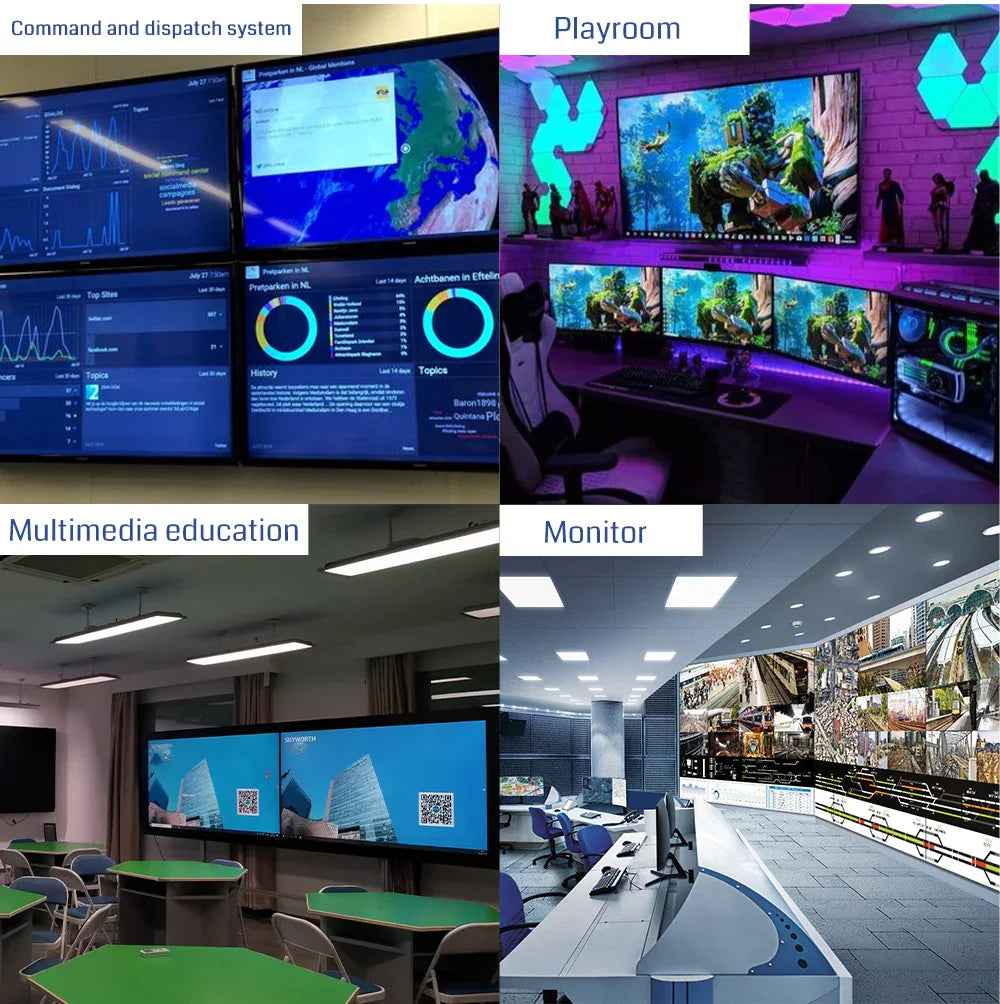

BIT-MV-U1-MD403 is a KVM multi-viewer processor that supports professional video processing and control, capable of displaying multiple high-definition images simultaneously on ultra-high-definition 4K60 resolution displays  such as flat-panel TVs and projectors. It is widely used in security monitoring, conference rooms, stage performances, TV broadcasts, multimedia teaching, remote education, and other scenarios.

1、Supports 4 HDMI 2.0 inputs and 3 HDMI 2.0 outputs.
2、Supports 4 USB-B (computer) inputs and 2 USB-A (keyboard & mouse) outputs.
3、Supports 11 common output resolutions, including 3840x2160@60Hz, 4096x2160@60Hz, 1920x1200@60Hz, 1920x1080@60Hz, etc.
4、Dual-Screen Display Modes:
      · Simultaneous Display: Supports showing 4, 3, 2, or 1 window(s) on both screens, along with various window combinations.
       · Independent Display: Each screen can independently show 1 or 2 windows in various layouts.
5、Allows window size adjustment, PIP transparency control, and signal switching via keyboard and mouse.
6、Enables one keyboard and mouse to operate up to 4 computers, either asynchronously or synchronously.
7、Offers multiple control methods: mouse, front-panel buttons, and infrared remote control. Functions include switching signals to full screen, 4-screen display, 2-screen display, scene recall, audio output cycling, video loop-out switching, and resolution adjustment.
8、Features a hardware-only design. The system operates in a closed architecture without requiring a host computer or boot-up software, ensuring simplicity, stability, and superior output image quality.
9、Requires no operating system or WEB configuration software. All signal switching and independent window scaling can be easily performed using a keyboard and mouse.
