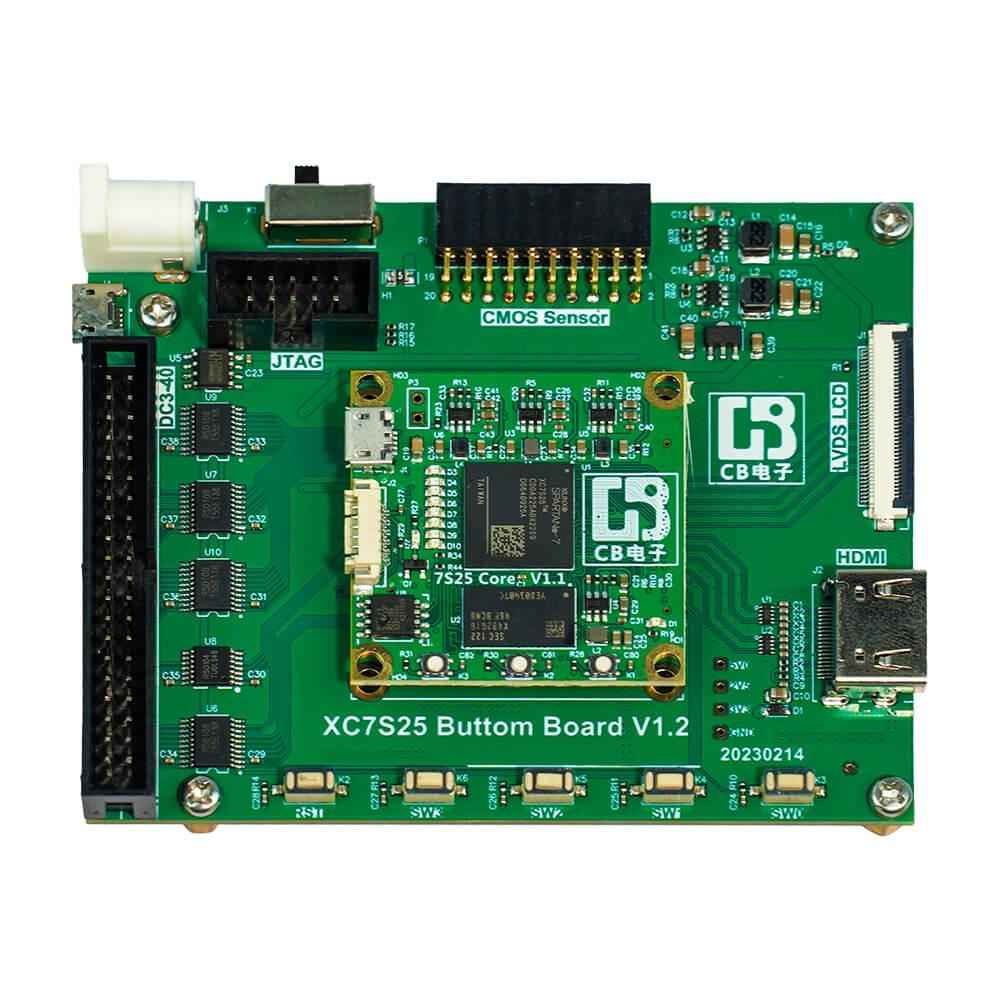

BIT-DB-XC7S25 FPGA Development Board XC7S25-CSGA225 Xilinx Spartan-7

BIT-DB-XC7S25 FPGA Development Board XC7S25-CSGA225 Xilinx Spartan-7

$200.00 USD
$200.00 USD
Sale Sold out
Request Quote

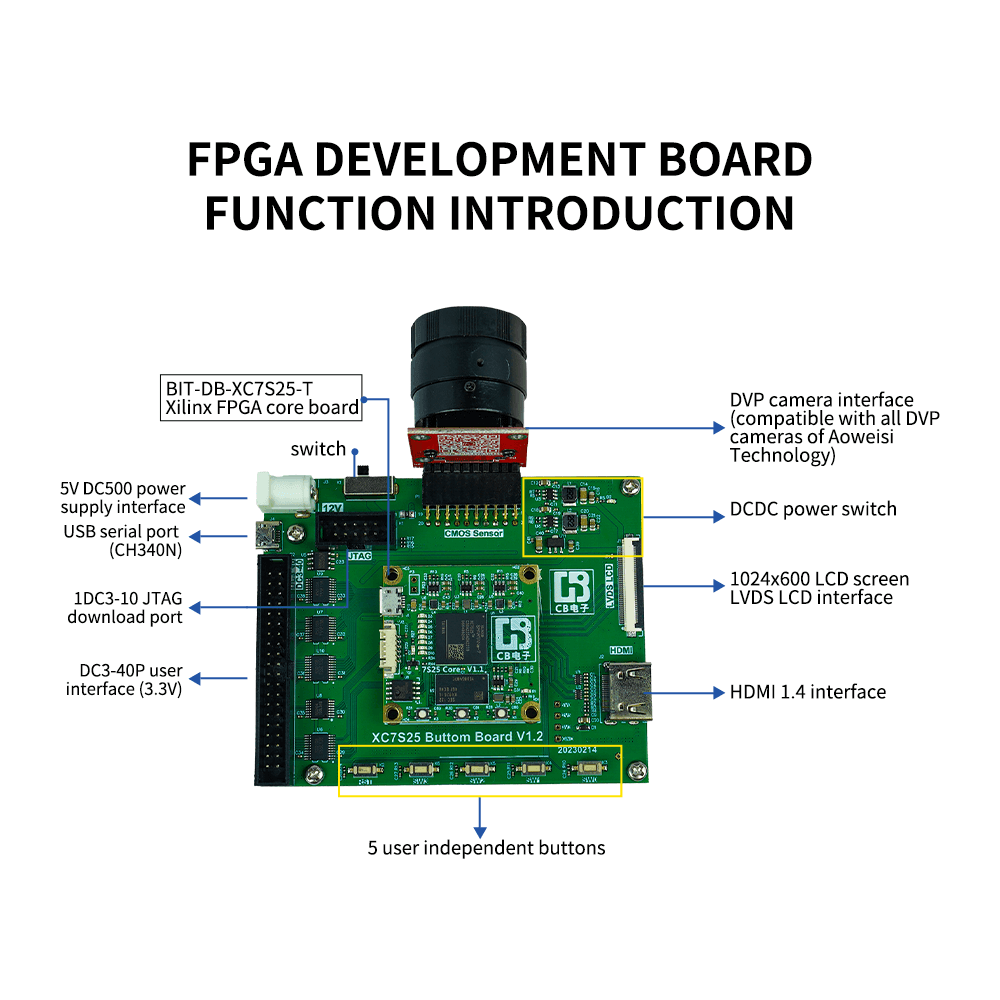

Unleash your creativity and step into the world of FPGA development with our BIT-DB-XC7S25 FPGA Development Board! Featuring a Xilinx Spartan-7 FPGA with 25K logic units, 80 DSPs, and DDR3 IP, this compact and versatile board is perfect for learning and experimenting. With 4GB DDR3 storage, a variety of user interfaces, and a reliable power supply, the possibilities are limitless. The board’s small size (40mm*40mm) and advanced PCB process make it a robust and portable solution for both beginners and educators. Dive into a seamless FPGA experience with onboard JTAG, user buttons, test LEDs, and more.

Don’t miss out on the opportunity to make learning and development an exciting journey with our state-of-the-art FPGA Core Board

Bulk orders are available at discounted prices, and we welcome purchases from schools and FPGA development interest groups. Click on the bottom right to contact us and get a quote.

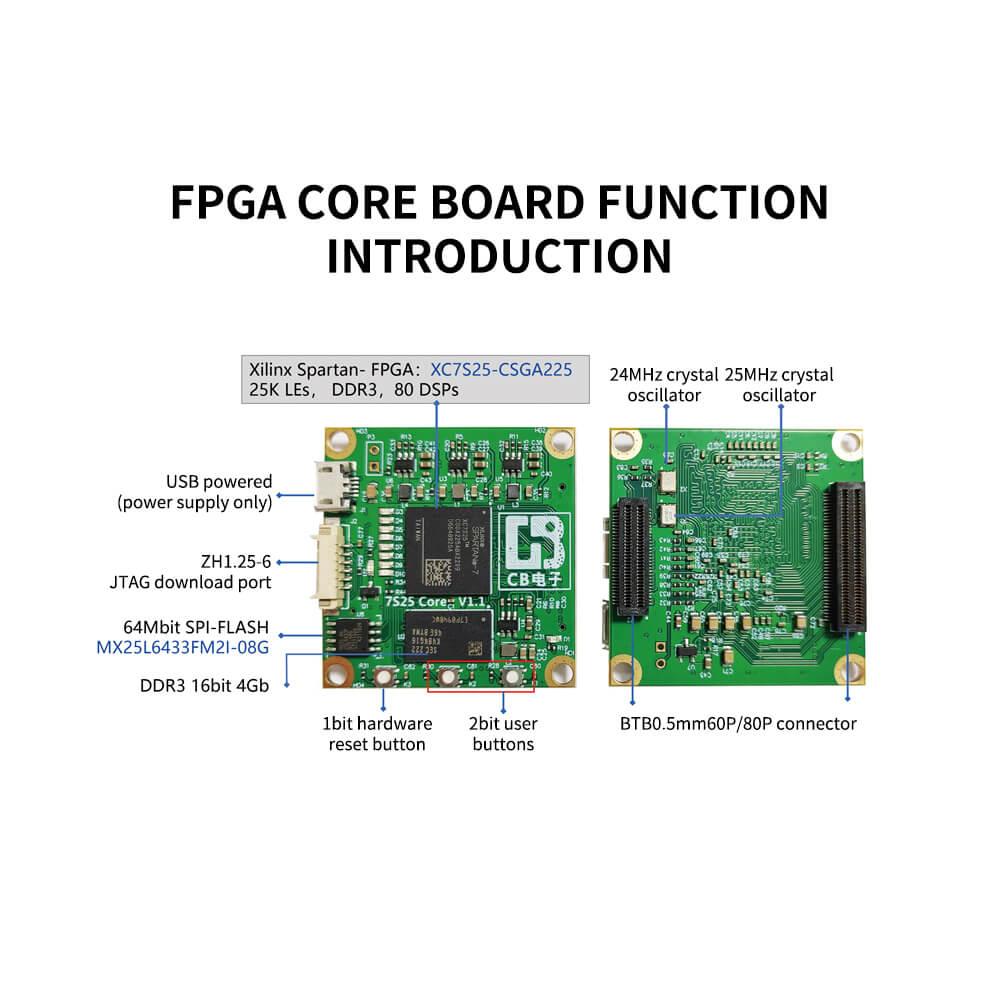

Product name BIT-DB-XC7S25
Core Board Model VF-X25K225-C
FPGA Manufacturer Xilinx (Spartan-7 Series)
FPGA Model XC7S25-CSGA225
FPGA Resources 25K Logic Units, DDR3 IP, 80 DSPs
DDR3 Storage 4G 16bit, DDR3: K4B4G1646E
PCBA Size 40mm * 40mm
PCB Process 6 layers, 1.6mm, Immersion Gold, Black/Green Board
Onboard FLASH 64Mbit, SPI FLASH: MX25L6433FM2I-08G
Board Peripherals 2 User Buttons, 1 USB Power Port, 8 Test LEDs
Other Interfaces Onboard ZH1.25-6 JTAG Download Port
B2B Interface 2*0.5mm Double Row 60P/80P B2B Connectors (2 Sockets)
Power Supply Integrated USB Mini Power Port, B2B Connector Input 5V DC
