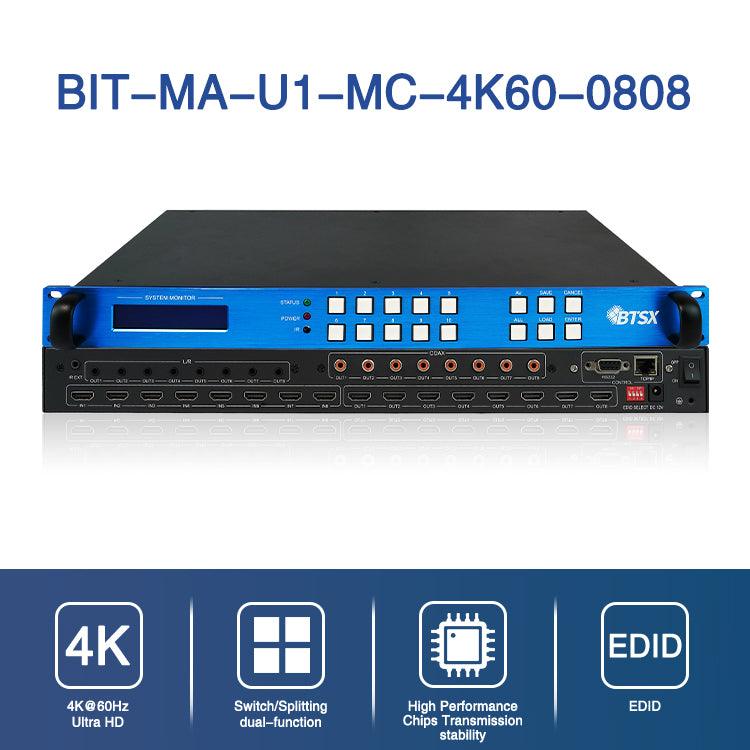

BIT-Ma-U1-MC0808 1U 8x8 4K 60Hz HDMI Matrix Switcher Splitter HDCP2.2/1.4 Smart EDID IR Control RS232 TCP/IP

BIT-Ma-U1-MC0808 1U 8x8 4K 60Hz HDMI Matrix Switcher Splitter HDCP2.2/1.4 Smart EDID IR Control RS232 TCP/IP

Regular price $600.00 USD
Regular price Sale price $600.00 USD
Sale Sold out
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right-corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

📌[Compliant with HDMI 2.0 and HDCP 2.2/1.4] The HDMI matrix adheres to the HDMI 2.0 and HDCP 2.2/1.4 standards, ensuring it's up-to-date with the latest technological advancements and content protection protocols.

📌[Supports High Video Resolutions up to 4Kx2K@60Hz] The device can transmit ultra-high-definition video, ensuring that users get the best possible visual experience with resolutions up to 4Kx2K at 60Hz.

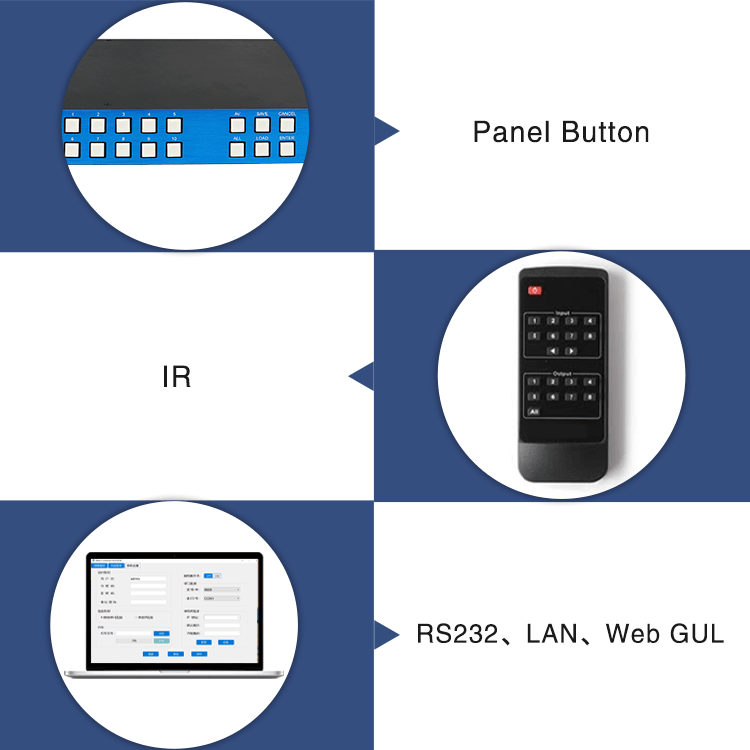

📌[Multiple Control Options]Front Panel Buttons, IR Remote, and Advanced Controls (RS-232 and RJ45) allow users to switch between different input sources and outputs using the front panel, an IR remote, or advanced control methods, catering to both basic and advanced users.

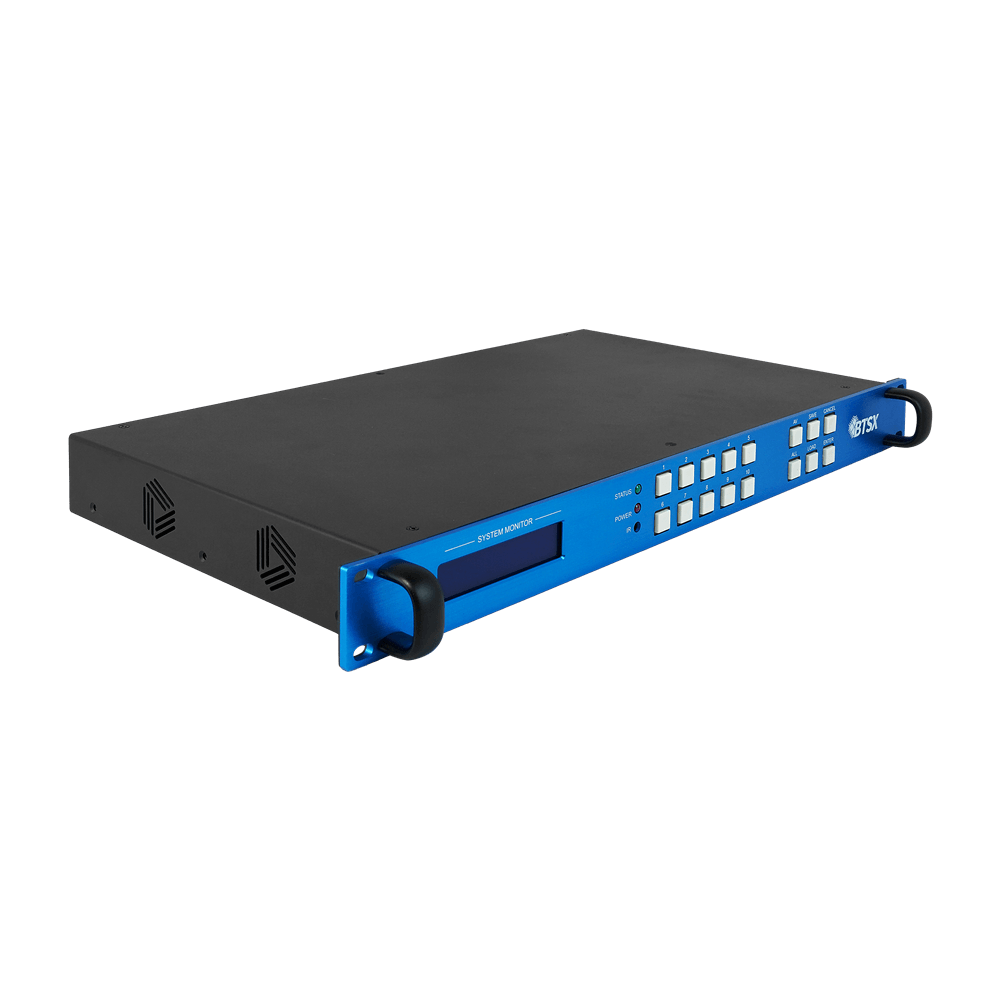

📌[High-end industrial grade products]Standard 1U chassis, equipped with an industrial-grade secure enclosure, compliant with standard electrostatic protection specifications, plug-and-play, safe to use.

📌[Typical application] Home Theater Systems, Meeting Rooms and Business Environments, Digital Signage and Advertising Displays, Sports Arenas and Entertainment Venues, Educational Institutions, Audio/Video Production and Post-Production, Hotels and Restaurants

Product Name BIT-Ma-U1-MC0808
Bandwidth 18Gbps
HDMI Version HDMI2.0
HDCP Protocol HDCP 2.2/1.4
Support Max. Resolution 4Kx2K@50/60Hz 4:4:4

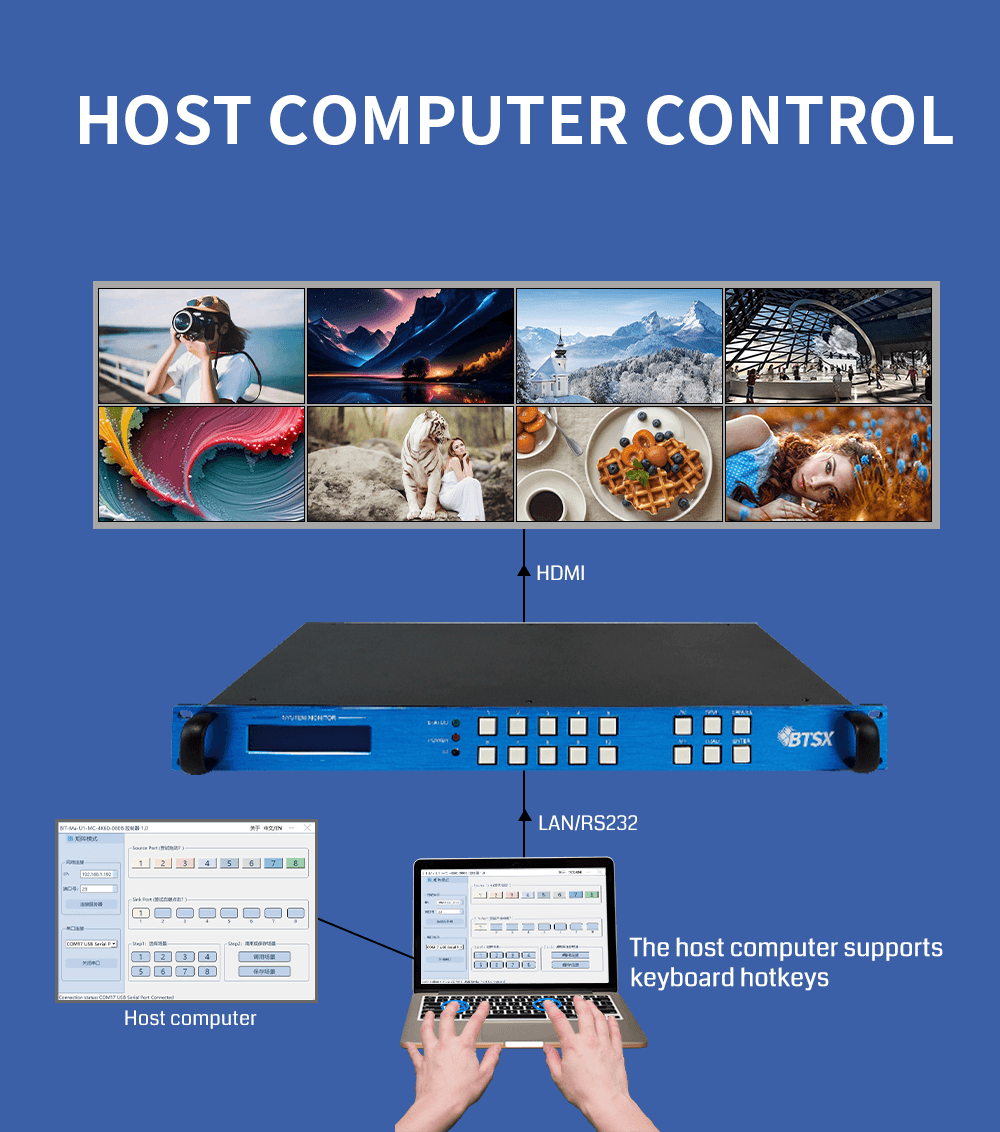

Control Mode IR Remote Control, Buttons, RS232 via host PC
Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth 8 - bit, 10 - bit
HDMI Audio Output Format LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Coaxial Audio Format LPCM2.0,DolbyDigital/Plus
L/R Audio Format PCM2.0
HDR10, HDR10+, Dolby Vision, HLG
Max. Transmission Distance (Length of Cable)

4K@60Hz: 5m
4K@30Hz: 10m
1080P@60Hz: 15m

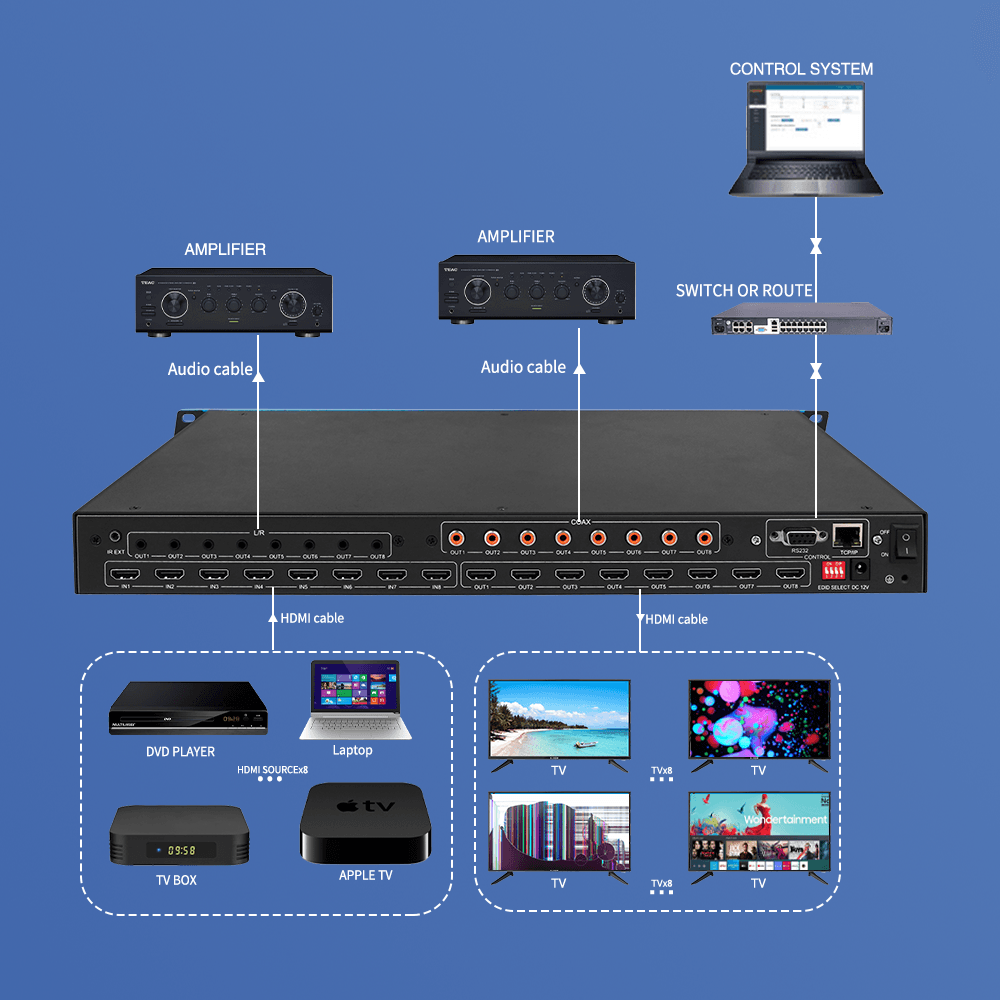

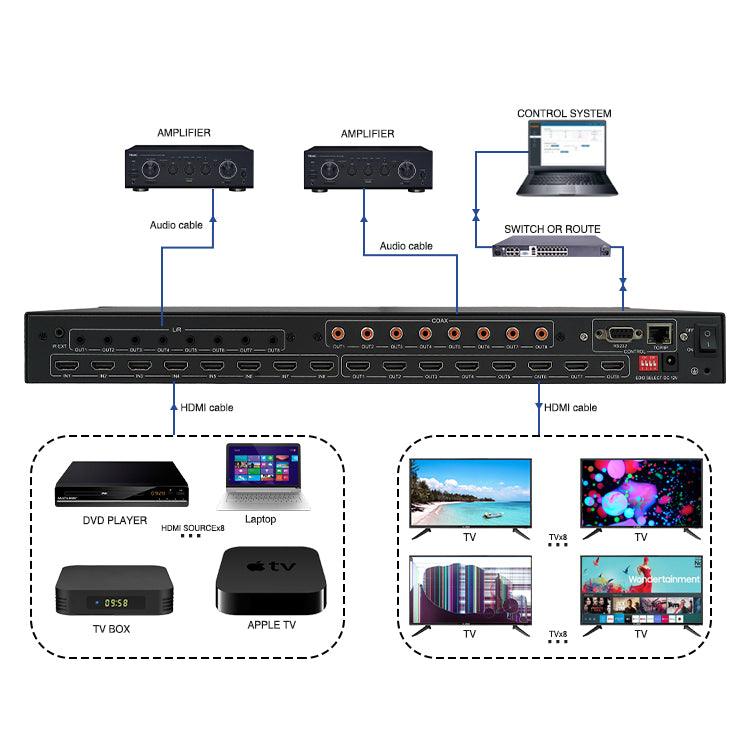

Device Ports
Input Ports 8 x HDMI Type A
1 x IR EXT [3.5mm Stereo Mini-jack]
Output Ports 8 x HDMI Type A
8 x Coax Audio (RCA)
8×L/R Audio [3.5mm Stereo Mini-jack]
Control Ports 1x TCP/IP [RJ45]
1x RS-232 [D-Sub 9]
Device Specification
Power Supply AC 100~240V 50/60Hz
DC 12V/5A
Power Rate 43W
Product weight 4Kg
Size (WxDxH) 440mm × 200mm × 44.5mm
ESD Protection ±8kV (Air Discharge) , ±4kV (Contact Discharge)
