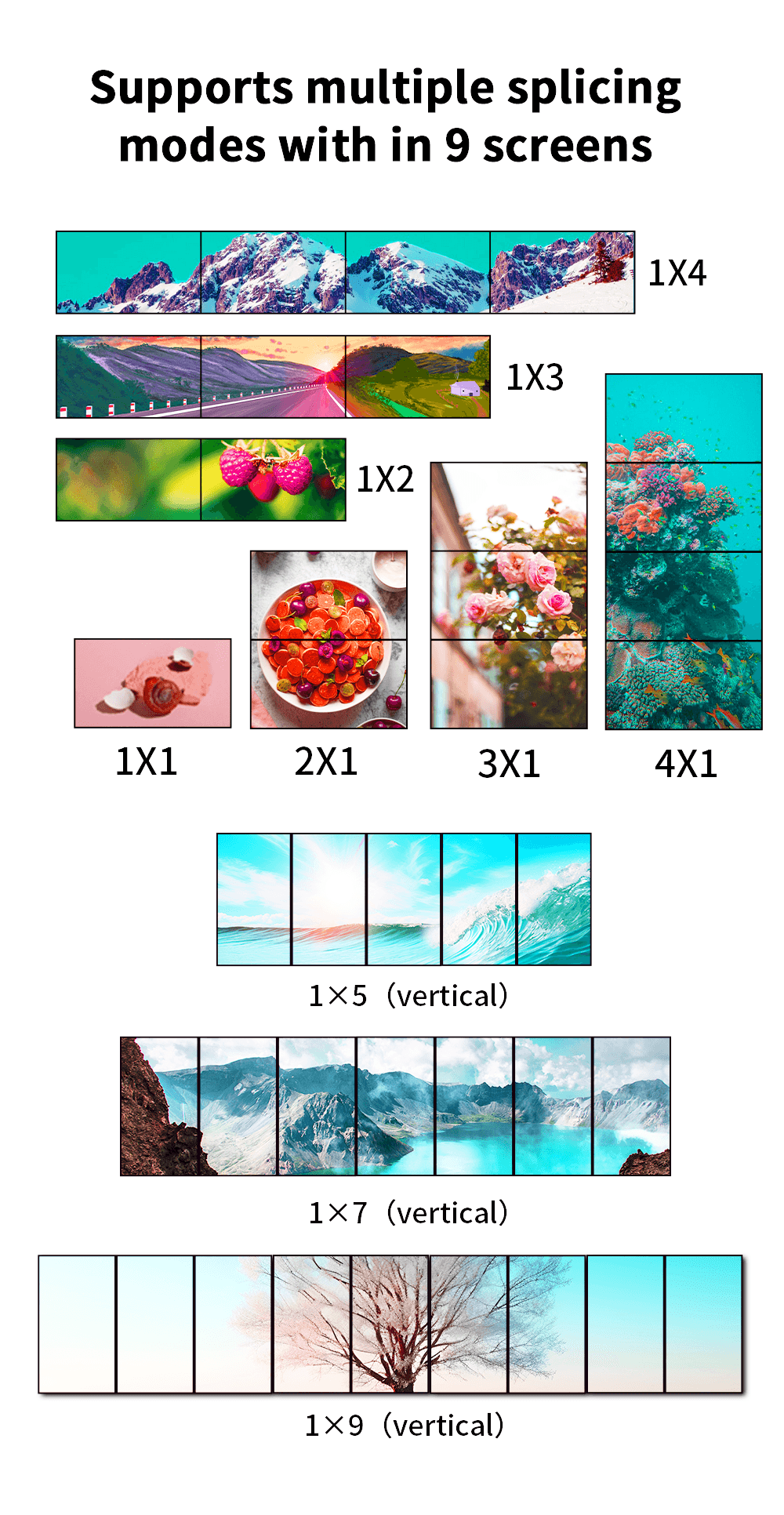

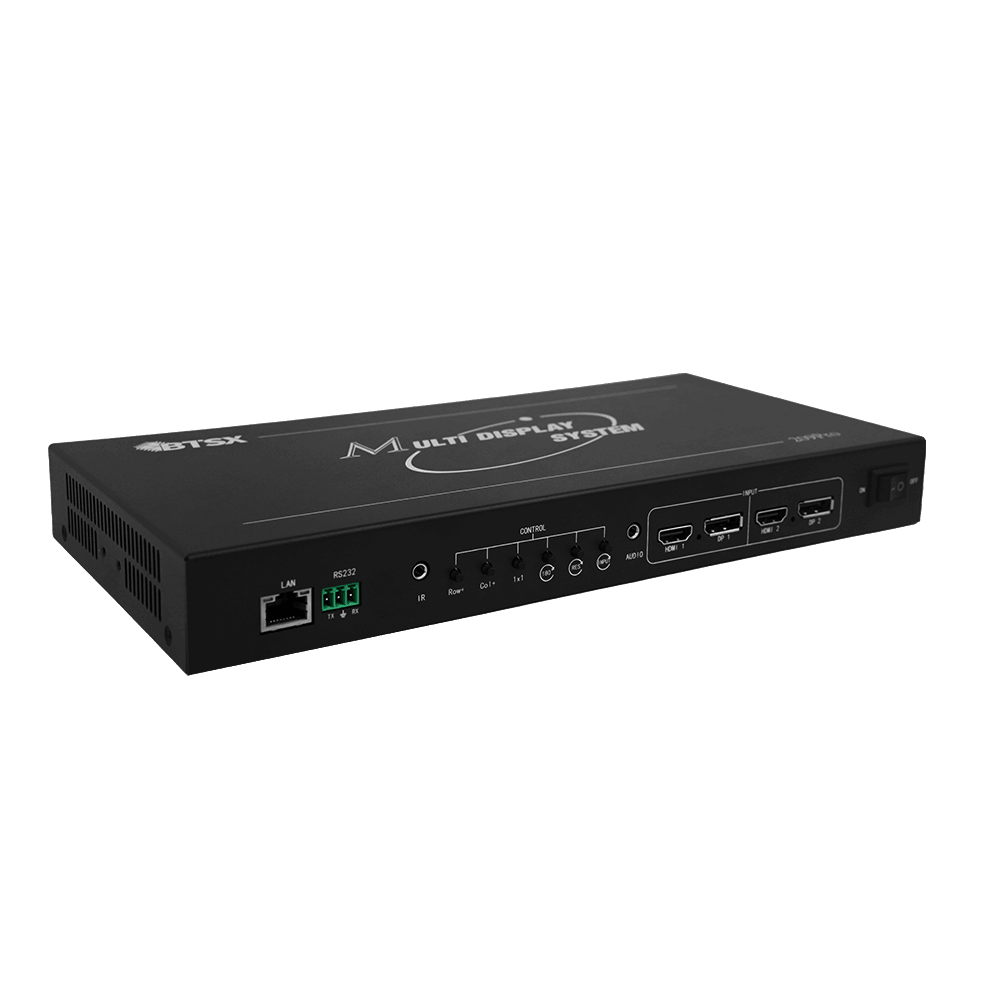

BIT-MSE-209Pro 4K60Hz HDMI Video Wall Controller PIP Point to Point Multi-screen Processor 1x5 1x7 1x9 4x1 3x1 EDID Management

Name: BIT-MSE-209Pro 4K60Hz HDMI Video Wall Controller PIP Point to Point Multi-screen Processor 1x5 1x7 1x9 4x1 3x1 EDID Management
Brand: BITVISUS
Price: 375.0 USD
Availability: InStock

BIT-MSE-209Pro 4K60Hz HDMI Video Wall Controller PIP Point to Point Multi-screen Processor 1x5 1x7 1x9 4x1 3x1 EDID Management

$375.00 USD

Sale Sold out

Plug Type US EU UK AU

Product variants

Quantity

Request Quote

Specification

Specification

Product Name	BIT-MSE-209Pro

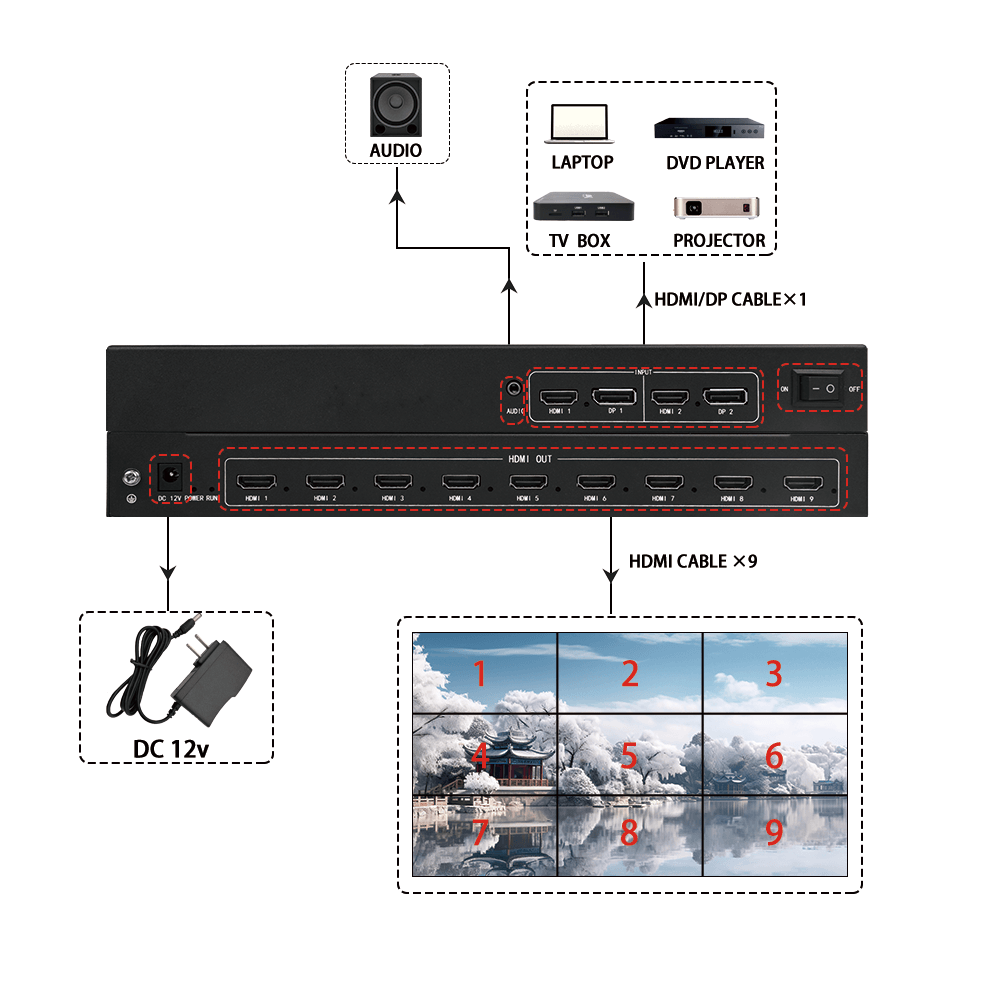

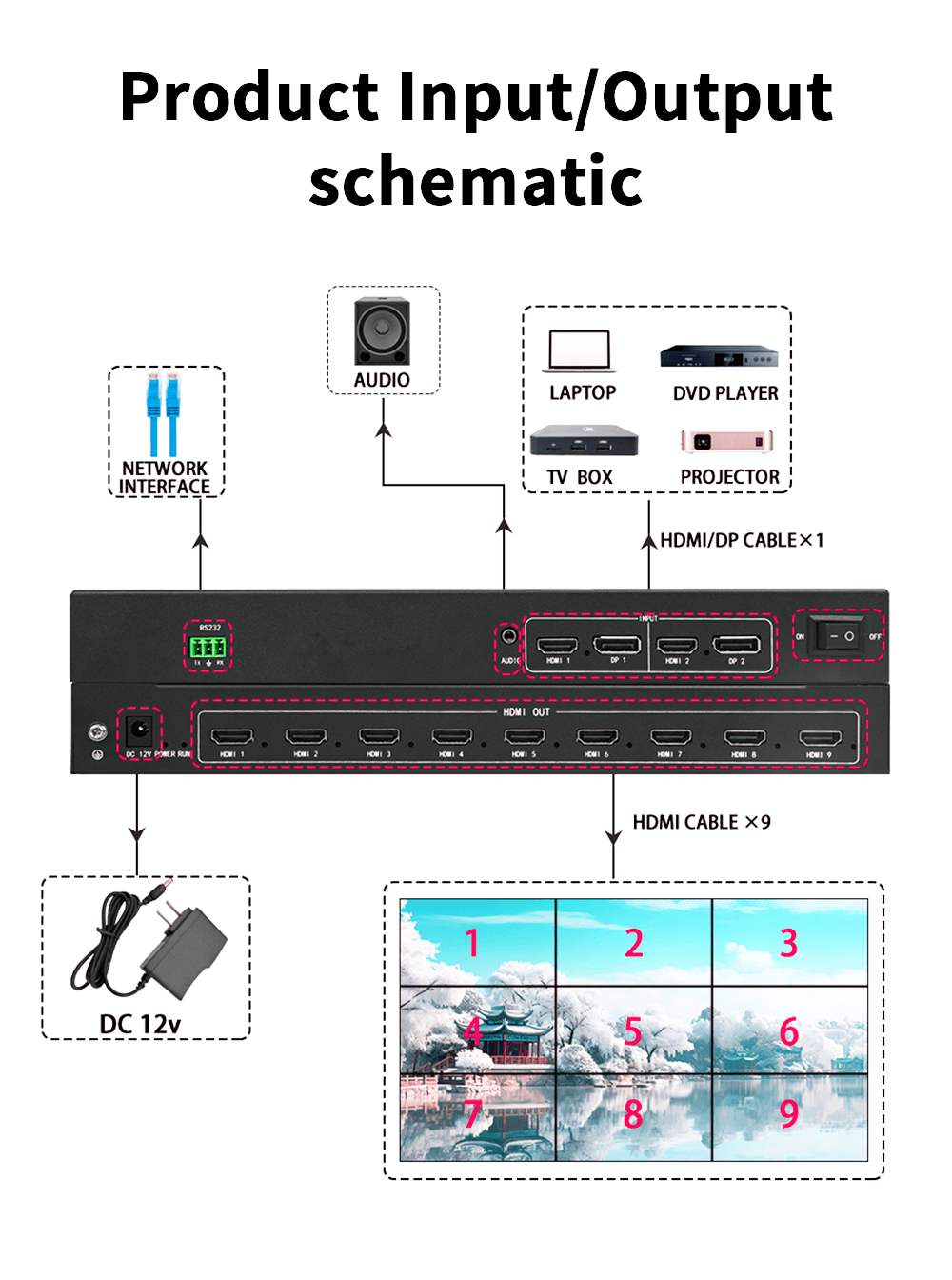

Input Signal	2*HDMI 2.0/DP 1.2
Output Signal	9*HDMI 1.3
Input Max Pixel Clock Rate	600MHz
Output Max Pixel Clock Rate	165MHz

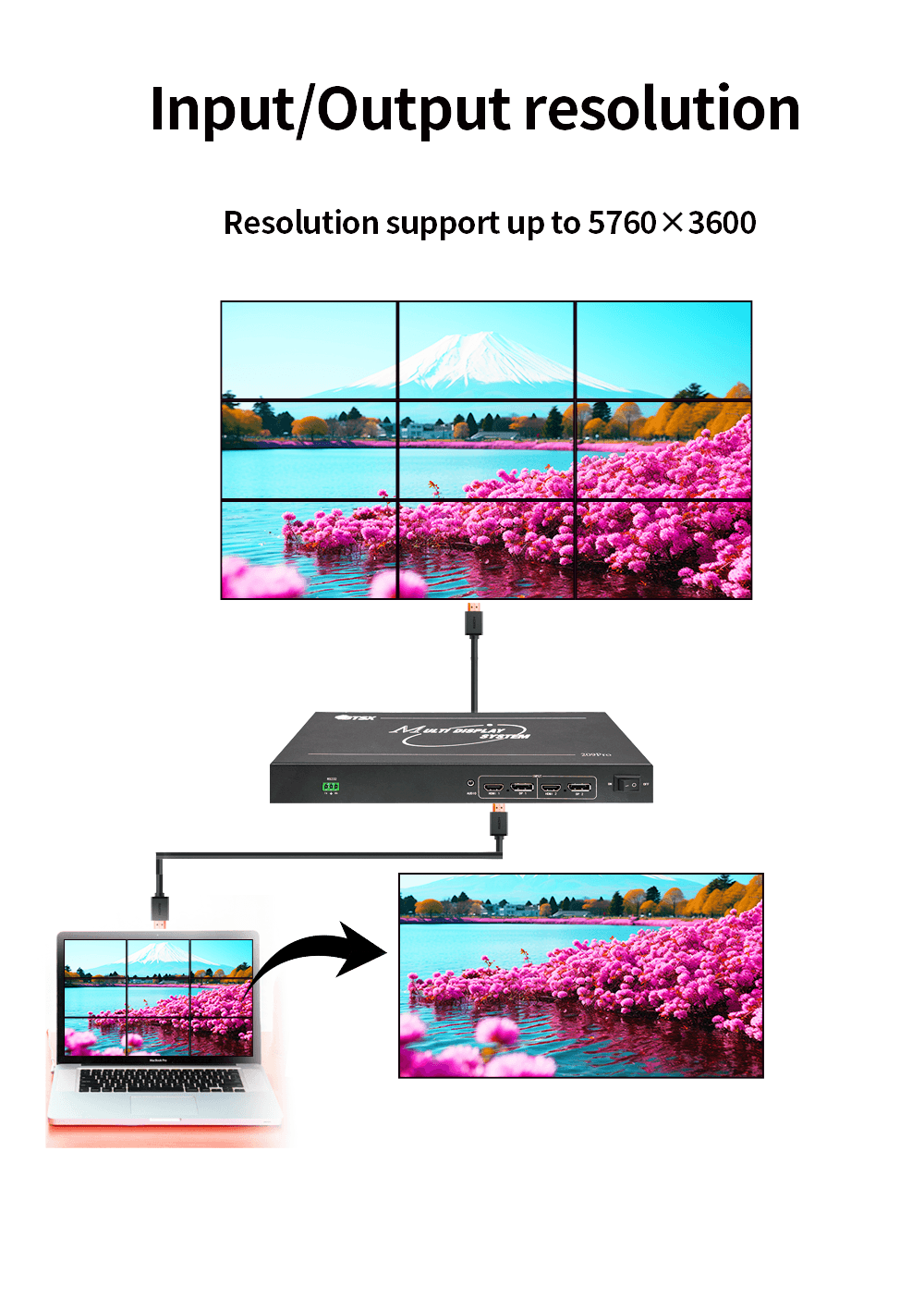

Input Single-port Resolution	3840x2160@60Hz/3840x2400@60Hz 5760x3240@30Hz/7680x2160@30Hz (4Kx2K@60Hz Resolution within bandwidth)
Output Single Mouth Resolution	1920x1080@60Hz 1920x1200@60Hz (customizable)
Input/Output color format	RGB888, 24bit
Audio output	HDMI output, 3.5mm audio port (audio separation
HDCP features	HDCP 2.2 is supported
Hot Plugging	√
Power-off Memory	√
Transmission distance	≤15 meters
Product Size(LWH)	300mm142mm35mm
Product Weight	1.8kg
Power supply	DC 12V/V/2A
