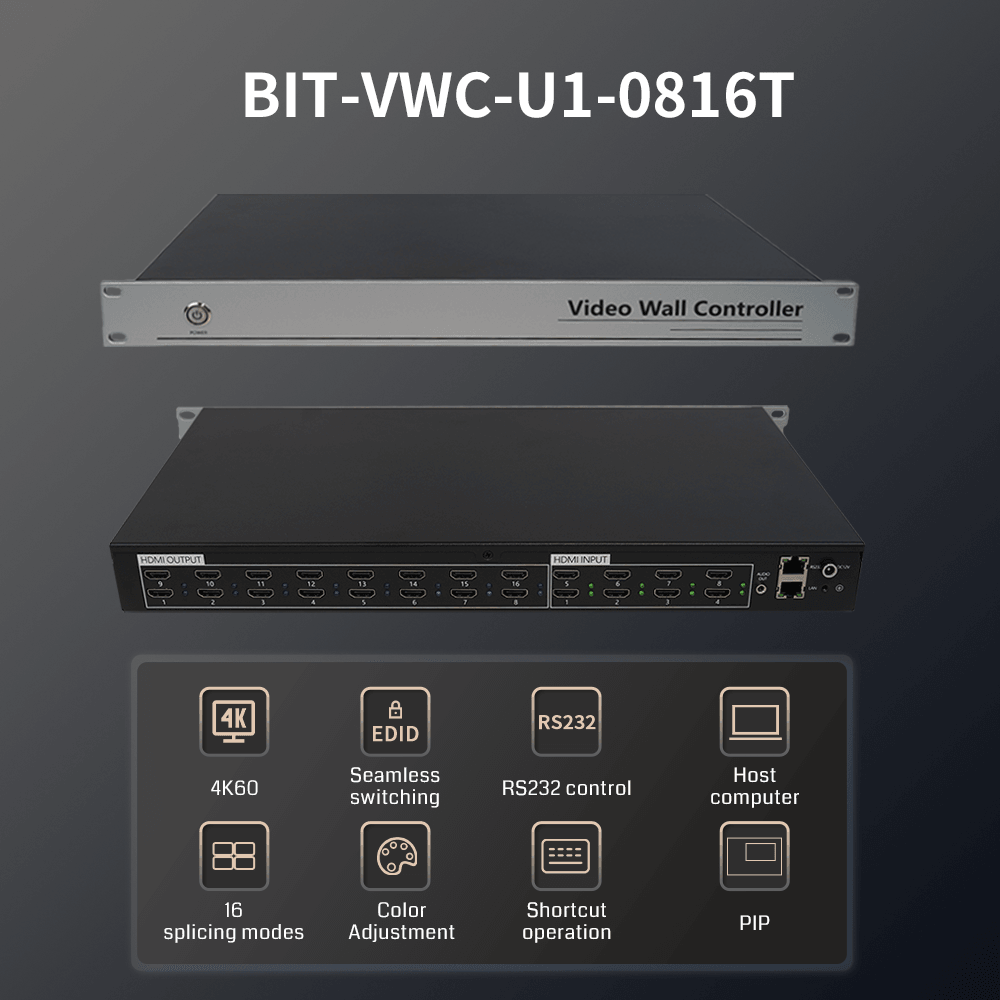

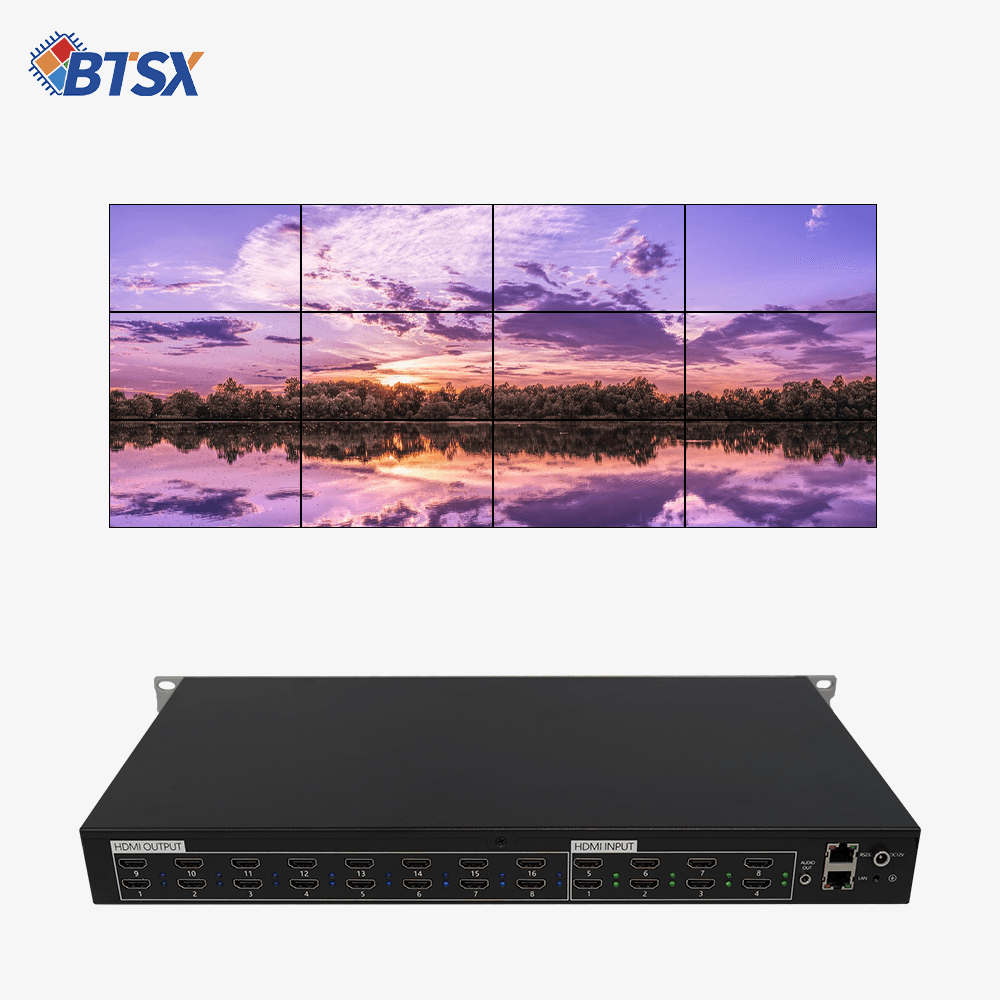

BIT-VWC-U1-0816T 4K60Hz HDMI Switch Video Wall Controller Rotation PIP Remote Control RS232

BIT-VWC-U1-0816T 4K60Hz HDMI Switch Video Wall Controller Rotation PIP Remote Control RS232

Regular price $832.00 USD
Regular price Sale price $832.00 USD
Sale Sold out
Request Quote

📣The price is the sample price, if you want to Get a Business cooperation price, please click the right corner button chat with us. You can also click here or click the Request Quote button to submit your request for a quote.

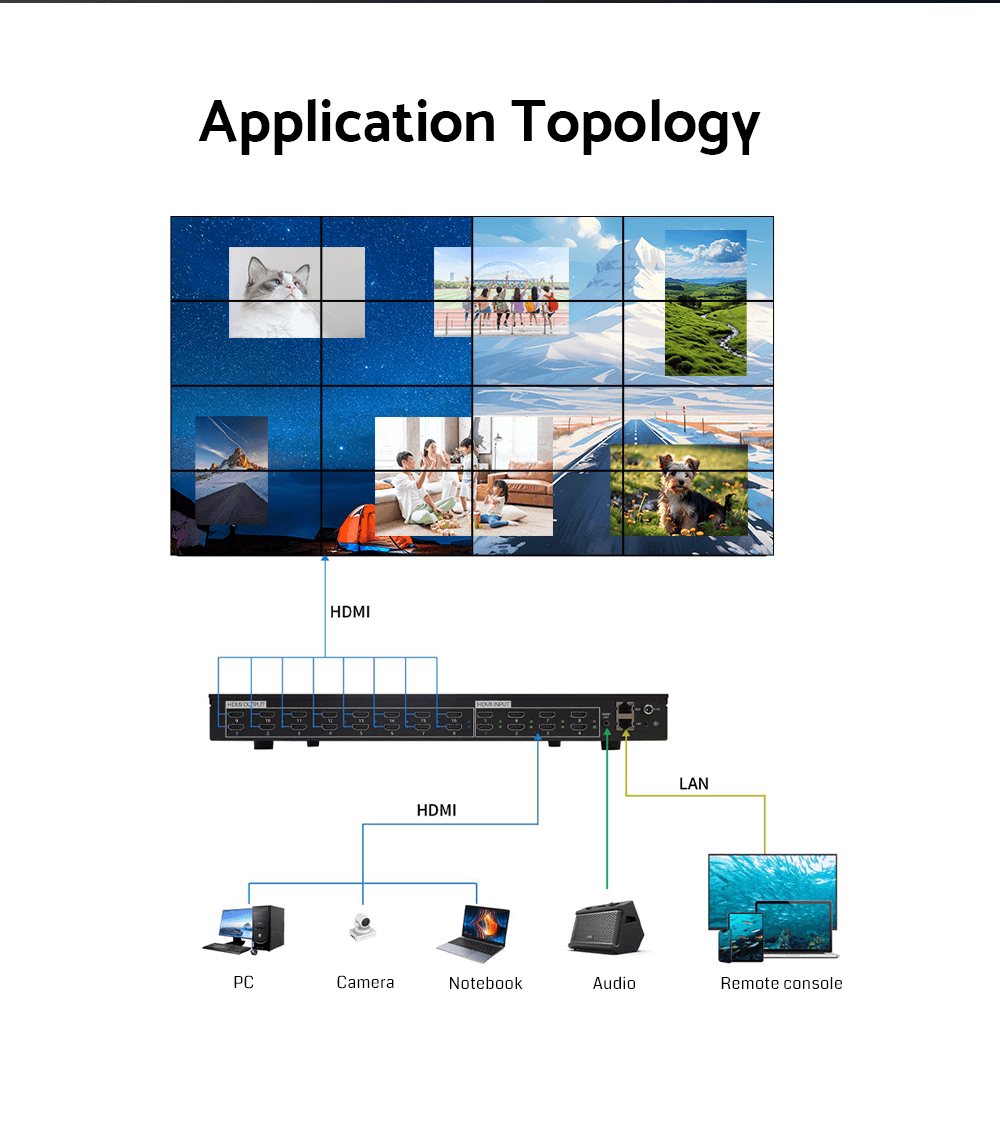

📌Supports 8 channels of HDMI high-definition signal input and 16 channels of HDMI high-definition digital signal output

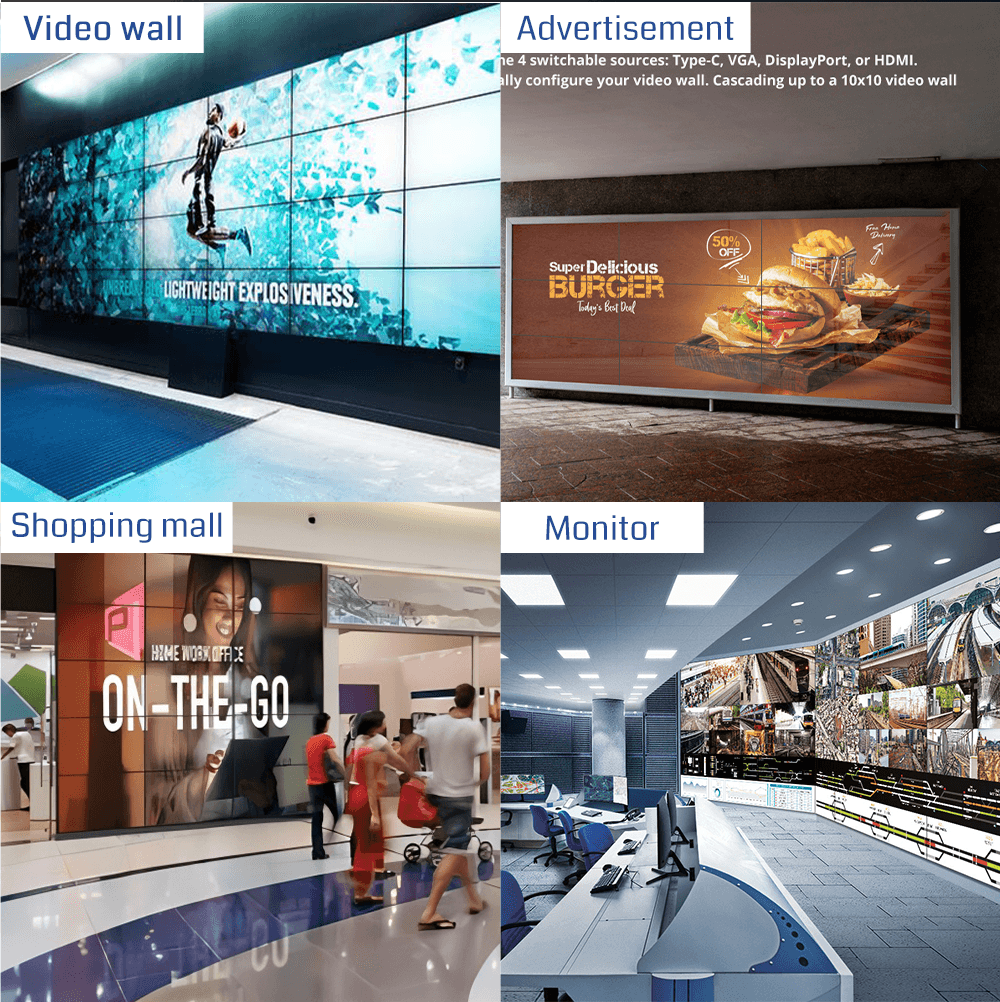

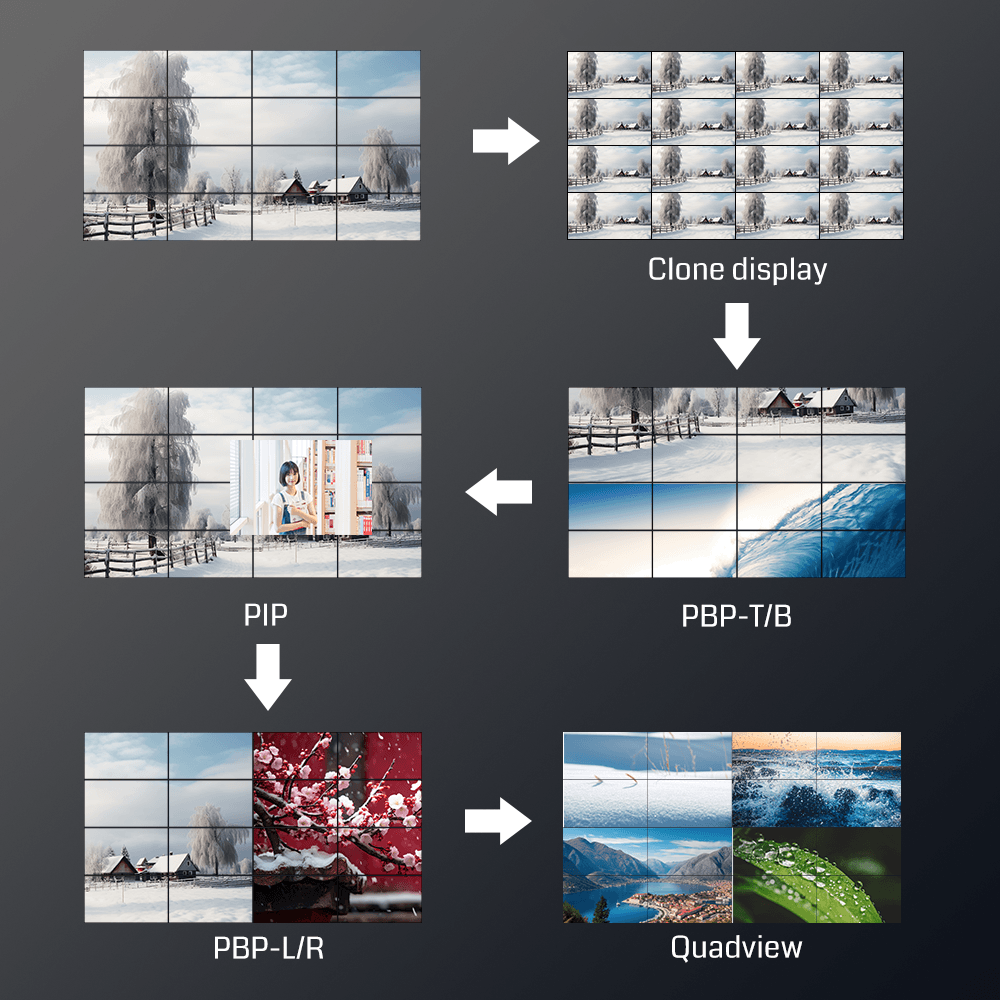

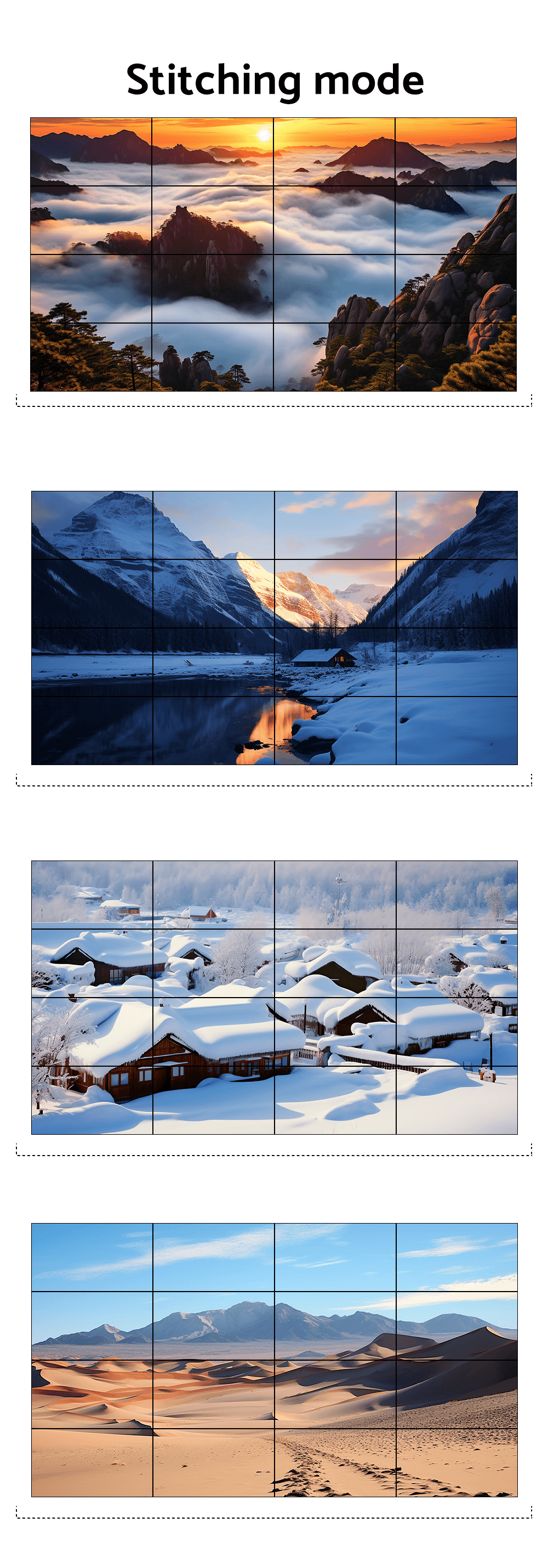

📌Support any video signal on the wall for splicing,roaming,cross-screen,zoom in and out,picture-in-picture,outside-picture,picture overlay,etc

📌There are 9 windows on a single screen,and the entire screen layer supports 9*N layer overlay(N is the number of spliced screens).The entire processor opens 144 windows.

📌Supports single-port acquisition of 1920x1080@60HZ ultra-high-definition signals; supports single-port output of 1920x1080@60HZ ultra-high-definition signals

📌Built-in FPGA audio de-embedding and switching function,which can separate and switch any HDMI audio channel to the 3.5mm audio output interface

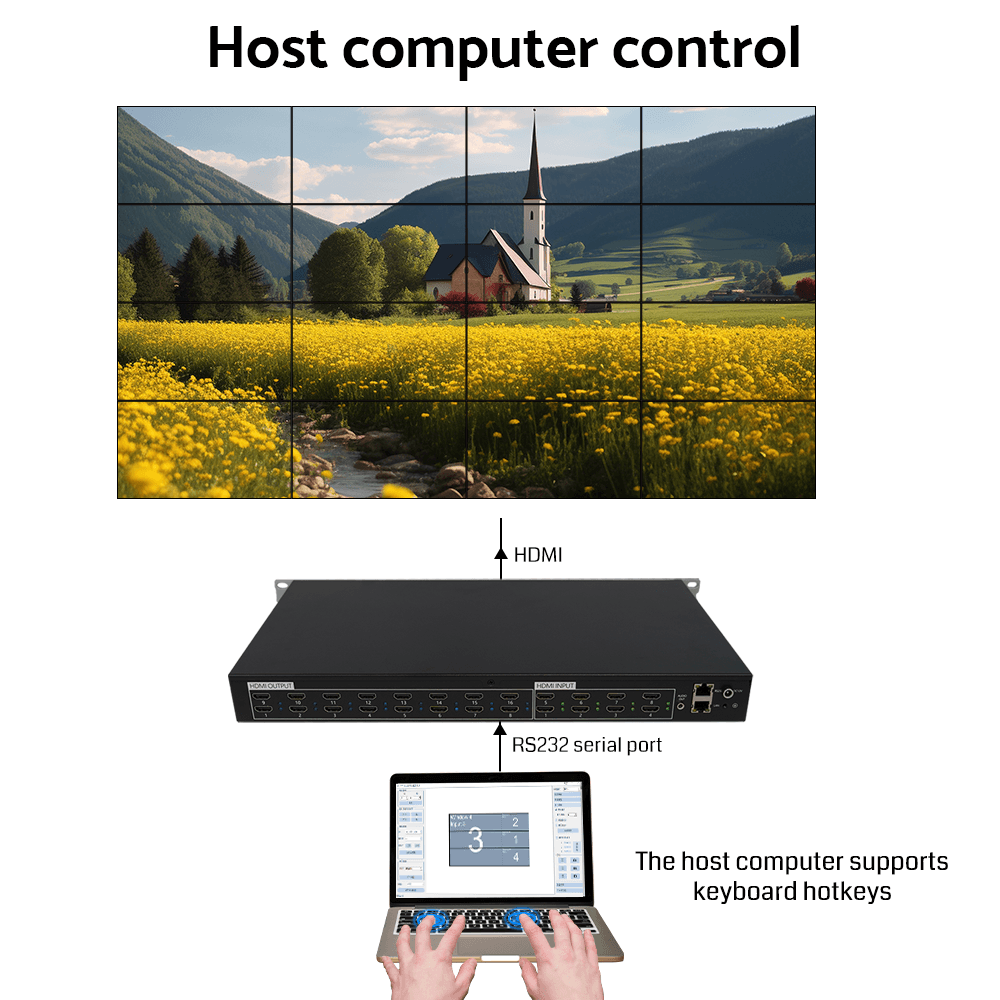

📌Supports Android tablet/Mobile phone APP control/WEB control

📌Supports the saving of more than 1,000 planned scenarios.Switch between scenarios at will

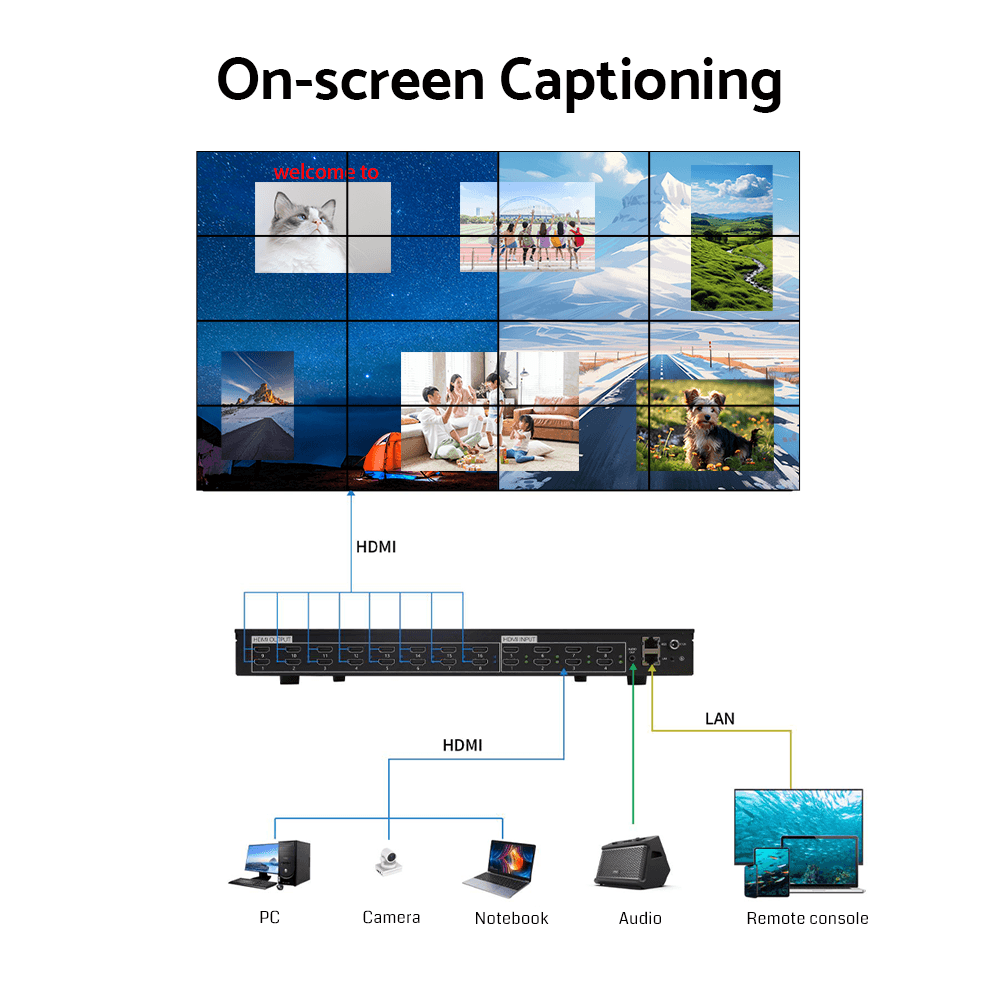

📌Supports ultra-high definition subtitle function



Product name BIT-VWC-U1-0816T

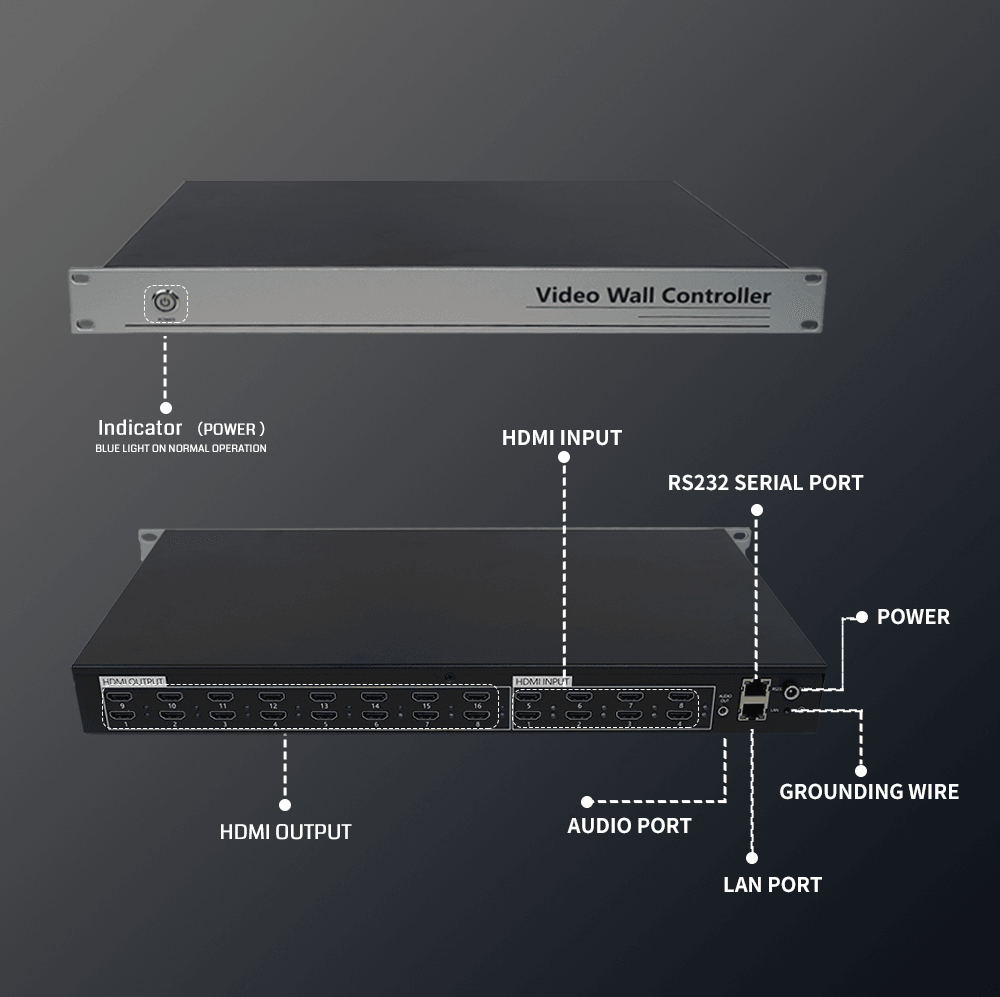

Enter interface type HDMI 1.4x8
Input resolution

Support 1920*1080P @60/50,1920*1080P@30/25,720P60/50,1024*768@60

Output interface type HDMI 1.4x16
Output resolution 1920*1080P@60output,support custom resolution
Audio port Support whole-machine audio de-embedding output
Power supply DC 12V/5A
Storage/operating temperature 0℃~50℃

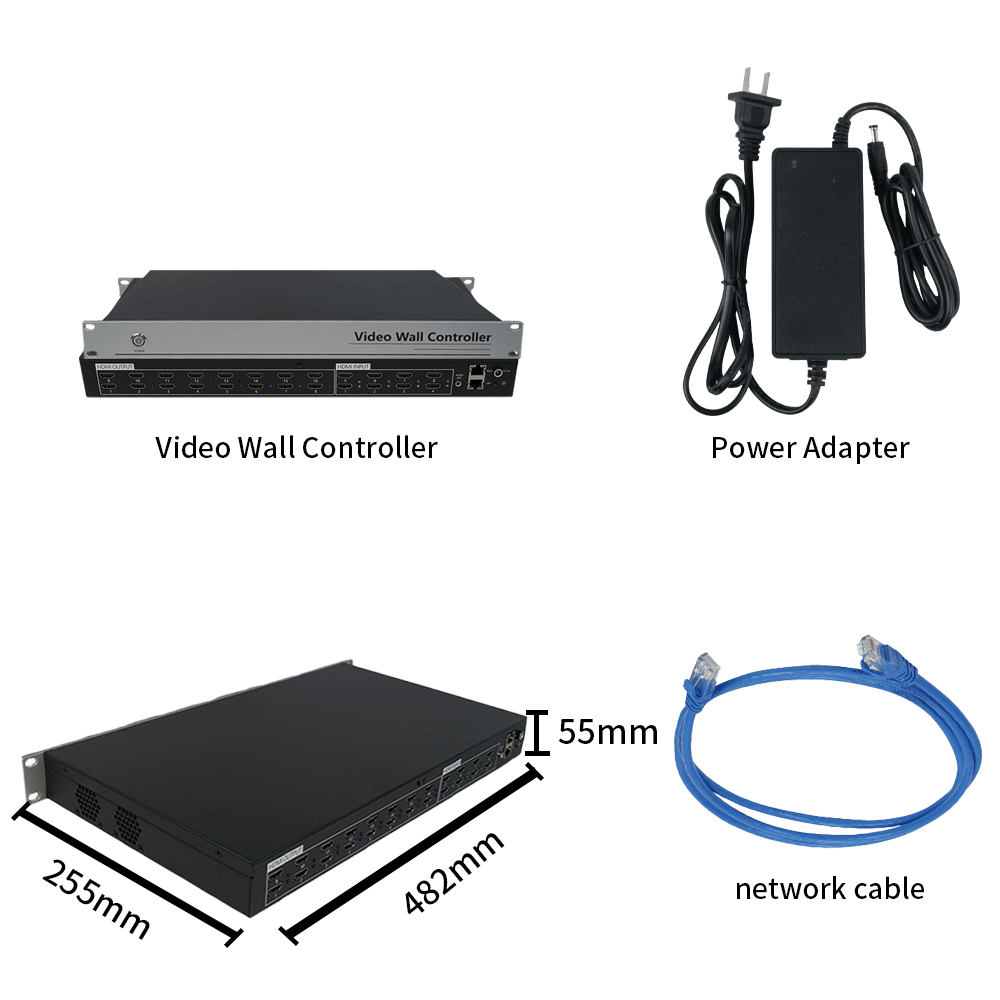

Product size 482×255×55mm
Product weight 3.2KG
Power consumption About 35W
After-sales service 1 year
