BITVISUS

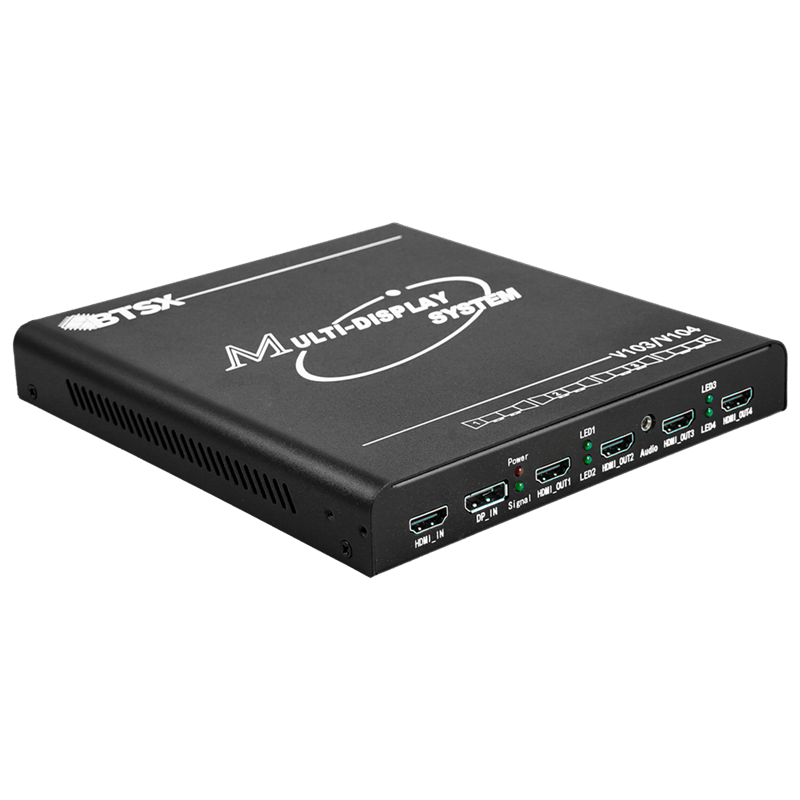

BIT-MSE-4K60-104PRO 4K60Hz 2x2 1x4 4x1 1x3 3x1 Projection Video Wall Controller Fusion System HDMI/DP 2 Inputs 4 Outputs

BIT-MSE-4K60-104PRO 4K60Hz 2x2 1x4 4x1 1x3 3x1 Projection Video Wall Controller Fusion System HDMI/DP 2 Inputs 4 Outputs

Regular price $837.99 USD
Regular price Sale price $837.99 USD
Sale Sold out
Plug Type
Request Quote

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

📌Professional Video Wall Controller/Projection Fusion System. No need to set up, no stretching, no deformation. Support EDID burning and custom resolution

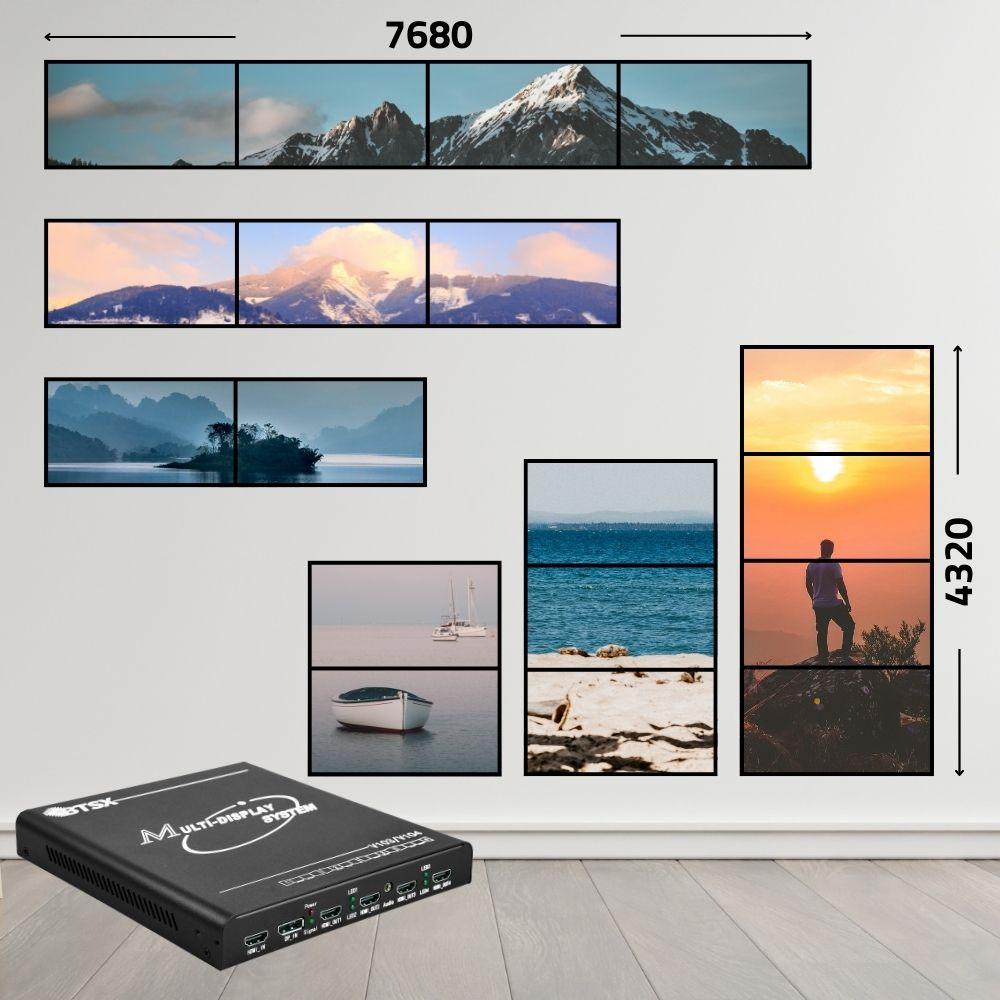

📌HDMI2.0/DP1.2 Inputs, 4 HDMI outputs, Various display modes(1x2, 2x1, 1x3, 3x1, 4x1, 1x4, 2x2.)

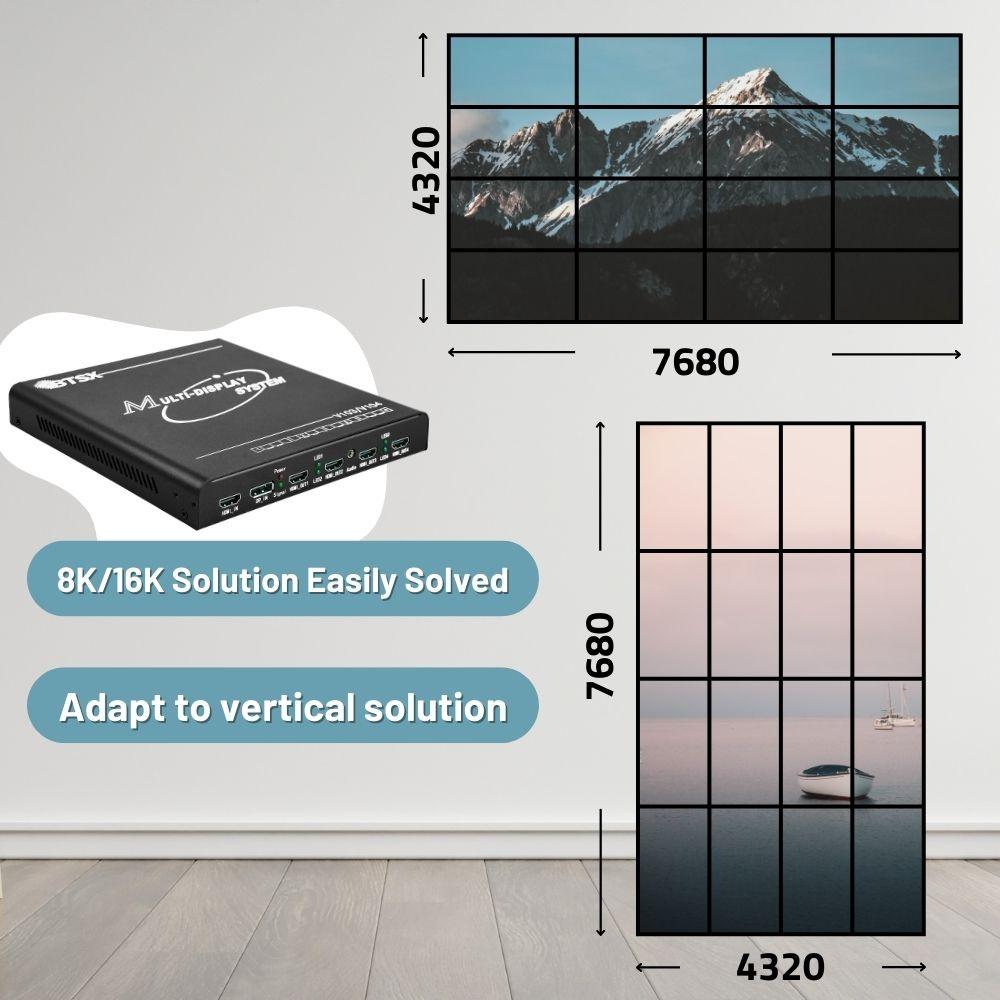

📌Up to 4K resolution, 1x4/4x1 Max. resolution is 7680x1200@60Hz, 1920x4800@60Hz. 2x2 Max. resolution is 4K/4320x2400@60Hz. Backward compatible with lower resolutions

📌28nm High-end programmable FPGA chip, full hardware real-time processing architecture, switching mode without delay.

📌Typical application includes Conference system, Commercial display, Exhibition, Immersive room, Interactive projection, Digital Classroom, Live stream

Product Name BIT-MSE-4K60-104PRO

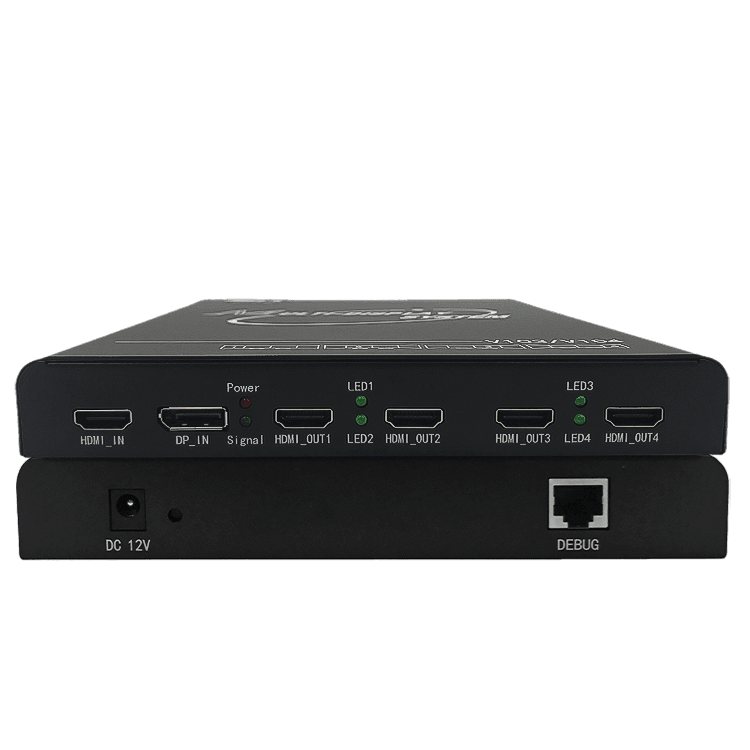

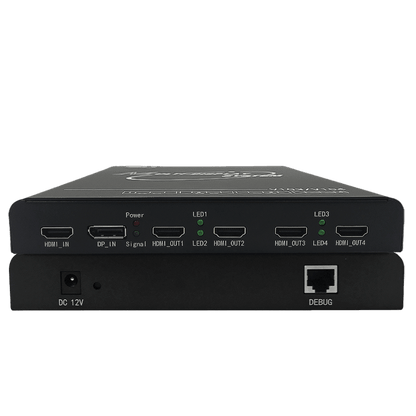

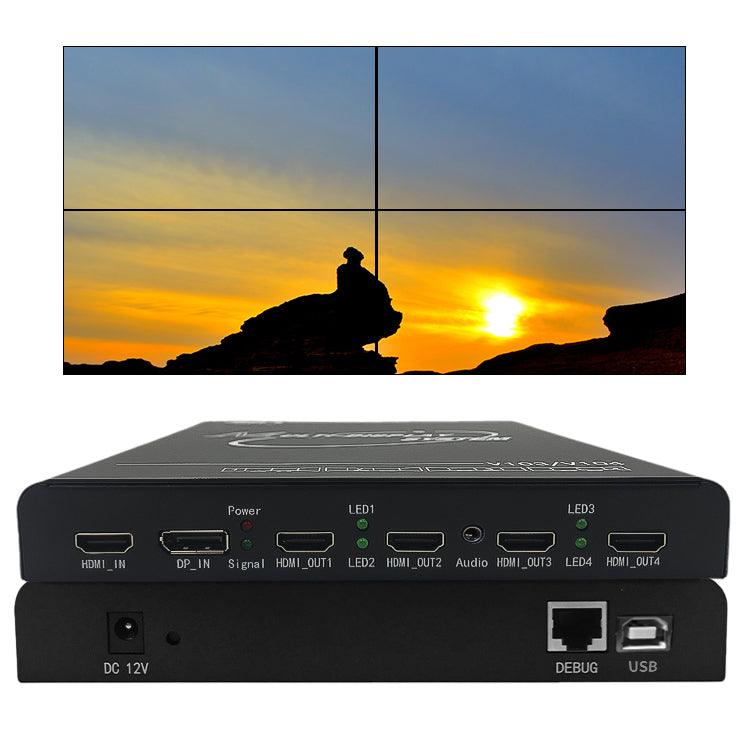

Input Interface 1*DP 1.2, 1*HDMI 2.0
Output Interface 4*HDMI 1.4
Input Pixel Clock Rate 600MHz
Output Max Pixel Clock Rate 300MHz

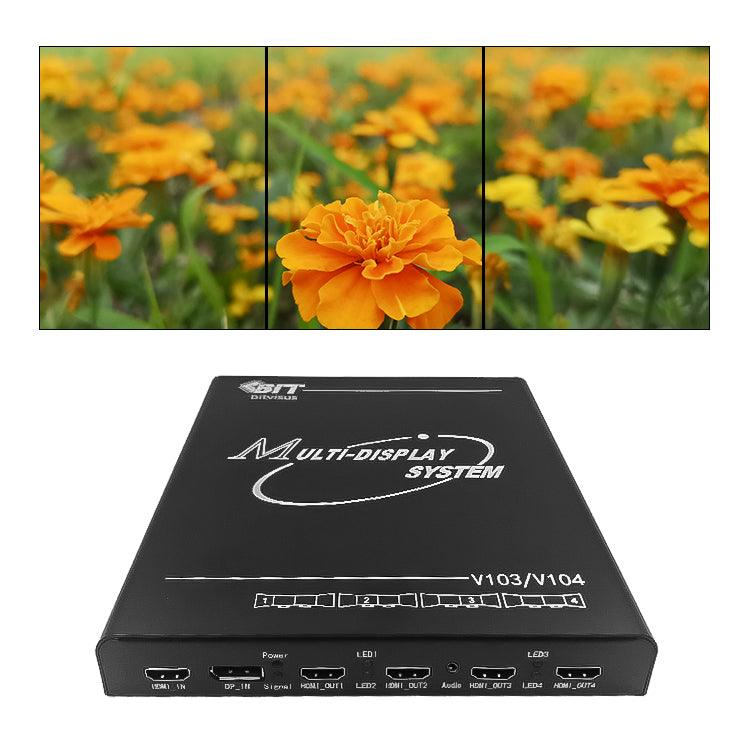

1x3 Typical Resolution 5760x1200@60Hz 5760x1080@60Hz
3840x800@60Hz 3072x768@60Hz

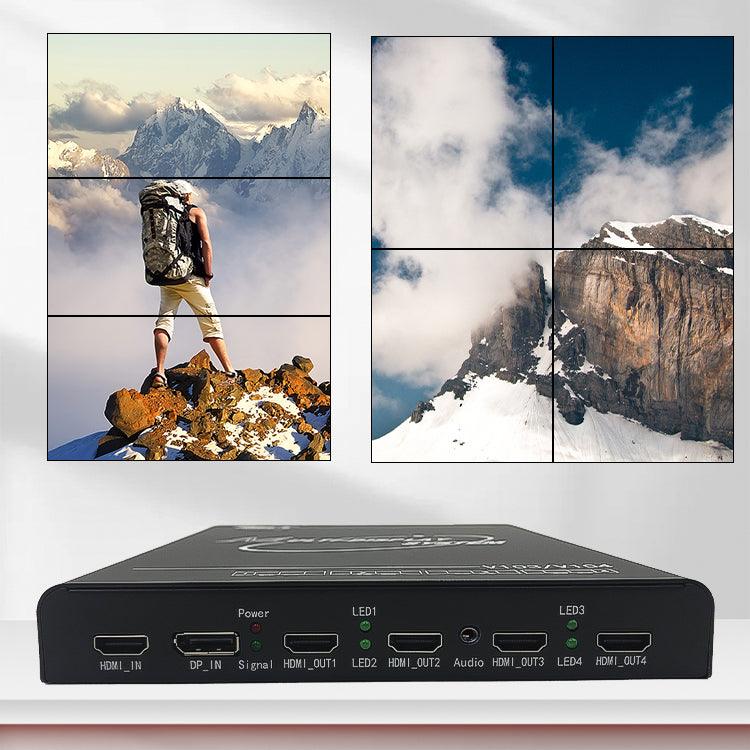

3x1 Typical Resolution 1920x3600@60Hz 1920x3240@60Hz
1280x2400@60Hz 1024x2304@60Hz
1x4 Typical Resolution 7680x1200@60Hz 4x1920x1080@60Hz
4x1280x800@60Hz 4x1024x768@60Hz
4x1 Typical Resolution 7680x4800@60Hz 1920x4320@60Hz
1280x3200@60Hz 1024x3072@60Hz
Factory Default Resolution 3840x2160@60Hz
2x2 Max Supported Resolution 3840x2160@60Hz 3840x2400@60Hz
1x2/2x1 Max Support Resolution 7680x2160@30Hz 3840x4320@30Hz
Hot Plugging
Power-off Memory
Output Distance 15m
Support custom resolution
Size(L*W*H) 36.2X21.5X7.3 cm
Weight 625g

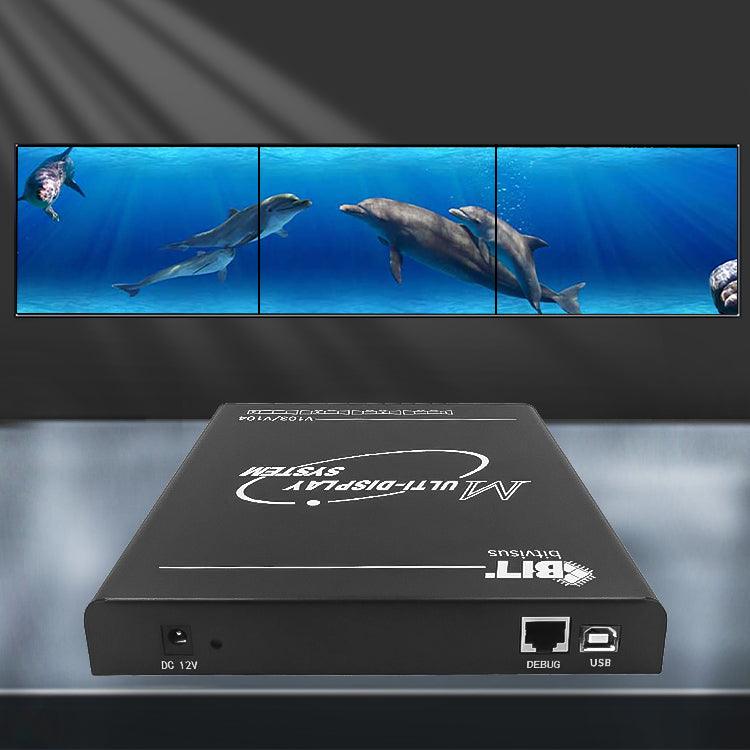

Power supply 12V@2A AC-DC
